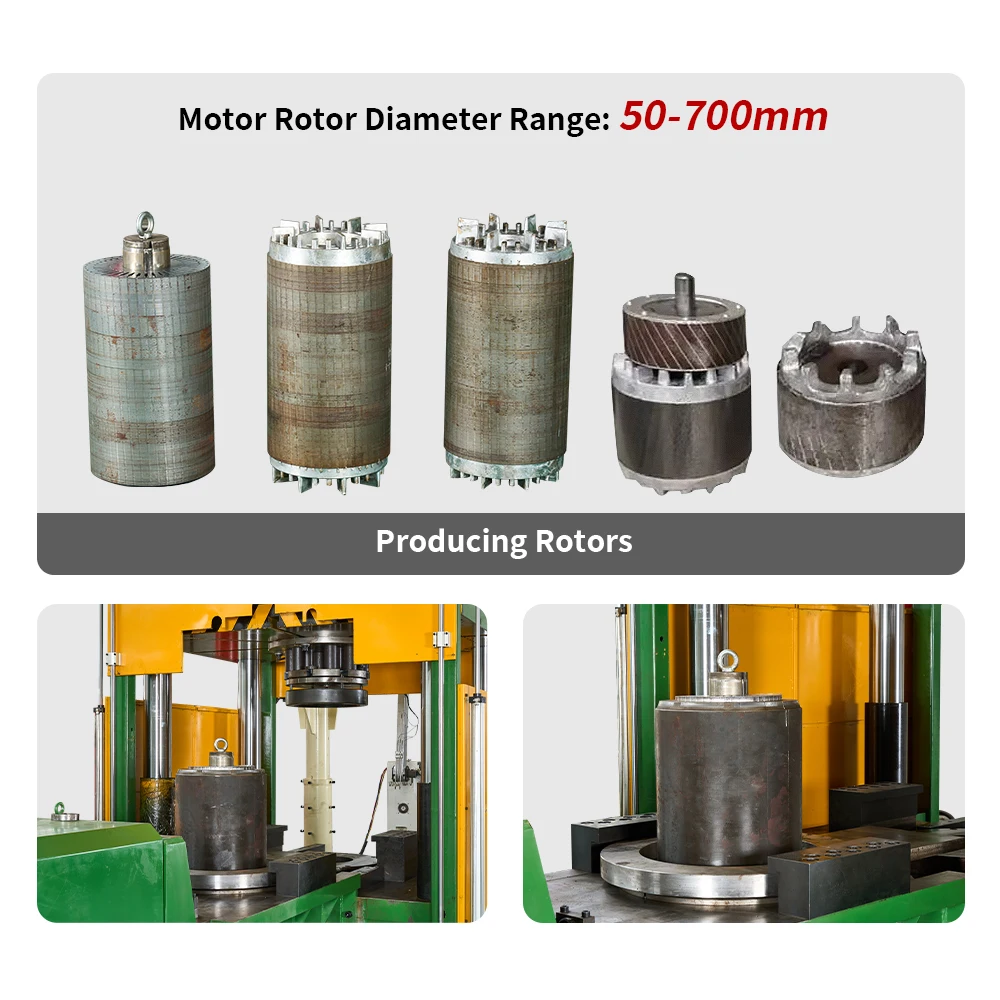

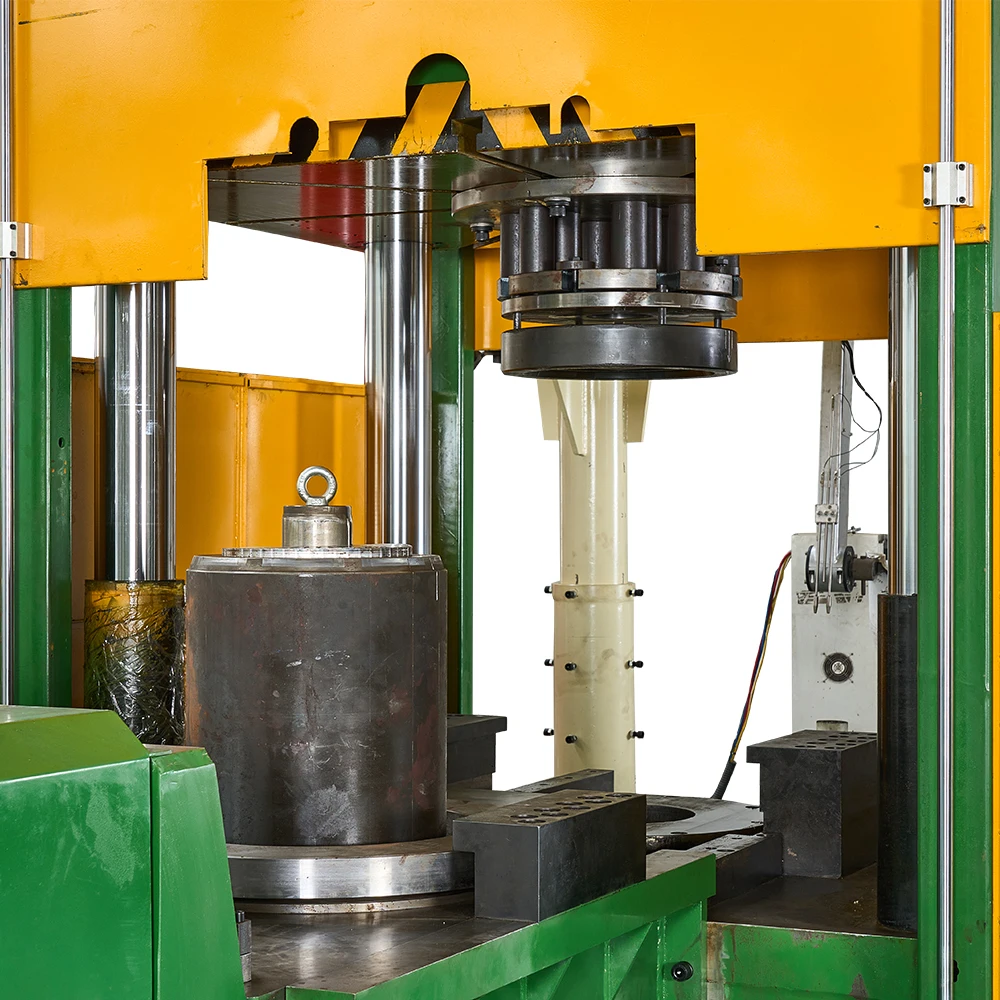

800T Cold Chamber Pressure Die Casting Machine Gravity Aluminum Alloy Casting Machine for Motor Rotor

Product Description

Product Name	Motor Rotor Die Casting Machine
Machine Type	Aluminium Die Casting Machine

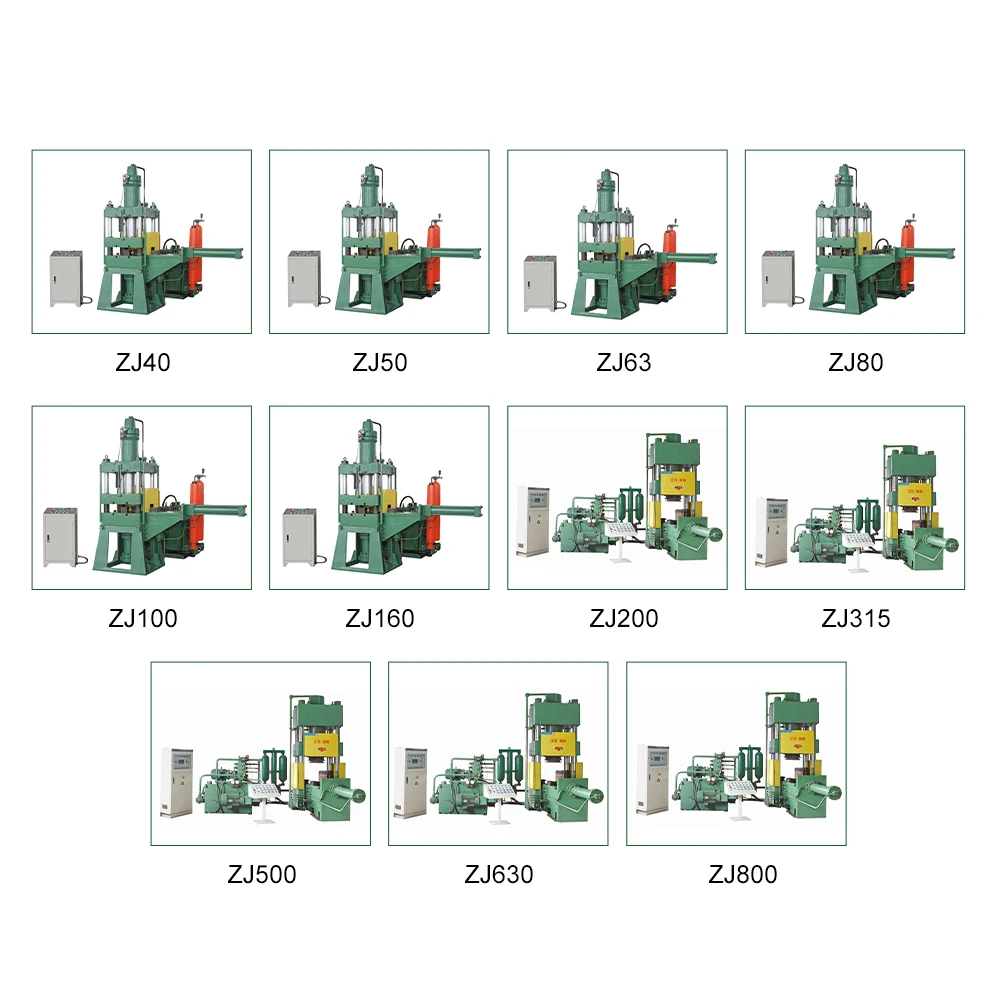

Model	ZJ800

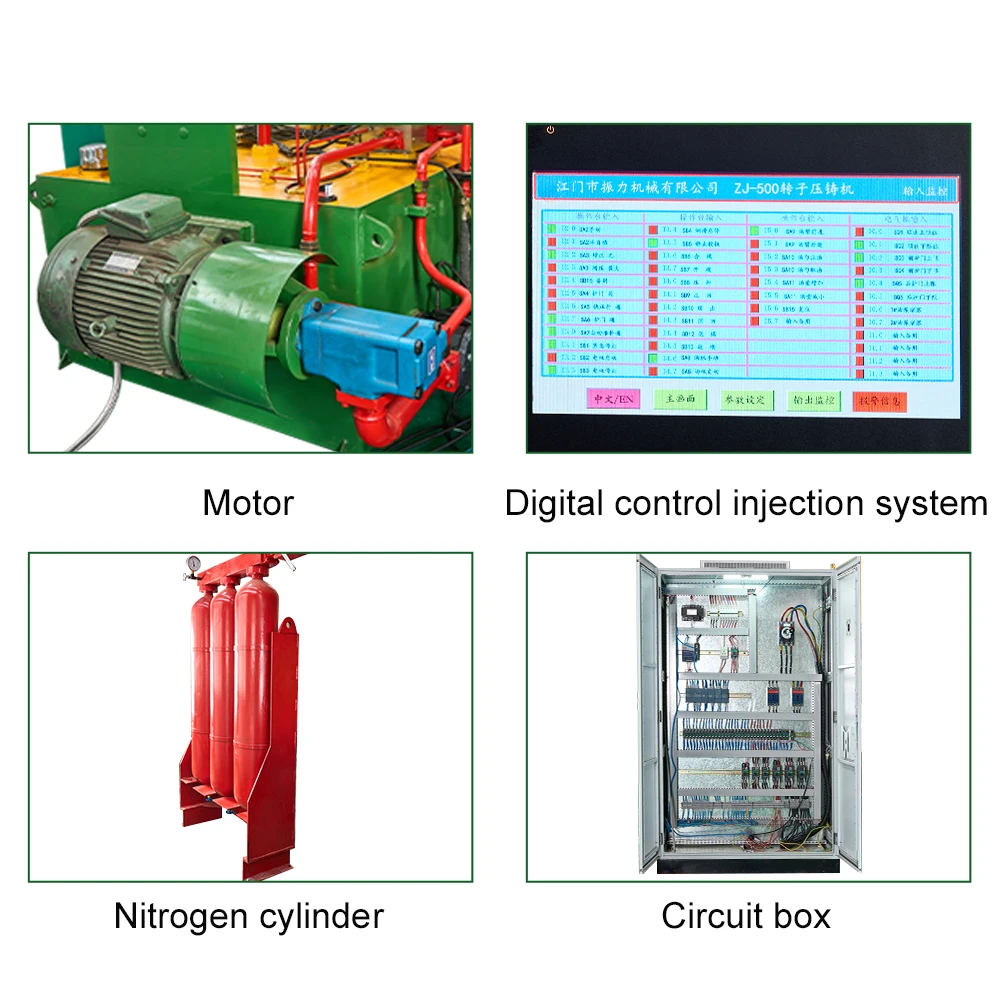

High Configuration

Automated Production

1. Pneumatic safety door

2. Servo motor oil pump system

3. H13 melting cup

4. Fast die closing

5. Ladle machine

1. Manual safety door

2. General motor oil pump system

3. Ductile iron melting cup

4. Slow die closing 5. Mold feeding device

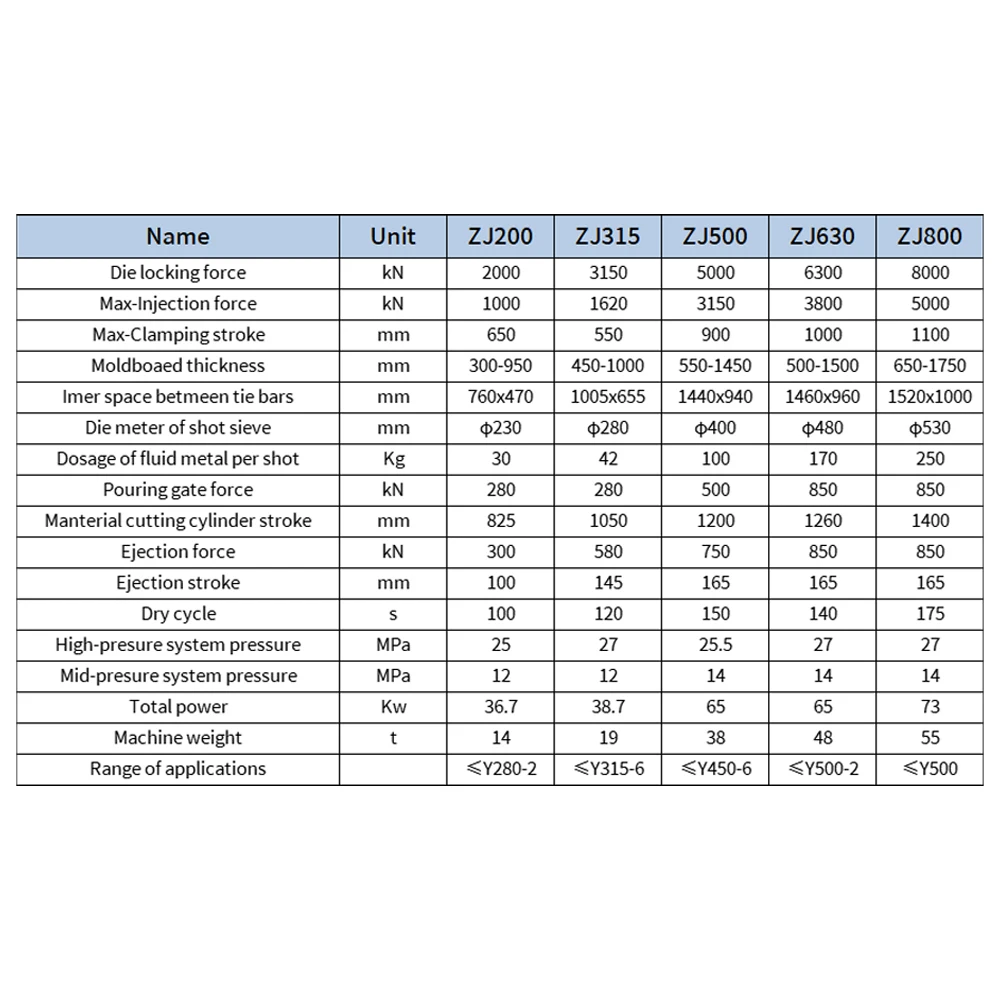

Specification

Product Name	Motor Rotor Die Casting Machine
Power	73KW
Clamping Force	8000KN
Casting Stroke	1100mm
Casting Force	5000KN
Open Stroke	1400mm
Space between tie bars	1520*1000mm
Weight	55000KG
Warranty	1 Year
Max.thickness of die block	1750mm
Min.thickness of die block	650mm
Ejection Force	850KN
Ejection Stroke	165mm
Injection Chamber Diameter	530mm
Aluminum Injection Quantity(Maximum)	250kg
High Pressure System Pressure	27MPa
Low Pressure System Pressure	14MPa
Pouring Gate Force	850KN
After-sales Service Provided	Engineers Available To Service Machinery Overseas
