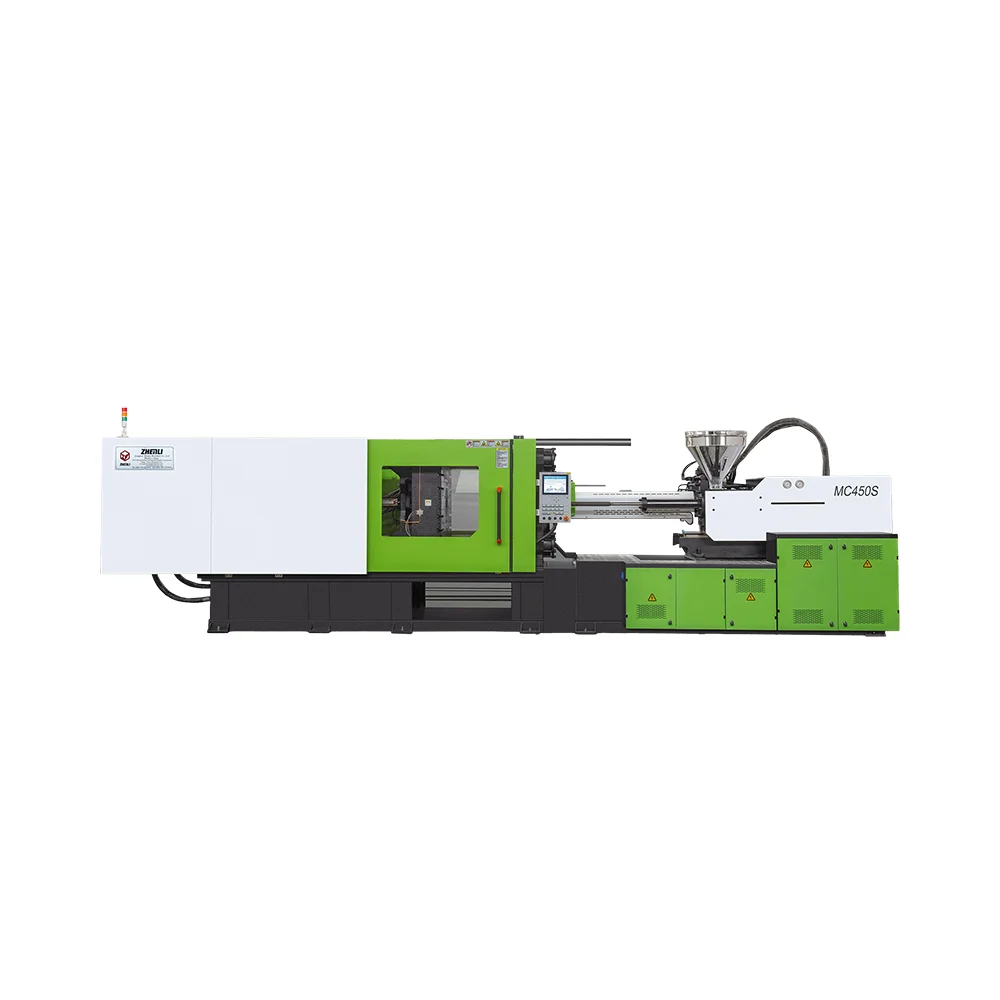

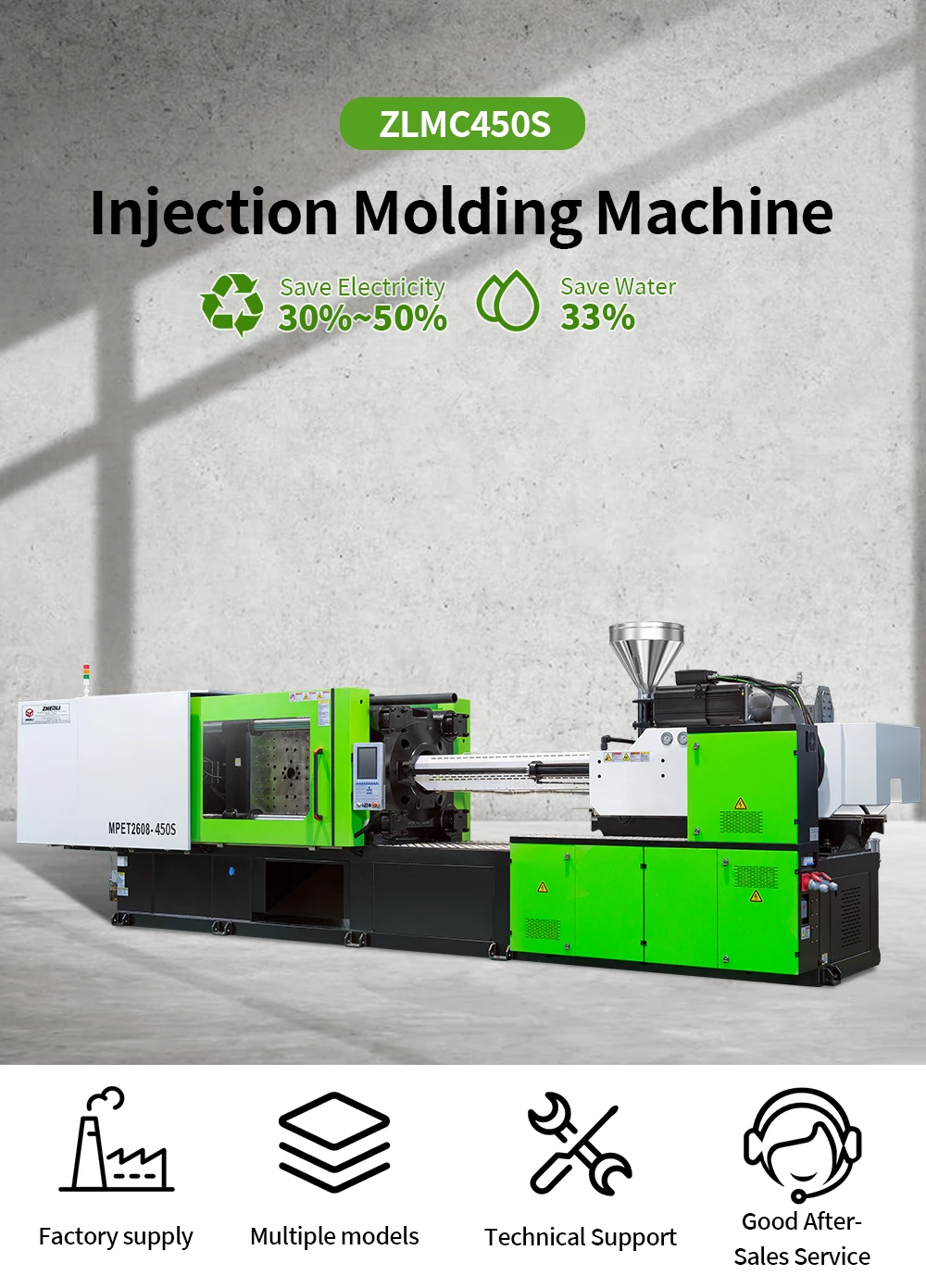

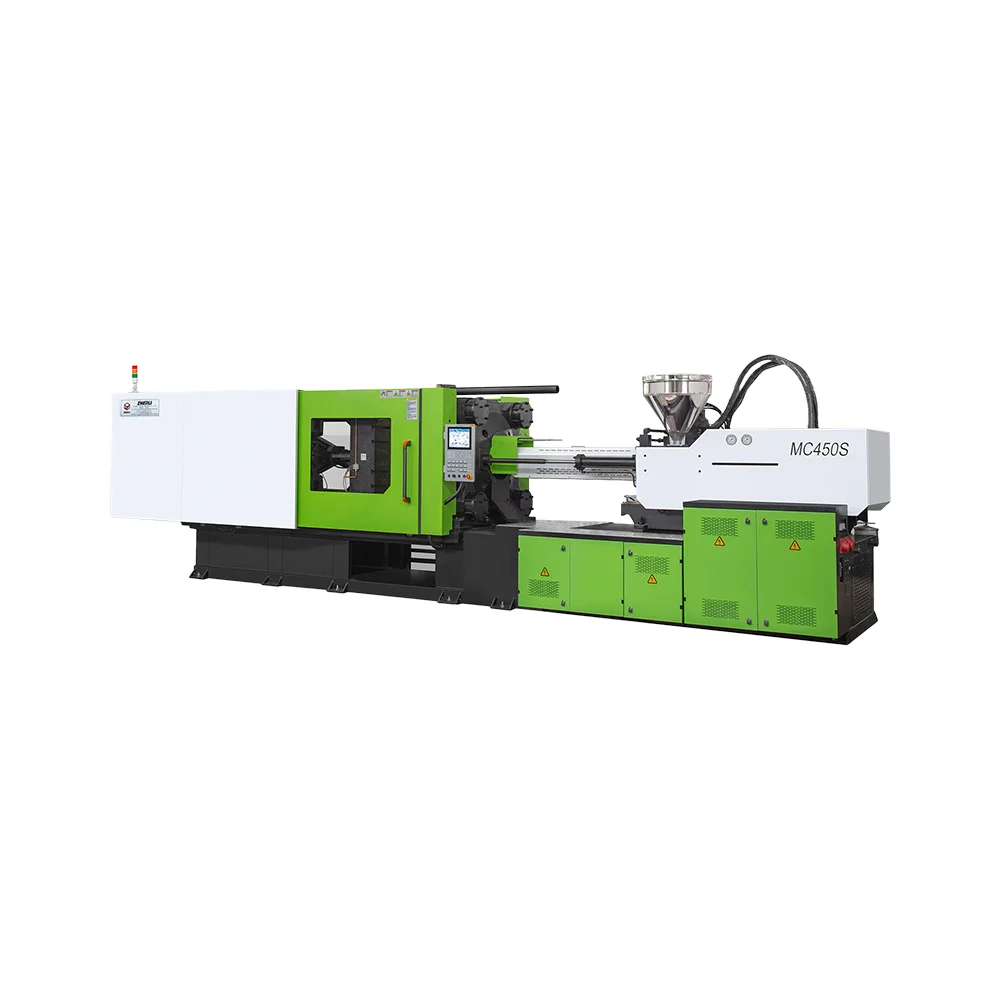

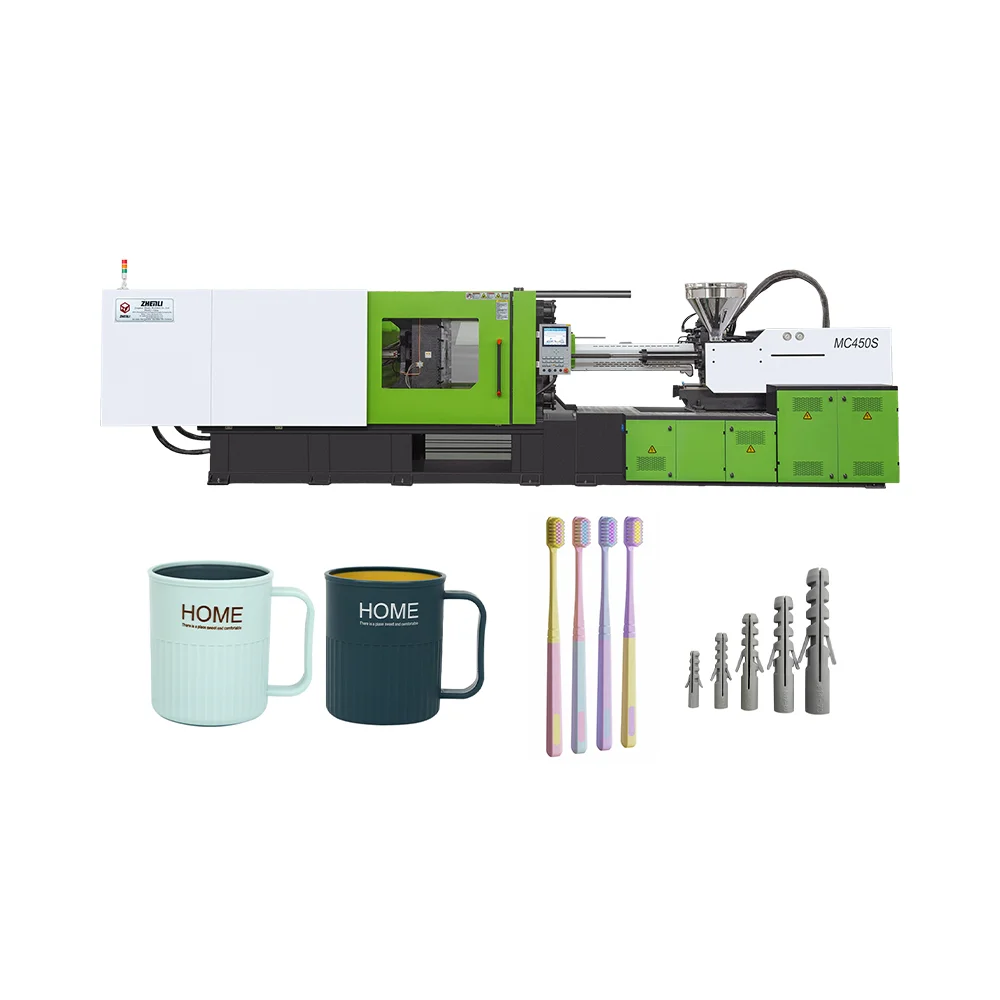

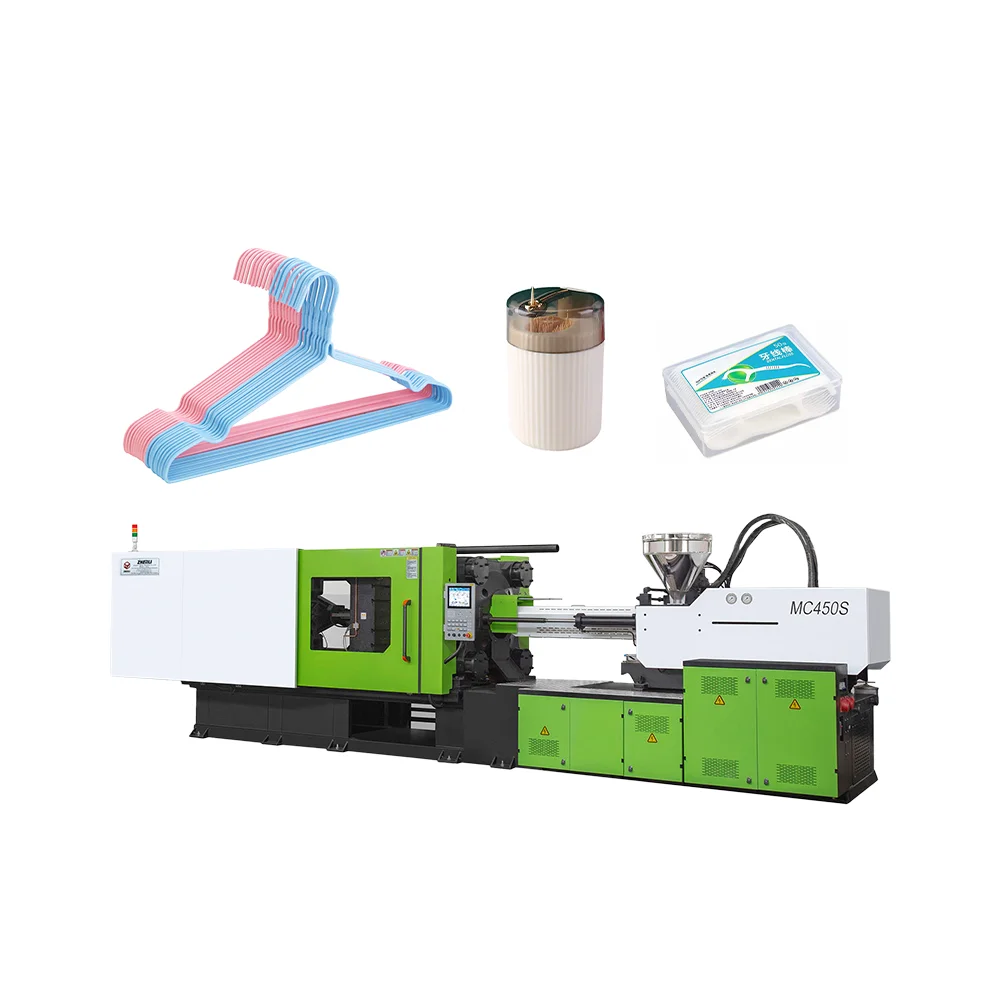

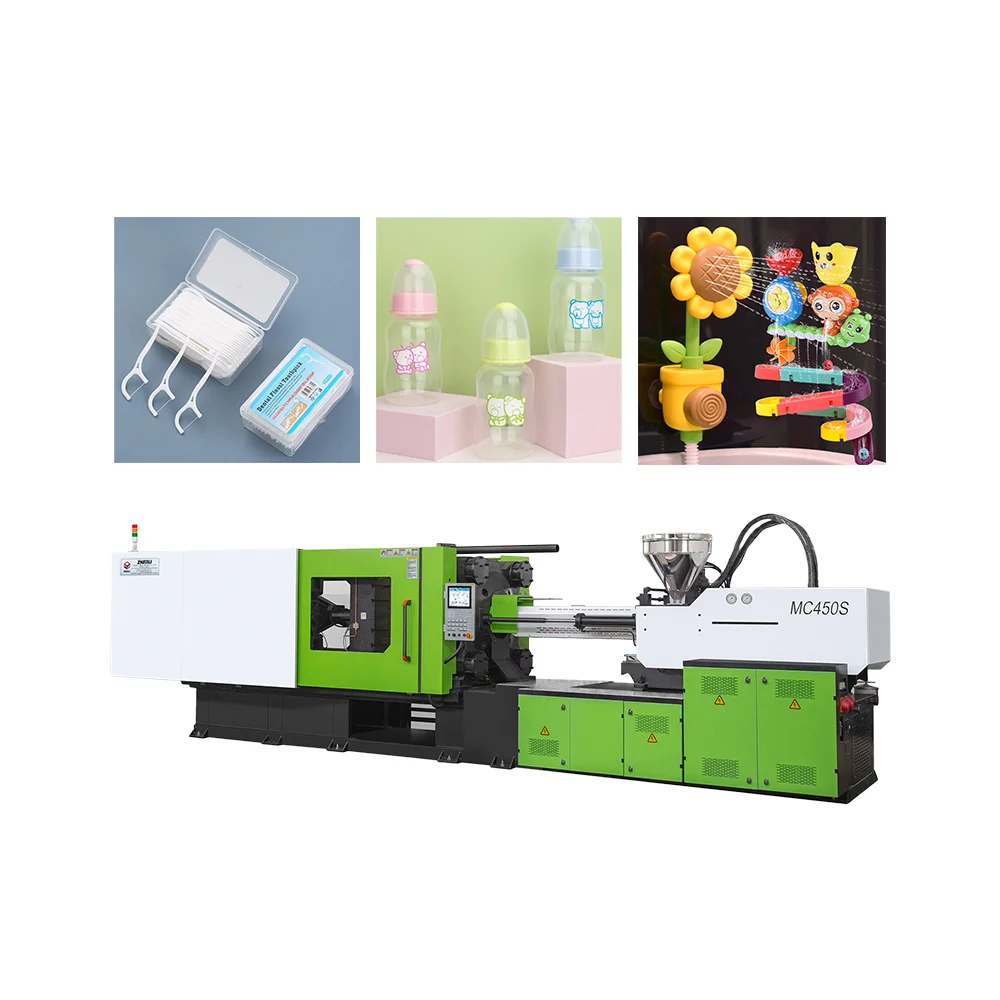

Manufacturer PET Preform Making Injection Molding Machine Dental Floss 450 Ton Injection Molding Machine
- Overview
- Recommended Products

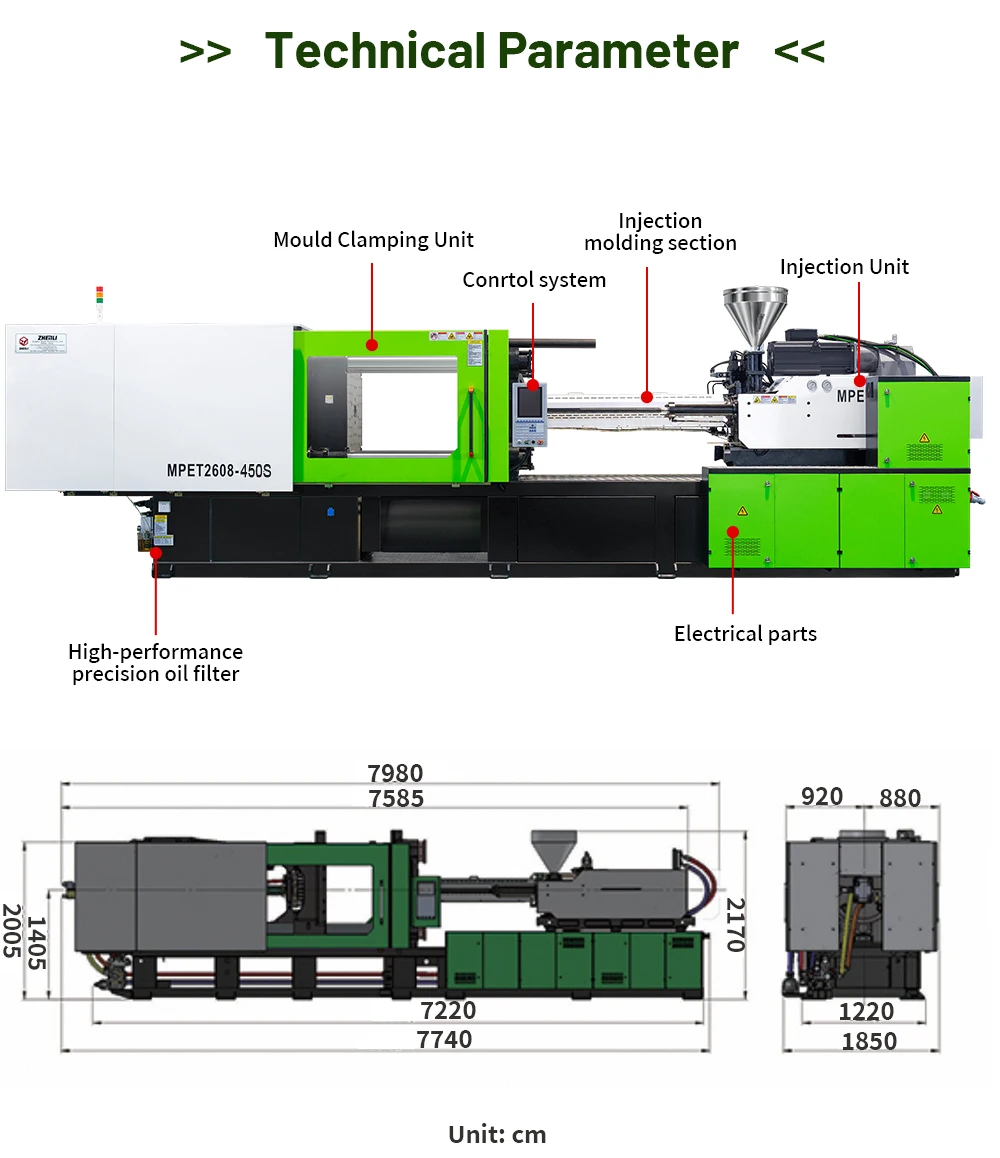

Specification
ZLMC450S |
||||||||
Injection part |
||||||||
INJECTION UNIT |
unit |
A |
B |
C |
||||
Screw diameter |
mm |
67 |
75 |
85 |
||||
Shot volume |
cm³ |
1410 |
1766 |
2269 |
||||
Shot weight(PS) |
g(ps) |
1311 |
1643 |
2110 |
||||
Injection pressure |
MPa |
231 |
185 |
143 |
||||
Theoretical Injection rate |
cm³/s |
299 |
375 |
481 |
||||
Plasticizing Capacity(ps) |
g/s |
49.1 |
58.5 |
70.1 |
||||
Screw I/D ratio |
I:D |
25:1 |
21:1 |
20:1 |
||||
Screw speed(stepless) |
rpm |
0-156 |
0-156 |
0-156 |
||||
Screw stroke |
mm |
400 |
400 |
400 |
||||
Clamping part |
||||||||
Clamping force |
KN |
4500 |
||||||
Opening stroke |
mm |
750 |
||||||
Max.daylight |
mm |
1500 |
||||||
Mold thickness(min-max) |
mm |
280-750 |
||||||
Space between tie bars |
mm |
760x730 |
||||||
Platen size |
mm |
1050x1020 |
||||||
Hydraulic ejection force |
kN |
111 |
||||||
Hydraulic ejection stroke |
mm |
205 |
||||||
Power/Electricity/Other |
||||||||
Hydraulic system pressure |
MPa |
17.5 |
||||||
Motor/Server |
KW |
53 |
||||||
Heating capacity |
KW |
21 |
||||||
Oil tank capacity |
L |
550 |
||||||
Machine weight |
Kg |
16000 |
||||||
Product Description
