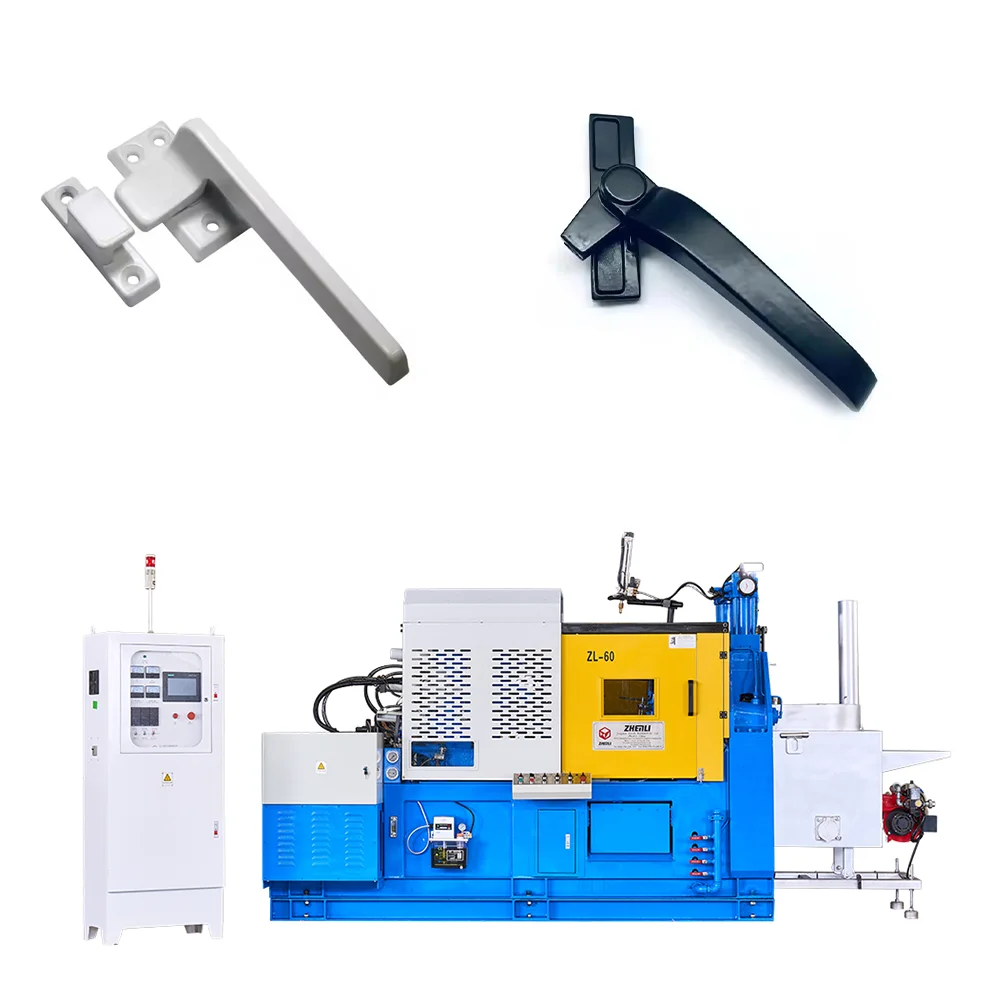

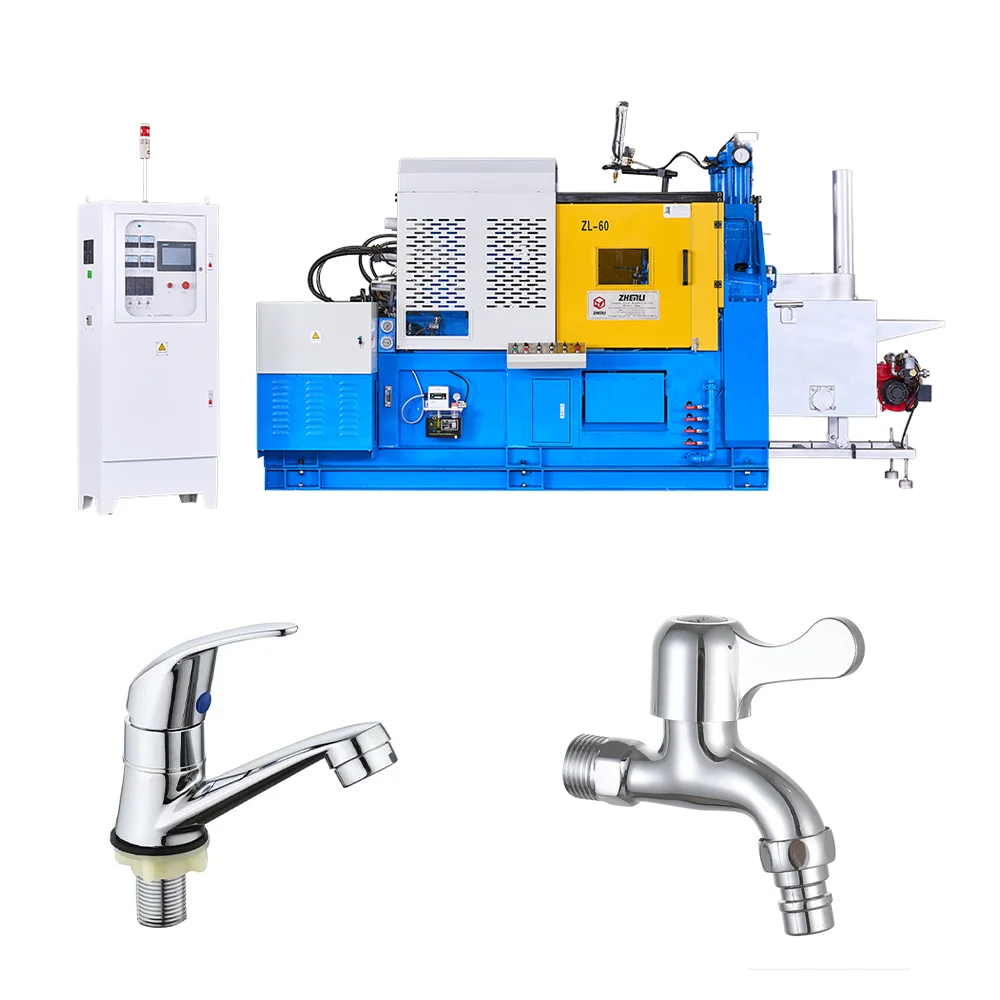

High Pressure Zhenli 60Ton Die Casting Machine Mini Zinc Die Casting Machine for Making Metal Badge
Locking Force：600KN
Die Stroke：225mm
Ejection Force：50KN
Ejection Stroke(Max)：65mm
Die Thickness(Min-Max）：120-325mm
- Overview
- Recommended Products
Products Description
ITEM |
Unit |
ZL-60T |
||||
Locking Force |
KN |
600 |
||||
Die Stroke |
mm |
225 |
||||
Ejection Force |
KN |
50 |
||||
Ejection Stroke(Max) |
mm |
65 |
||||
Die Thickness(Min-Max） |
mm |
120-325 |
||||
Tie Bar Diameter |
mm |
50 |
||||
Space Between Tie Bars(W×H) |
mm |
309×309 |
||||
Shot Position |
mm |
0 ,-50 |
||||
Plunger Stroke |
mm |
130 |
||||
Traverse Stroke |
mm |
200 |
||||
Injection Force(Max) |
KN |
65 |
||||
Diameter Of Plunger |
mm |
45 |
50 |
|||
Max Shot Weight(Zn) |
Kg |
0.9 |
1.0 |
|||
Hydraulic Pressure |
Mpa |
13.0 |
||||
Motor Power |
KW |
7.5 |
||||
Crucible Capacity(Zn) |
Kg |
320 |
||||
Capacity Of Accumulator |
L |
16 |
||||
Furnace Energy Consumption
|
Diesel-Fired Furnace |
KG/h |
4.8 |
|||
Electric Furnace |
KW |
30 |
||||
Capacity Of Oil Tank |
L |
210 |
||||
Machine Size(L×W×H) |
mm |
3570×1450×1880 |
||||
Weight of Machine |
kg |
3100 |
||||

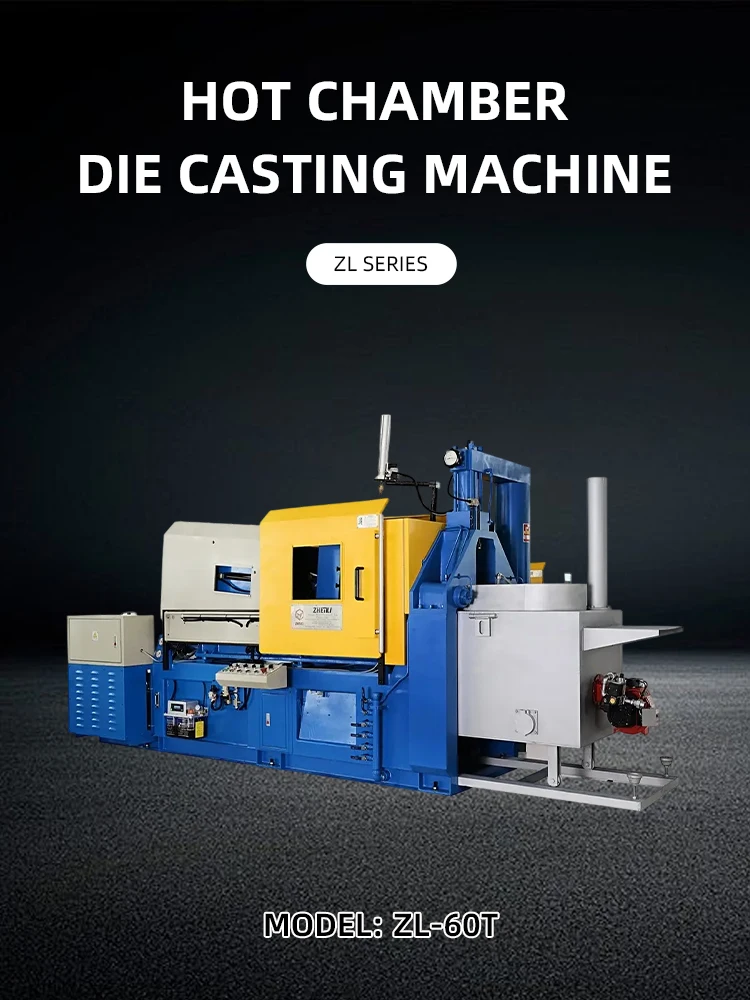

Details Images
