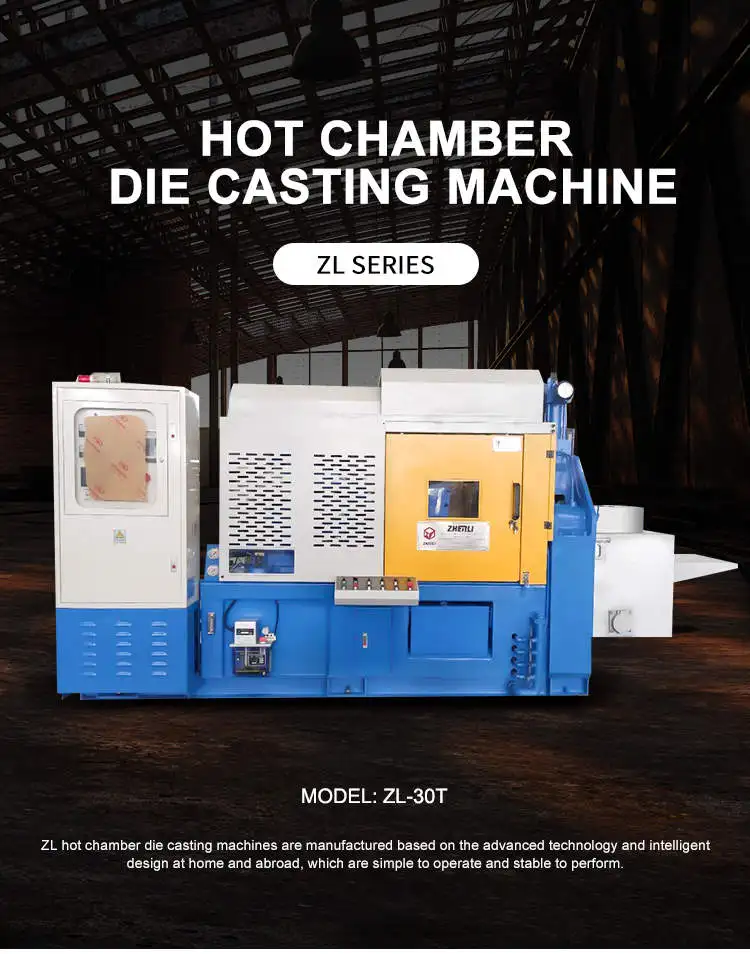

ZhenLi Factory 30T Metal Zipper Hinge Making Machine Zamak Zinc Alloy Die Casting Machine
Locking Force：300KN
Die Stroke：190mm
Ejection Force：35KN
Ejection Stroke(Max)：55mm
Die Thickness(Min-Max）：100-305mm
- Overview
- Recommended Products
Products Description
ITEM |
Unit |
ZL-30T |
||||
Locking Force |
KN |
300 |
||||
Die Stroke |
mm |
190 |
||||
Ejection Force |
KN |
35 |
||||
Ejection Stroke(Max) |
mm |
55 |
||||
Die Thickness(Min-Max） |
mm |
100-305 |
||||
Tie Bar Diameter |
mm |
45 |
||||
Space Between Tie Bars(W×H) |
mm |
275×275 |
||||
Shot Position |
mm |
0 ,-40 |
||||
Plunger Stroke |
mm |
120 |
||||
Traverse Stroke |
mm |
180 |
||||
Injection Force(Max) |
KN |
42 |
||||
Diameter Of Plunger |
mm |
36 |
40 |
|||
Max Shot Weight(Zn) |
Kg |
0.58 |
0.68 |
|||
Hydraulic Pressure |
Mpa |
12.5 |
||||
Motor Power |
KW |
7.5 |
||||
Crucible Capacity(Zn) |
Kg |
260 |
||||
Capacity Of Accumulator |
L |
12.5 |
||||
Furnace Energy Consumption
|
Diesel-Fired Furnace |
KG/h |
3.5 |
|||
Electric Furnace |
KW |
25 |
||||
Capacity Of Oil Tank |
L |
190 |
||||
Machine Size(L×W×H) |
mm |
3320×1400×1800 |
||||
Weight of Machine |
kg |
2600 |
||||

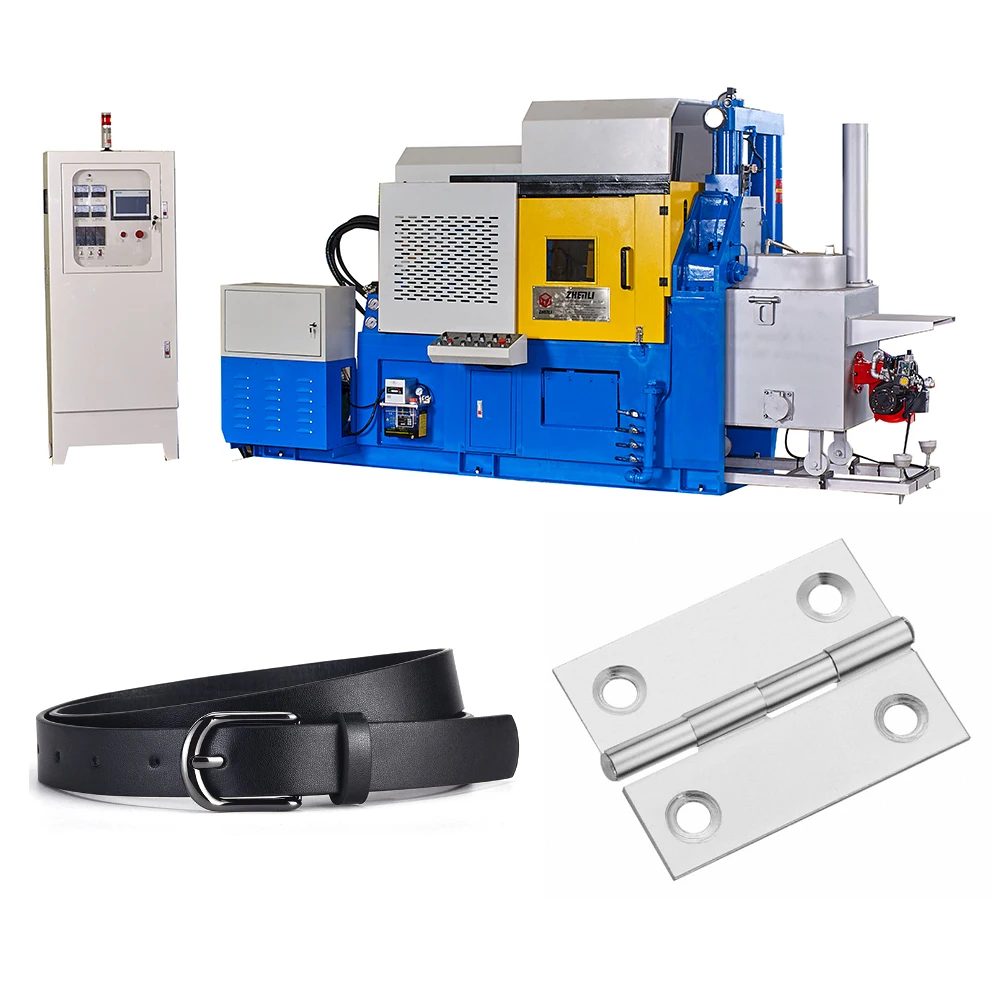

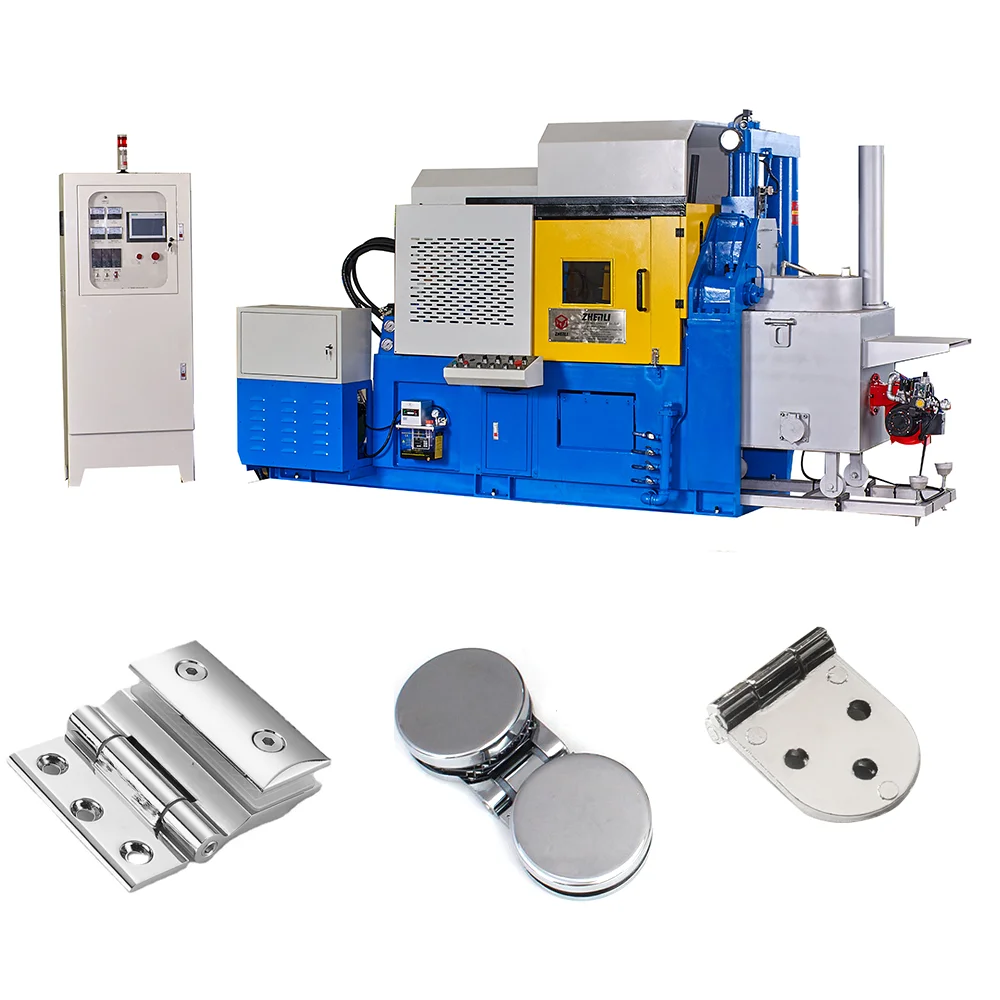

Details Images
