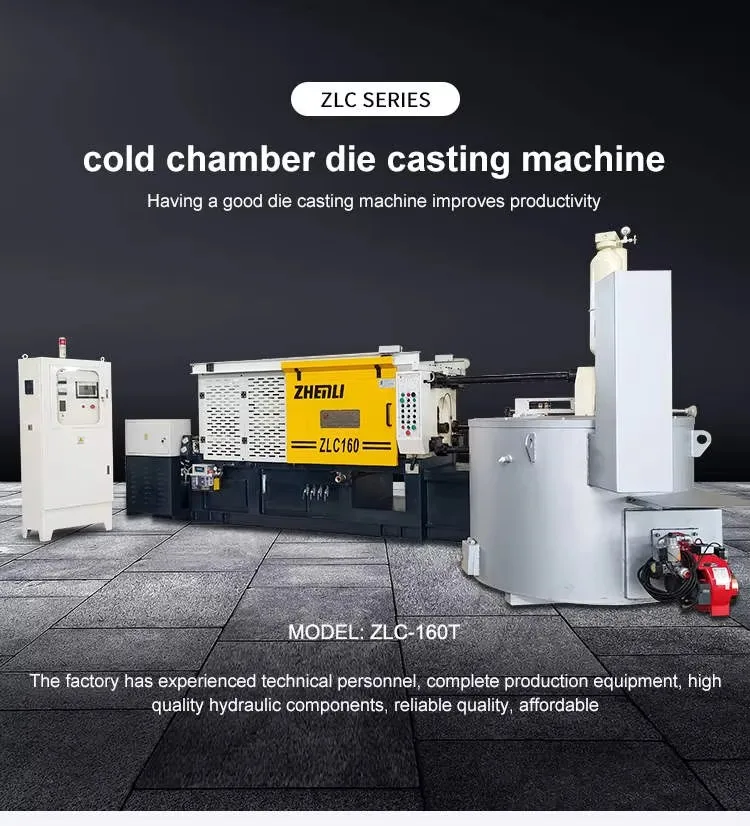

ZHENLI Factory Large Fire Hydrant Die Casting Machine 160T Aluminum Injection Machine Small Part
Main Features
-AutomaticControlFunctionOf InjectionParameters
-InjectionCurveDisplayFunction
-Automatic Extraction,Display and Analysis of InjectionParameter Function
-DigitalControlFunction
- Overview
- Recommended Products
Products Description
ITEMS |
UNIT |
ZLC-160T |
Clamping Force |
kN |
1600 |
Die Clamping Stroke |
mm |
380 |
Ejection Force |
kN |
110 |
Ejection Stroke |
mm |
85 |
Die Height ( Min-Max) |
mm |
200-550 |
Die Platen Size(HxV) |
mm |
680x720 |
Space Between Tie Bars |
mm |
460×460 |
Shot Position |
mm |
0, -70, -140 |
Shot Strock |
mm |
350 |
Casting Force ( Intensify ) |
kN |
270 |
Plunger Diameter |
mm |
40, 50, 60 |
Injection Weight(Aluminum) |
kg |
0.8, 1.3, 1.8 |
Casting Pressure (Intensify ) |
MPa |
214, 137, 95 |
Casting Area |
cm² |
74, 116, 167 |
Max Casting Area(40MPa) |
cm² |
400 |
Chamber Flange Diameter |
mm |
110 |
Height Of Pressure Chamber Flange |
mm |
10 |
Plunger Penetration |
mm |
130 |
Main Pump Driving Motor/Servo Motor |
kW |
15/22 |
Hydraulic Working Pressure |
MPa |
14 |
Oil Tank Capacity |
L |
520 |
Machine Dimensions(LxWxH) |
mm |
5500x1400x2500 |
Referential Machine Weight For Uplifting |
T |
7 |

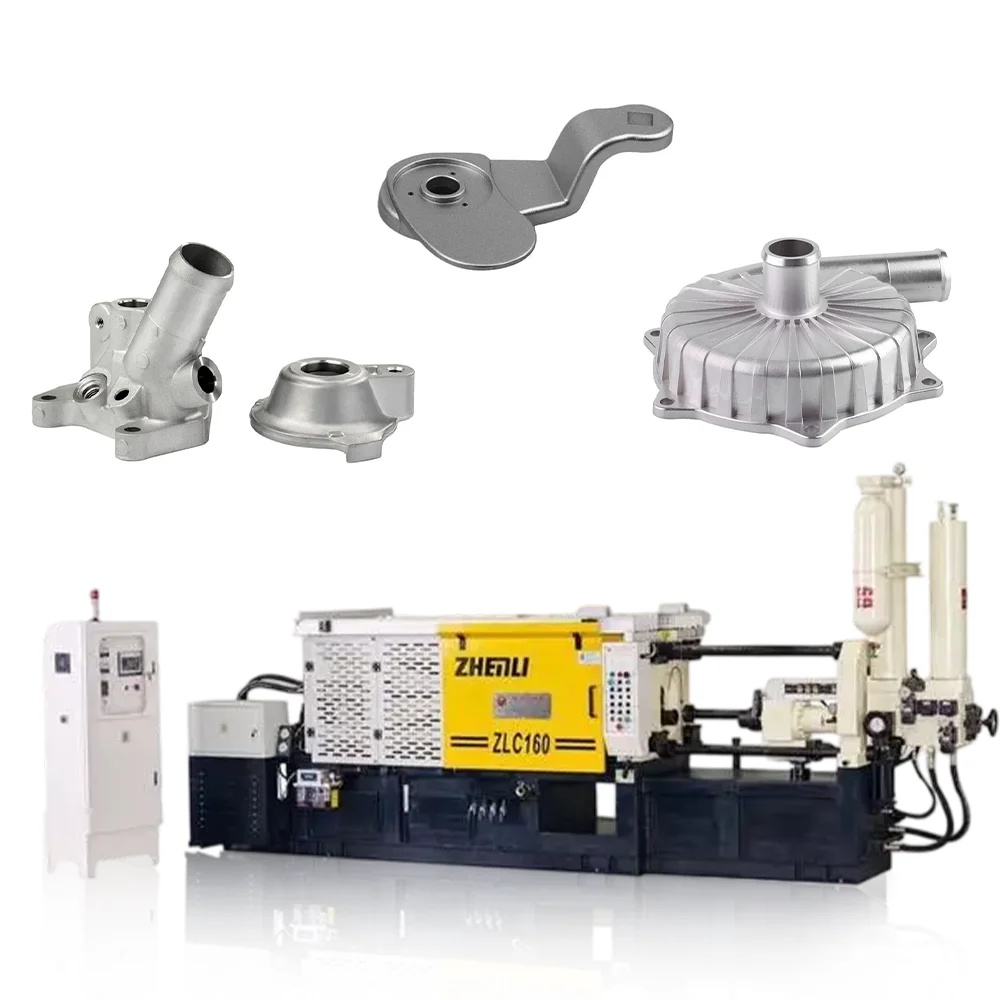

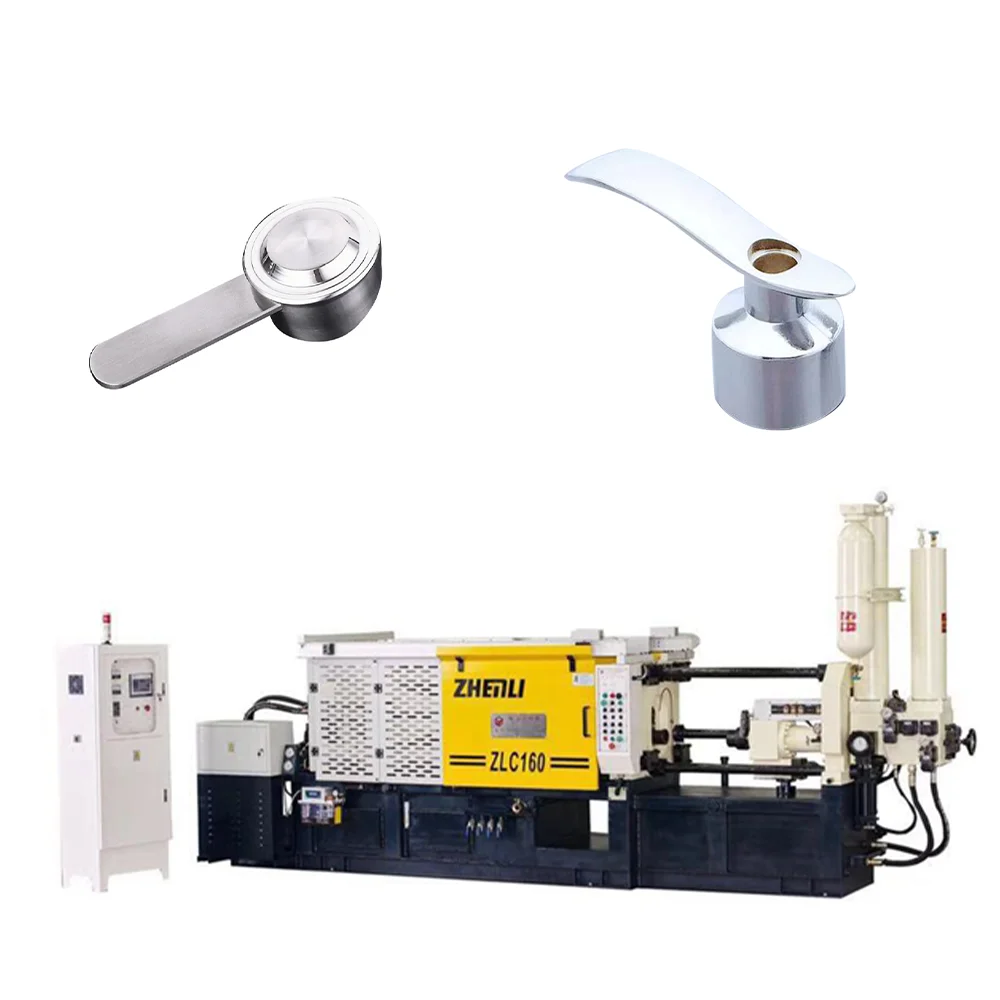

Details Images
