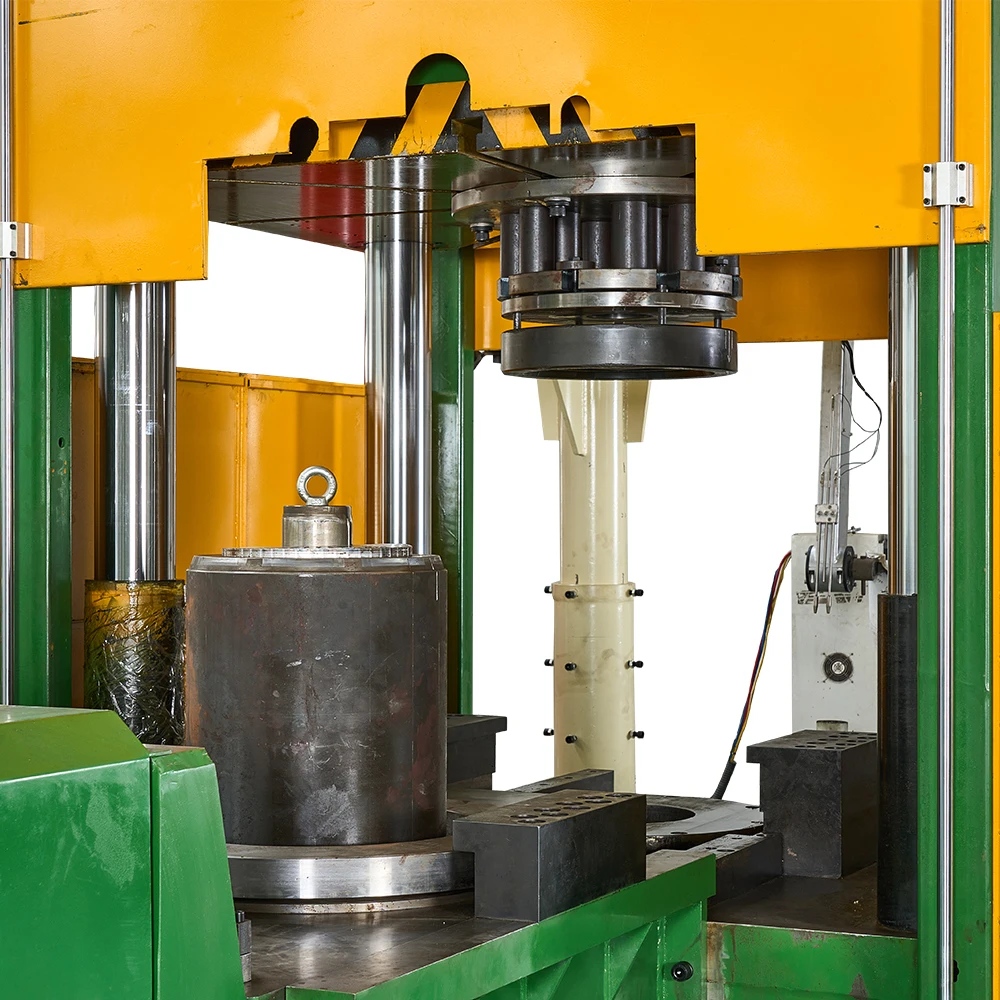

Product Description
Product Name |

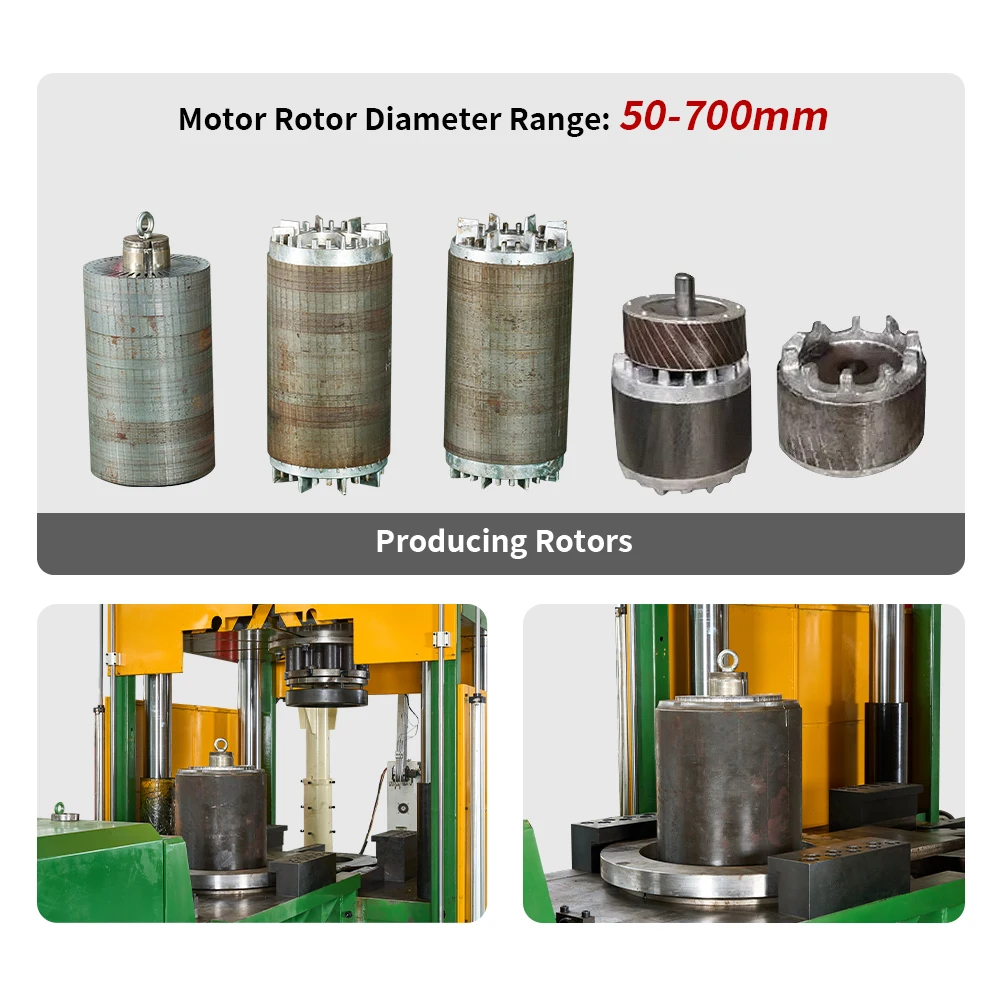

Motor Rotor Die Casting Machine |
Machine Type |
Aluminium Die Casting Machine |
Model |
ZJ630 |

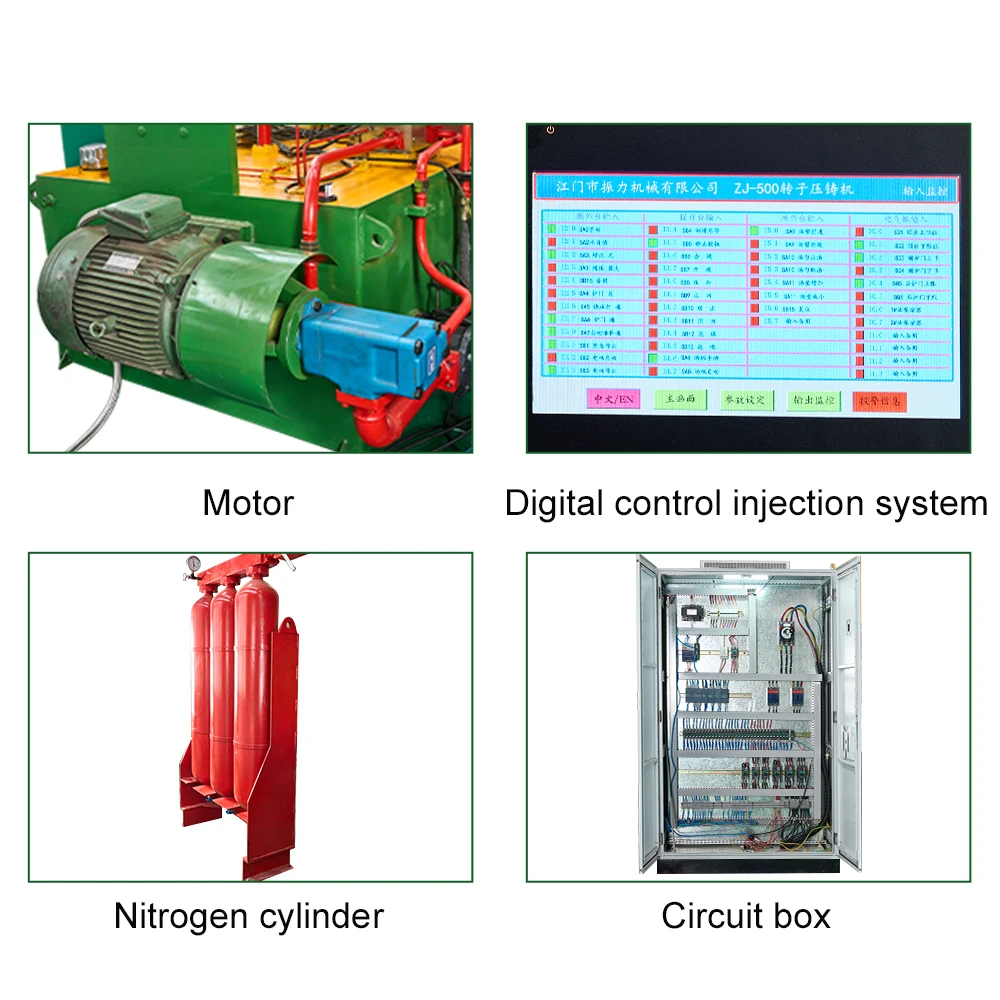

High Configuration
Automated Production
1. Pneumatic safety door
2. Servo motor oil pump system
3. H13 melting cup
4. Fast die closing
5. Ladle machine
General Configuration Manual Operation
1. Manual safety door
2. General motor oil pump system
3. Ductile iron melting cup
4. Slow die closing 5. Mold feeding device

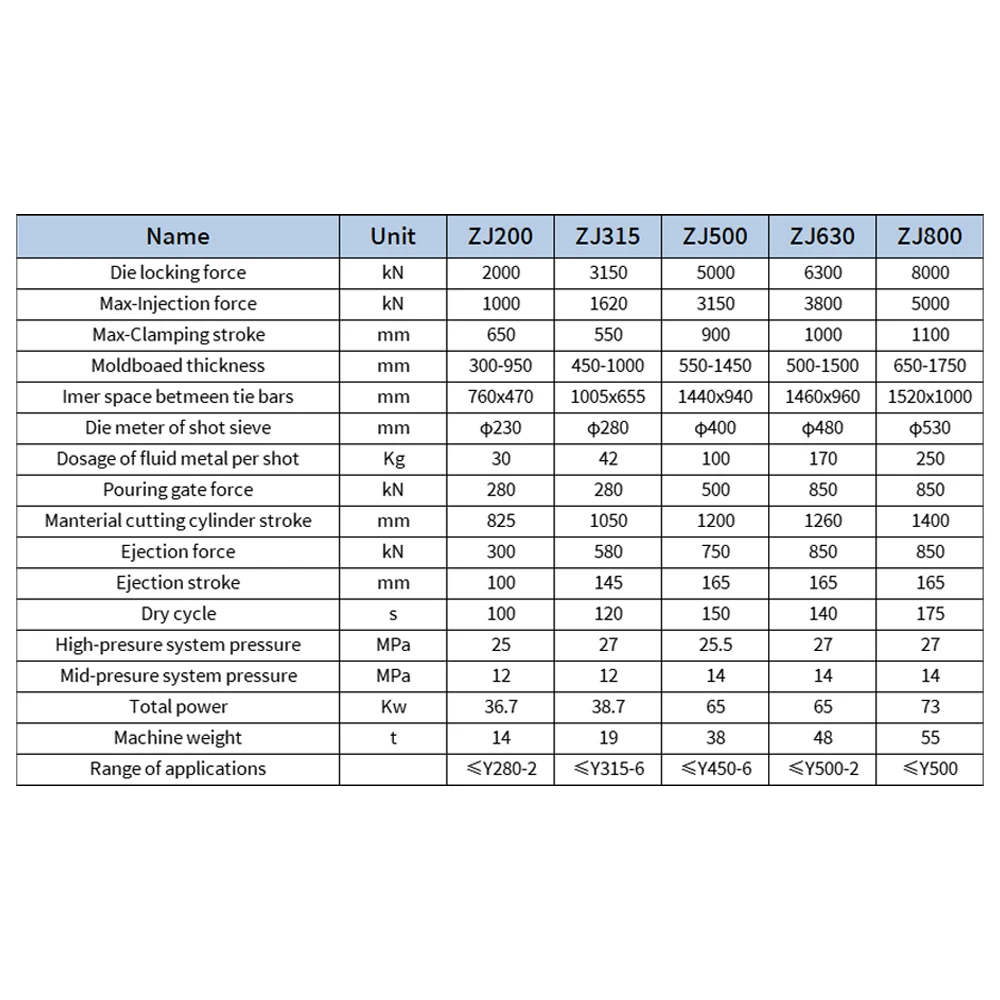

Specification
Product Name |
Motor Rotor Die Casting Machine |
Power |
65KW |
Clamping Force |
6300KN |
Casting Stroke |
1000mm |
Casting Force |
3800KN |
Open Stroke |
1260mm |
Space between tie bars |
1460*960mm |
Weight |
48000KG |
Warranty |
1 Year |
Max.thickness of die block |
1500mm |
Min.thickness of die block |
500mm |
Ejection Force |
850KN |
Ejection Stroke |
165mm |
Injection Chamber Diameter |
480mm |
Aluminum Injection Quantity(Maximum) |
170kg |
High Pressure System Pressure |
27MPa |
Low Pressure System Pressure |
14MPa |
Pouring Gate Force |
850KN |
After-sales Service Provided |
Engineers Available To Service Machinery Overseas |
