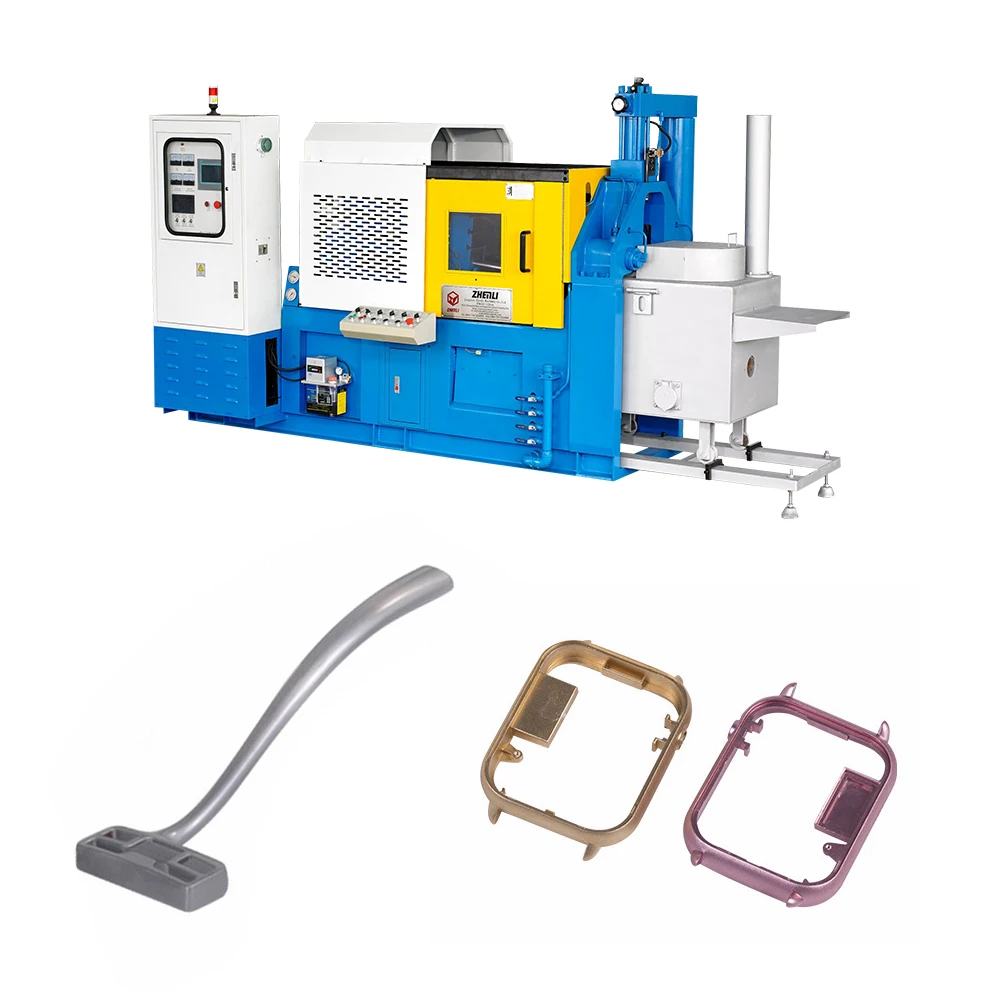

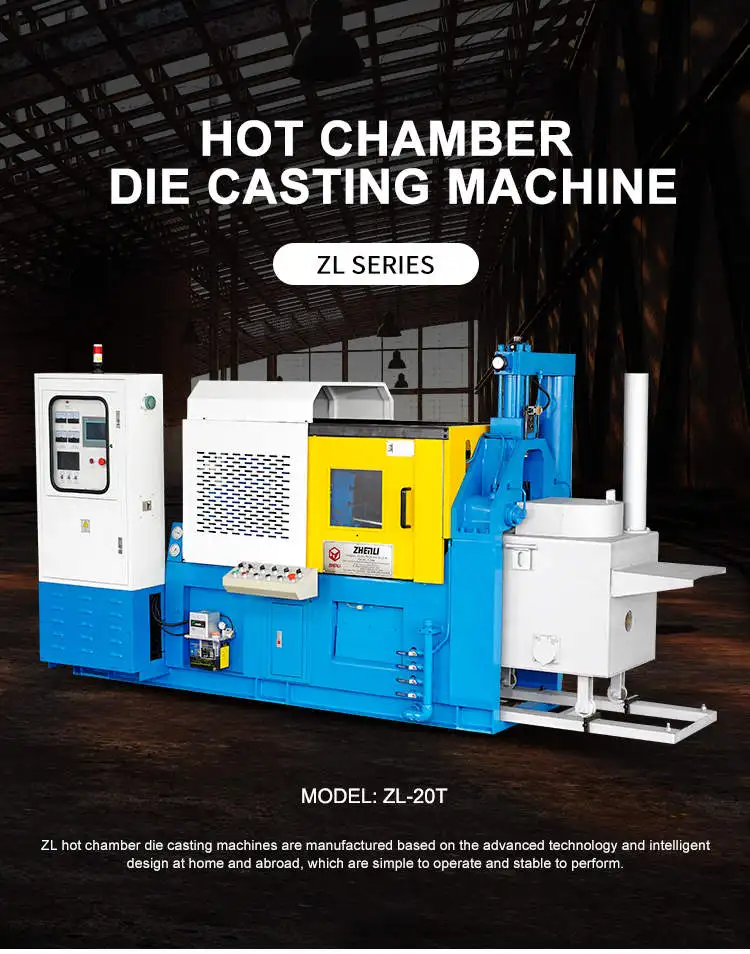

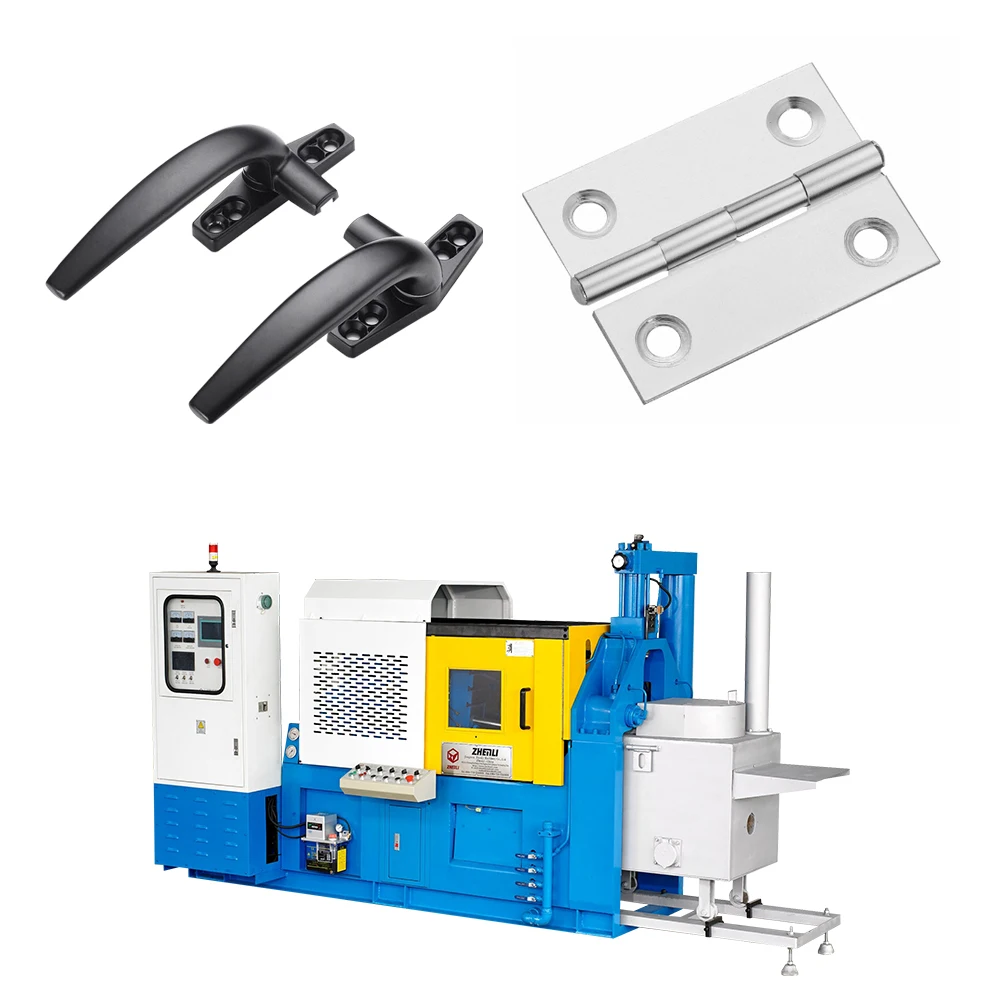

20T High Pressure Zinc Hot Chamber Die Casting Machine Customized for Making Door Lock Fittings
Locking Force：200KN
Die Stroke：125mm
Ejection Force：20KN
Ejection Stroke(Max)：50mm
Die Thickness(Min-Max）：100-260mm
- Overview
- Recommended Products
Products Description
ITEM |
Unit |
ZL-20T |
||||
Locking Force |
KN |
200 |
||||
Die Stroke |
mm |
125 |
||||
Ejection Force |
KN |
20 |
||||
Ejection Stroke(Max) |
mm |
50 |
||||
Die Thickness(Min-Max） |
mm |
100-260 |
||||
Tie Bar Diameter |
mm |
40 |
||||
Space Between Tie Bars(W×H) |
mm |
280×230 |
||||
Shot Position |
mm |
0 ,-30 |
||||
Plunger Stroke |
mm |
85 |
||||
Traverse Stroke |
mm |
170 |
||||
Injection Force(Max) |
KN |
27 |
||||
Diameter Of Plunger |
mm |
36 |
40 |
|||
Max Shot Weight(Zn) |
Kg |
0.35 |
0.4 |
|||
Hydraulic Pressure |
Mpa |
11.0 |
||||
Motor Power |
KW |
5.5 |
||||
Crucible Capacity(Zn) |
Kg |
130 |
||||
Capacity Of Accumulator |
L |
10 |
||||
Furnace Energy Consumption
|
Diesel-Fired Furnace |
KG/h |
3.2 |
|||
Electric Furnace |
KW |
20 |
||||
Capacity Of Oil Tank |
L |
160 |
||||
Machine Size(L×W×H) |
mm |
3000×1200×1620 |
||||
Weight of Machine |
kg |
2000 |
||||
Details Images
