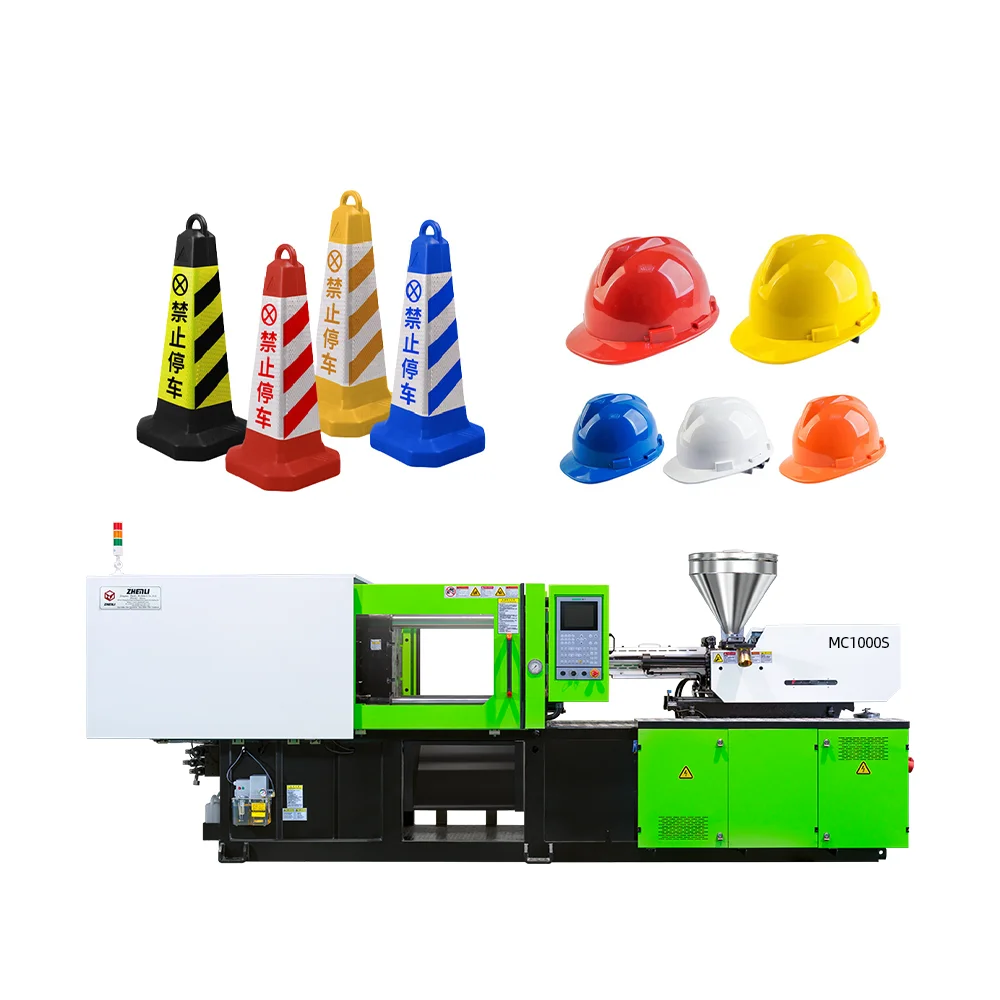

Factory Custom Traffic Cone Injection Molding Machine Largest 1000 Ton Injection Molding Machine Price
- Overview
- Recommended Products
Specification

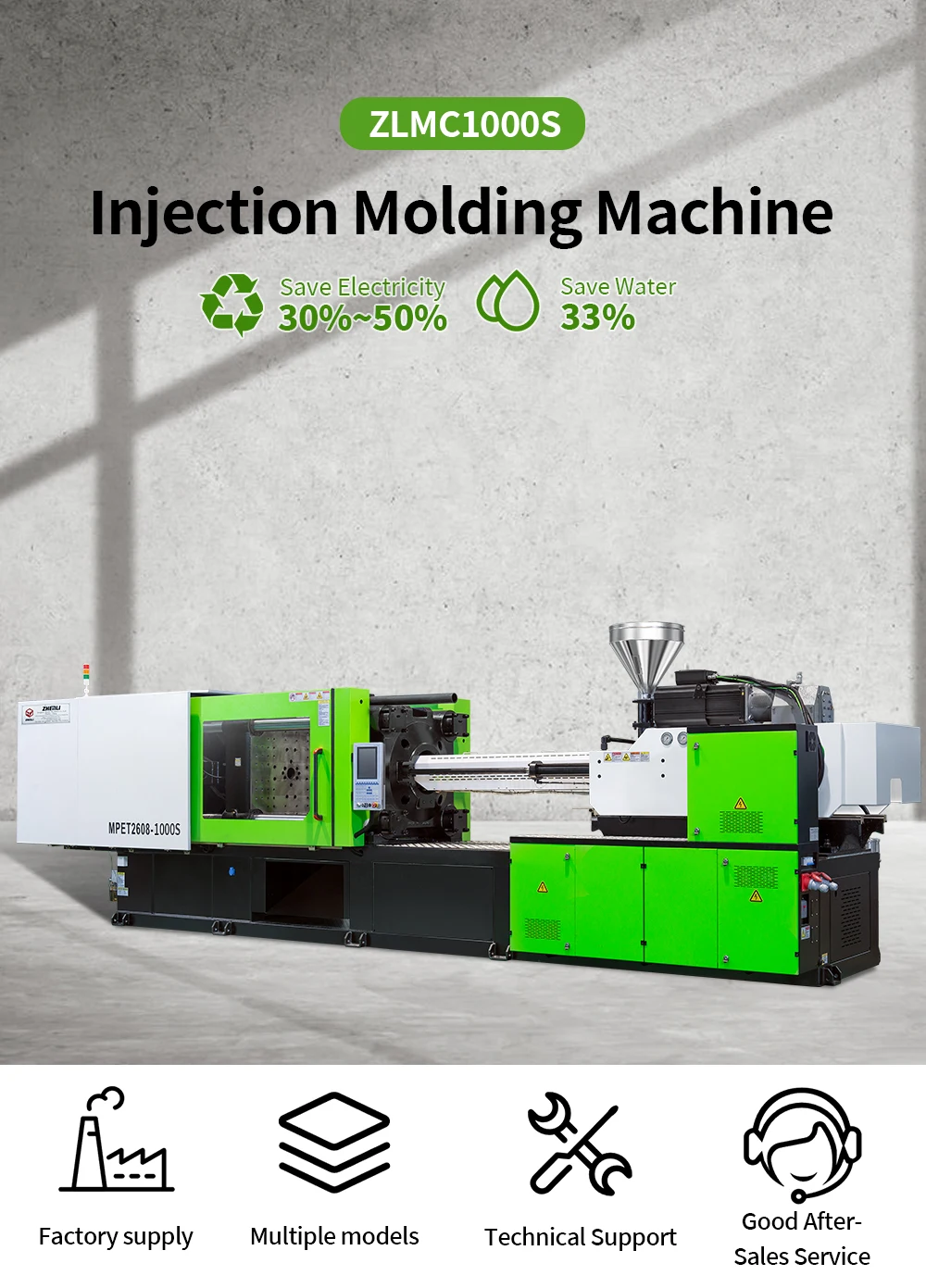

ZLMC1000S |
||||||||
Injection part |
||||||||
INJECTION UNIT |
unit |
A |
B |
C |
||||
Screw diameter |
mm |
100 |
110 |
120 |
||||
Shot volume |
cm³ |
4318 |
5224 |
6217 |
||||
Shot weight(PS) |
g(ps) |
4015 |
4858 |
5782 |
||||
Injection pressure |
MPa |
195 |
160 |
135 |
||||
Theoretical Injection rate |
cm³/s |
709 |
858 |
1021 |
||||
Plasticizing Capacity(ps) |
g/s |
102.6 |
120.6 |
140.6 |
||||
Screw I/D ratio |
I:D |
23:1 |
21:1 |
19:1 |
||||
Screw speed(stepless) |
rpm |
0-125 |
0-125 |
0-125 |
||||
Screw stroke |
mm |
550 |
550 |
550 |
||||
Clamping part |
||||||||
Clamping force |
KN |
10000 |
||||||
Opening stroke |
mm |
1220 |
||||||
Max.daylight |
mm |
2380 |
||||||
Mold thickness(min-max) |
mm |
450-1160 |
||||||
Space between tie bars |
mm |
1160x1160 |
||||||
Platen size |
mm |
1620x1620 |
||||||
Hydraulic ejection force |
kN |
275 |
||||||
Hydraulic ejection stroke |
mm |
350 |
||||||
Power/Electricity/Other |
||||||||
Hydraulic system pressure |
MPa |
17.5 |
||||||
Motor/Server |
KW |
55+55 |
||||||
Heating capacity |
KW |
47 |
||||||
Oil tank capacity |
L |
1200 |
||||||
Machine weight |
Kg |
45000 |
||||||
