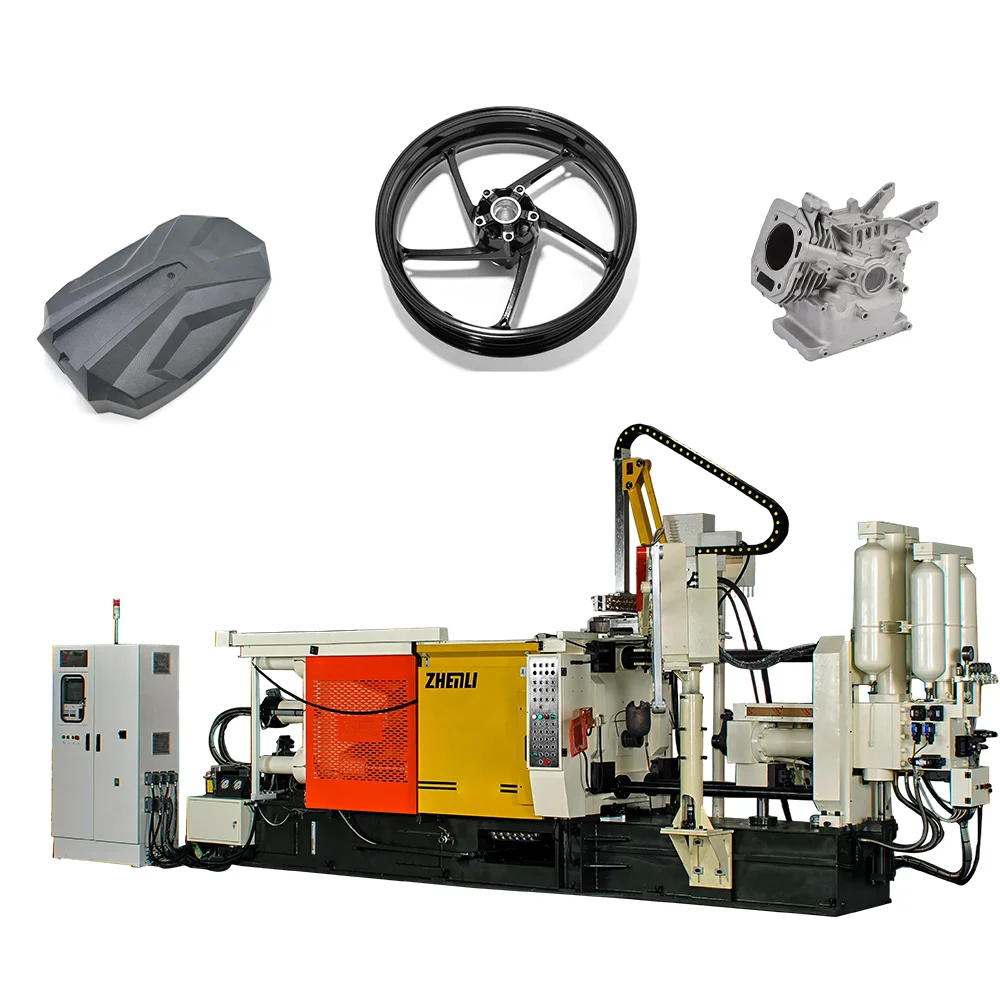

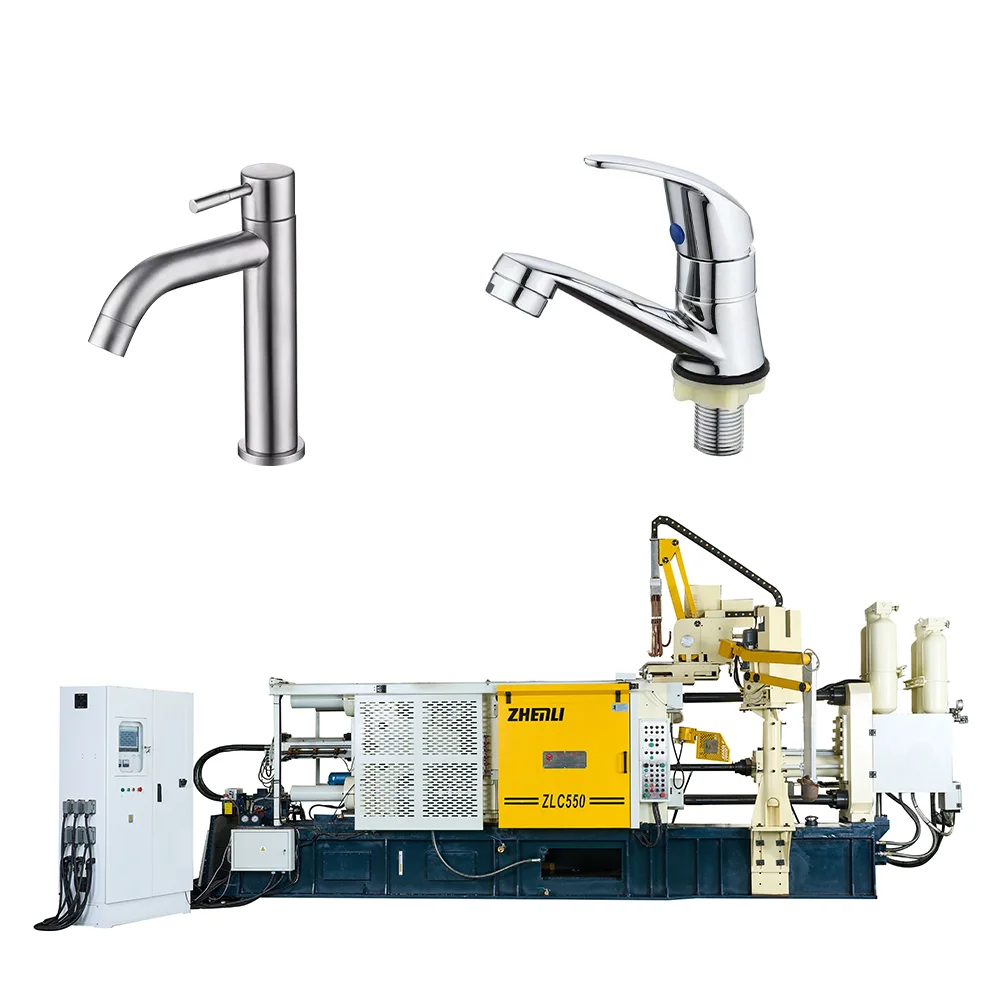

ZHENLI Factory Semi Automatic 550T Door Handle Making Machine Aluminium Alloy Metal Die Casting Machine
Main Features
-Automatic Control Function Of Injection Parameters
-Injection Curve Display Function
-Automatic Extraction,Display and Analysis of Injection Parameter Function
-Digital Control Function
- Overview
- Recommended Products
Products Description
ITEMS |
UNIT |
ZLC-550T |
Clamping Force |
kN |
5500 |
Die Clamping Stroke |
mm |
580 |
Ejection Force |
kN |
240 |
Ejection Stroke |
mm |
130 |
Die Height ( Min-Max) |
mm |
350-850 |
Die Platen Size(HxV) |
mm |
1160x1190 |
Space Between Tie Bars |
mm |
760×760 |
Shot Position |
mm |
0，-220 |
Shot Strock |
mm |
580 |
Casting Force ( Intensify ) |
kN |
530 |
Plunger Diameter |
mm |
70,80,90 |
Injection Weight(Aluminum) |
kg |
4.2,5.5,6.9 |
Casting Pressure (Intensify ) |
MPa |
138, 107, 85 |
Casting Area |
cm² |
400,520,647 |
Max Casting Area(40MPa) |
cm² |
1375 |
Chamber Flange Diameter |
mm |
130 |
Height Of Pressure Chamber Flange |
mm |
15 |
Plunger Penetration |
mm |
230 |
Main Pump Driving Motor/Servo Motor |
kW |
30/55 |
Hydraulic Working Pressure |
MPa |
14 |
Oil Tank Capacity |
L |
1100 |
Machine Dimensions(LxWxH) |
mm |
7500×2000×3100 |
Referential Machine Weight For Uplifting |
T |
24.5 |
Details Images
