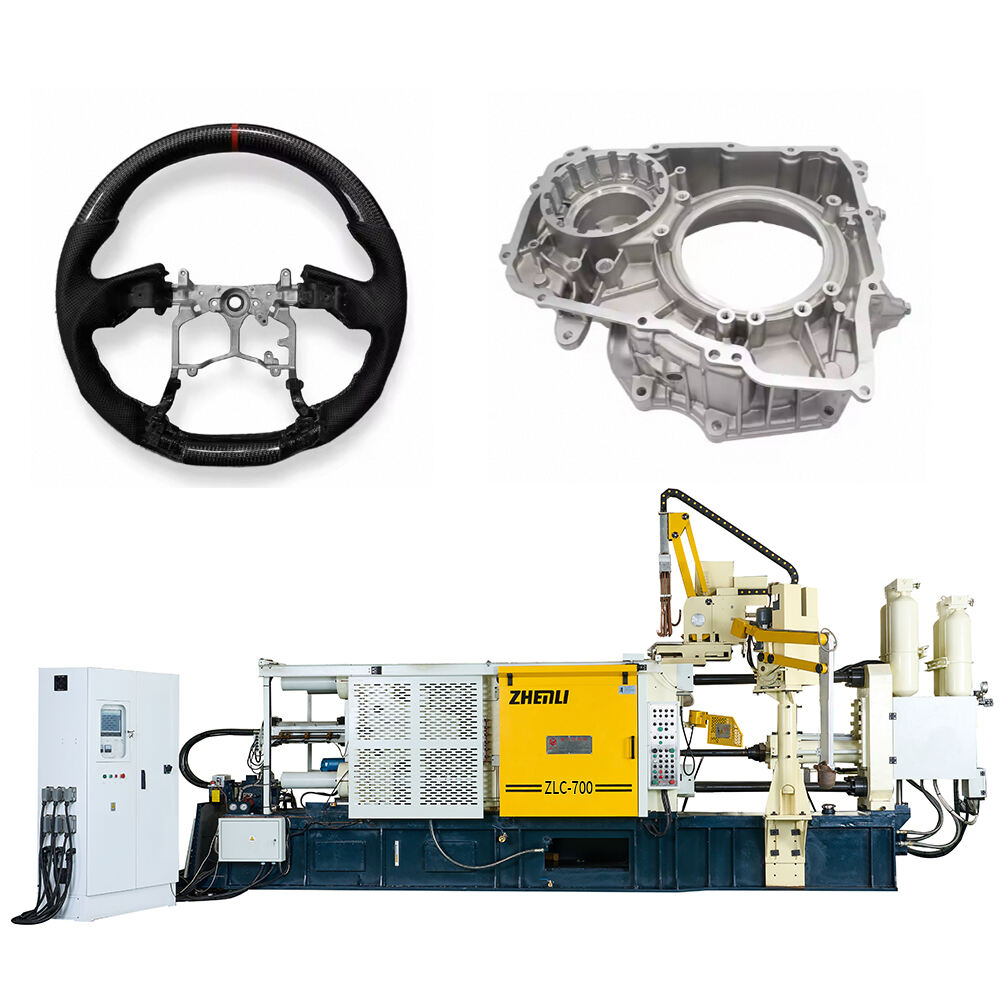

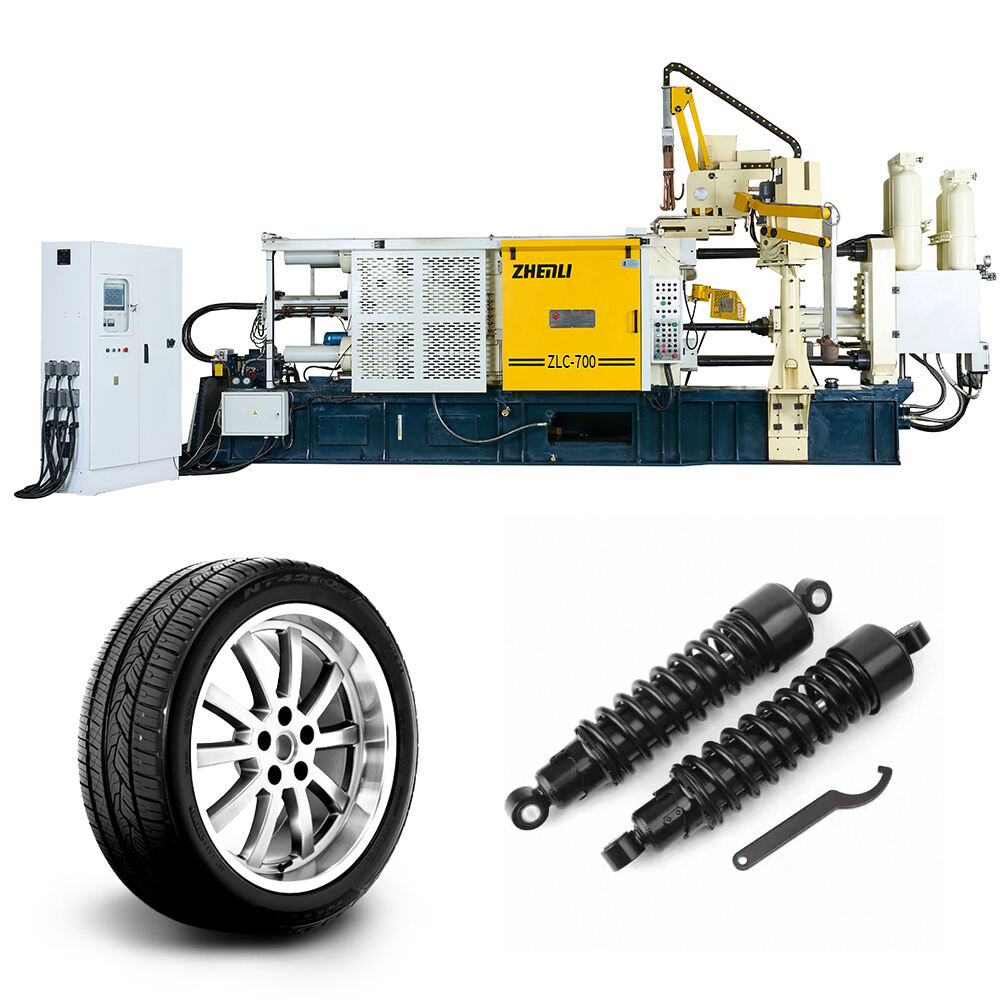

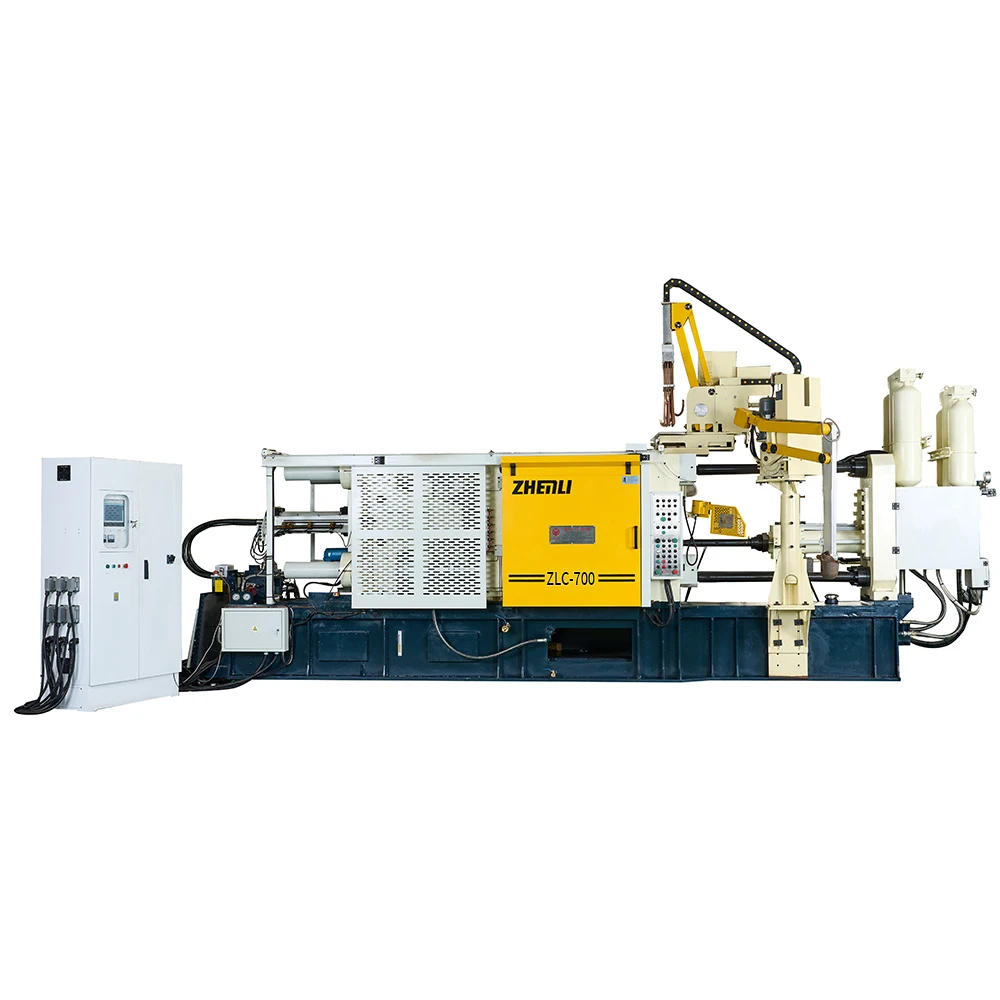

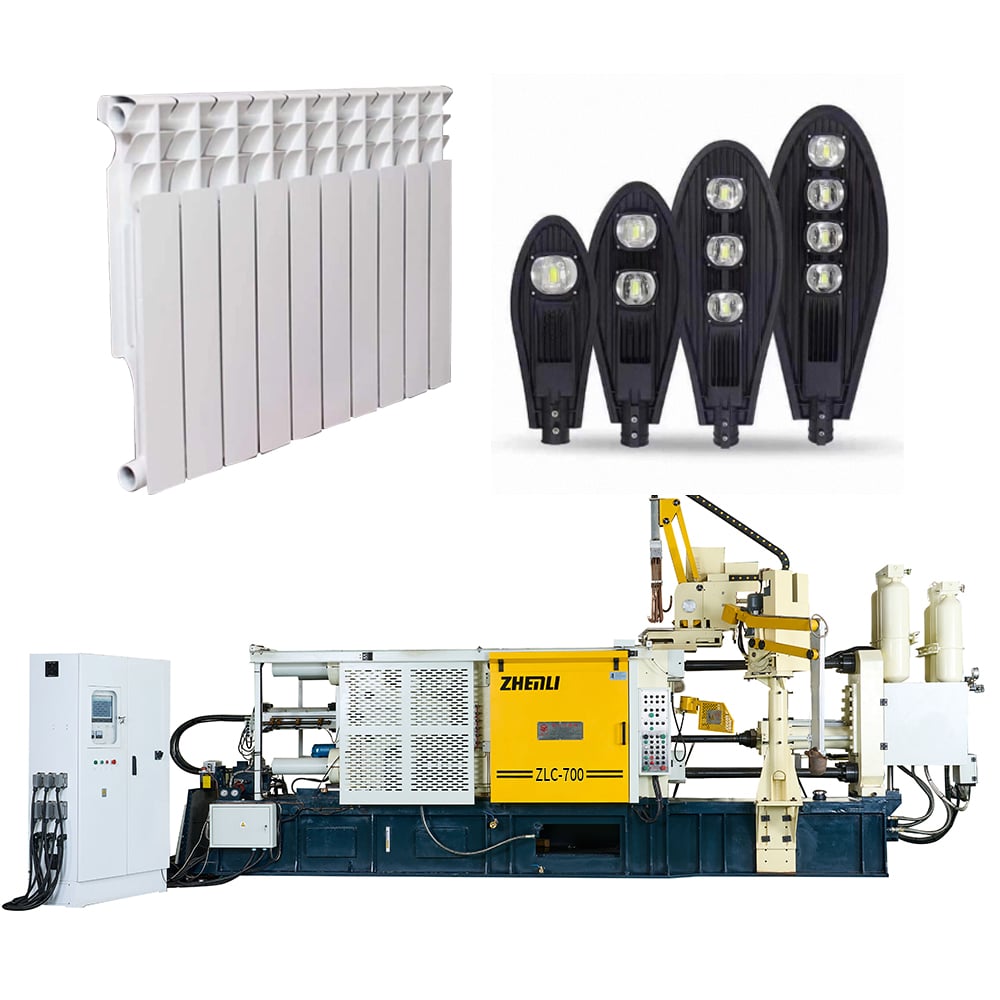

ZHENLI Factory 700T Led Light Cold Chamber Die Casting Machine Injection Aluminum Casting Machine
Main Features
-Automatic Control Function Of Injection Parameters
-Injection Curve Display Function
-Automatic Extraction,Display and Analysis of Injection Parameter Function
-Digital Control Function
- Overview
- Recommended Products
Products Description
ITEMS |
UNIT |
ZLC-700T |
Clamping Force |
kN |
7000 |
Die Clamping Stroke |
mm |
650 |
Ejection Force |
kN |
315 |
Ejection Stroke |
mm |
155 |
Die Height ( Min-Max) |
mm |
350-850 |
Die Platen Size(HxV) |
mm |
1255x1280 |
Space Between Tie Bars |
mm |
800x800 |
Shot Position |
mm |
0，-250 |
Shot Strock |
mm |
650 |
Casting Force ( Intensify ) |
kN |
590 |
Plunger Diameter |
mm |
80, 90, 100 |
Injection Weight(Aluminum) |
kg |
6.0, 7.8, 9.5 |
Casting Pressure (Intensify ) |
MPa |
117, 92, 75 |
Casting Area |
cm² |
596, 754, 931 |
Max Casting Area(40MPa) |
cm² |
1750 |
Chamber Flange Diameter |
mm |
150 |
Height Of Pressure Chamber Flange |
mm |
15 |
Plunger Penetration |
mm |
290 |
Main Pump Driving Motor/Servo Motor |
kW |
37/55 |
Hydraulic Working Pressure |
MPa |
14 |
Oil Tank Capacity |
L |
1200 |
Machine Dimensions(LxWxH) |
mm |
7580x2060x3150 |
Referential Machine Weight For Uplifting |
T |
30 |
Details Images
