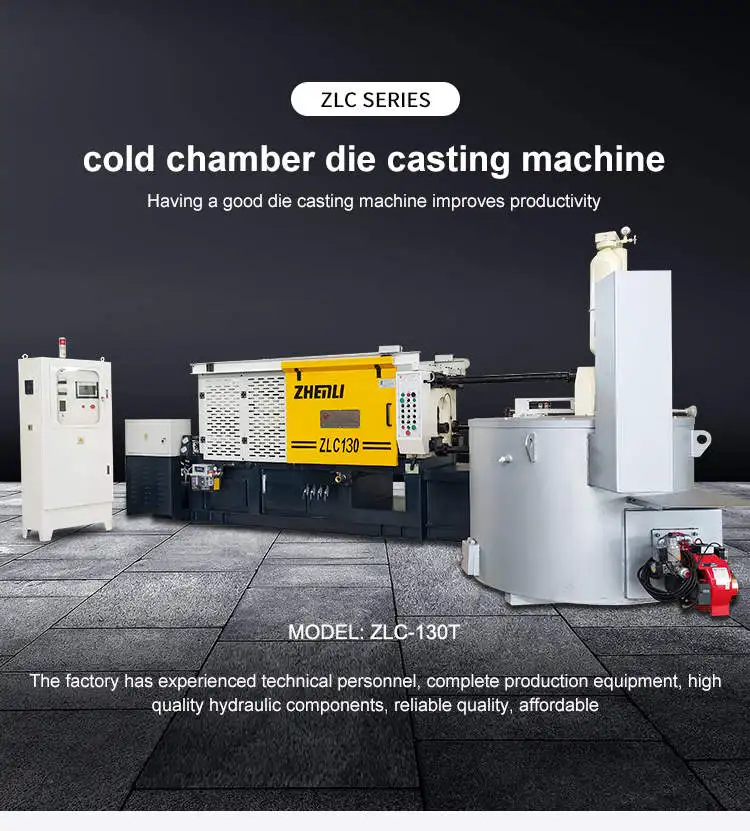

130Ton Automatic Aluminium Die Casting Machine Small Metal Cast Aluminum Machine for Firefighting Accessories
Main Features
-Automatic Control Function Of Injection Parameters
-Injection Curve Display Function
-Automatic Extraction,Display and Analysis of Injection Parameter Function
-Digital Control Function
- Overview
- Recommended Products
Products Description
ITEMS |
UNIT |
ZLC-130T |
Clamping Force |
kN |
1350 |
Die Clamping Stroke |
mm |
350 |
Ejection Force |
kN |
70 |
Ejection Stroke |
mm |
75 |
Die Height ( Min-Max) |
mm |
200-500 |
Die Platen Size(HxV) |
mm |
630x630 |
Space Between Tie Bars |
mm |
410×410 |
Shot Position |
mm |
0, -100 |
Shot Strock |
mm |
340 |
Casting Force ( Intensify ) |
kN |
180 |
Plunger Diameter |
mm |
40, 50, 60 |
Injection Weight(Aluminum) |
kg |
0.7, 1.15, 1.65 |
Casting Pressure (Intensify ) |
MPa |
141, 90, 62 |
Casting Area |
cm² |
90, 140, 205 |
Max Casting Area(40MPa) |
cm² |
325 |
Chamber Flange Diameter |
mm |
110 |
Height Of Pressure Chamber Flange |
mm |
10 |
Plunger Penetration |
mm |
125 |
Main Pump Driving Motor/Servo Motor |
kW |
11/19 |
Hydraulic Working Pressure |
MPa |
14 |
Oil Tank Capacity |
L |
480 |
Machine Dimensions(LxWxH) |
mm |
4100x1320x2550 |
Referential Machine Weight For Uplifting |
T |
6.5 |

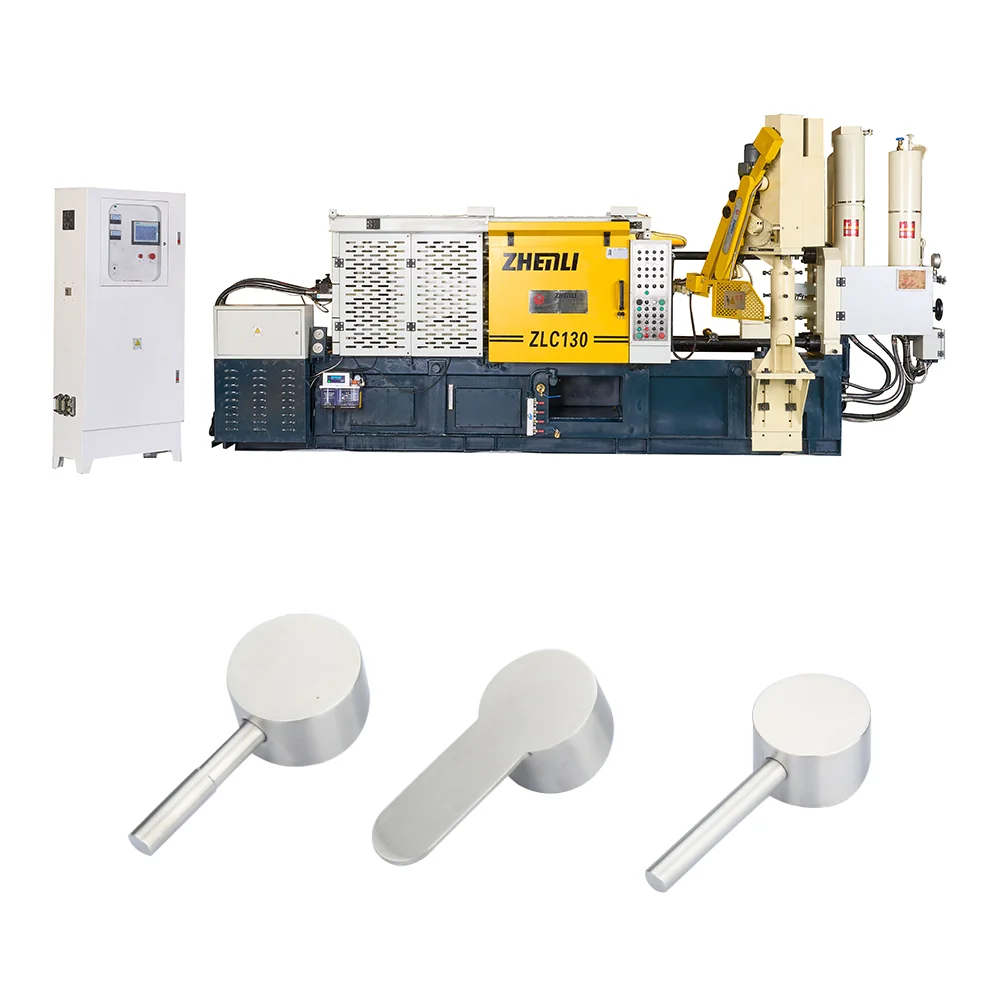

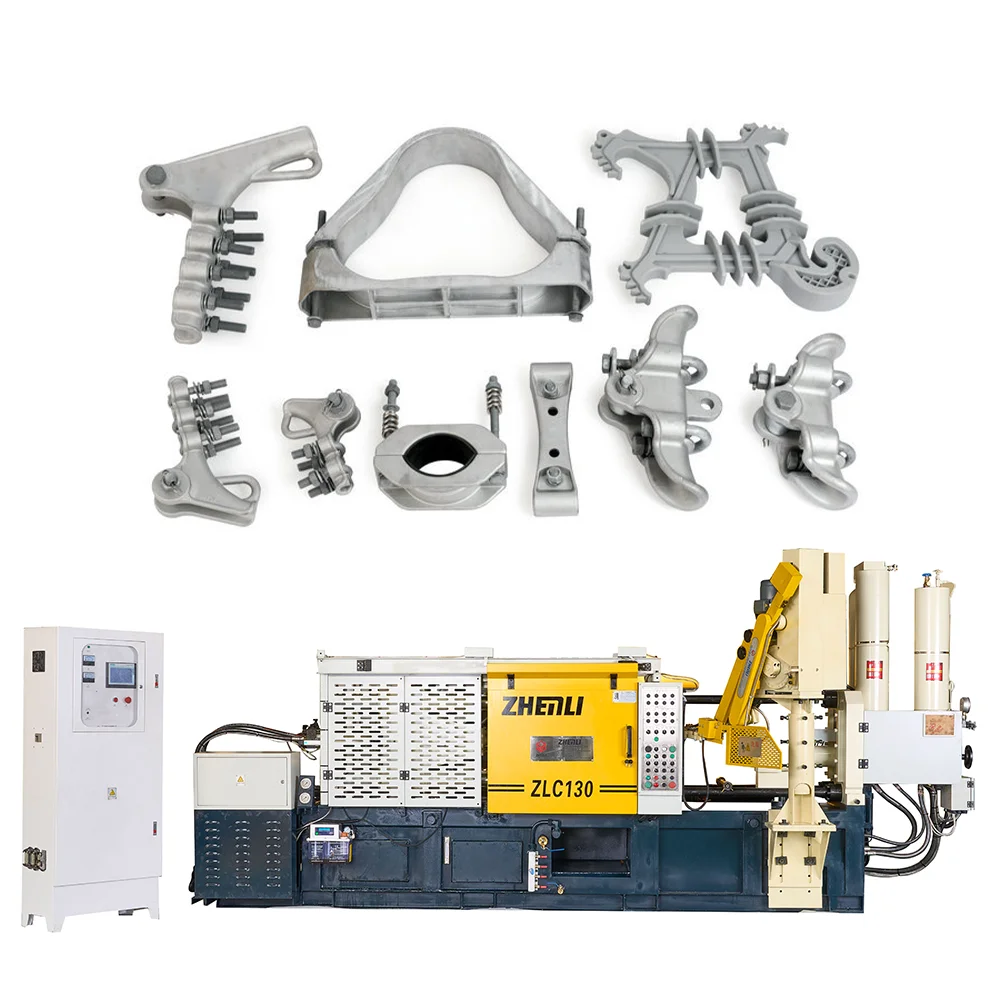

Details Images
