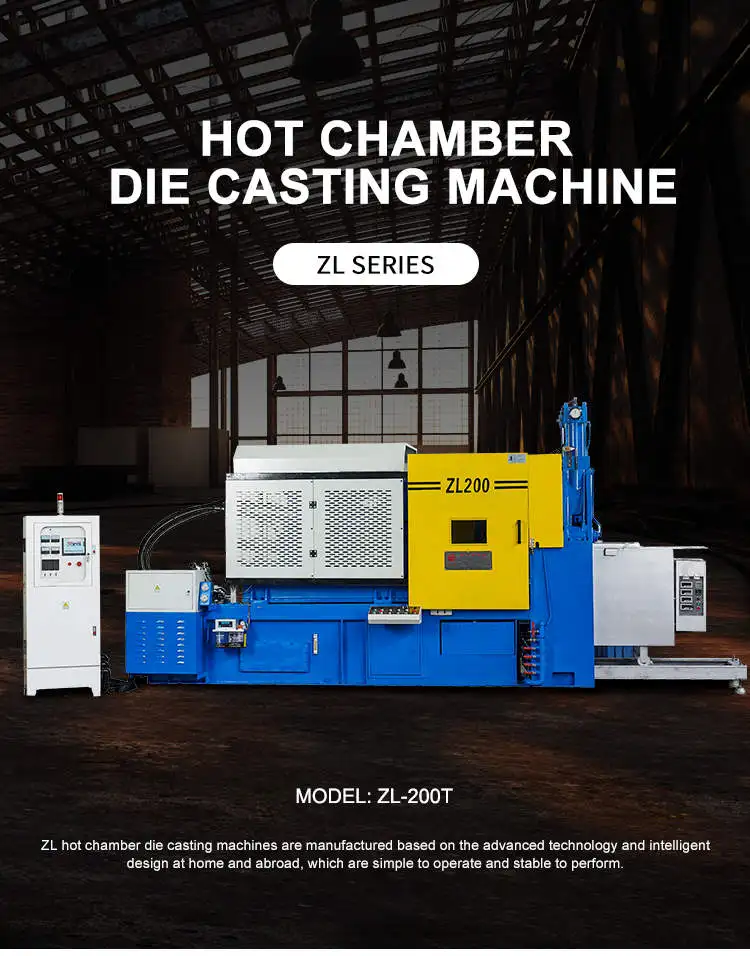

200 Ton Full Automatic High Pressure Zinc Alloy Hot Chamber Die Casting Machine for Making Furniture Hardware
Locking Force：2000KN
Die Stroke：370mm
Ejection Force：110KN
Ejection Stroke(Max)：100mm
Die Thickness(Min-Max）：250-560mm
- Overview
- Recommended Products
Products Description
ITEM |
Unit |
ZL-200T |
||||
Locking Force |
KN |
2000 |
||||
Die Stroke |
mm |
370 |
||||
Ejection Force |
KN |
110 |
||||
Ejection Stroke(Max) |
mm |
100 |
||||
Die Thickness(Min-Max） |
mm |
250-560 |
||||
Tie Bar Diameter |
mm |
90 |
||||
Space Between Tie Bars(W×H) |
mm |
510×510 |
||||
Shot Position |
mm |
0 ,-100 |
||||
Plunger Stroke |
mm |
175 |
||||
Traverse Stroke |
mm |
210 |
||||
Injection Force(Max) |
KN |
130 |
||||
Diameter Of Plunger |
mm |
65 |
70 |
|||
Max Shot Weight(Zn) |
Kg |
2.85 |
3.32 |
|||
Hydraulic Pressure |
Mpa |
14.5 |
||||
Motor Power |
KW |
18.5 |
||||
Crucible Capacity(Zn) |
Kg |
400 |
||||
Capacity Of Accumulator |
L |
30 |
||||
Furnace Energy Consumption
|
Diesel-Fired Furnace |
KG/h |
6.3 |
|||
Electric Furnace |
KW |
30 |
||||
Capacity Of Oil Tank |
L |
400 |
||||
Machine Size(L×W×H) |
mm |
5300×1520×2500 |
||||
Weight of Machine |
kg |
7600 |
||||
