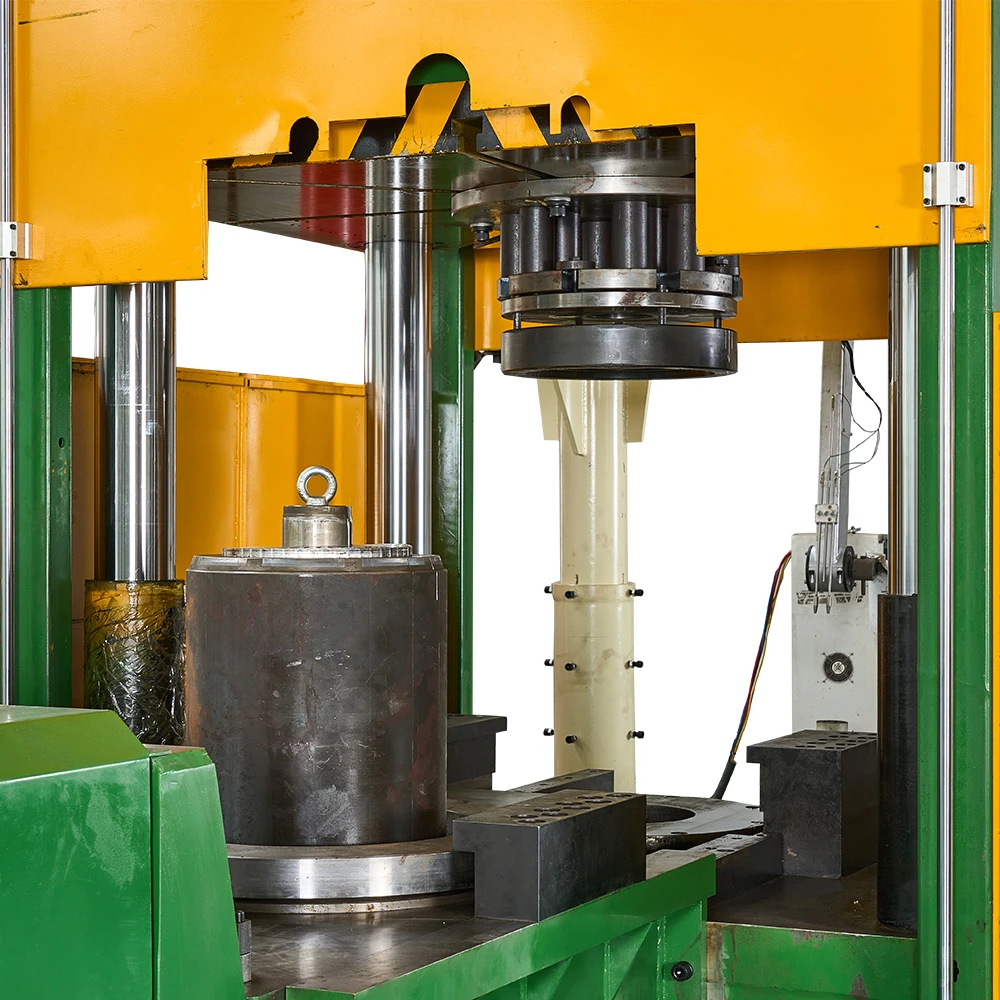

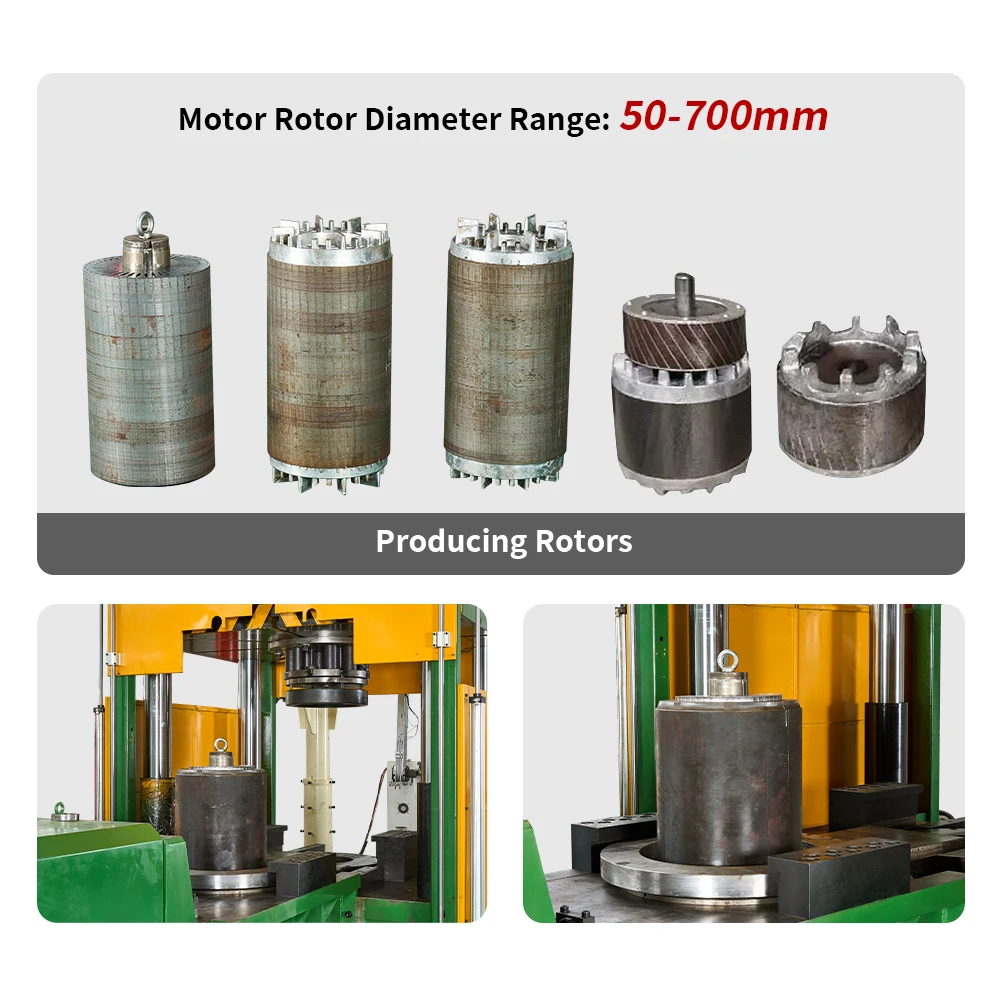

ZHENLI Pneumatic Vertical Casting Machine Aluminum Gravity 160 Ton Die Casting Machine for Motor Rotor
- Overview
- Recommended Products
Specification
Product Name |
Motor Rotor Die Casting Machine |
Machine Type |
Aluminium Die Casting Machine |
Model |
ZJ160 |
Product Description

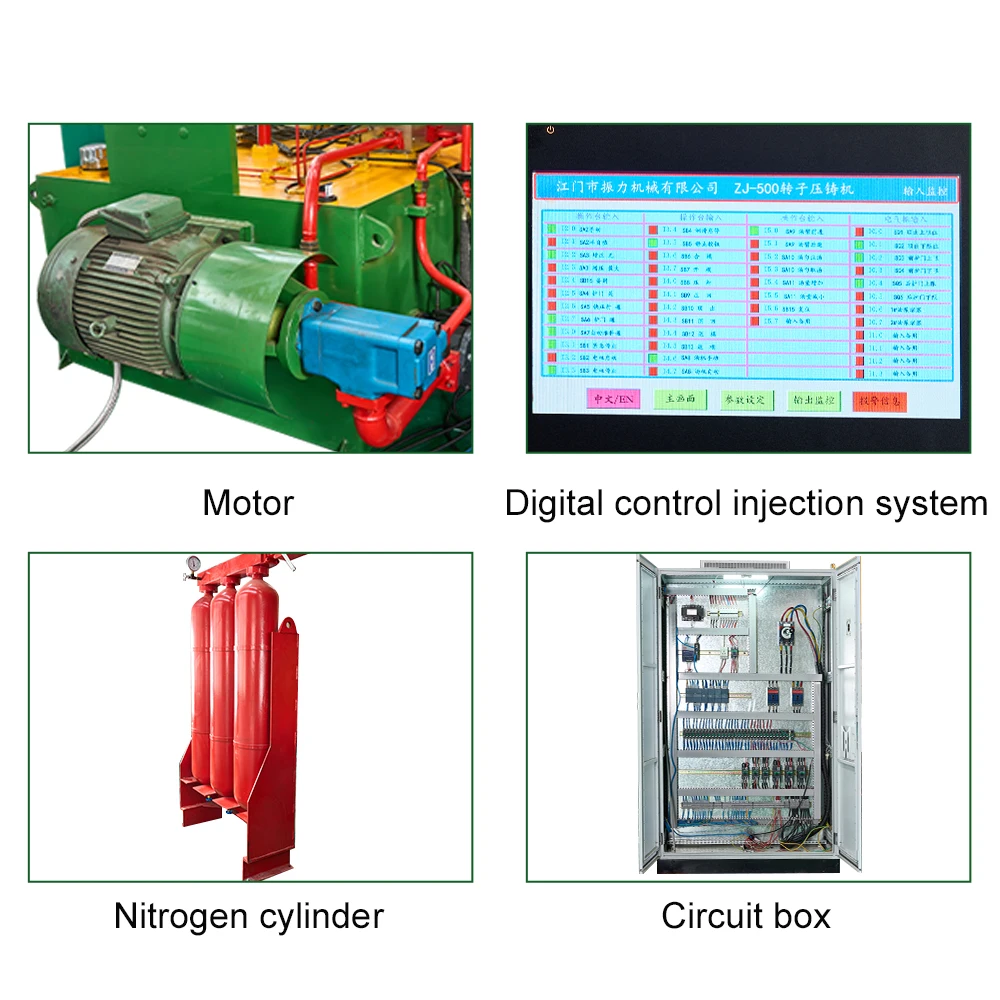

High Configuration
Automated Production
1. Pneumatic safety door
2. Servo motor oil pump system
3. H13 melting cup
4. Fast die closing
5. Ladle machine
General Configuration Manual Operation
1. Manual safety door
2. General motor oil pump system
3. Ductile iron melting cup
4. Slow die closing 5. Mold feeding device

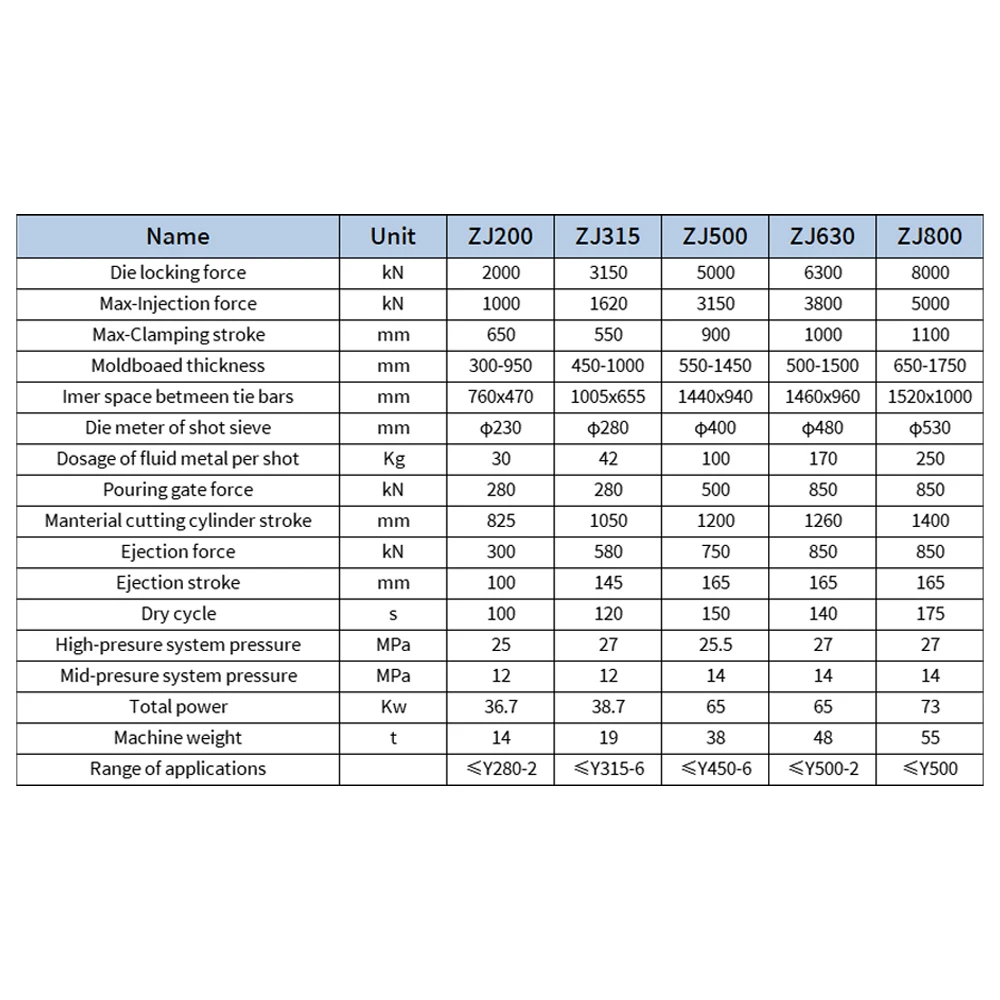

Specification
Product Name |
Motor Rotor Die Casting Machine |
Power |
36.7KW |
Clamping Force |
1600KN |
Casting Force |
640KN |
Open Stroke |
450mm |
Space between tie bars |
670*320mm |
Weight |
7000KG |
Warranty |
1 Year |
Dimension(l*w*h) |
1090*660*3655mm |
Ejection Force |
300KN |
Injection Chamber Diameter |
190mm |
Aluminum Injection Quantity(Maximum) |
11kg |
Maximum Projected Area Of Casting |
1480cm² |
Pouring Gate Force |
280KN |
After-sales Service Provided |
Engineers Available To Service Machinery Overseas |
