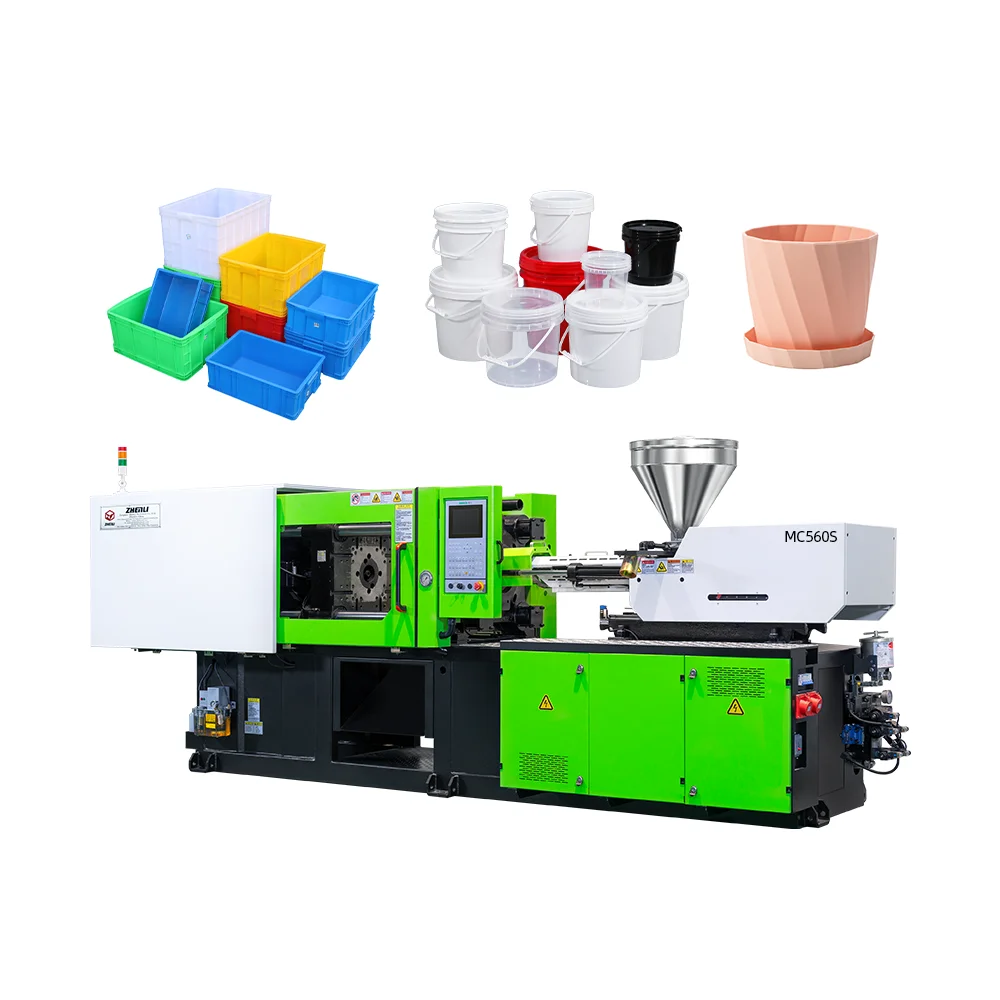

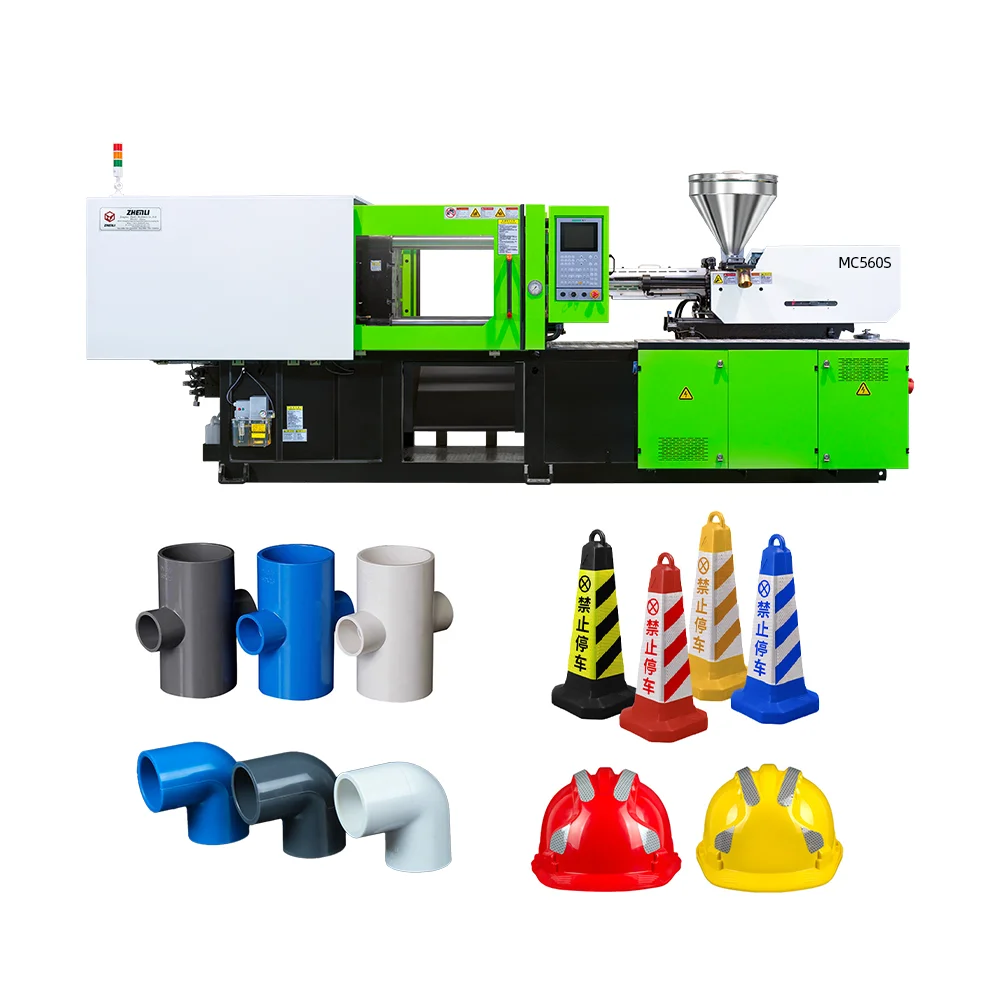

Factory Latest 560 Ton Earphone Injection Molding Machine Full Electric Injection Molding Machine PVC
- Overview
- Recommended Products

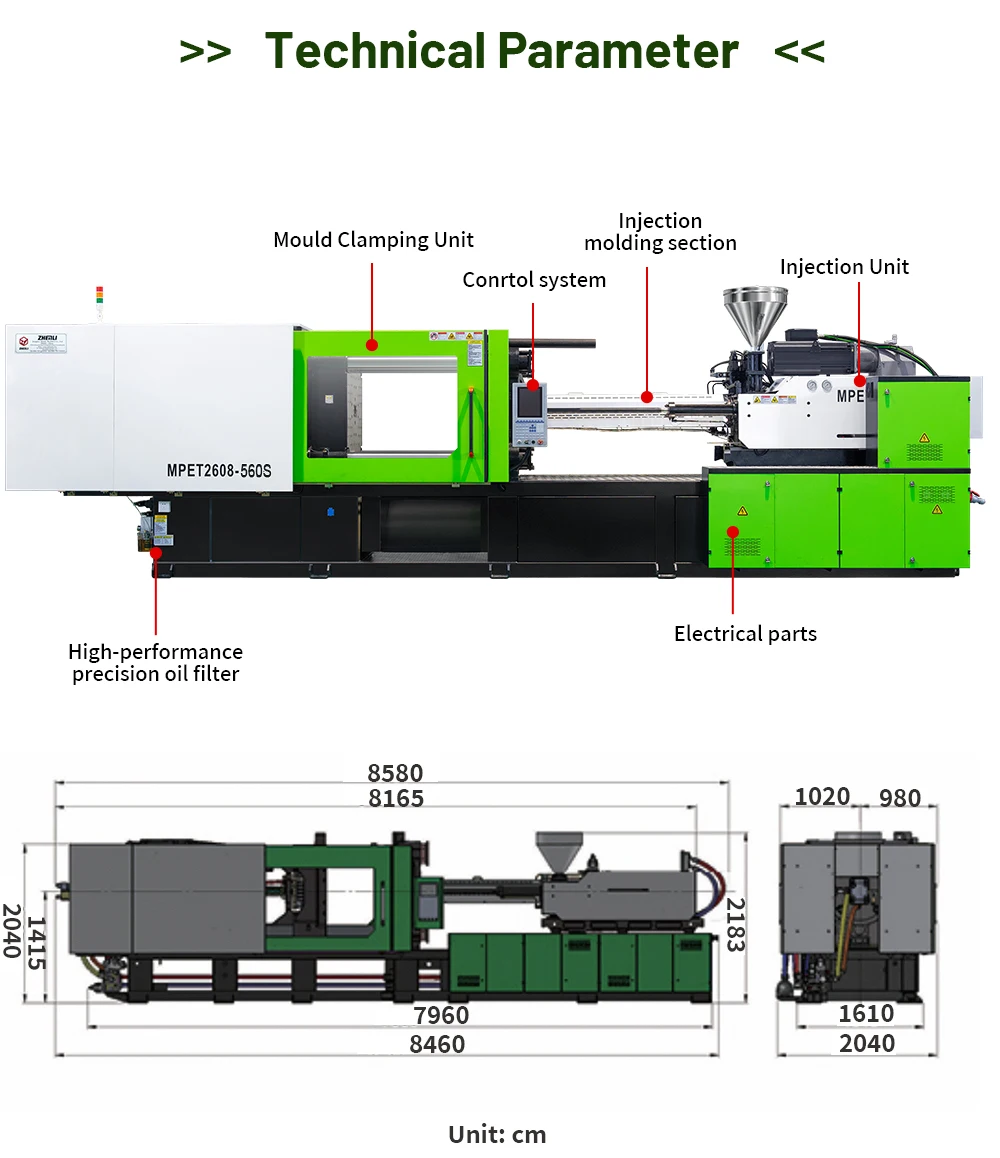

Specification

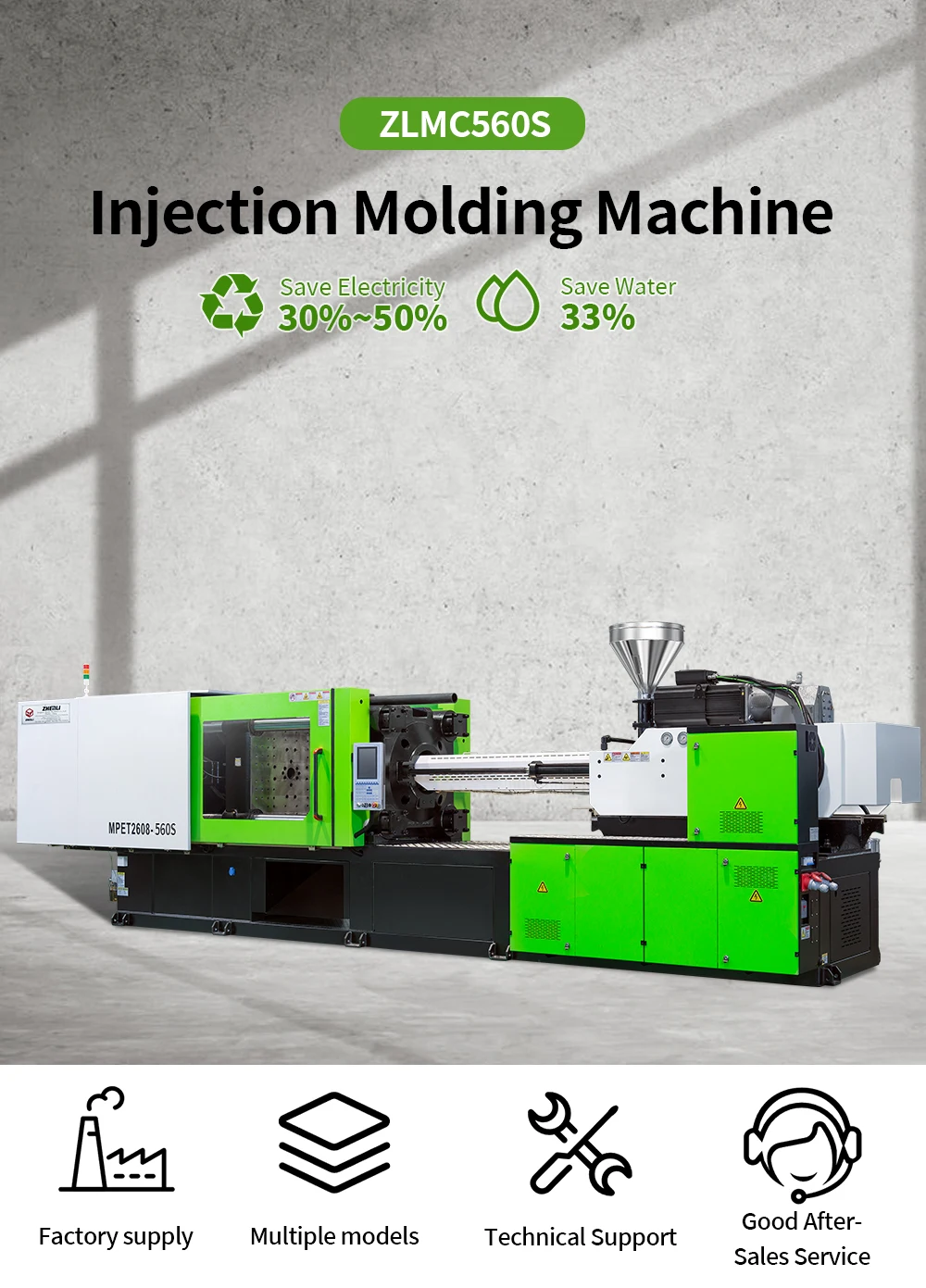

ZLMC560S |
||||||||
Injection part |
||||||||
INJECTION UNIT |
unit |
A |
B |
C |
||||
Screw diameter |
mm |
75 |
85 |
90 |
||||
Shot volume |
cm³ |
1877 |
2410 |
2702 |
||||
Shot weight(PS) |
g(ps) |
1745 |
2242 |
2513 |
||||
Injection pressure |
MPa |
208 |
162 |
145 |
||||
Theoretical Injection rate |
cm³/s |
396 |
508 |
570 |
||||
Plasticizing Capacity(ps) |
g/s |
65.8 |
77.2 |
89.3 |
||||
Screw I/D ratio |
I:D |
23:1 |
21:1 |
20:1 |
||||
Screw speed(stepless) |
rpm |
0-160 |
0-160 |
0-160 |
||||
Screw stroke |
mm |
425 |
425 |
425 |
||||
Clamping part |
||||||||
Clamping force |
KN |
5600 |
||||||
Opening stroke |
mm |
850 |
||||||
Max.daylight |
mm |
1700 |
||||||
Mold thickness(min-max) |
mm |
300-850 |
||||||
Space between tie bars |
mm |
860x860 |
||||||
Platen size |
mm |
1200x1200 |
||||||
Hydraulic ejection force |
kN |
137 |
||||||
Hydraulic ejection stroke |
mm |
220 |
||||||
Power/Electricity/Other |
||||||||
Hydraulic system pressure |
MPa |
17.5 |
||||||
Motor/Server |
KW |
74 |
||||||
Heating capacity |
KW |
25 |
||||||
Oil tank capacity |
L |
650 |
||||||
Machine weight |
Kg |
21000 |
||||||
