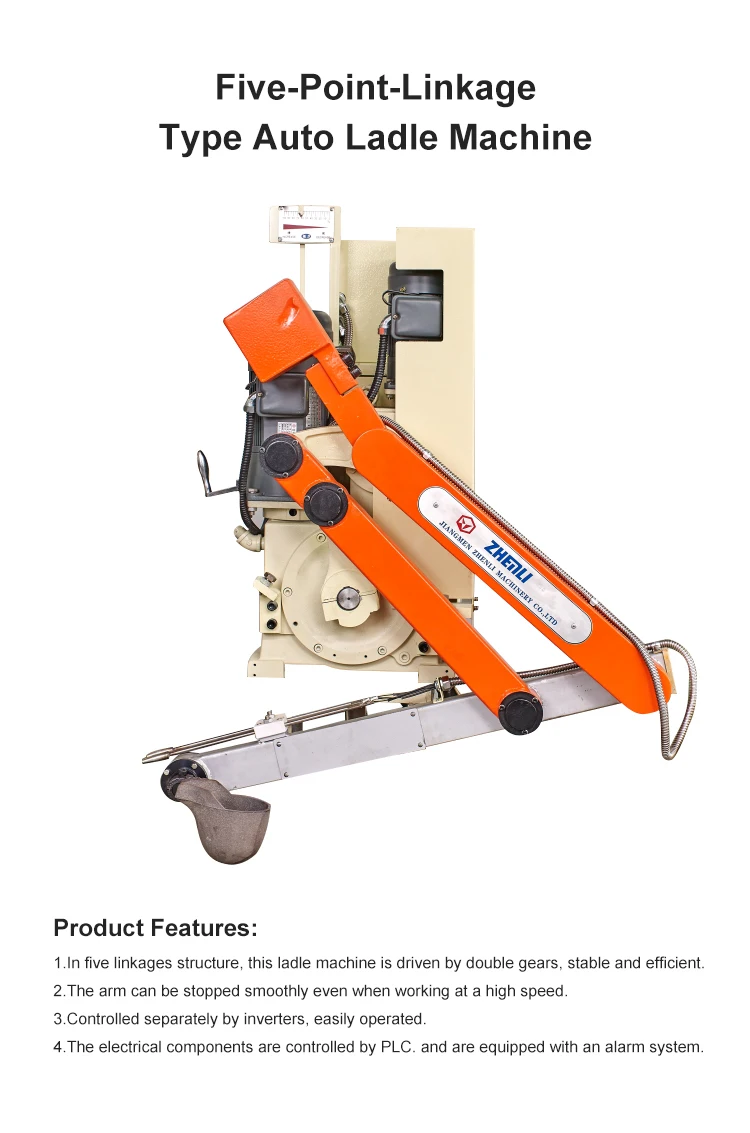

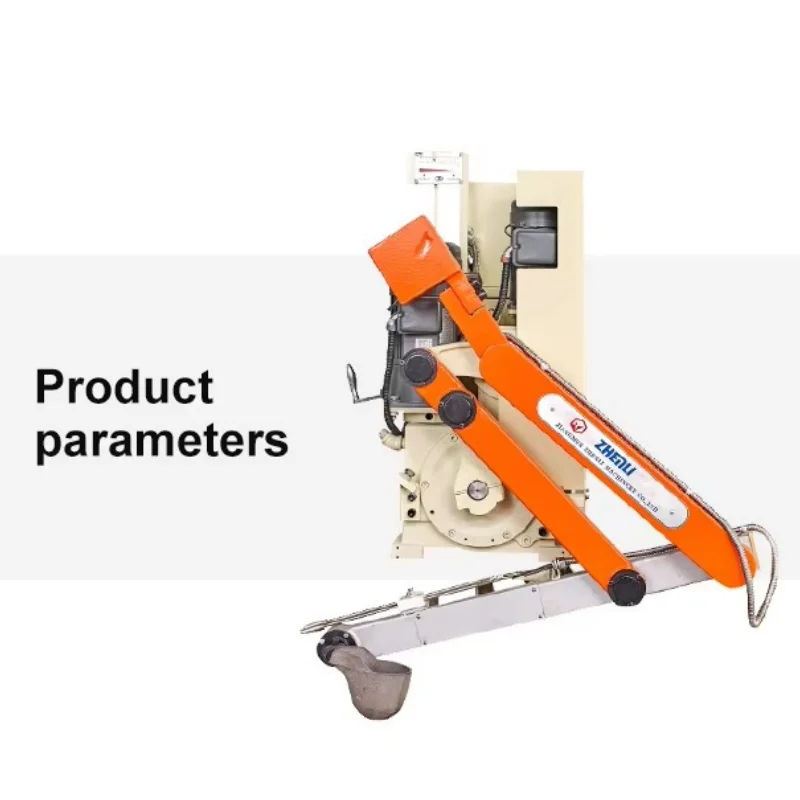

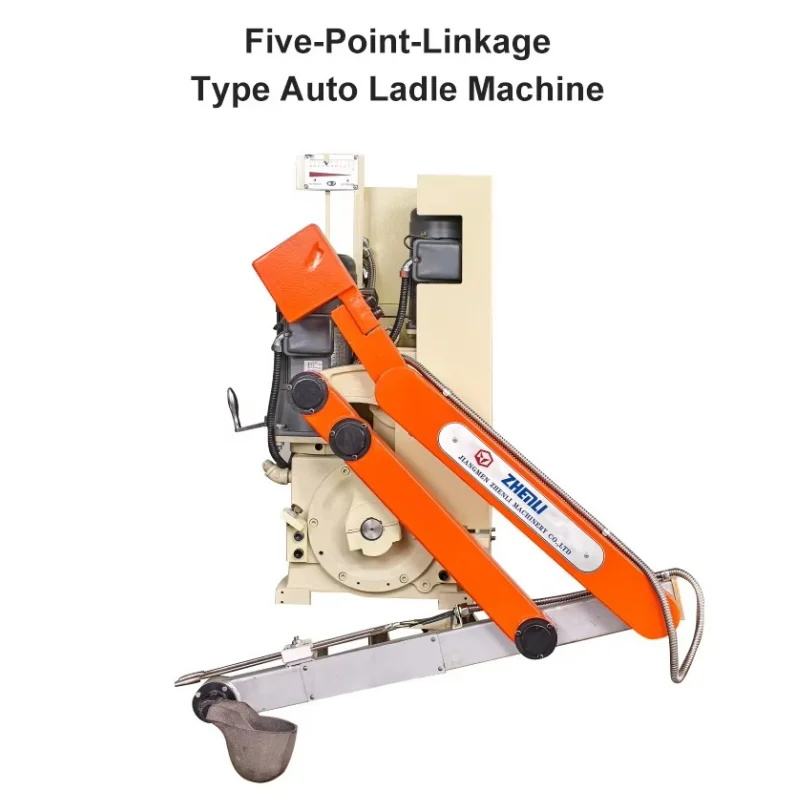

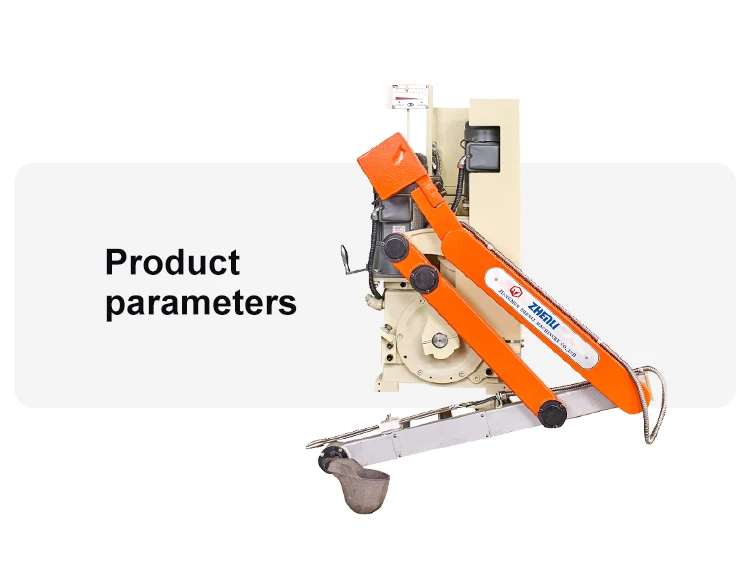

High Accuracy Five Point Linkage Type Auto Ladle Machine for Die Casting Machine
Details Images
Products Description
Item |
Five Point Linkage Type Auto Ladle Machine |
||||||||||
Model |
ZLLB2 |
ZLLB4 |
ZLLB6 |
ZLLB8 |
ZLLBA |
ZLLBC |
|||||

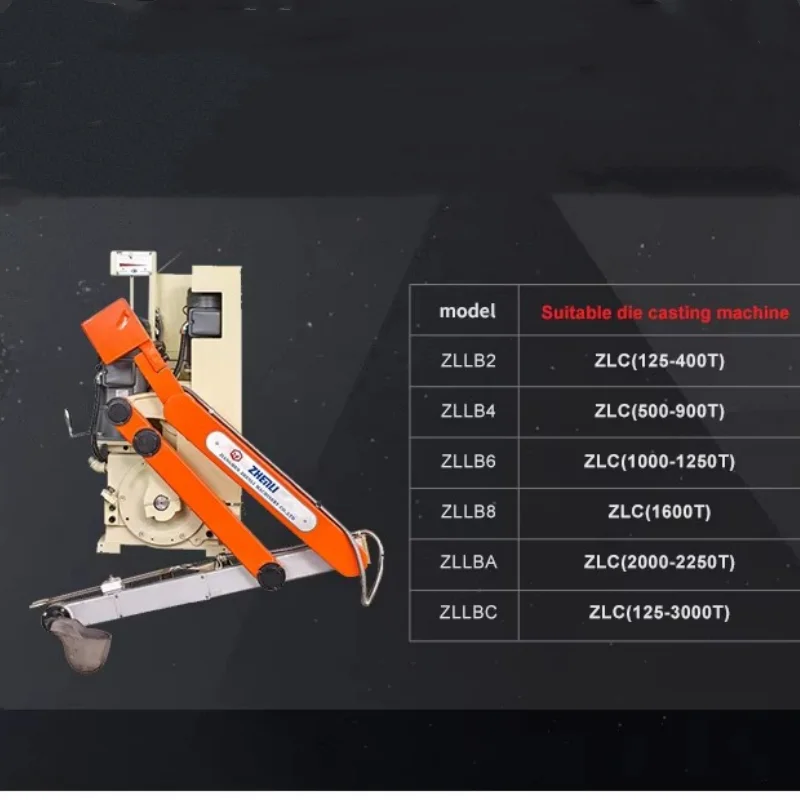

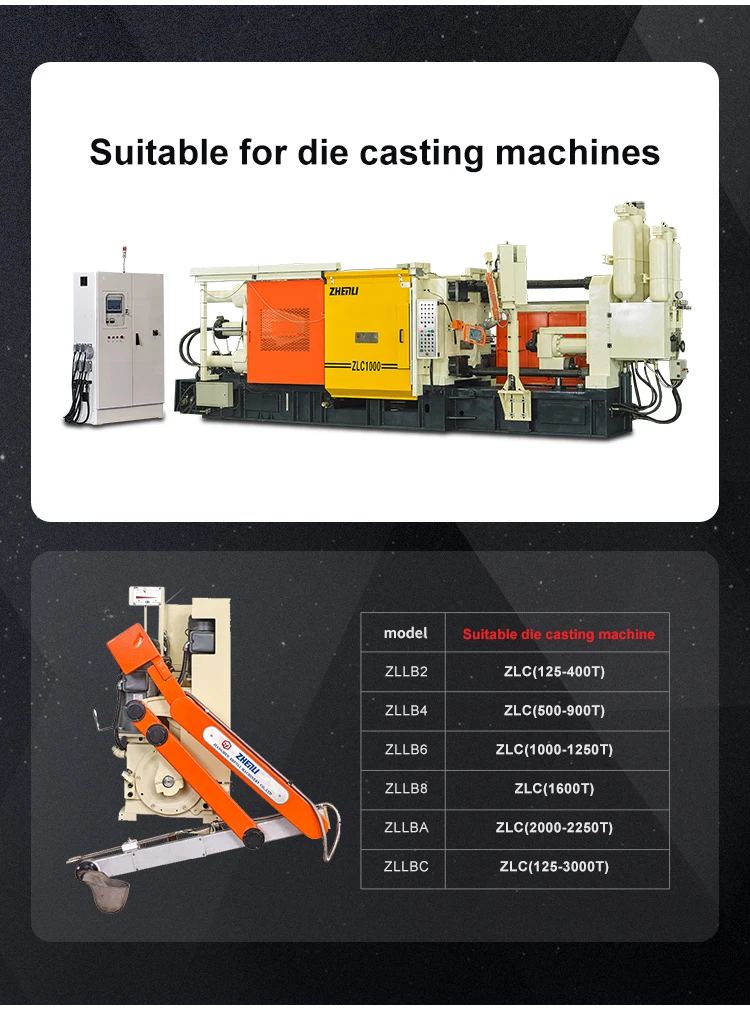

Suitable die casting machine |
125-400T |
500-900T |
1000-1250T |
1600T |
2000-2250T |
125-3000T |
|||||
Pouring capacity |
0.5~3.5kg |
3.5~8.0kg |
8~15kg |
12~20kg |
15~25kg |
25~35kg |
|||||
Pouring accuracy |
±2% |
||||||||||
Cycle time |
Max.15sec |
Max.18sec |
Max.30sec |
Max.35sec |
Max.40sec |
Max.50sec |
|||||
Diameter of crucible |
Min.550mm |
Min.650mm |
Min.800mm |
Min.850mm |
Min.1000mm |
Min.1100mm |
|||||
Filling Depth |
Max.280mm |
Max.420mm |
Max.430mm |
Max.480mm |
Max.680mm |
Max.680mm |
|||||
Arm motor power |
750W |
1.5KW |
2.2KW |
3.7KW |
|||||||
Spoon motor power |
200W |
400W |
750W |
||||||||
Main panel power |
2Φ-380V 50-60Hz |
||||||||||
Operating power |
DC24V |
||||||||||
Power capacity |
1.5KVA |
3.0KVA |
3.75KVA |
5.6KVA |
|||||||
Weight |
270KG |
275KG |
336KG |
510KG |
850KG |
900KG |
|||||

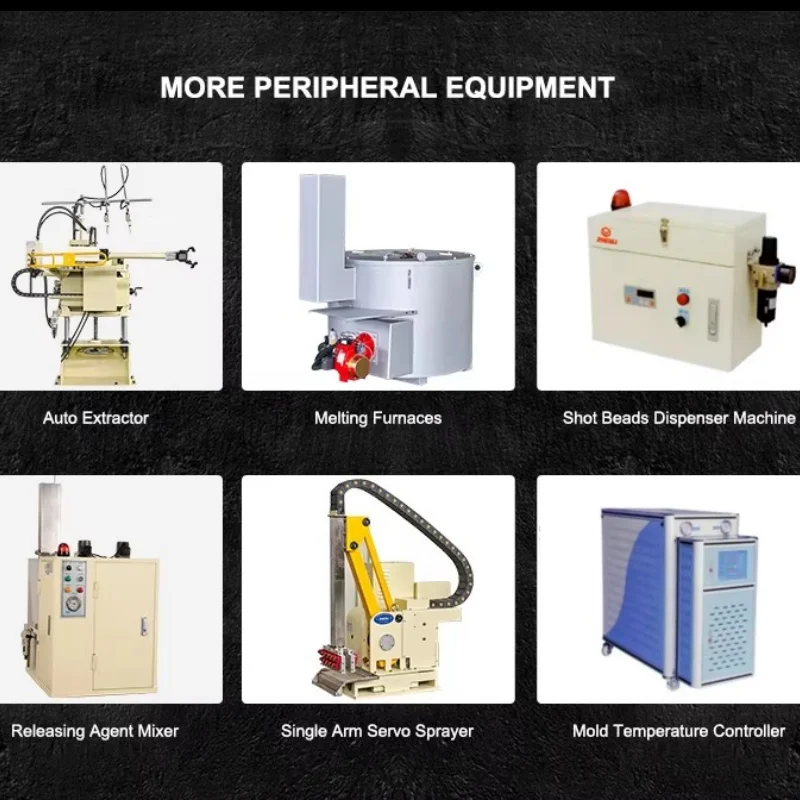

Peripheral Equipment
