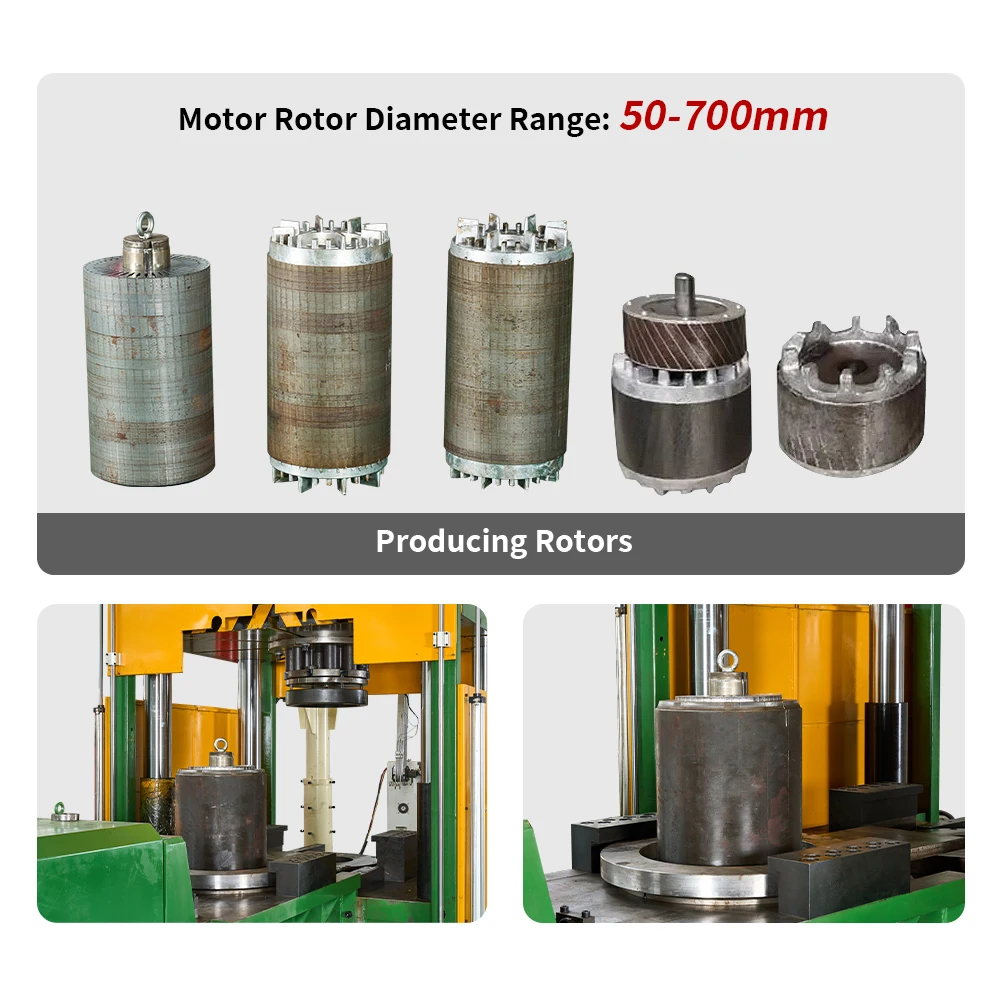

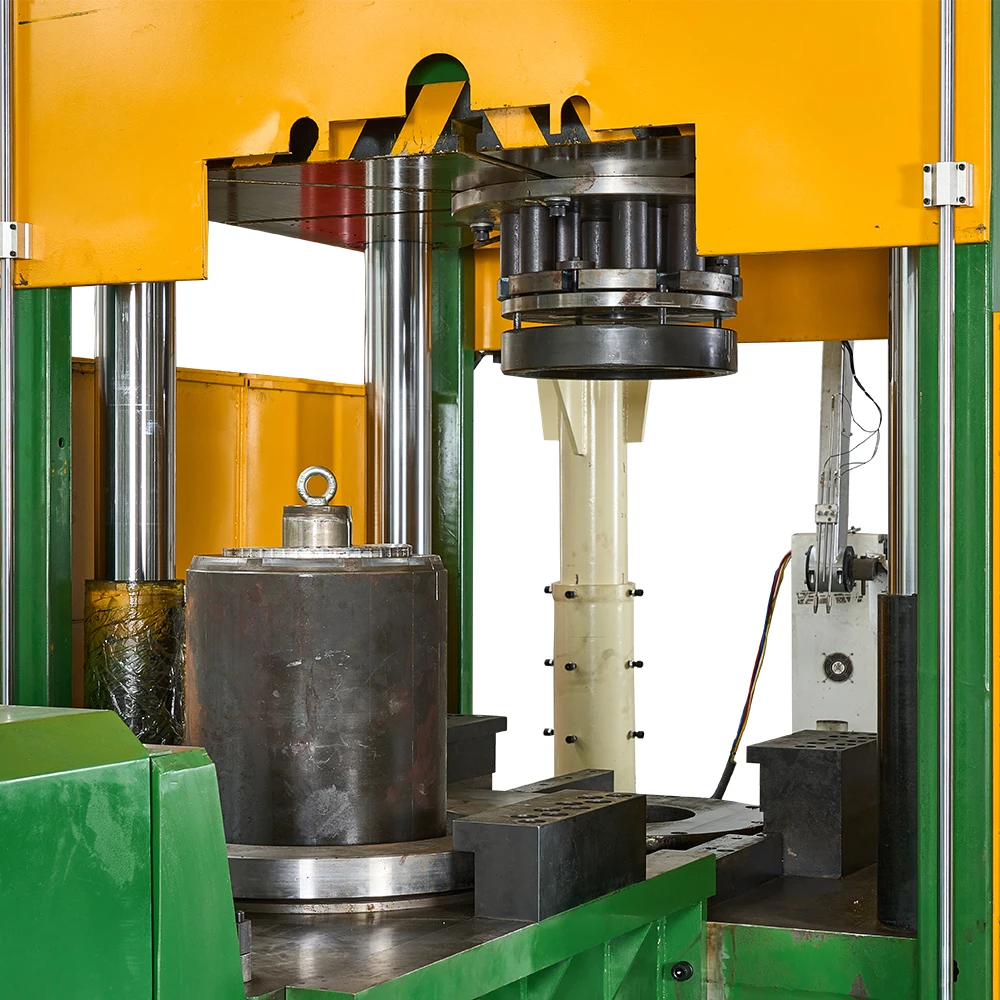

Manufacturer Motor Rotor 200 Ton Die Casting Machine Electrical High Pressure Aluminum Die Casting Machine

Product Description

Product Name	Motor Rotor Die Casting Machine
Machine Type	Aluminium Die Casting Machine

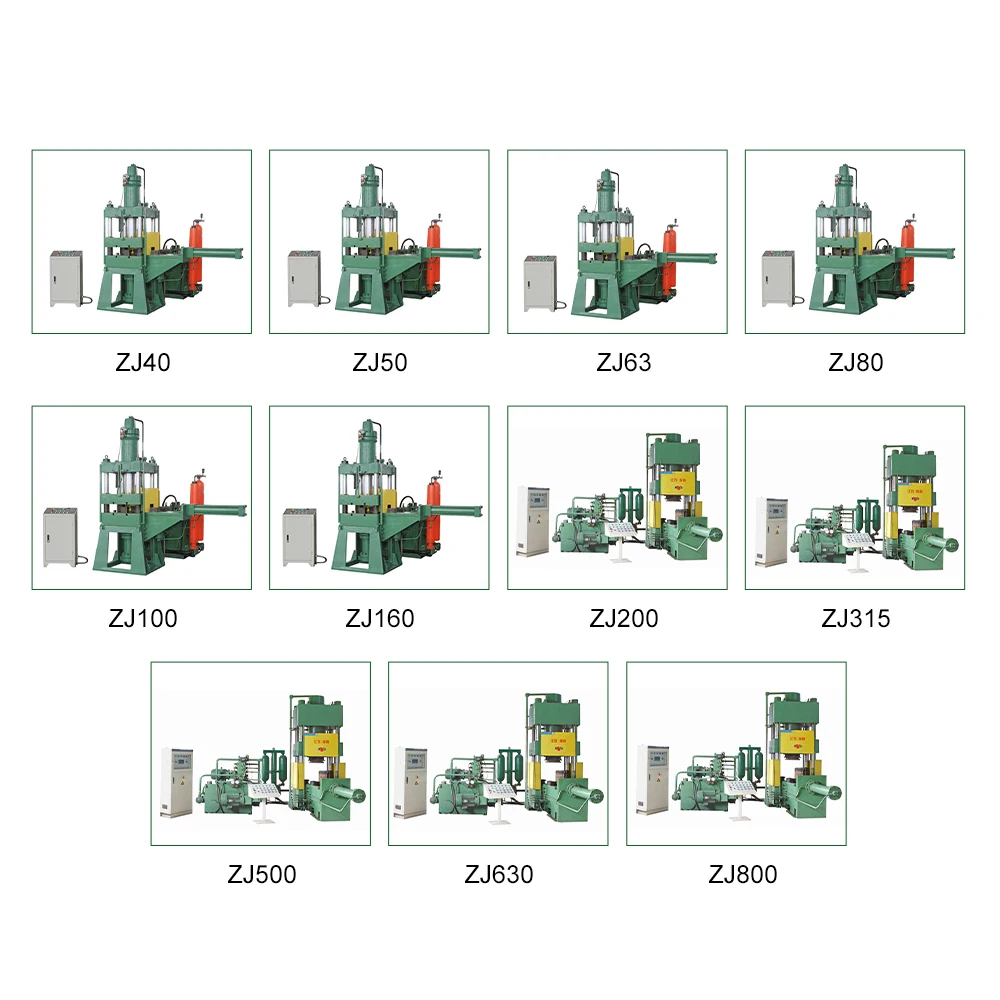

Model	ZJ200

High Configuration

Automated Production

1. Pneumatic safety door

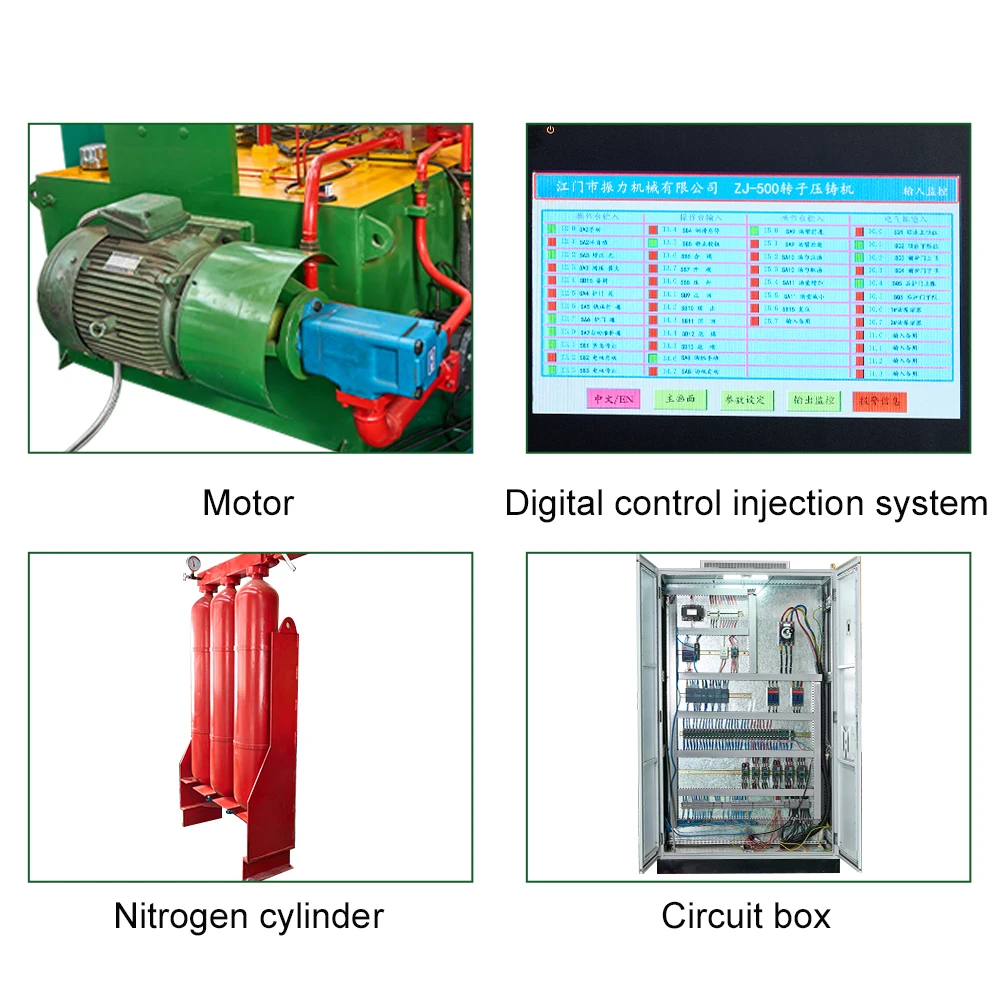

2. Servo motor oil pump system

3. H13 melting cup

4. Fast die closing

5. Ladle machine

1. Manual safety door

2. General motor oil pump system

3. Ductile iron melting cup

4. Slow die closing 5. Mold feeding device

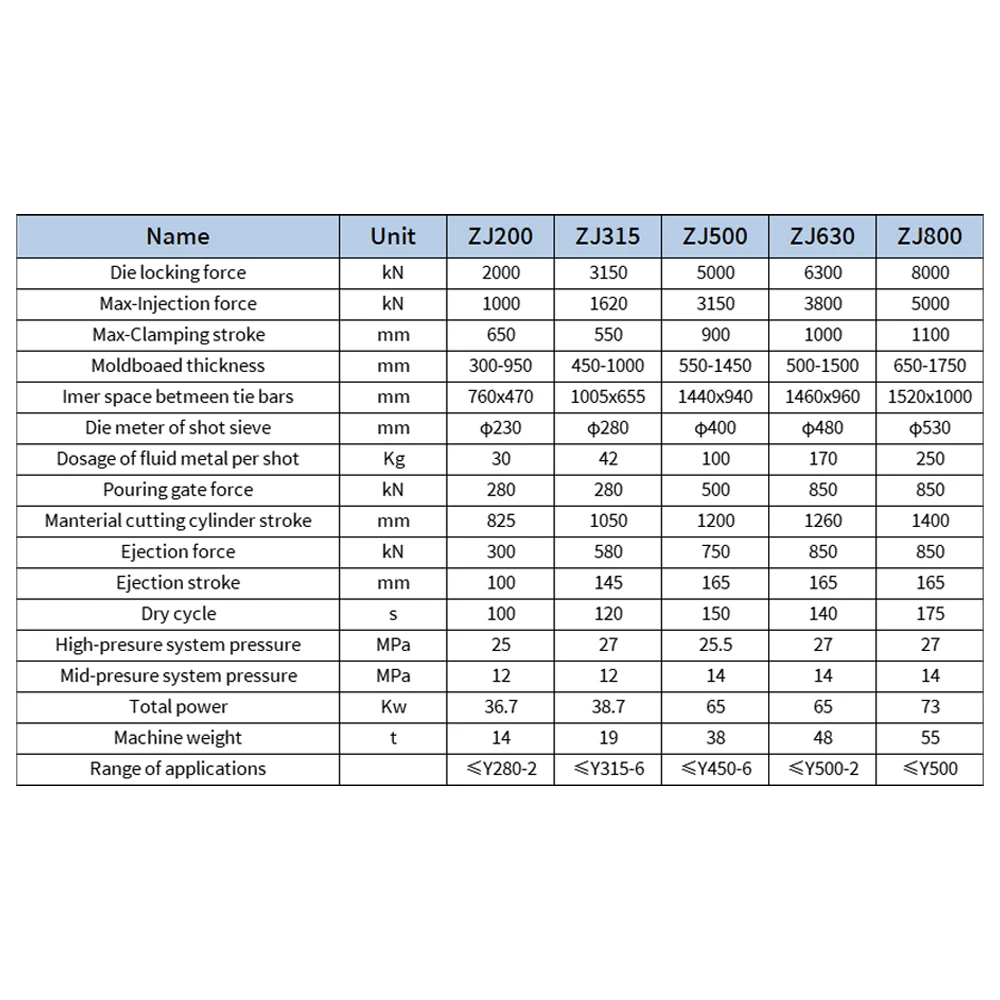

Specification

Product Name	Motor Rotor Die Casting Machine
Power	36.7KW
Clamping Force	2000KN
Casting Stroke	650mm
Casting Force	1000KN
Open Stroke	825mm
Space between tie bars	760*470mm
Weight	14000KG
Warranty	1 Year
Max.thickness of die block	950mm
Min.thickness of die block	300mm
Ejection Force	300KN
Ejection Stroke	100mm
Injection Chamber Diameter	230mm
Aluminum Injection Quantity(Maximum)	30kg
High Pressure System Pressure	25MPa
Low Pressure System Pressure	12MPa
Pouring Gate Force	280KN
After-sales Service Provided	Engineers Available To Service Machinery Overseas
