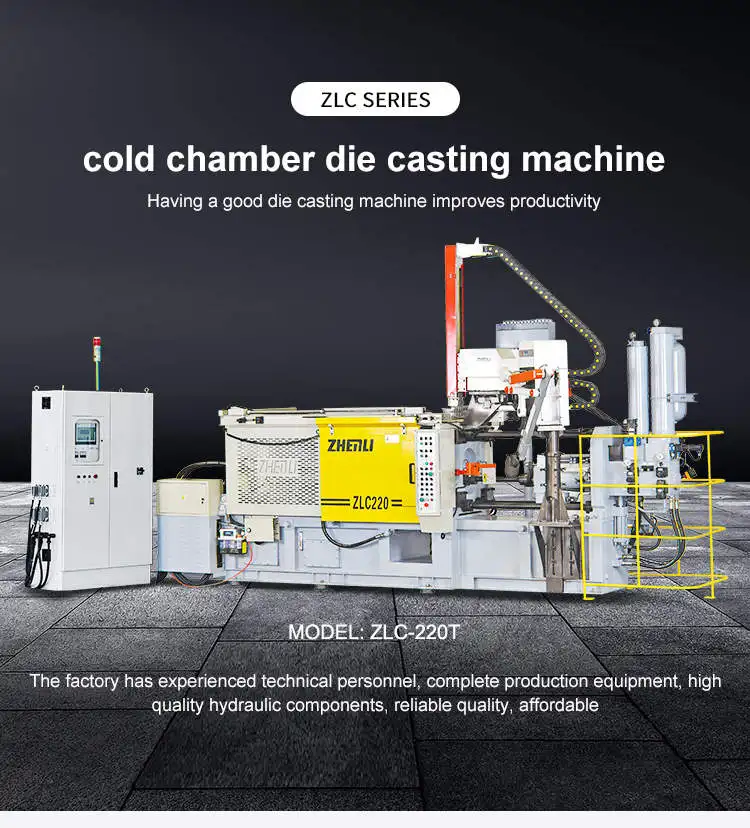

ZHENLI 220T Aluminum Injection Molding Machine Electric Aluminum Alloy Die Casting Machine for Fan
Main Features
-Automatic Control Function Of Injection Parameters
-Injection Curve Display Function
-Automatic Extraction,Display and Analysis of Injection Parameter Function
-Digital Control Function
- Overview
- Recommended Products
Products Description
ITEMS |
UNIT |
ZLC-220T |
Clamping Force |
kN |
2200 |
Die Clamping Stroke |
mm |
400 |
Ejection Force |
kN |
120 |
Ejection Stroke |
mm |
100 |
Die Height ( Min-Max) |
mm |
200-600 |
Die Platen Size(HxV) |
mm |
755x760 |
Space Between Tie Bars |
mm |
510×510 |
Shot Position |
mm |
0，-125 |
Shot Strock |
mm |
400 |
Casting Force ( Intensify ) |
kN |
288 |
Plunger Diameter |
mm |
50, 60, 70 |
Injection Weight(Aluminum) |
kg |
1.35, 1.95, 2.65 |
Casting Pressure (Intensify ) |
MPa |
147, 102, 87 |
Casting Area |
cm² |
149, 215, 252 |
Max Casting Area(40MPa) |
cm² |
550 |
Chamber Flange Diameter |
mm |
110 |
Height Of Pressure Chamber Flange |
mm |
10 |
Plunger Penetration |
mm |
135 |
Main Pump Driving Motor/Servo Motor |
kW |
15/22 |
Hydraulic Working Pressure |
MPa |
14 |
Oil Tank Capacity |
L |
550 |
Machine Dimensions(LxWxH) |
mm |
5700x1500x2600 |
Referential Machine Weight For Uplifting |
T |
8.4 |
Details Images
