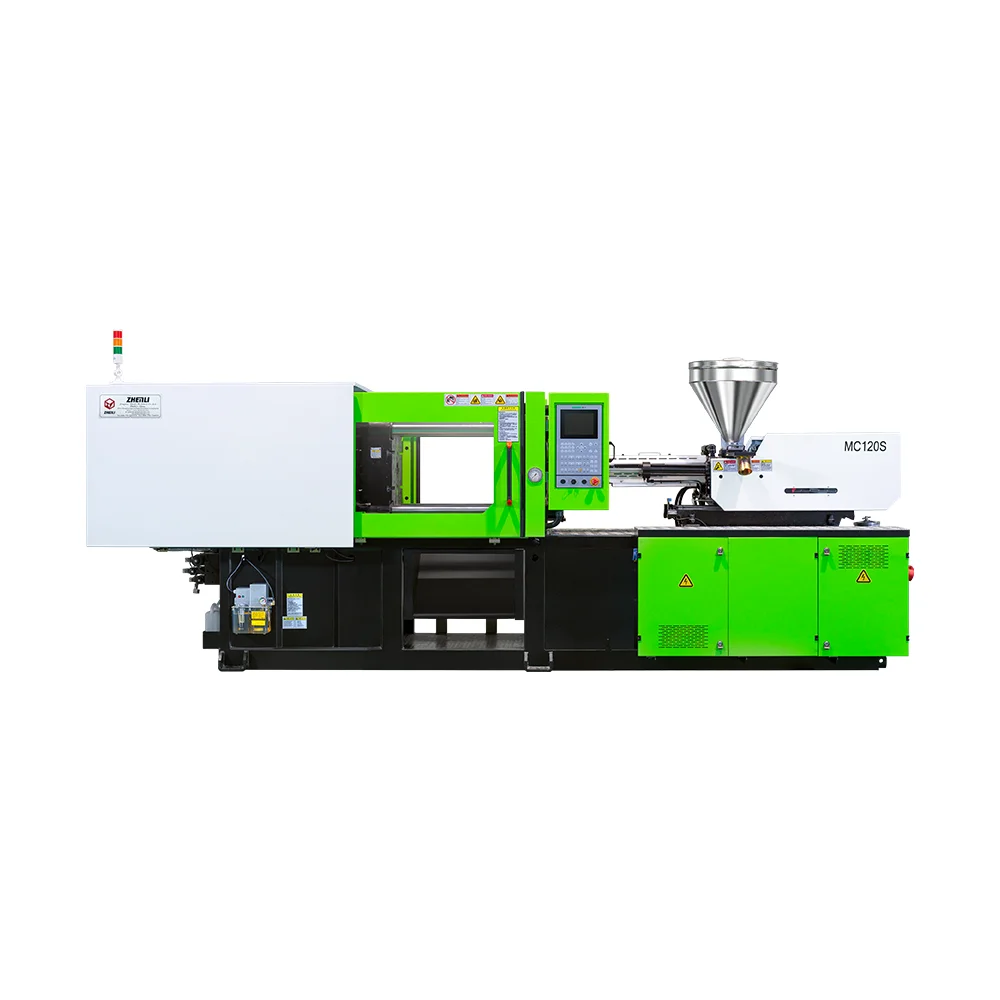

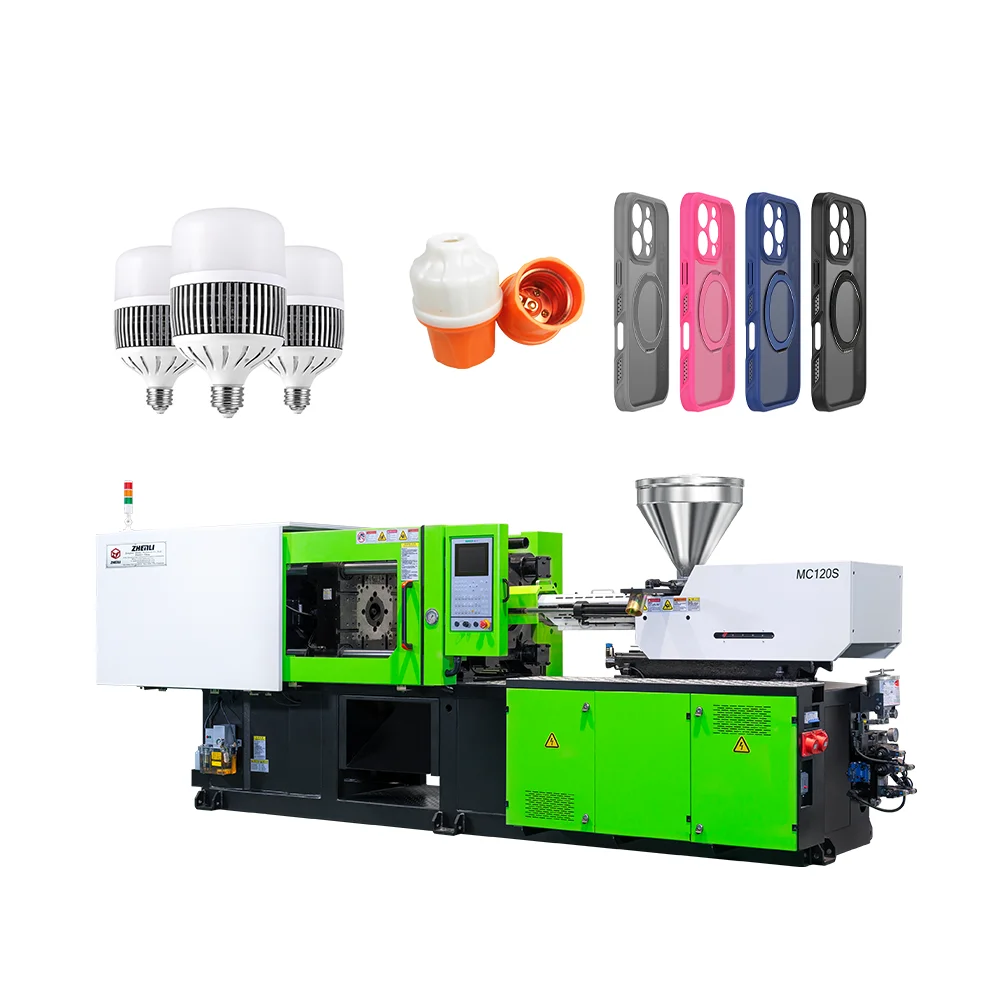

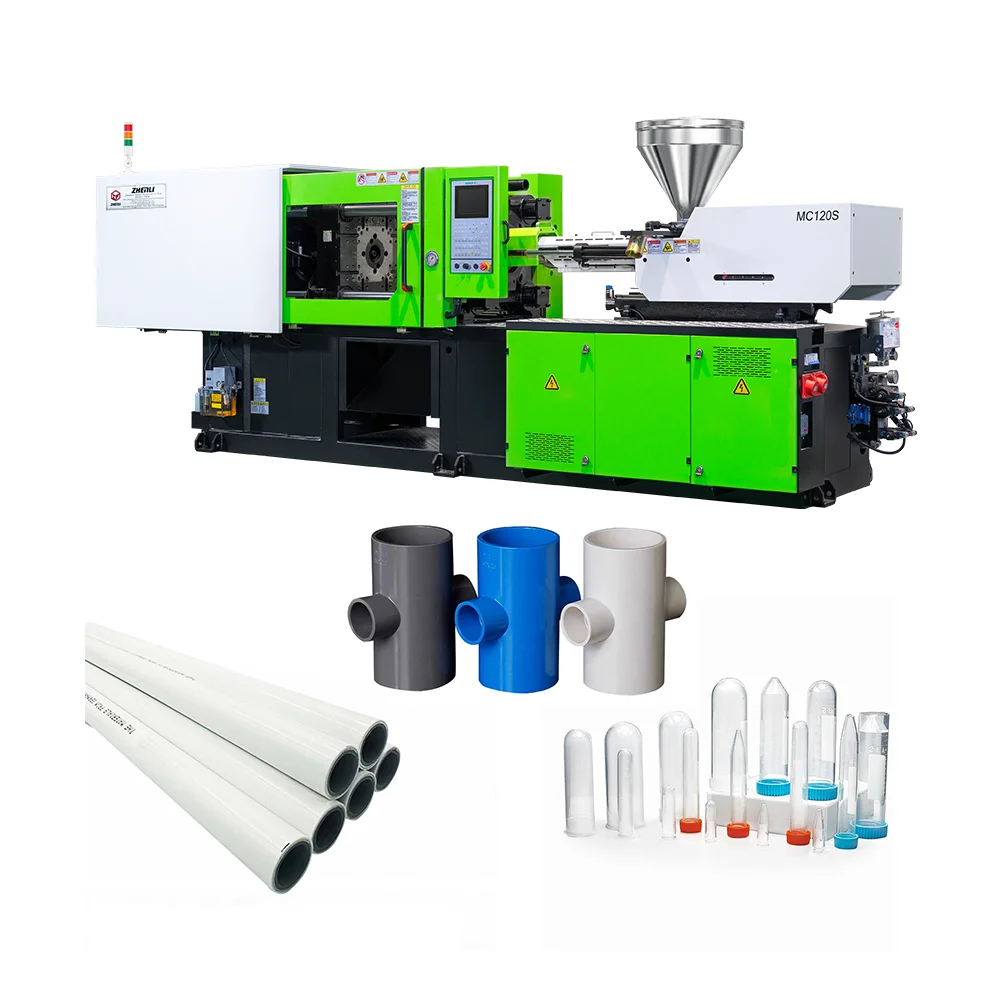

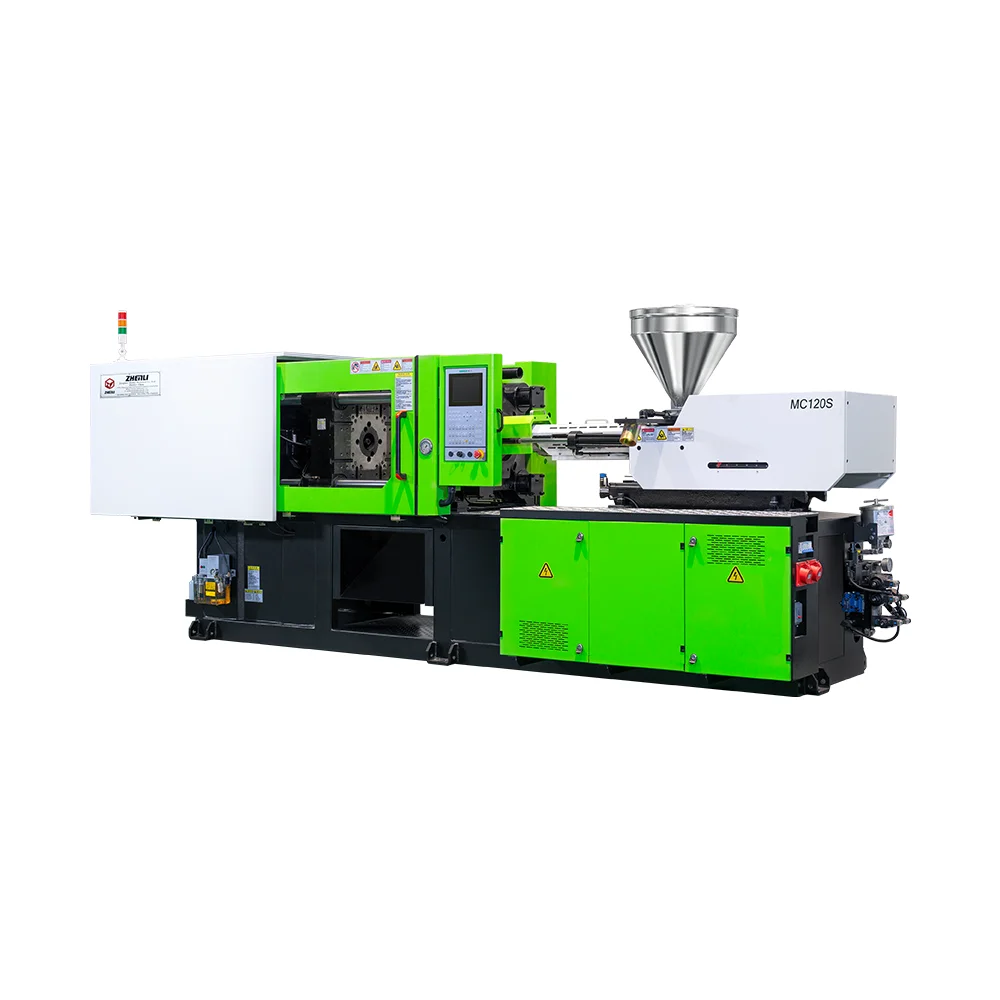

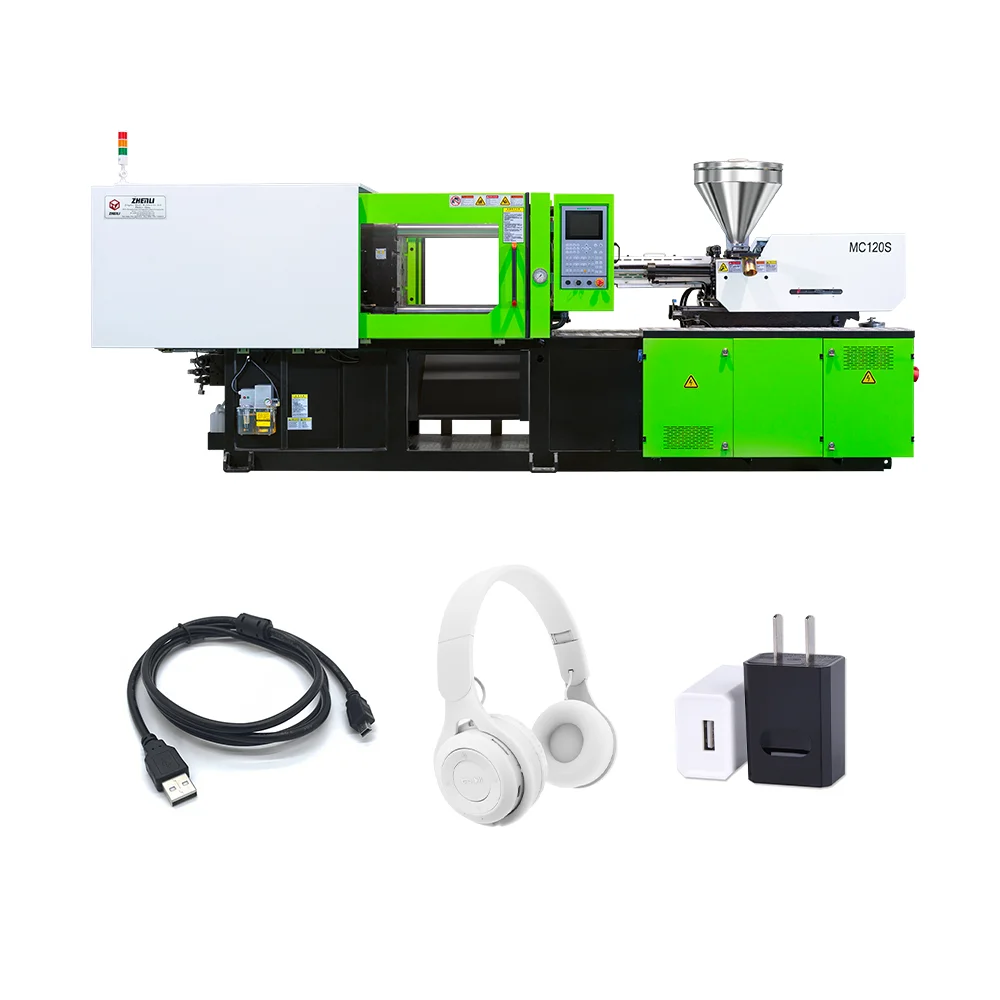

Factory Price Injection Molding Machine Led Bulb Automatic 120 Ton Plastic Injection Molding Machine
- Overview
- Recommended Products

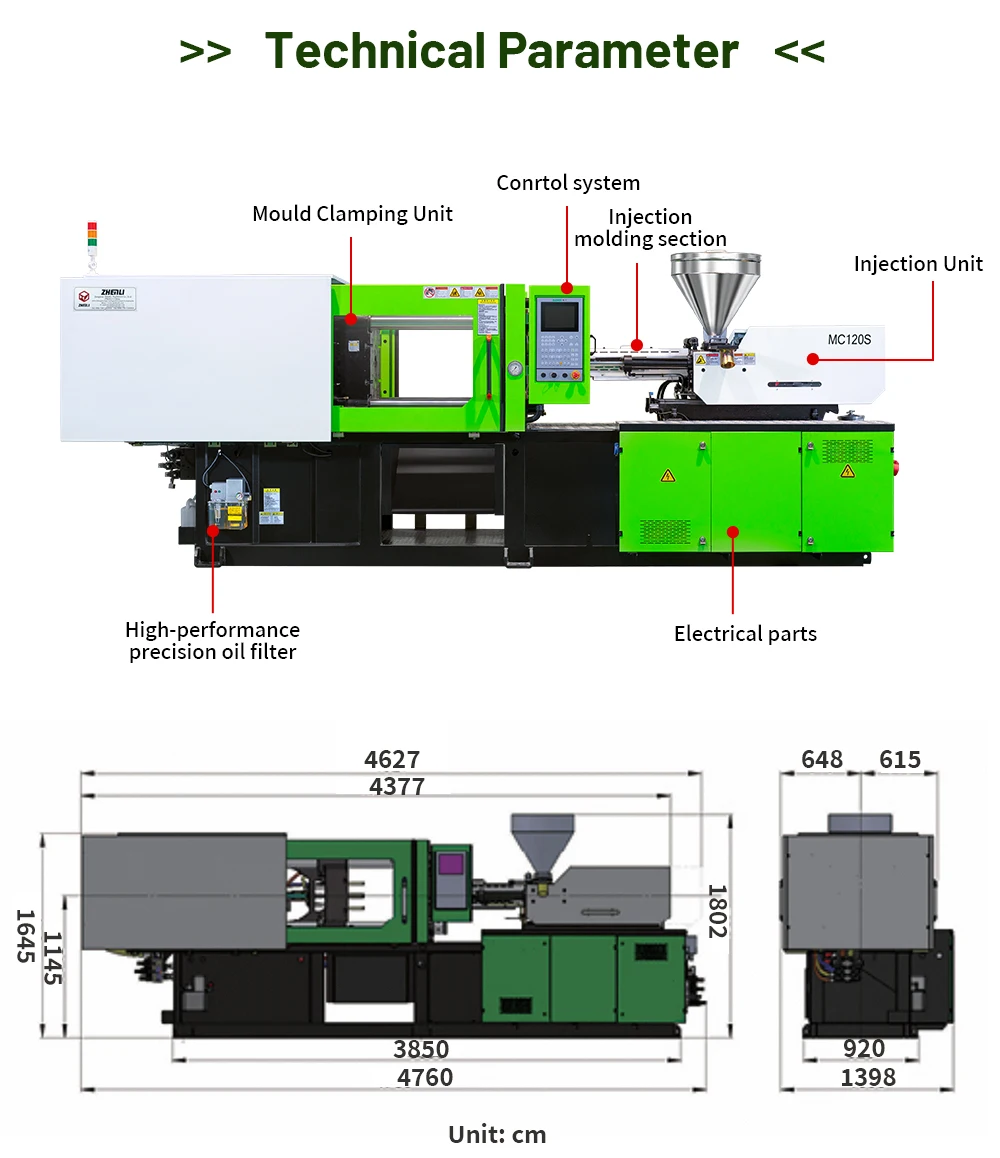

Specification
ZLMC120S |
||||||||
Injection part |
||||||||
INJECTION UNIT |
unit |
A |
B |
C |
||||
Screw diameter |
mm |
35 |
40 |
45 |
||||
Shot volume |
cm³ |
183 |
239 |
302 |
||||
Shot weight(PS) |
g(ps) |
170 |
222 |
281 |
||||
Injection pressure |
MPa |
228 |
174 |
138 |
||||
Theoretical Injection rate |
cm³/s |
97 |
127 |
160 |
||||
Plasticizing Capacity(ps) |
g/s |
10.5 |
13.3 |
17.5 |
||||
Screw I/D ratio |
I:D |
23:1 |
21:1 |
18:1 |
||||
Screw speed(stepless) |
rpm |
0-228 |
0-228 |
0-228 |
||||
Screw stroke |
mm |
190 |
190 |
190 |
||||
Clamping part |
||||||||
Clamping force |
KN |
1200 |
||||||
Opening stroke |
mm |
360 |
||||||
Max.daylight |
mm |
820 |
||||||
Mold thickness(min-max) |
mm |
145-460 |
||||||
Space between tie bars |
mm |
410x410 |
||||||
Platen size |
mm |
580x610 |
||||||
Hydraulic ejection force |
kN |
42 |
||||||
Hydraulic ejection stroke |
mm |
120 |
||||||
Power/Electricity/Other |
||||||||
Hydraulic system pressure |
MPa |
17.5 |
||||||
Motor/Server |
KW |
15 |
||||||
Heating capacity |
KW |
7.8 |
||||||
Oil tank capacity |
L |
160 |
||||||
Machine weight |
Kg |
4000 |
||||||
Product Description
