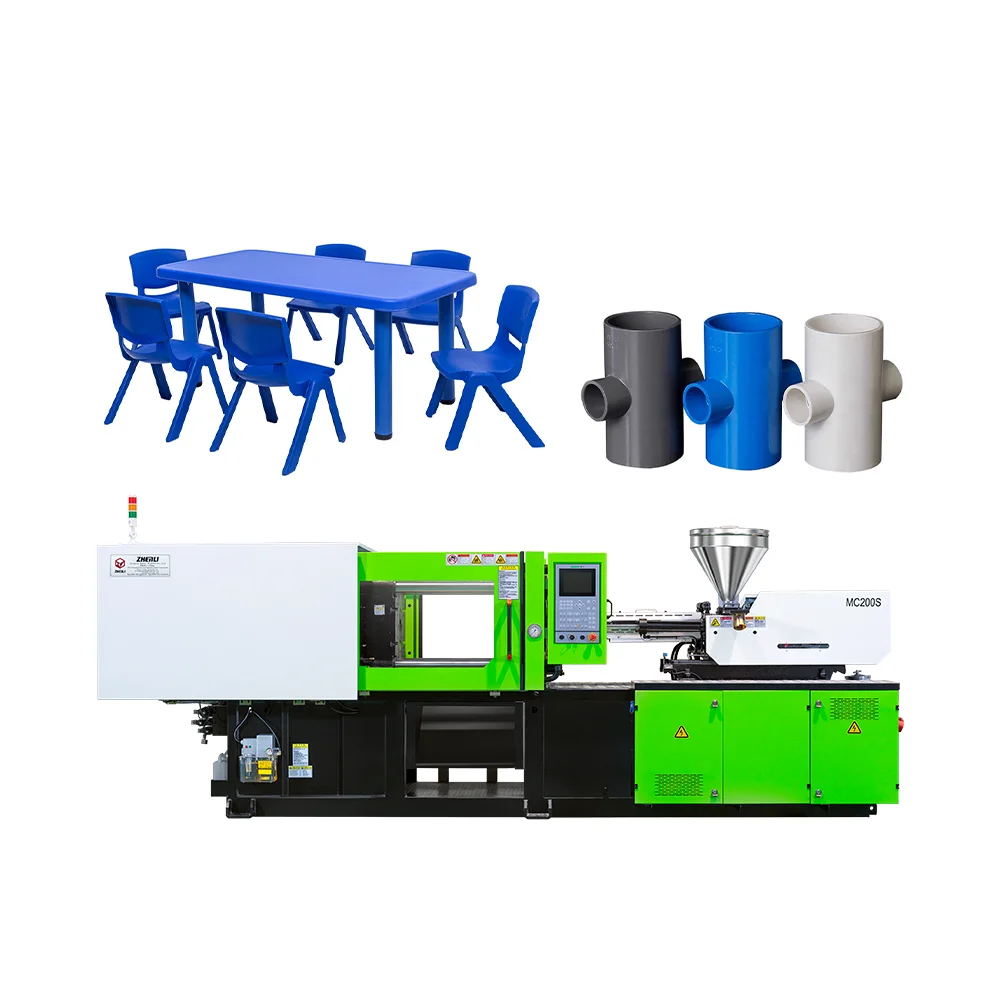

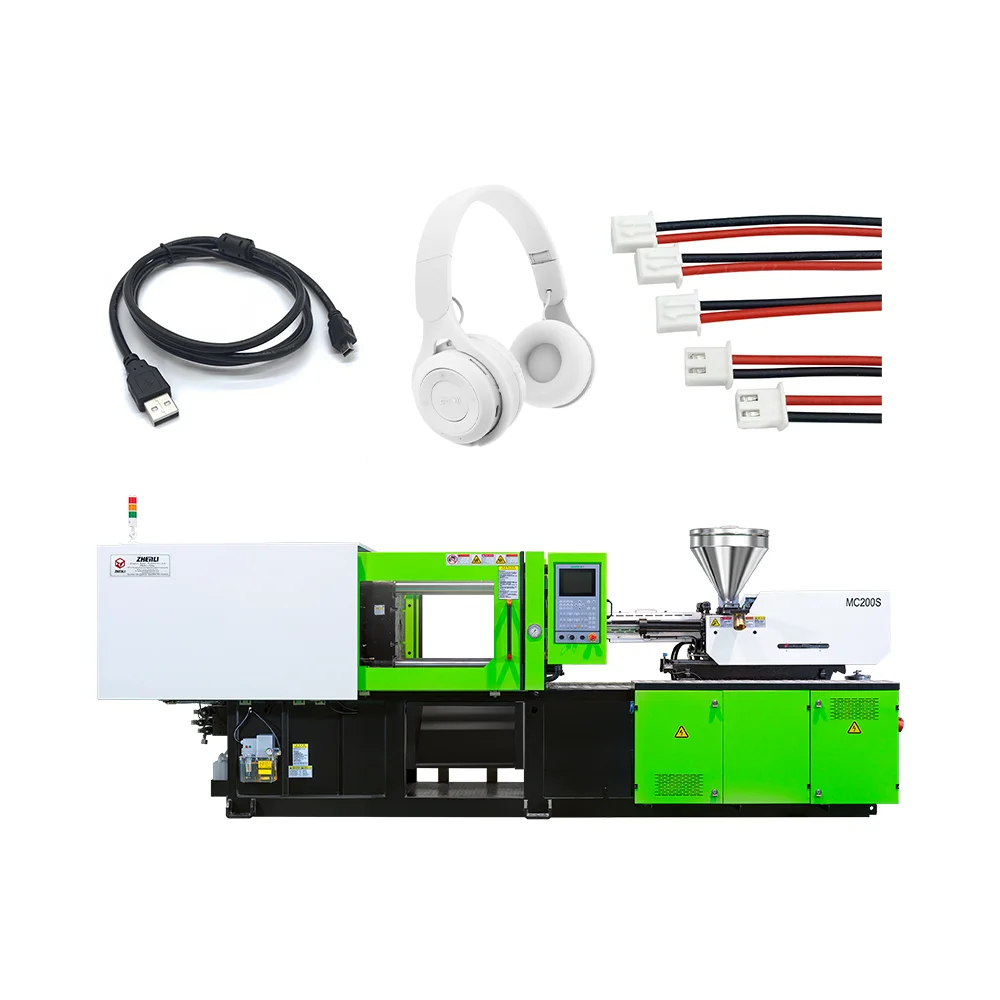

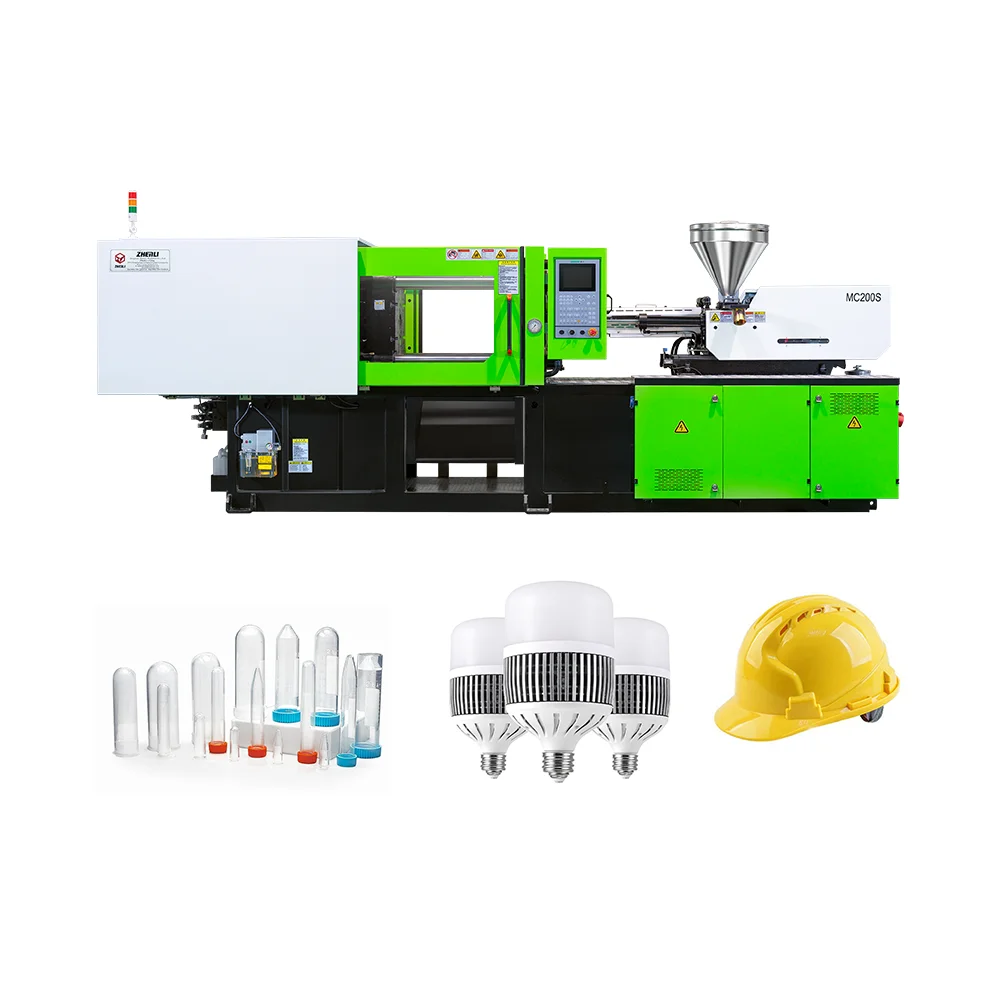

Factory Hot Sale Injection Molding Machine 200T Horizontal Injection Molding Machine for USB Cables
- Overview
- Recommended Products

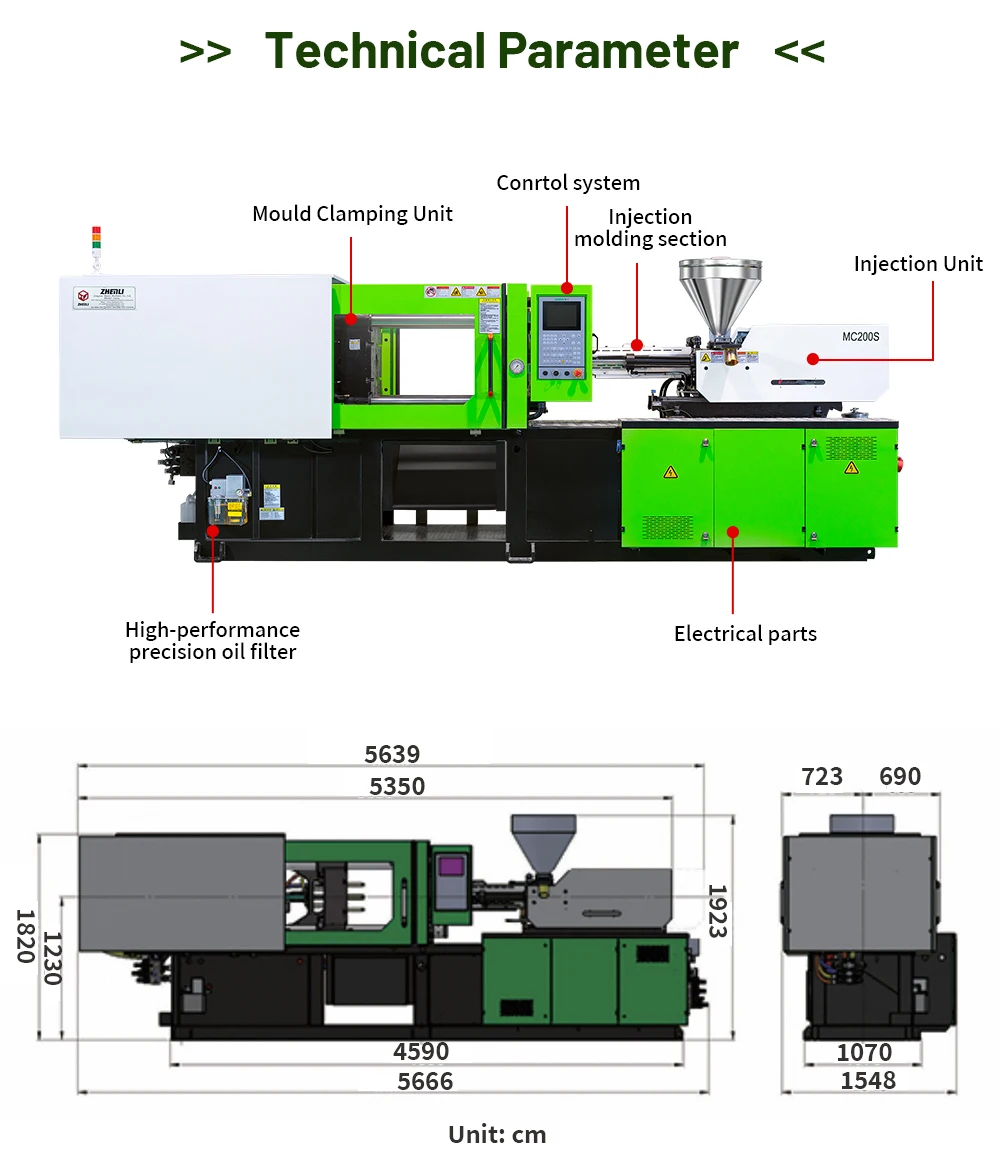

Specification
ZLMC200S |
||||||||
Injection part |
||||||||
INJECTION UNIT |
unit |
A |
B |
C |
||||
Screw diameter |
mm |
45 |
50 |
60 |
||||
Shot volume |
cm³ |
389 |
481 |
692 |
||||
Shot weight(PS) |
g(ps) |
362 |
447 |
644 |
||||
Injection pressure |
MPa |
217 |
176 |
122 |
||||
Theoretical Injection rate |
cm³/s |
160 |
198 |
236 |
||||
Plasticizing Capacity(ps) |
g/s |
19.2 |
29.5 |
33.5 |
||||
Screw I/D ratio |
I:D |
23:1 |
21:1 |
17:1 |
||||
Screw speed(stepless) |
rpm |
0-180 |
0-180 |
0-180 |
||||
Screw stroke |
mm |
245 |
245 |
245 |
||||
Clamping part |
||||||||
Clamping force |
KN |
2000 |
||||||
Opening stroke |
mm |
490 |
||||||
Max.daylight |
mm |
1050 |
||||||
Mold thickness(min-max) |
mm |
180-560 |
||||||
Space between tie bars |
mm |
530x530 |
||||||
Platen size |
mm |
740x750 |
||||||
Hydraulic ejection force |
kN |
49 |
||||||
Hydraulic ejection stroke |
mm |
150 |
||||||
Power/Electricity/Other |
||||||||
Hydraulic system pressure |
MPa |
17.5 |
||||||
Motor/Server |
KW |
22 |
||||||
Heating capacity |
KW |
11 |
||||||
Oil tank capacity |
L |
250 |
||||||
Machine weight |
Kg |
6000 |
||||||
