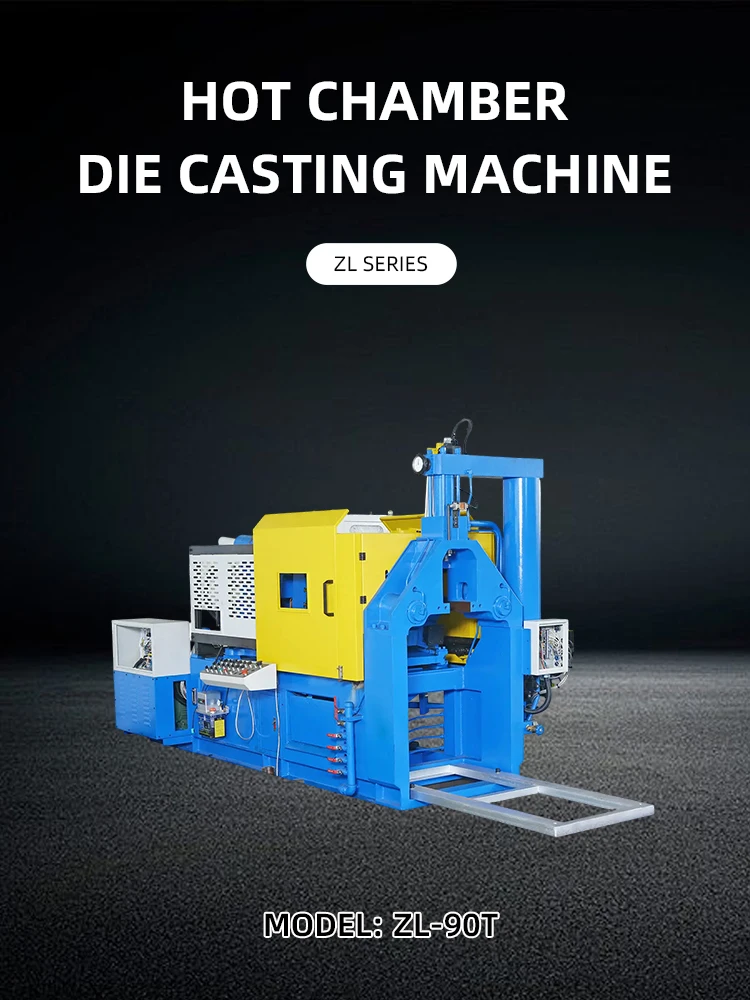

High Pressure Electric 90 Ton Continous Zinc Die Cast Hinges Machine Zamak Casting Machine
Locking Force：900KN
Die Stroke：268mm
Ejection Force：60KN
Ejection Stroke(Max)：65mm
Die Thickness(Min-Max）：140-350mm
- Overview
- Recommended Products
Products Description
ITEM |
Unit |
ZL-90T |
||||
Locking Force |
KN |
900 |
||||
Die Stroke |
mm |
268 |
||||
Ejection Force |
KN |
60 |
||||
Ejection Stroke(Max) |
mm |
65 |
||||
Die Thickness(Min-Max） |
mm |
140-350 |
||||
Tie Bar Diameter |
mm |
60 |
||||
Space Between Tie Bars(W×H) |
mm |
360×360 |
||||
Shot Position |
mm |
0 ,-50 |
||||
Plunger Stroke |
mm |
130 |
||||
Traverse Stroke |
mm |
210 |
||||
Injection Force(Max) |
KN |
65 |
||||
Diameter Of Plunger |
mm |
50 |
55 |
|||
Max Shot Weight(Zn) |
Kg |
1.2 |
1.4 |
|||
Hydraulic Pressure |
Mpa |
13.0 |
||||
Motor Power |
KW |
11 |
||||
Crucible Capacity(Zn) |
Kg |
400 |
||||
Capacity Of Accumulator |
L |
20 |
||||
Furnace Energy Consumption
|
Diesel-Fired Furnace |
KG/h |
4.8 |
|||
Electric Furnace |
KW |
30 |
||||
Capacity Of Oil Tank |
L |
220 |
||||
Machine Size(L×W×H) |
mm |
4050×1550×1920 |
||||
Weight of Machine |
kg |
4200 |
||||

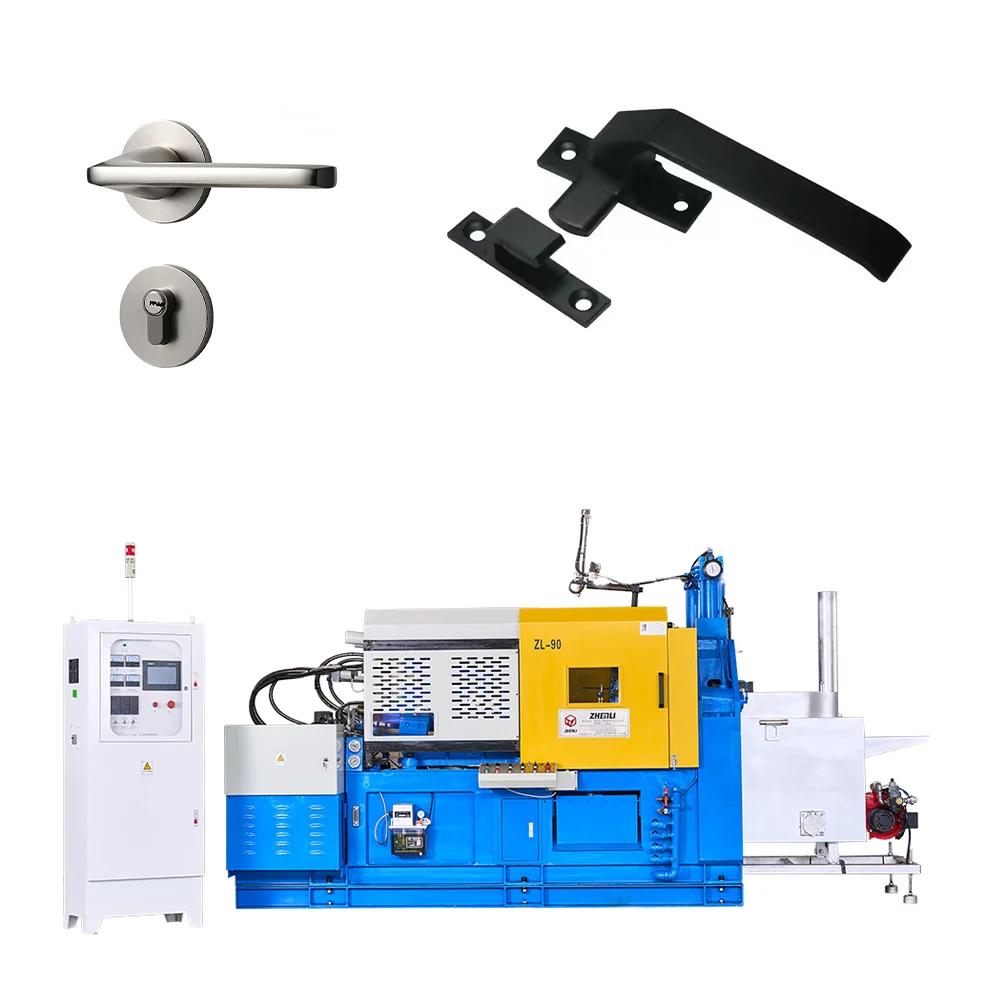

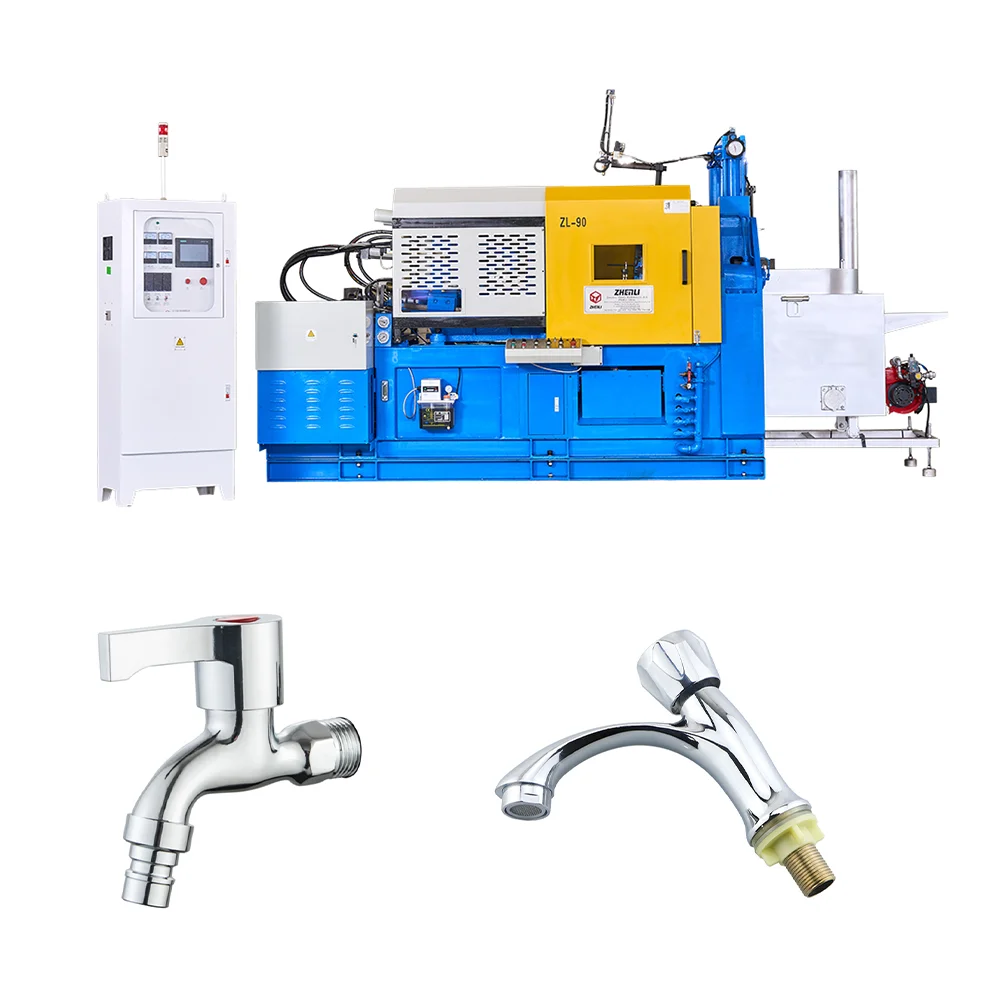

Details Images
