Sunglasses Injection Molding Machine Fully Automatic Desktop Plastic Injection Molding Machine Price
- Overview
- Recommended Products

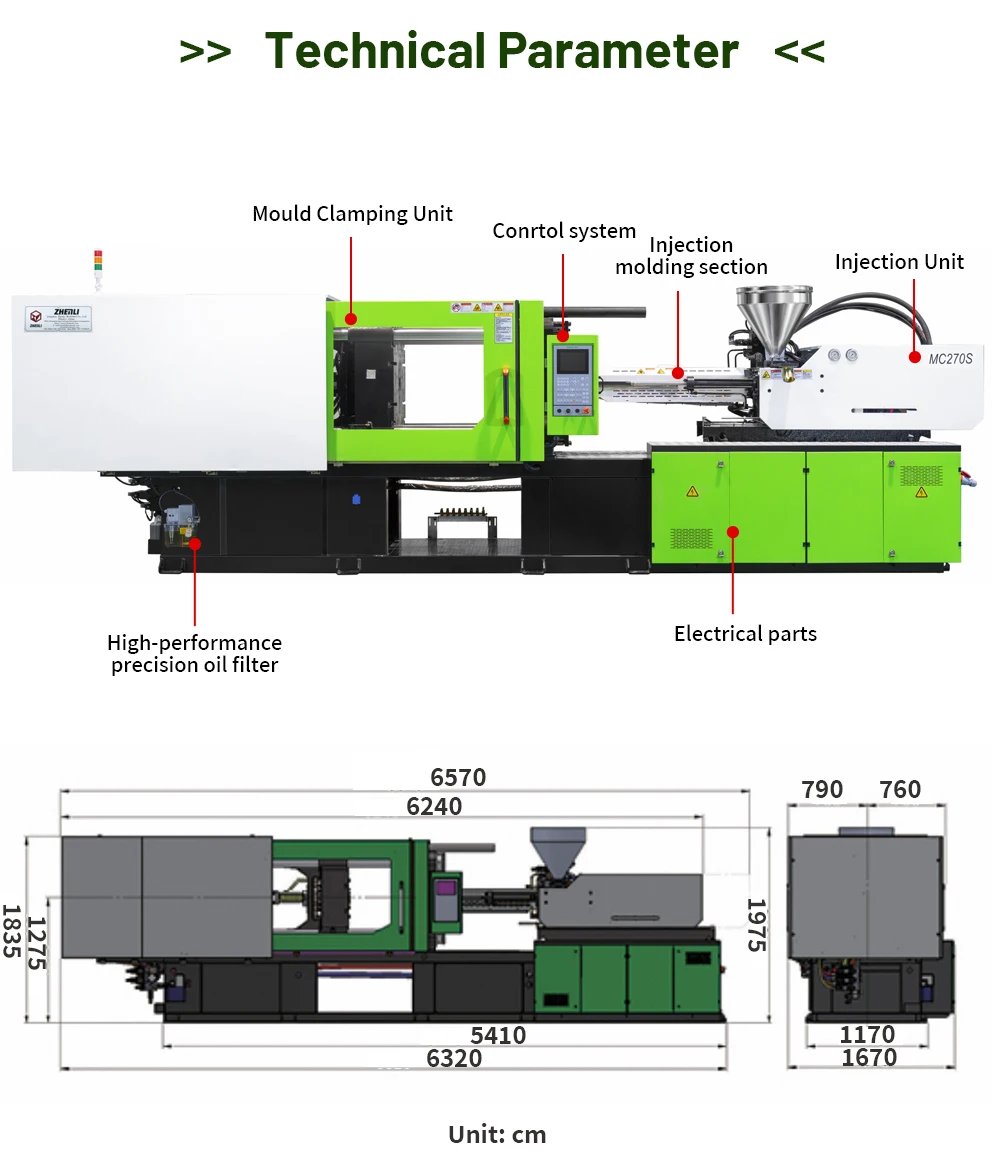

Specification
ZLMC270S |
||||||||
Injection part |
||||||||
INJECTION UNIT |
unit |
A |
B |
C |
||||
Screw diameter |
mm |
50 |
60 |
67 |
||||
Shot volume |
cm³ |
589 |
848 |
1057 |
||||
Shot weight(PS) |
g(ps) |
548 |
788 |
983 |
||||
Injection pressure |
MPa |
232 |
161 |
130 |
||||
Theoretical Injection rate |
cm³/s |
189 |
271 |
338 |
||||
Plasticizing Capacity(ps) |
g/s |
30.1 |
35.5 |
45.2 |
||||
Screw I/D ratio |
I:D |
25:1 |
21:1 |
19:1 |
||||
Screw speed(stepless) |
rpm |
0-178 |
0-178 |
0-178 |
||||
Screw stroke |
mm |
300 |
300 |
300 |
||||
Clamping part |
||||||||
Clamping force |
KN |
2700 |
||||||
Opening stroke |
mm |
540 |
||||||
Max.daylight |
mm |
1160 |
||||||
Mold thickness(min-max) |
mm |
195-620 |
||||||
Space between tie bars |
mm |
610x570 |
||||||
Platen size |
mm |
850x840 |
||||||
Hydraulic ejection force |
kN |
77 |
||||||
Hydraulic ejection stroke |
mm |
160 |
||||||
Power/Electricity/Other |
||||||||
Hydraulic system pressure |
MPa |
17.5 |
||||||
Motor/Server |
KW |
30 |
||||||
Heating capacity |
KW |
15 |
||||||
Oil tank capacity |
L |
320 |
||||||
Machine weight |
Kg |
9000 |
||||||
