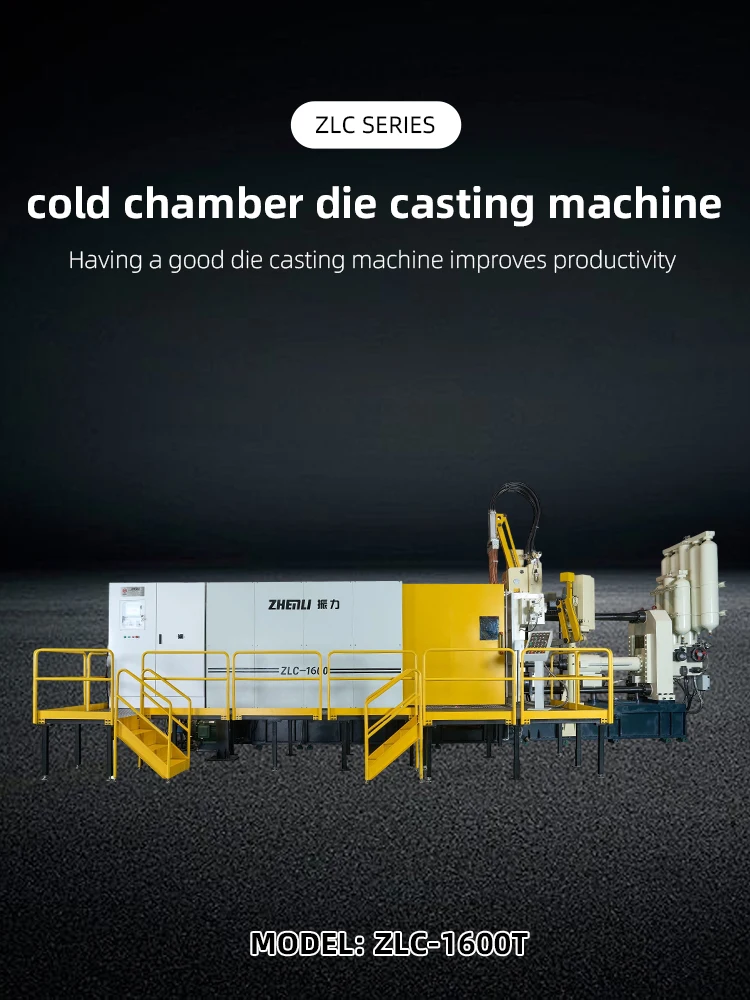

1600T Power Transformer Accessories Casting Machinery Cold Chamber Aluminium Die Casting Machine
Main Features
-Automatic Control Function Of Injection Parameters
-Injection Curve Display Function
-Automatic Extraction,Display and Analysis of Injection Parameter Function
-Digital Control Function
- Overview
- Recommended Products
Products Description
ITEMS |
UNIT |
ZLC-1600T |
Clamping Force |
kN |
16000 |
Die Clamping Stroke |
mm |
1200 |
Ejection Force |
kN |
570 |
Ejection Stroke |
mm |
250 |
Die Height ( Min-Max) |
mm |
500-1400 |
Die Platen Size(HxV) |
mm |
1980x1980 |
Space Between Tie Bars |
mm |
1250×1250 |
Shot Position |
mm |
-175, -350 |
Shot Strock |
mm |
930 |
Casting Force ( Intensify ) |
kN |
1285 |
Plunger Diameter |
mm |
110-150 |
Injection Weight(Aluminum) |
kg |
16.6-30.8 |
Casting Pressure (Intensify ) |
MPa |
137-73 |
Casting Area |
cm² |
1165-2190 |
Max Casting Area(40MPa) |
cm² |
4000 |
Chamber Flange Diameter |
mm |
260 |
Height Of Pressure Chamber Flange |
mm |
25 |
Plunger Penetration |
mm |
360 |
Main Pump Driving Motor/Servo Motor |
kW |
90 |
Hydraulic Working Pressure |
MPa |
16 |
Oil Tank Capacity |
L |
3000 |
Machine Dimensions(LxWxH) |
mm |
11660x4570x4590 |
Referential Machine Weight For Uplifting |
T |
110 |

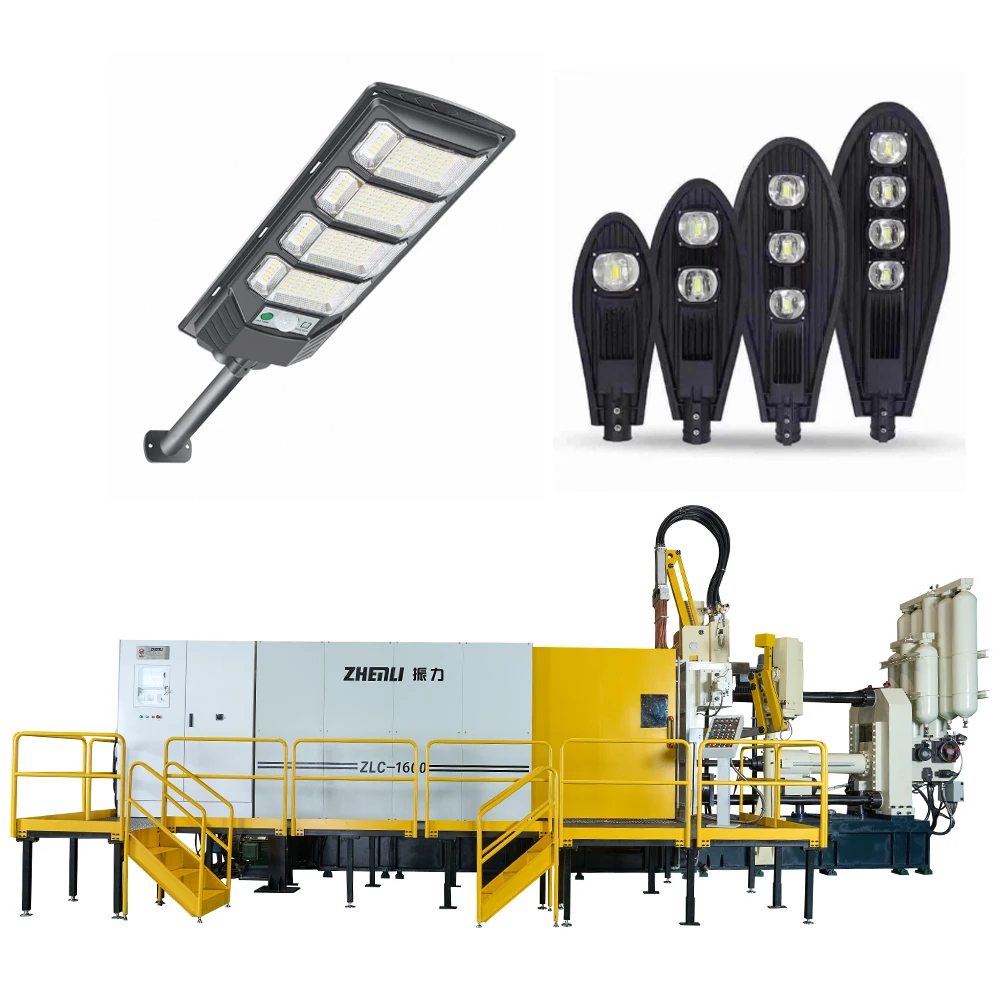

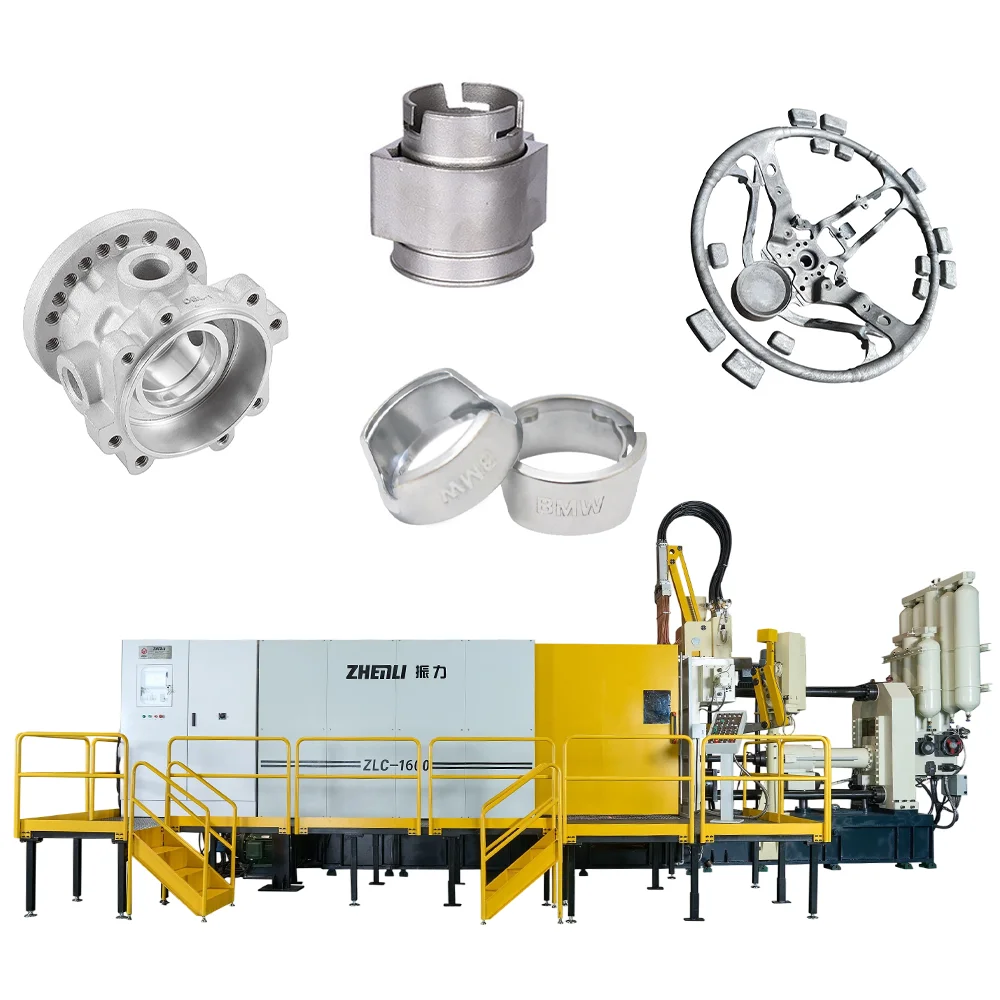

Details Images
