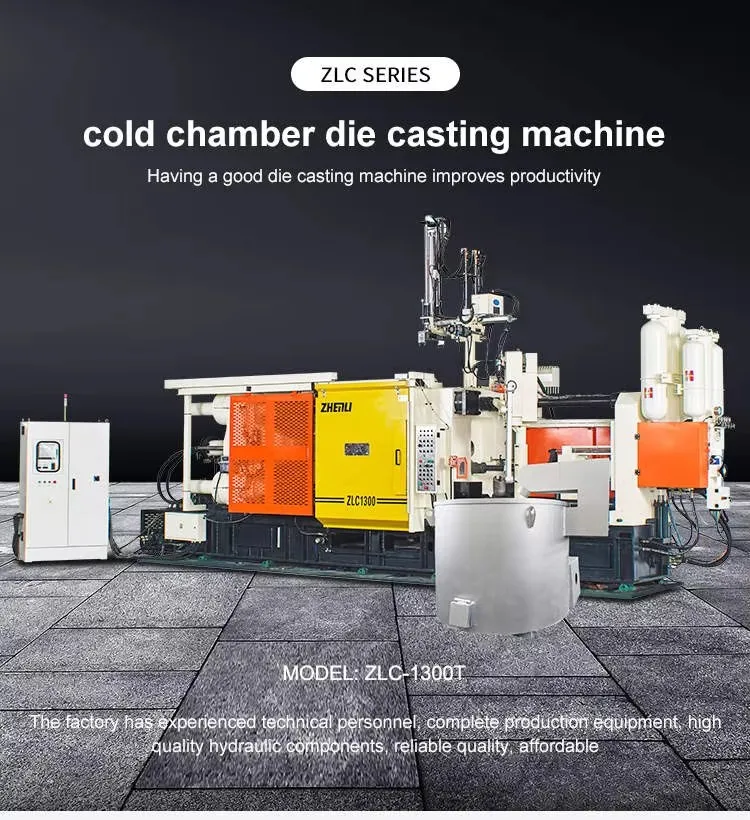

ZHENLI 1300T Car Parts Manufacturer Machine Cold Chamber Aluminium Pressure Die Casting Machine

Main Features

-AutomaticControlFunctionOf InjectionParameters

-InjectionCurveDisplayFunction

-Automatic Extraction,Display and Analysis of InjectionParameter Function

-DigitalControlFunction

Products Description

ITEMS	UNIT	ZLC-1300T
Clamping Force	kN	13000
Die Clamping Stroke	mm	1000
Ejection Force	kN	580
Ejection Stroke	mm	200
Die Height ( Min-Max)	mm	450-1200
Die Platen Size(HxV)	mm	1740x1740
Space Between Tie Bars	mm	1100×1100
Shot Position	mm	-160, -320
Shot Strock	mm	880
Casting Force ( Intensify )	kN	1080
Plunger Diameter	mm	100-140
Injection Weight(Aluminum)	kg	13, 12.5
Casting Pressure (Intensify )	MPa	138-70
Casting Area	cm²	910-1785
Max Casting Area(40MPa)	cm²	3250
Chamber Flange Diameter	mm	240
Height Of Pressure Chamber Flange	mm	25
Plunger Penetration	mm	325
Main Pump Driving Motor/Servo Motor	kW	74
Hydraulic Working Pressure	MPa	16
Oil Tank Capacity	L	2350
Machine Dimensions(LxWxH)	mm	11000x3500x4350
Referential Machine Weight For Uplifting	T	90
