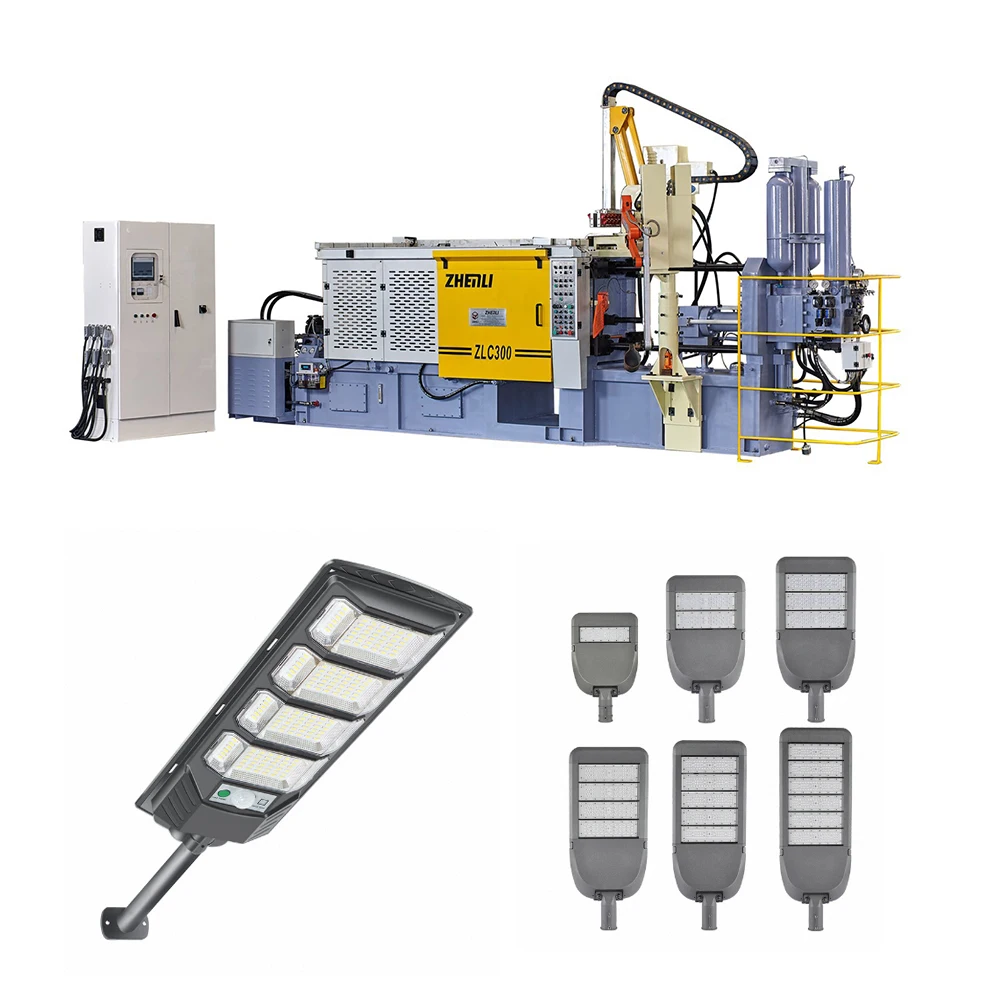

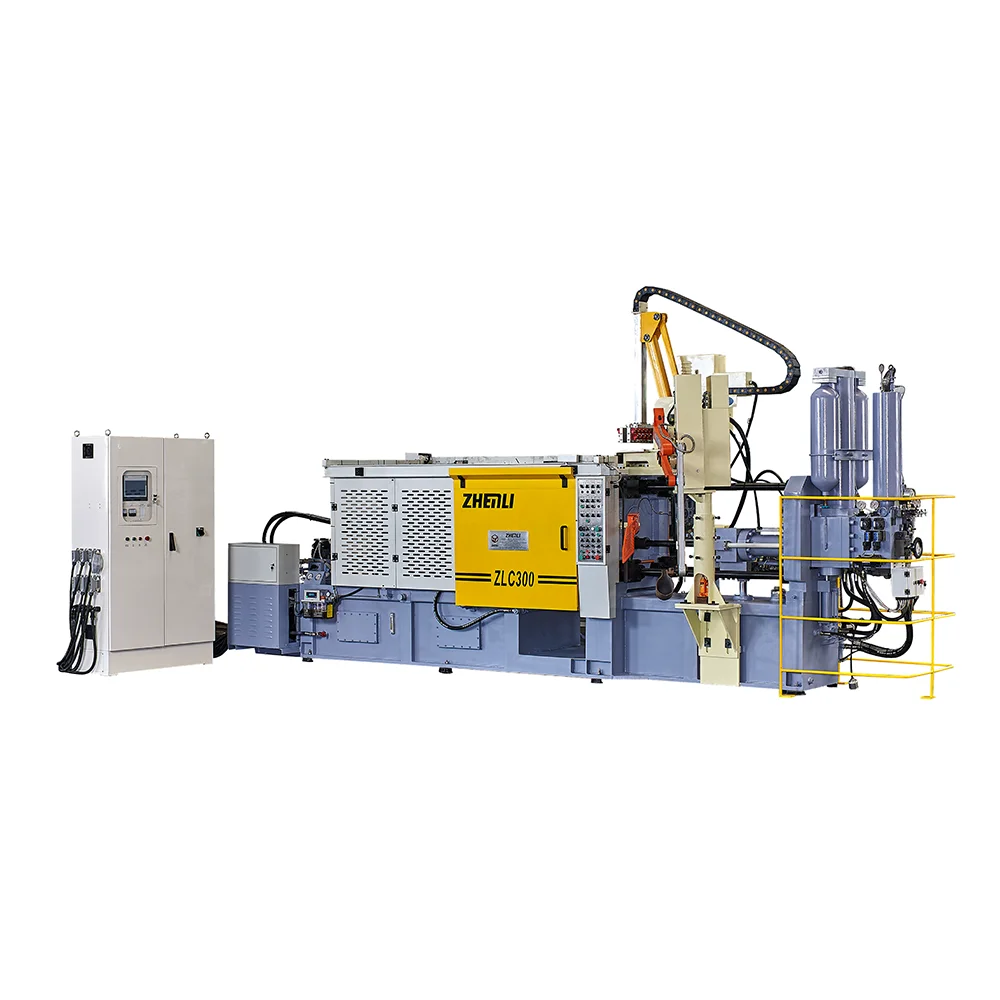

Zhenli 300T Magnesium Alloy Cold Chamber Die Casting Machine
Clamping Force:3000kN
Die Clamping Stroke:470mm
Ejection Force:150kN
Ejection Stroke:110mm
Die Height ( Min-Max):250-650mm
- Overview
- Recommended Products
Products Description
ITEMS |
UNIT |
ZLC-300T |
Clamping Force |
kN |
3000 |
Die Clamping Stroke |
mm |
470 |
Ejection Force |
kN |
150 |
Ejection Stroke |
mm |
110 |
Die Height ( Min-Max) |
mm |
250-650 |
Die Platen Size(HxV) |
mm |
860x875 |
Space Between Tie Bars |
mm |
560x560 |
Shot Position |
mm |
0，-125 |
Shot Strock |
mm |
440 |
Casting Force ( Intensify ) |
kN |
330 |
Plunger Diameter |
mm |
50, 60, 70 |
Injection Weight(Aluminum) |
kg |
1.5, 2.1, 2.9 |
Casting Pressure (Intensify ) |
MPa |
170, 118, 87 |
Casting Area |
cm² |
172, 252, 343 |
Max Casting Area(40MPa) |
cm² |
750 |
Chamber Flange Diameter |
mm |
110 |
Height Of Pressure Chamber Flange |
mm |
10 |
Plunger Penetration |
mm |
165 |
Main Pump Driving Motor/Servo Motor |
kW |
18.5/30 |
Hydraulic Working Pressure |
MPa |
14 |
Oil Tank Capacity |
L |
750 |
Machine Dimensions(LxWxH) |
mm |
6500×1700×2700 |
Referential Machine Weight For Uplifting |
T |
11.8 |
Details Images
