Manufacturer 500T Aluminium Die Casting Electric Motor Vertical Continuous Casting Aluminium Machine

Product Description

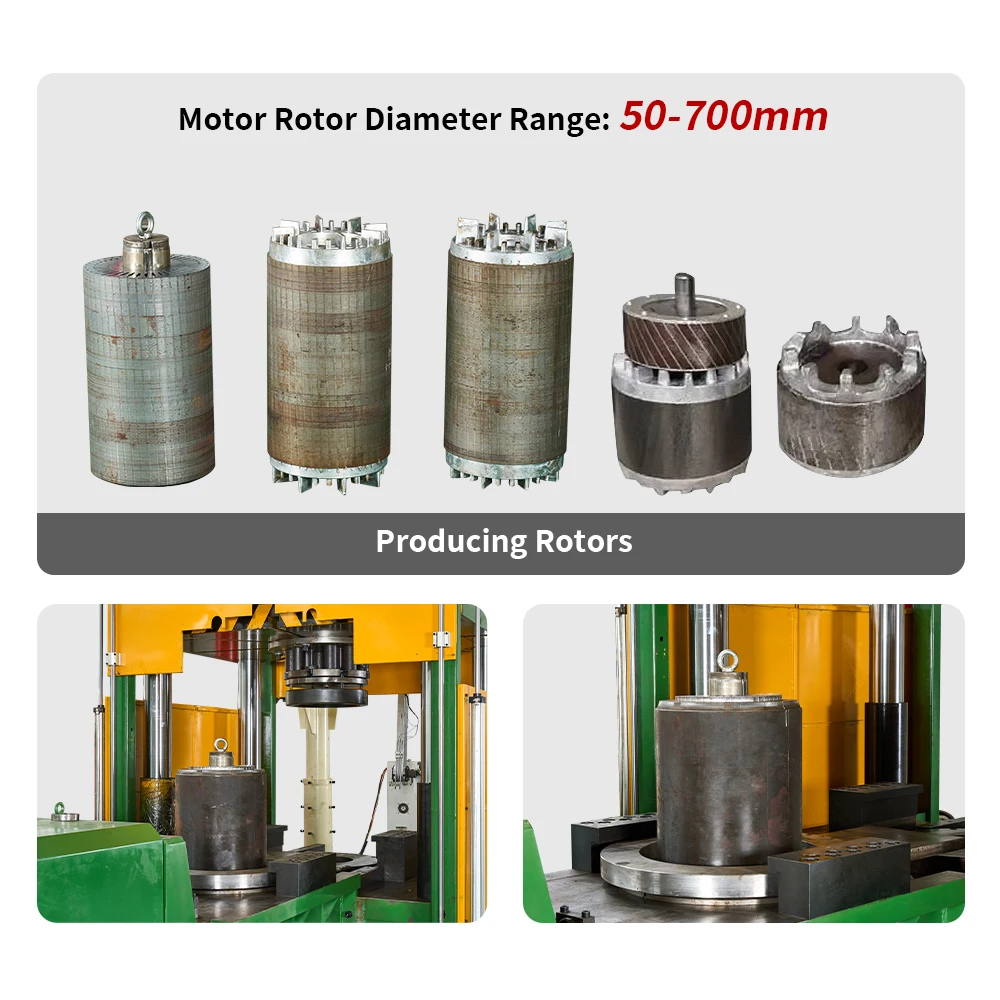

Product Name	Motor Rotor Die Casting Machine
Machine Type	Aluminium Die Casting Machine
Model	ZJ500

High Configuration

Automated Production

1. Pneumatic safety door

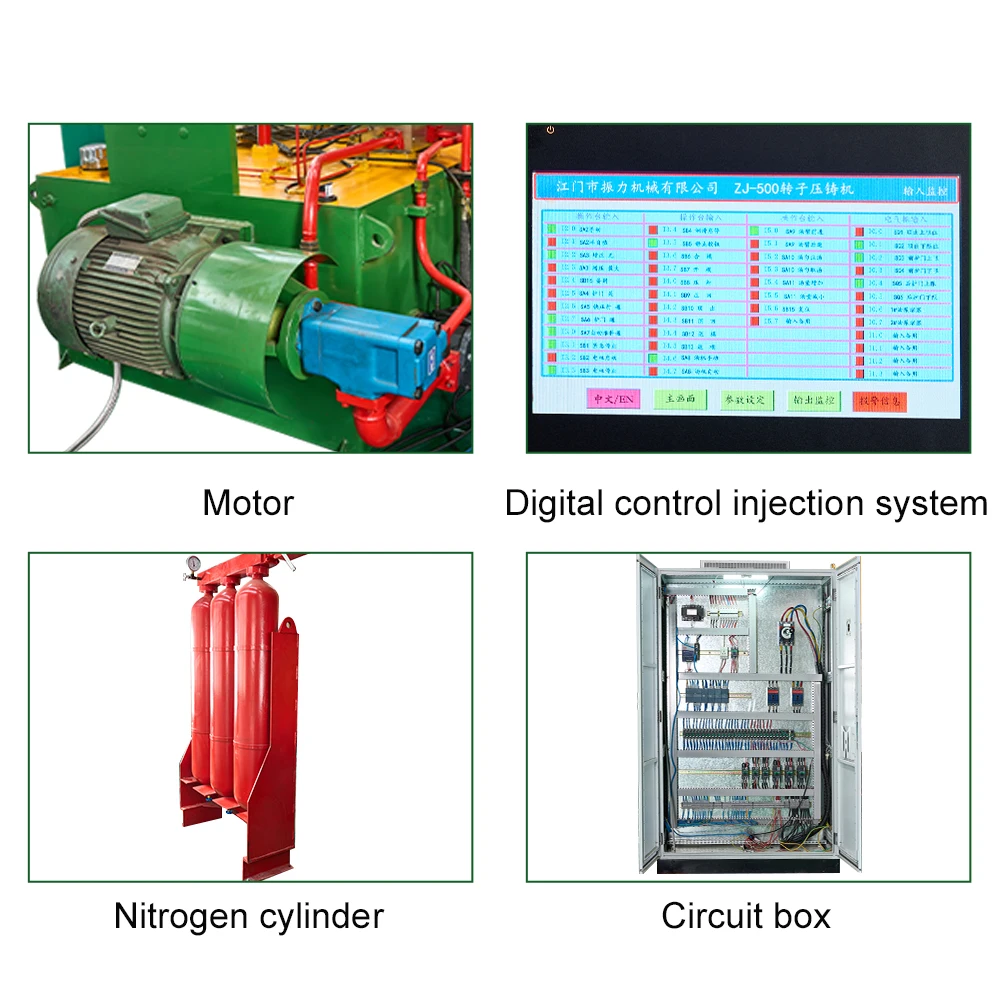

2. Servo motor oil pump system

3. H13 melting cup

4. Fast die closing

5. Ladle machine

1. Manual safety door

2. General motor oil pump system

3. Ductile iron melting cup

4. Slow die closing 5. Mold feeding device

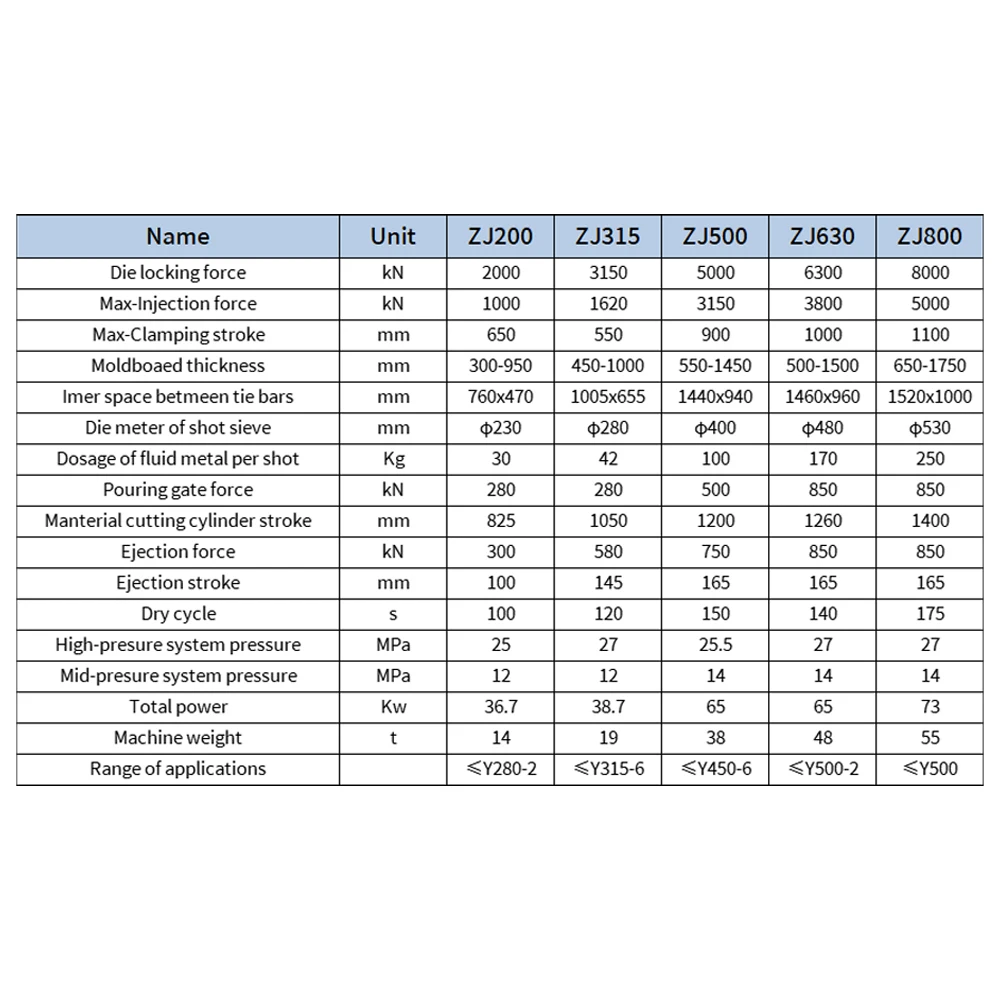

Specification

Product Name	Motor Rotor Die Casting Machine
Power	65KW
Clamping Force	5000KN
Casting Stroke	900mm
Casting Force	3150KN
Open Stroke	1200mm
Space between tie bars	1440*940mm
Weight	38000KG
Warranty	1 Year
Max.thickness of die block	1450mm
Min.thickness of die block	550mm
Ejection Force	750KN
Ejection Stroke	165mm
Injection Chamber Diameter	400mm
Aluminum Injection Quantity(Maximum)	100kg
High Pressure System Pressure	25.5MPa
Low Pressure System Pressure	14MPa
Pouring Gate Force	500KN
After-sales Service Provided	Engineers Available To Service Machinery Overseas
