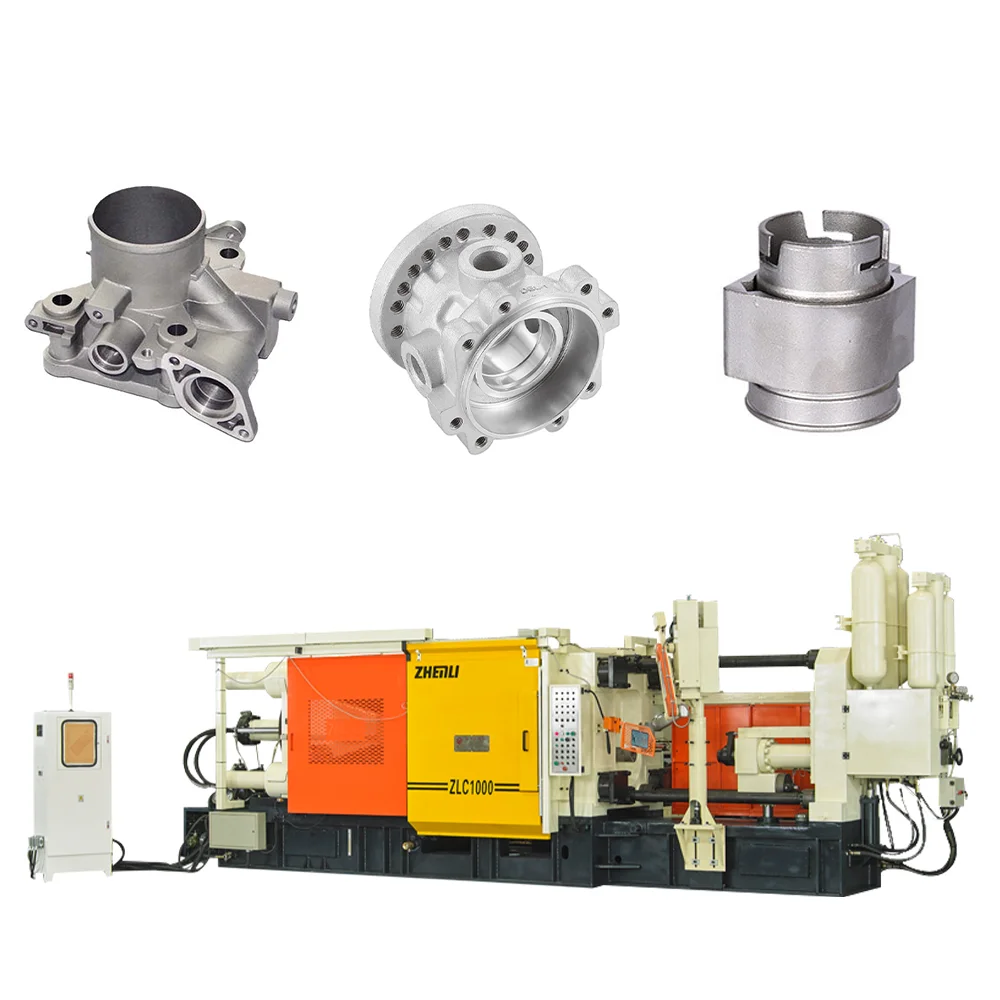

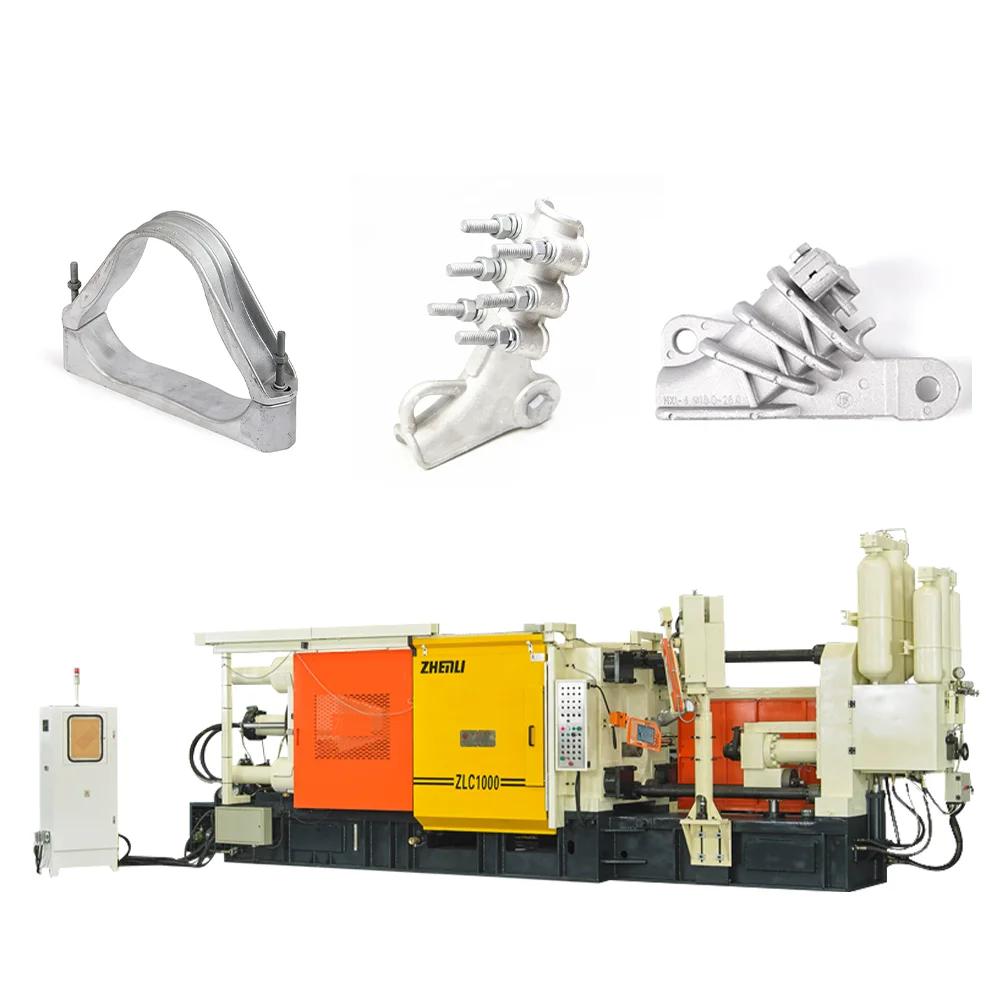

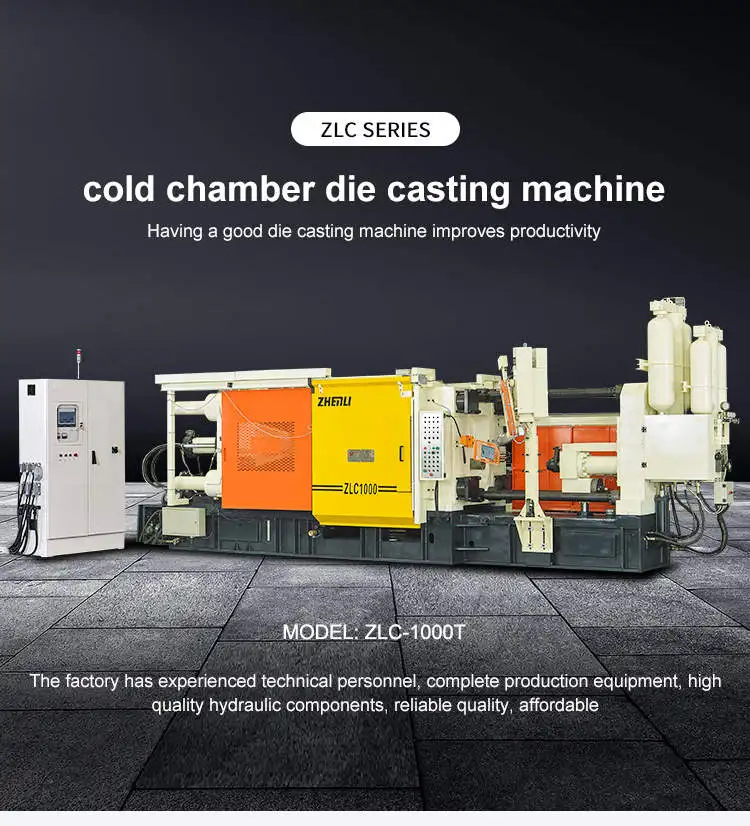

Zhenli Factory High Efficiency Metal Casting Machinery Aluminum Cookware Set Die Casting Machine 1000T
Main Features
-Automatic Control Function Of Injection Parameters
-Injection Curve Display Function
-Automatic Extraction,Display and Analysis of Injection Parameter Function
-Digital Control Function
- Overview
- Recommended Products
Products Description
ITEMS |
UNIT |
ZLC-1000T |
Clamping Force |
kN |
10000 |
Die Clamping Stroke |
mm |
880 |
Ejection Force |
kN |
500 |
Ejection Stroke |
mm |
200 |
Die Height ( Min-Max) |
mm |
450-1150 |
Die Platen Size(HxV) |
mm |
1620x1620 |
Space Between Tie Bars |
mm |
1030×1030 |
Shot Position |
mm |
0，-300 |
Shot Strock |
mm |
820 |
Casting Force ( Intensify ) |
kN |
870 |
Plunger Diameter |
mm |
90-120 |
Injection Weight(Aluminum) |
kg |
9.5, 11.7, 14.2, 17 |
Casting Pressure (Intensify ) |
MPa |
138-77 |
Casting Area |
cm² |
730-1305 |
Max Casting Area(40MPa) |
cm² |
2500 |
Chamber Flange Diameter |
mm |
240 |
Height Of Pressure Chamber Flange |
mm |
20 |
Plunger Penetration |
mm |
300 |
Main Pump Driving Motor/Servo Motor |
kW |
55 |
Hydraulic Working Pressure |
MPa |
16 |
Oil Tank Capacity |
L |
2000 |
Machine Dimensions(LxWxH) |
mm |
10950x3300x3950 |
Referential Machine Weight For Uplifting |
T |
70 |
Details Images
