Products Description
Item |

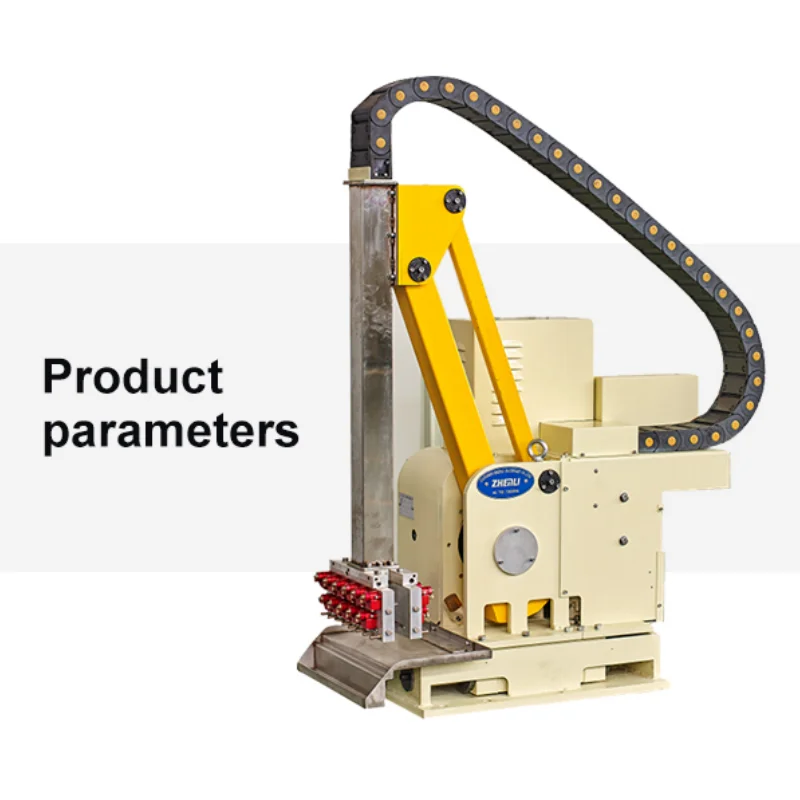

Servo Sprayer Special for Radiator |
Specification/model |
ZLSES4 |
Suitable die casting machine |
630-1300T |
Nozzle width |
585+100mm |
Nozzle thickness |
300-350mm |
Copper tubes (fixed mold) spray |
28pcs(Φ6) |
Copper tubes (movable mold) spray |
28pcs(Φ6) |
Air pressure |
4-6kgf/cm² |
Air pressure inlet |
2-PT1 1/2" |
Release agent |
2-5kgf/cm² |
Release inlet |
PT 1/2" |
Stand move distance |
300mm |
Nozzle under the model |
-1120mm |
The end of copper tubes |
-1200mm |
Ascend and descend time |
2.1s |
Weight |
600kg |
Ascend and descend power |
2.0kw |
Stand motor power |
200w |
Machine size (L*W*H) |
1500*960*1930 |

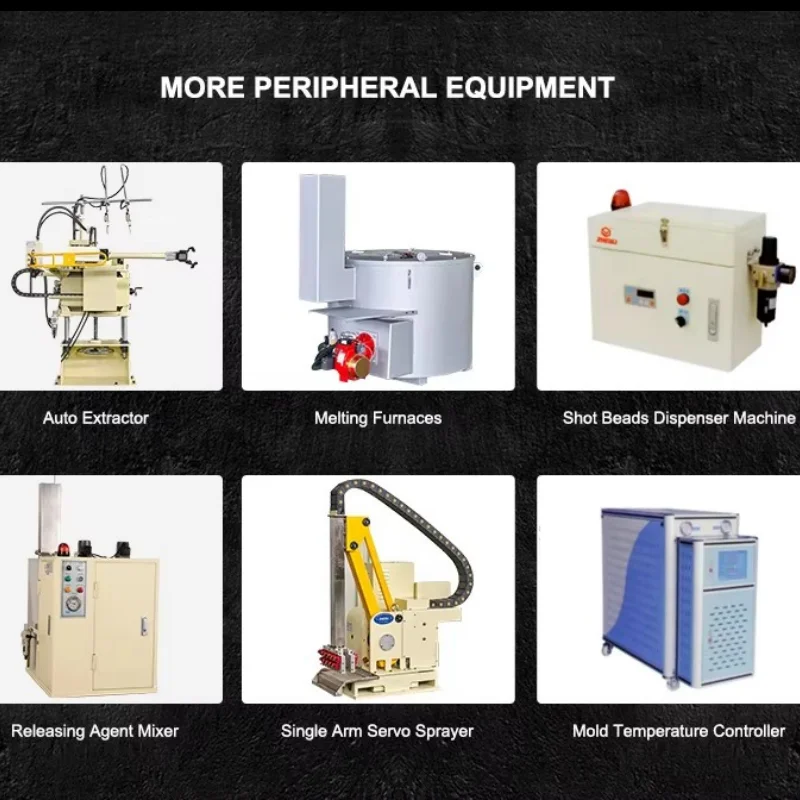

Peripheral Equipment
