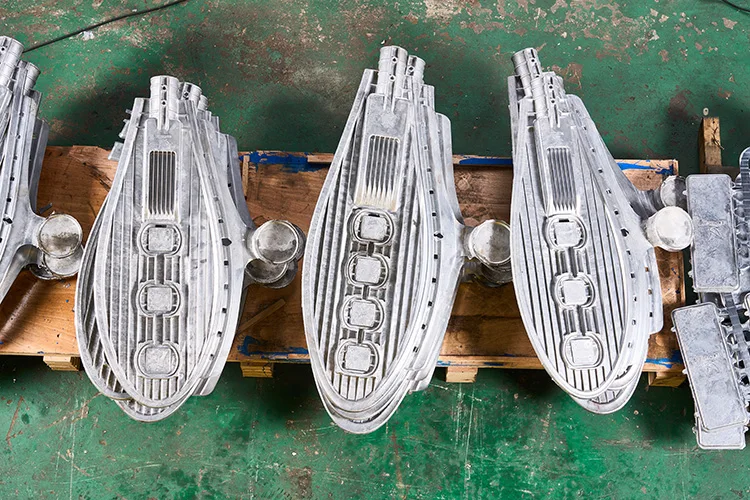

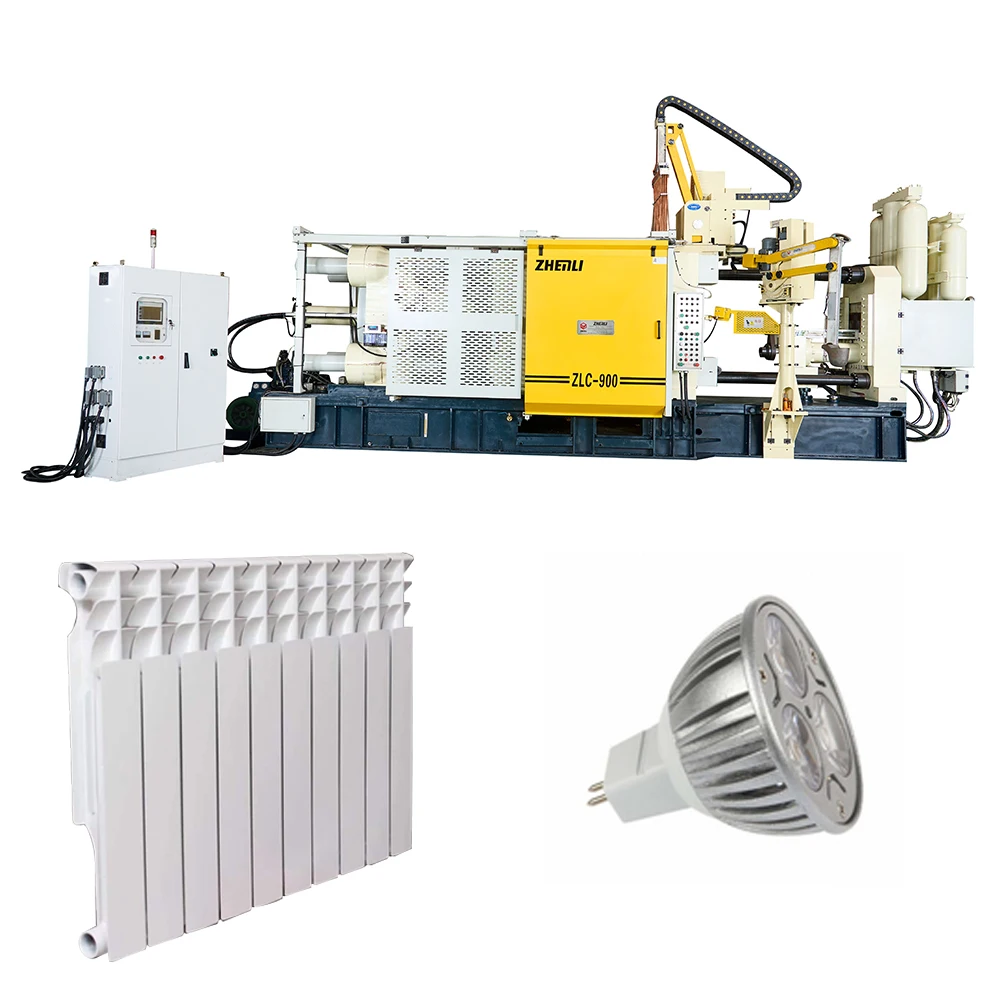

ZhenLi 900T Led Lights Manufacturing Machine Injection Aluminium Aluminum Die Casting Machine

Main Features

-Automatic Control Function Of Injection Parameters

-Injection Curve Display Function

-Automatic Extraction,Display and Analysis of Injection Parameter Function

-Digital Control Function

Products Description

ITEMS	UNIT	ZLC-900T
Clamping Force	kN	9000
Die Clamping Stroke	mm	760
Ejection Force	kN	360
Ejection Stroke	mm	190
Die Height ( Min-Max)	mm	400-1000
Die Platen Size(HxV)	mm	1470x1500
Space Between Tie Bars	mm	960×960
Shot Position	mm	0，-250
Shot Strock	mm	760
Casting Force ( Intensify )	kN	775
Plunger Diameter	mm	80, 90, 100, 110
Injection Weight(Aluminum)	kg	7.1, 9.0, 11.2, 13.5
Casting Pressure (Intensify )	MPa	154, 121, 98, 81
Casting Area	cm²	583, 738, 912, 1103
Max Casting Area(40MPa)	cm²	2250
Chamber Flange Diameter	mm	200
Height Of Pressure Chamber Flange	mm	20
Plunger Penetration	mm	300
Main Pump Driving Motor/Servo Motor	kW	45/55
Hydraulic Working Pressure	MPa	14
Oil Tank Capacity	L	1500
Machine Dimensions(LxWxH)	mm	9720x2600x3500
Referential Machine Weight For Uplifting	T	46
