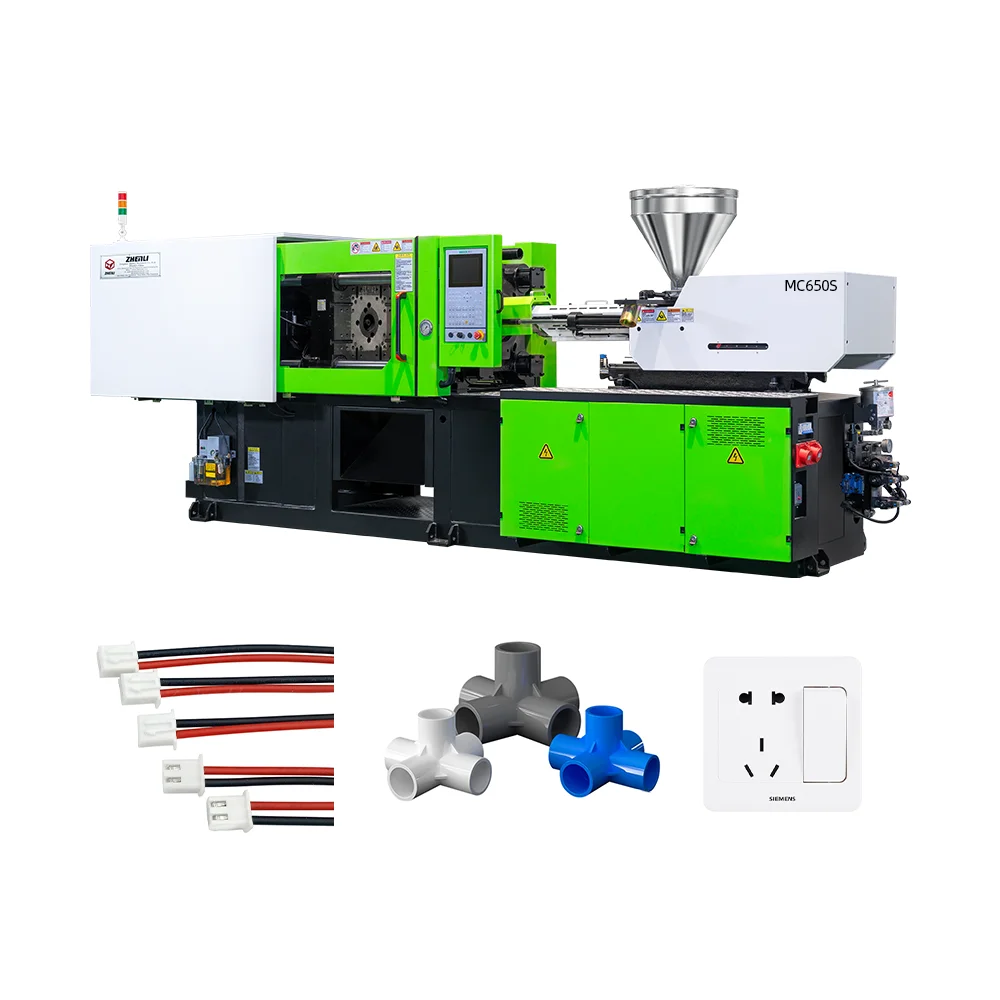

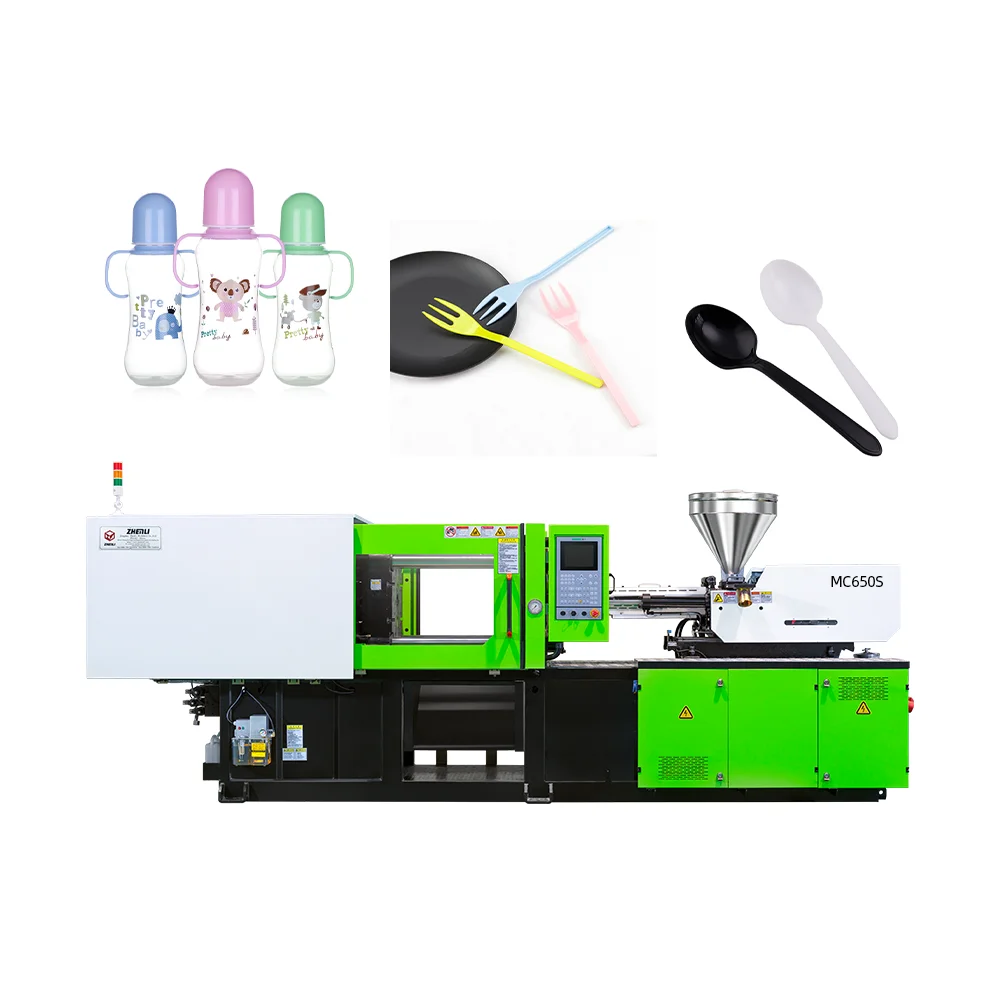

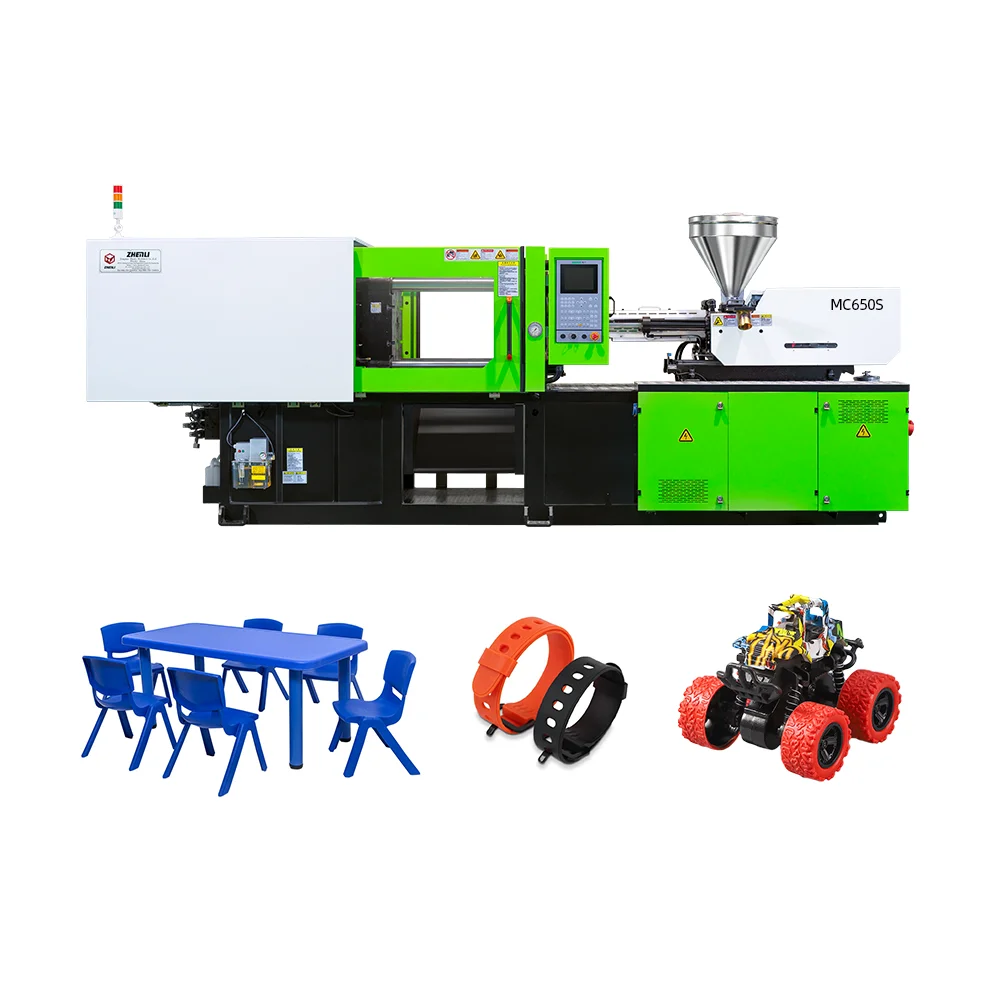

Manufacturer 650 Ton Injection Plastic Molding Machine Baby Desktop Plastic Injection Molding Machine
- Overview
- Recommended Products

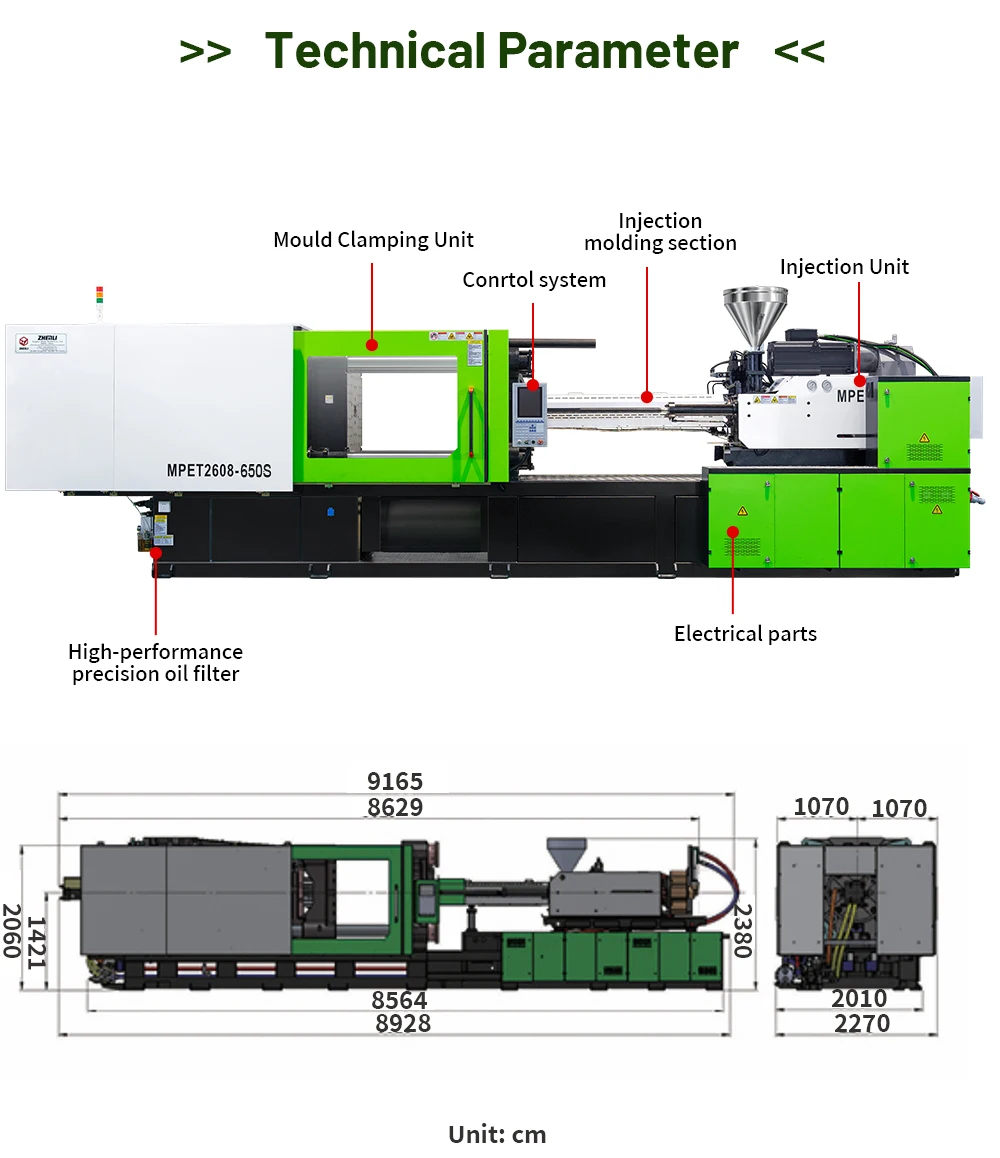

Specification

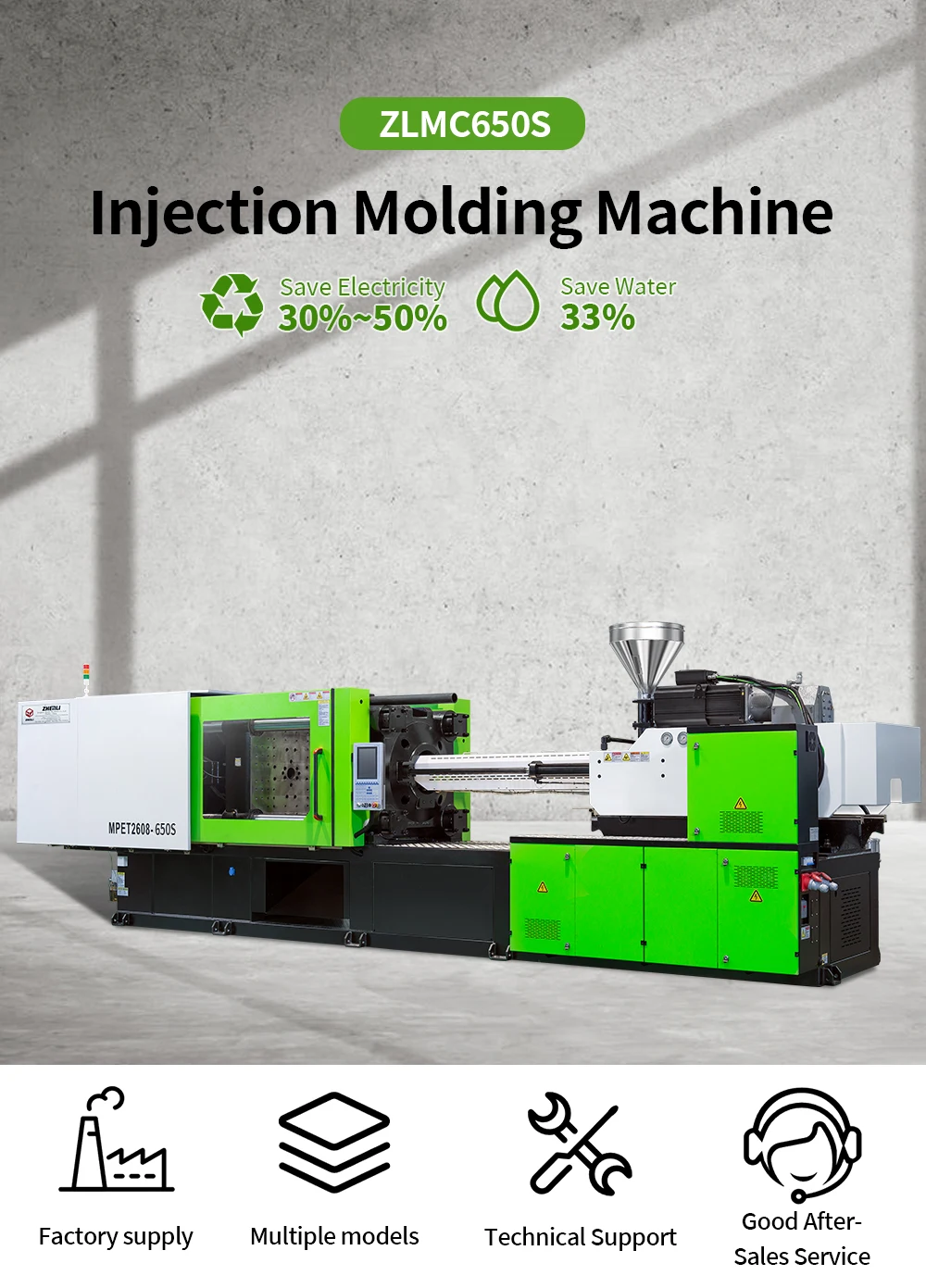

ZLMC650S |
||||||||
Injection part |
||||||||
INJECTION UNIT |
unit |
A |
B |
C |
||||
Screw diameter |
mm |
80 |
90 |
100 |
||||
Shot volume |
cm³ |
2261 |
2861 |
3533 |
||||
Shot weight(PS) |
g(ps) |
2103 |
2661 |
3285 |
||||
Injection pressure |
MPa |
197 |
156 |
126 |
||||
Theoretical Injection rate |
cm³/s |
475 |
601 |
742 |
||||
Plasticizing Capacity(ps) |
g/s |
67.2 |
85.3 |
108.7 |
||||
Screw I/D ratio |
I:D |
23:1 |
21:1 |
19:1 |
||||
Screw speed(stepless) |
rpm |
0-150 |
0-150 |
0-150 |
||||
Screw stroke |
mm |
450 |
450 |
450 |
||||
Clamping part |
||||||||
Clamping force |
KN |
6500 |
||||||
Opening stroke |
mm |
900 |
||||||
Max.daylight |
mm |
1800 |
||||||
Mold thickness(min-max) |
mm |
300-900 |
||||||
Space between tie bars |
mm |
930x930 |
||||||
Platen size |
mm |
1320x1320 |
||||||
Hydraulic ejection force |
kN |
180 |
||||||
Hydraulic ejection stroke |
mm |
280 |
||||||
Power/Electricity/Other |
||||||||
Hydraulic system pressure |
MPa |
17.5 |
||||||
Motor/Server |
KW |
53+37 |
||||||
Heating capacity |
KW |
38 |
||||||
Oil tank capacity |
L |
800 |
||||||
Machine weight |
Kg |
26000 |
||||||
