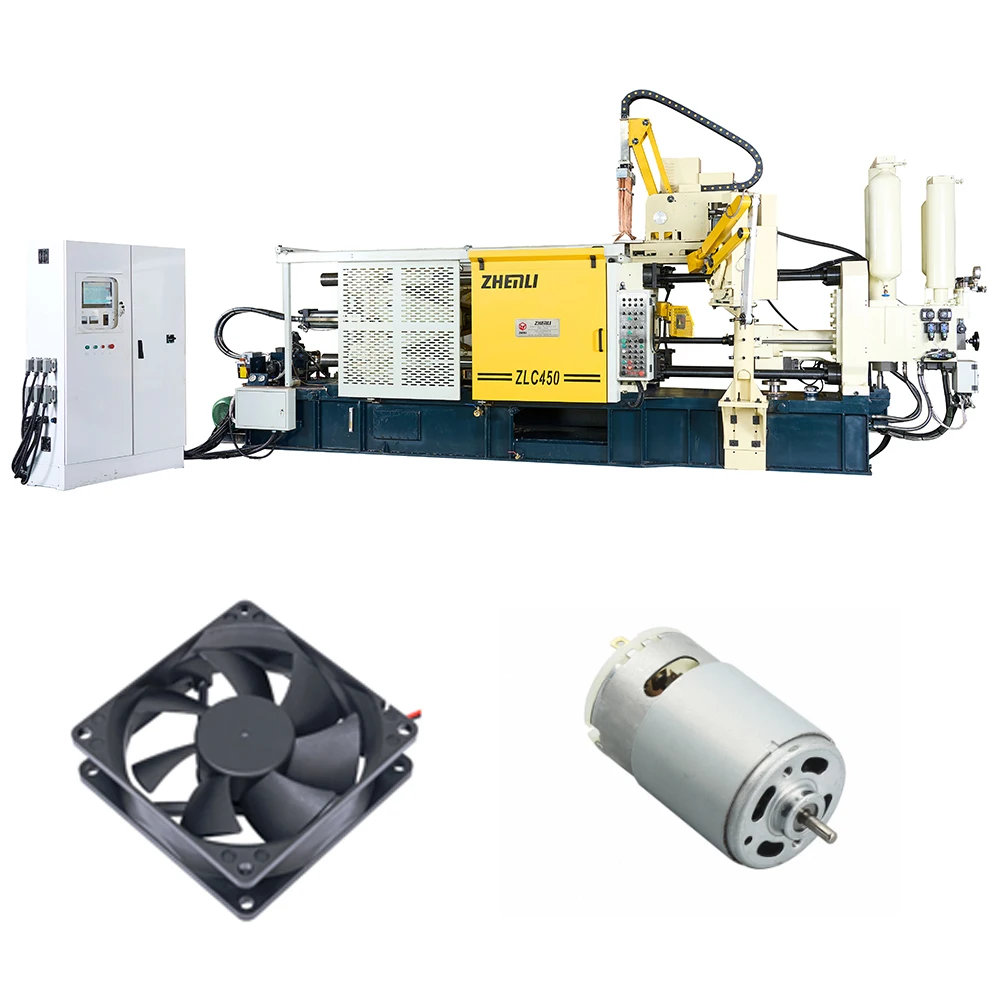

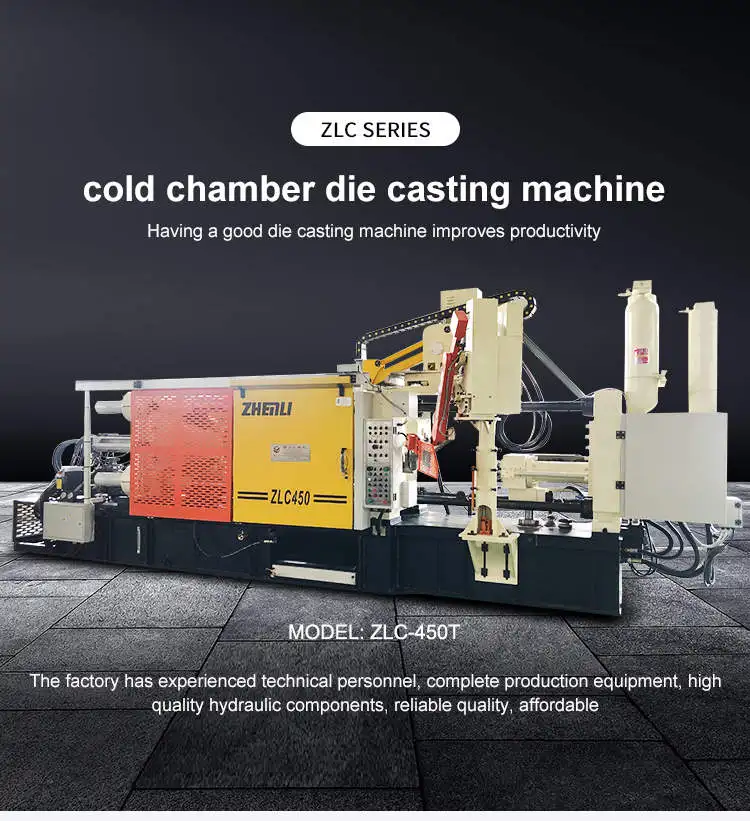

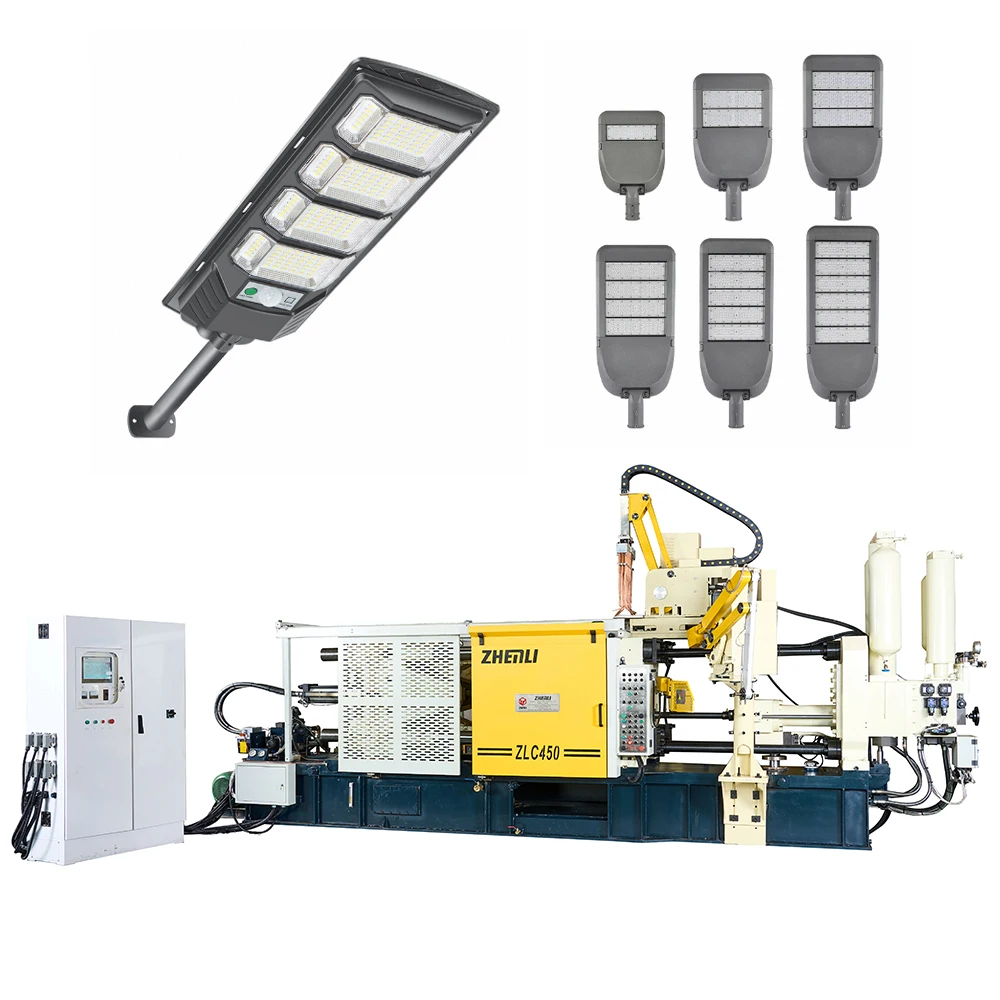

Industrial 450T Led Bulb Manufacturing Machine High Pressure Aluminium Casting Machine
Main Features
-Automatic Control Function Of Injection Parameters
-Injection Curve Display Function
-Automatic Extraction,Display and Analysis of Injection Parameter Function
-Digital Control Function
- Overview
- Recommended Products
Products Description
ITEMS |
UNIT |
ZLC-450T |
Clamping Force |
kN |
4500 |
Die Clamping Stroke |
mm |
550 |
Ejection Force |
kN |
190 |
Ejection Stroke |
mm |
125 |
Die Height ( Min-Max) |
mm |
300-800 |
Die Platen Size(HxV) |
mm |
1000x1020 |
Space Between Tie Bars |
mm |
650×650 |
Shot Position |
mm |
-125，-185 |
Shot Strock |
mm |
520 |
Casting Force ( Intensify ) |
kN |
450 |
Plunger Diameter |
mm |
60, 70, 80 |
Injection Weight(Aluminum) |
kg |
2.8, 3.7, 4.8 |
Casting Pressure (Intensify ) |
MPa |
150, 110, 84 |
Casting Area |
cm² |
300, 409, 535 |
Max Casting Area(40MPa) |
cm² |
1125 |
Chamber Flange Diameter |
mm |
101.6 |
Height Of Pressure Chamber Flange |
mm |
12 |
Plunger Penetration |
mm |
200 |
Main Pump Driving Motor/Servo Motor |
kW |
22/45 |
Hydraulic Working Pressure |
MPa |
14 |
Oil Tank Capacity |
L |
850 |
Machine Dimensions(LxWxH) |
mm |
7300x1900x2800 |
Referential Machine Weight For Uplifting |
T |
18.2 |
Details Images
