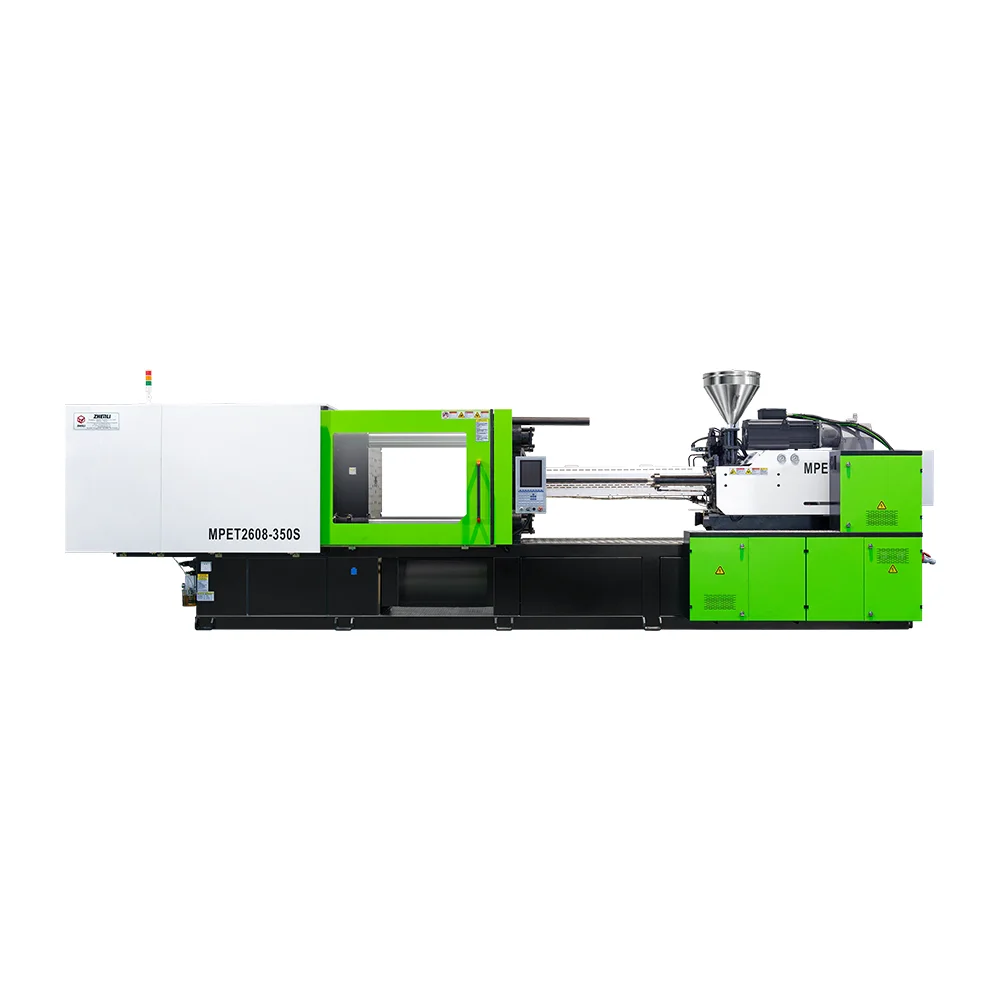

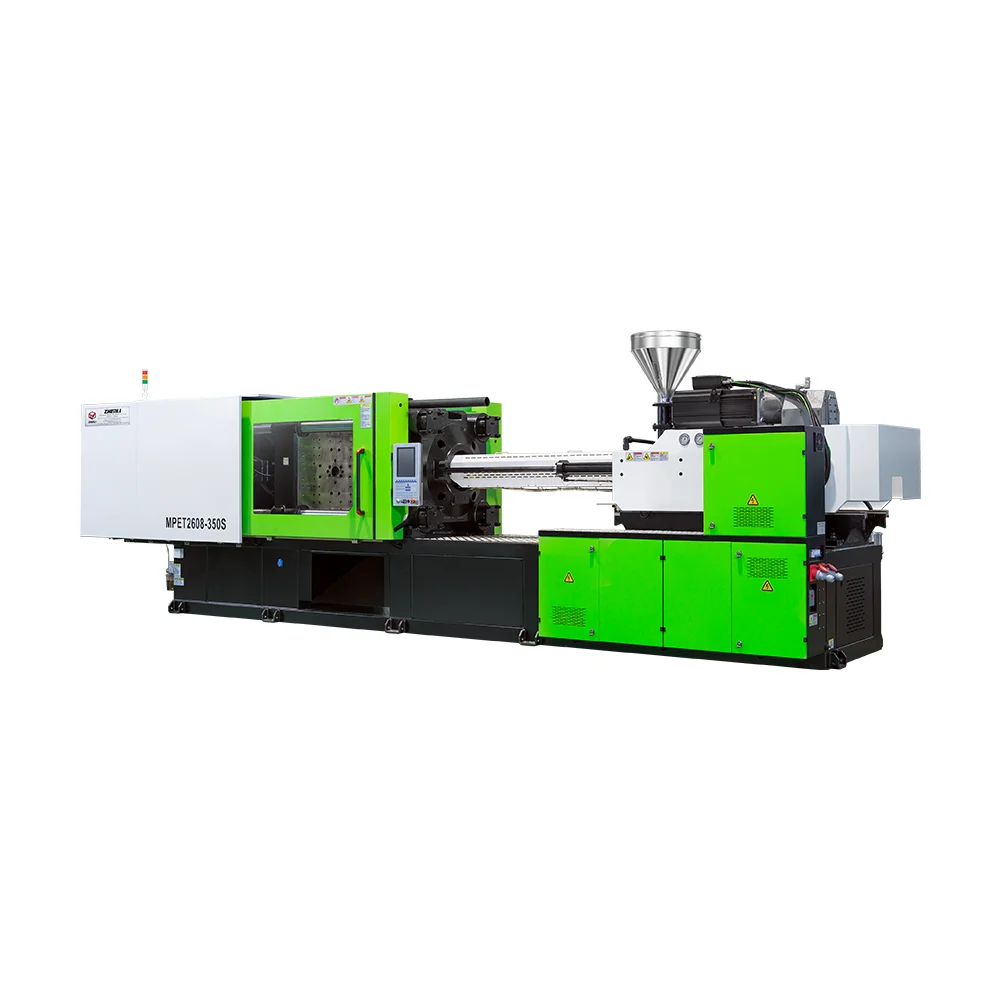

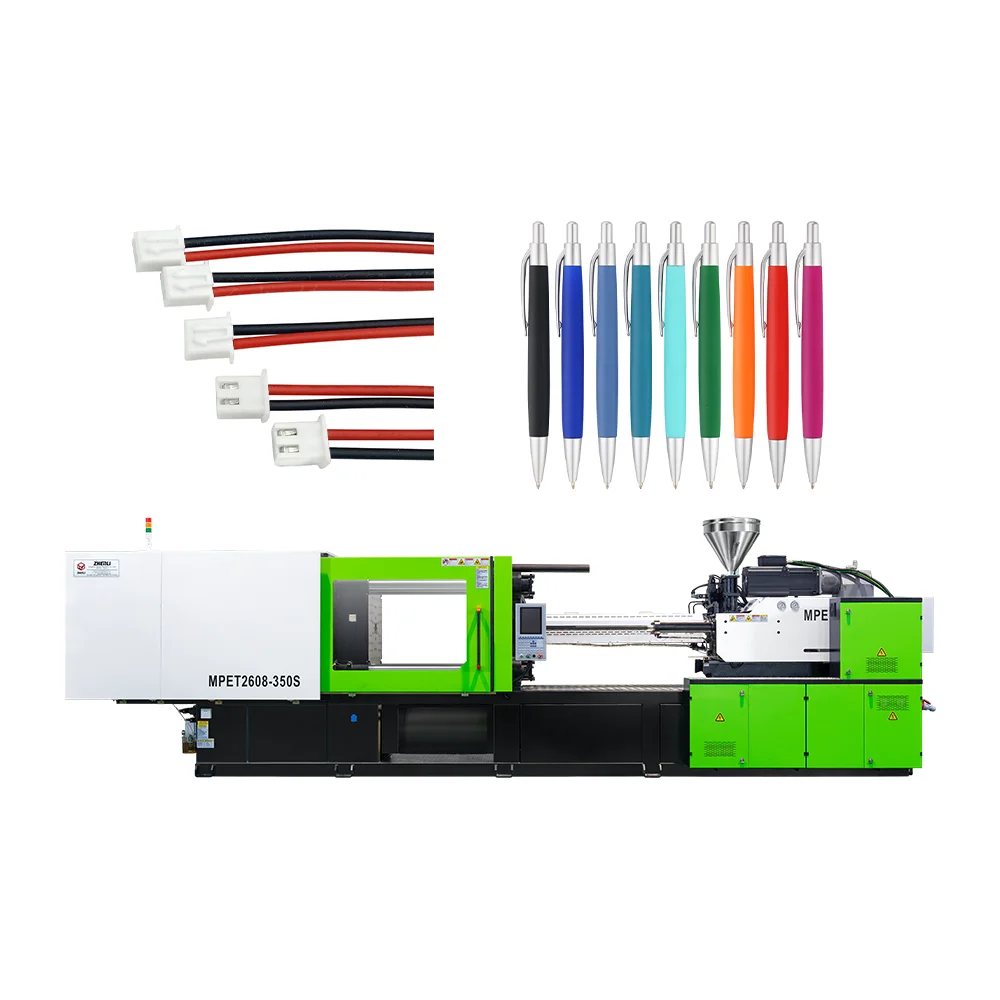

Direct Sales Plastic Tube Injection Molding Machines High Speed 350 Ton Preform Injection Molding Machine
- Overview
- Recommended Products
Specification
ZLMC350S |
||||||||
Injection part |
||||||||
INJECTION UNIT |
unit |
A |
B |
C |
||||
Screw diameter |
mm |
60 |
67 |
75 |
||||
Shot volume |
cm³ |
1130 |
1410 |
1766 |
||||
Shot weight(PS) |
g(ps) |
1051 |
1311 |
1643 |
||||
Injection pressure |
MPa |
225 |
181 |
145 |
||||
Theoretical Injection rate |
cm³/s |
245 |
305 |
383 |
||||
Plasticizing Capacity(ps) |
g/s |
40.1 |
46.5 |
57.1 |
||||
Screw I/D ratio |
I:D |
23:1 |
21:1 |
19:1 |
||||
Screw speed(stepless) |
rpm |
0-166 |
0-166 |
0-166 |
||||
Screw stroke |
mm |
400 |
400 |
400 |
||||
Clamping part |
||||||||
Clamping force |
KN |
3500 |
||||||
Opening stroke |
mm |
640 |
||||||
Max.daylight |
mm |
1300 |
||||||
Mold thickness(min-max) |
mm |
220-660 |
||||||
Space between tie bars |
mm |
710x670 |
||||||
Platen size |
mm |
970x960 |
||||||
Hydraulic ejection force |
kN |
111 |
||||||
Hydraulic ejection stroke |
mm |
180 |
||||||
Power/Electricity/Other |
||||||||
Hydraulic system pressure |
MPa |
17.5 |
||||||
Motor/Server |
KW |
37 |
||||||
Heating capacity |
KW |
18.8 |
||||||
Oil tank capacity |
L |
400 |
||||||
Machine weight |
Kg |
12000 |
||||||
Product Description
