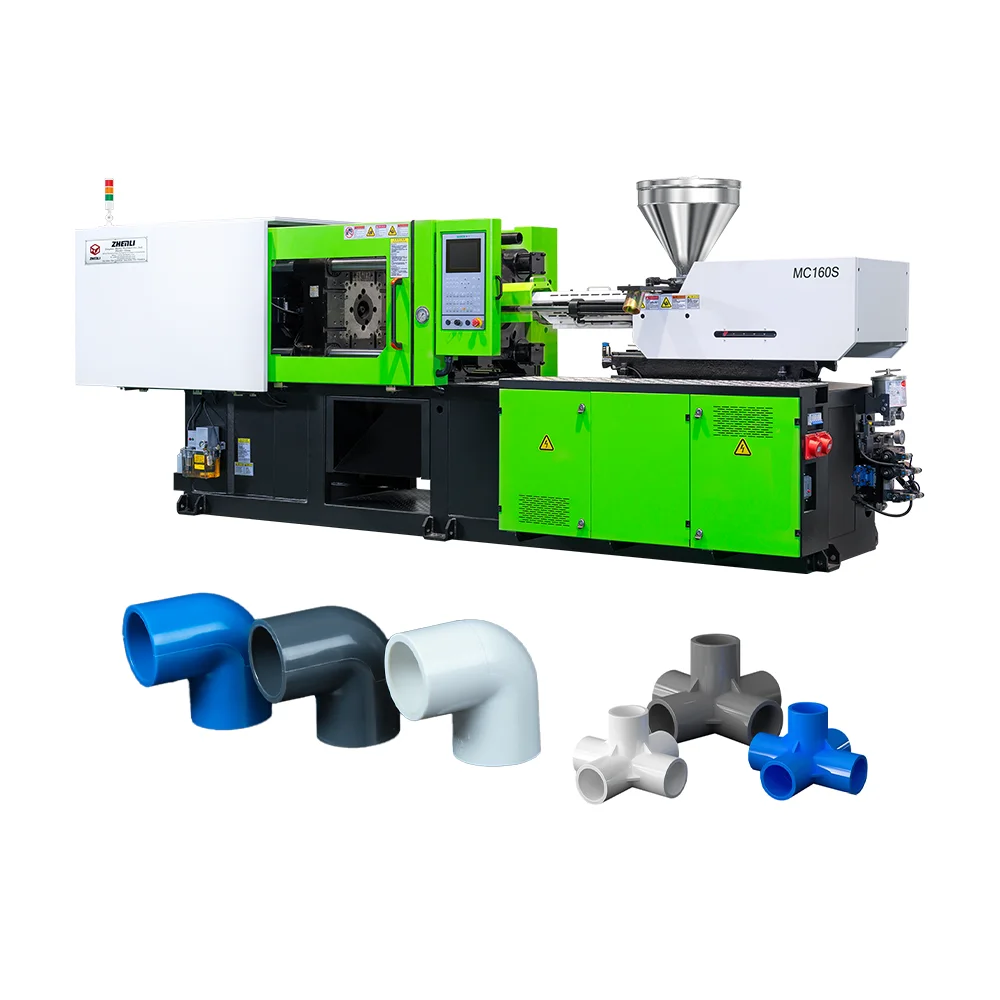

Direct Sales EVA PVC 160 Ton Injection Molding Machine Shoe Sole Desktop Injection Molding Machine
- Overview
- Recommended Products

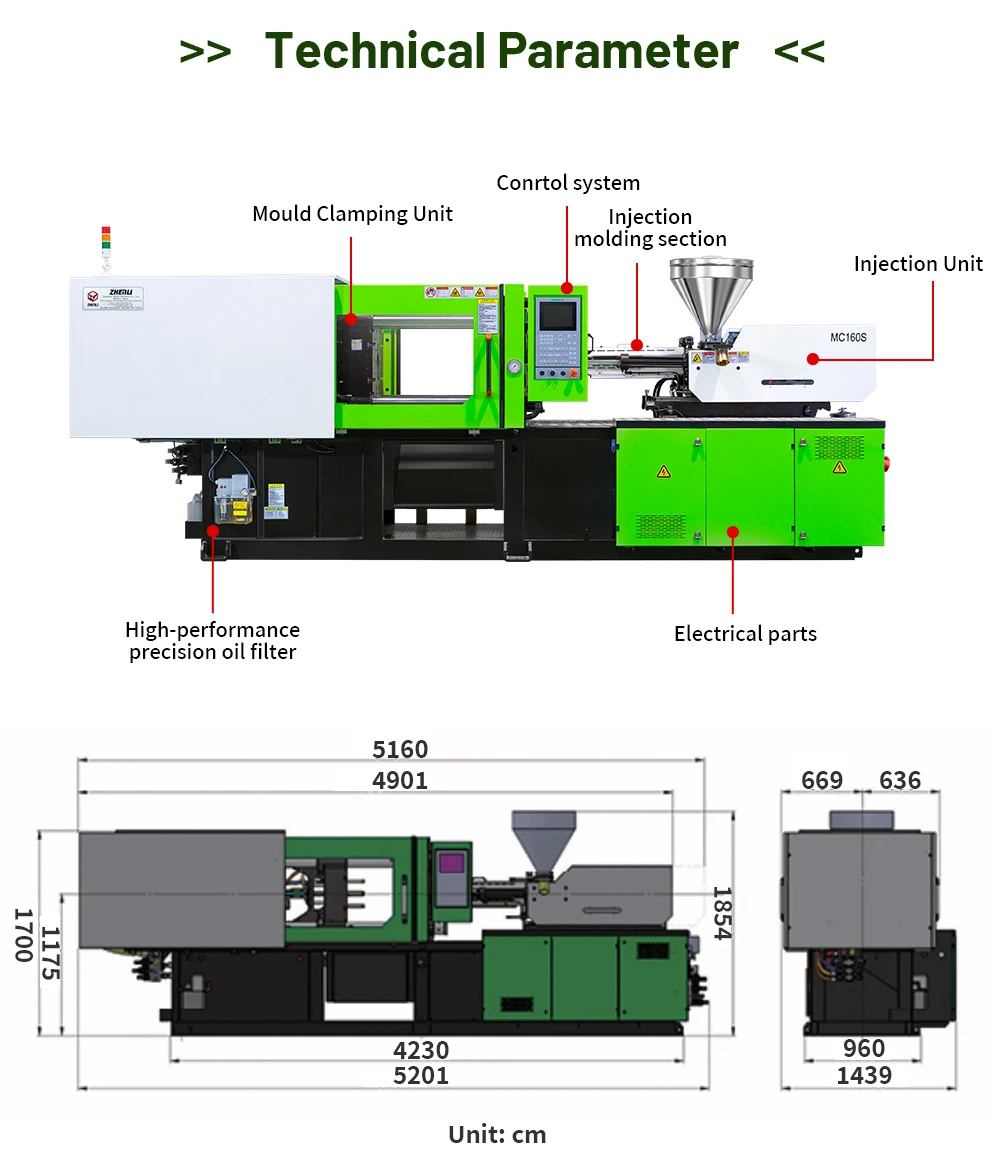

Specification
ZLMC160S |
||||||||
Injection part |
||||||||
INJECTION UNIT |
unit |
A |
B |
C |
||||
Screw diameter |
mm |
40 |
45 |
50 |
||||
Shot volume |
cm³ |
270 |
342 |
422 |
||||
Shot weight(PS) |
g(ps) |
251 |
318 |
392 |
||||
Injection pressure |
MPa |
234 |
185 |
150 |
||||
Theoretical Injection rate |
cm³/s |
118 |
150 |
185 |
||||
Plasticizing Capacity(ps) |
g/s |
16.5 |
21.2 |
25.2 |
||||
Screw I/D ratio |
I:D |
23：1 |
21：1 |
18：1 |
||||
Screw speed(stepless) |
rpm |
0-250 |
0-250 |
0-250 |
||||
Screw stroke |
mm |
215 |
215 |
215 |
||||
Clamping part |
||||||||
Clamping force |
KN |
1600 |
||||||
Opening stroke |
mm |
430 |
||||||
Max.daylight |
mm |
960 |
||||||
Mold thickness(min-max) |
mm |
160-530 |
||||||
Space between tie bars |
mm |
460x460 |
||||||
Platen size |
mm |
640x670 |
||||||
Hydraulic ejection force |
kN |
42 |
||||||
Hydraulic ejection stroke |
mm |
140 |
||||||
Power/Electricity/Other |
||||||||
Hydraulic system pressure |
MPa |
17.5 |
||||||
Motor/Server |
KW |
18.5 |
||||||
Heating capacity |
KW |
8.8 |
||||||
Oil tank capacity |
L |
200 |
||||||
Machine weight |
Kg |
5000 |
||||||
Product Description
