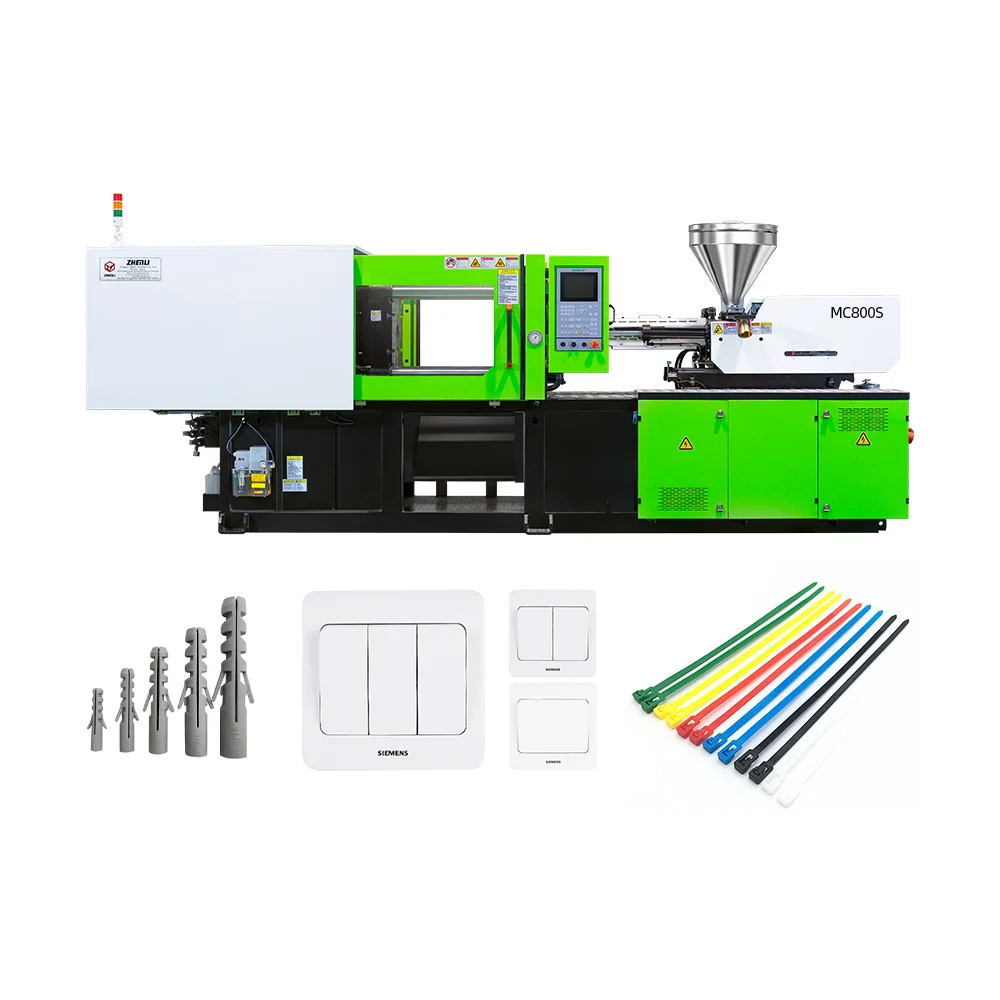

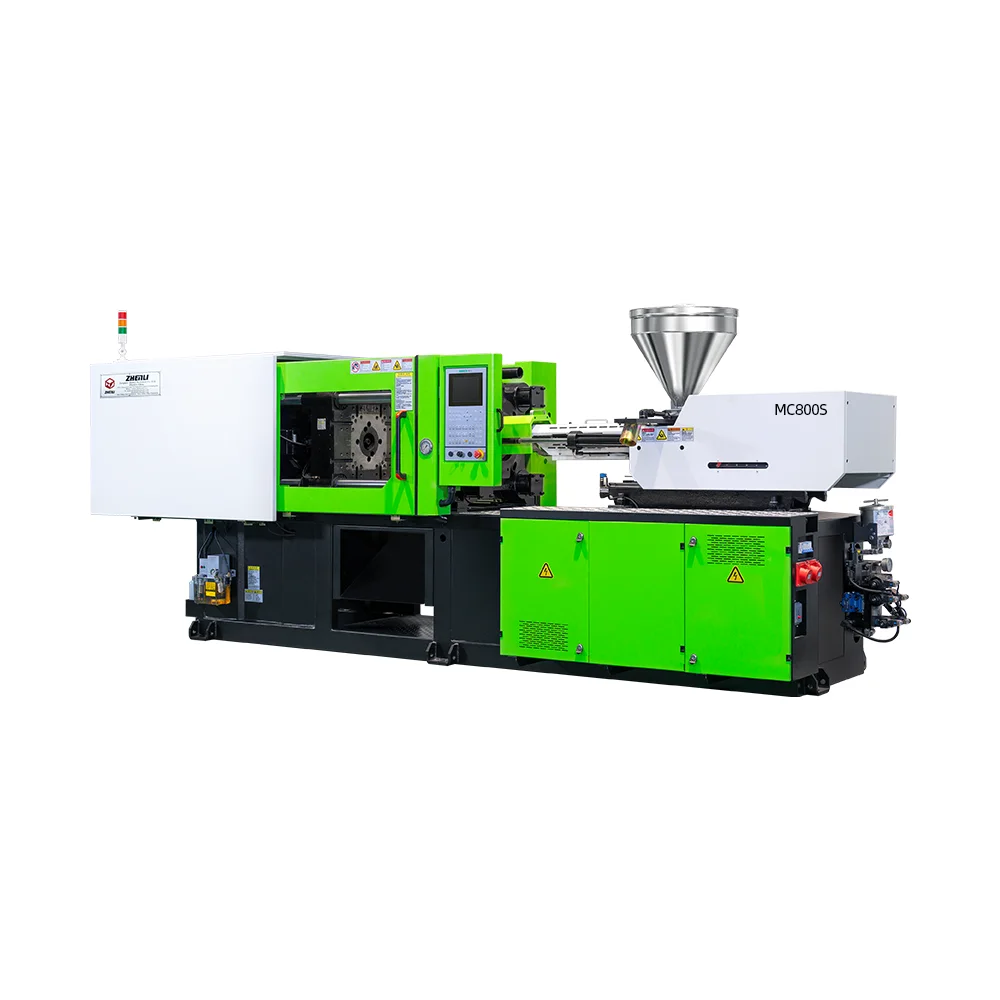

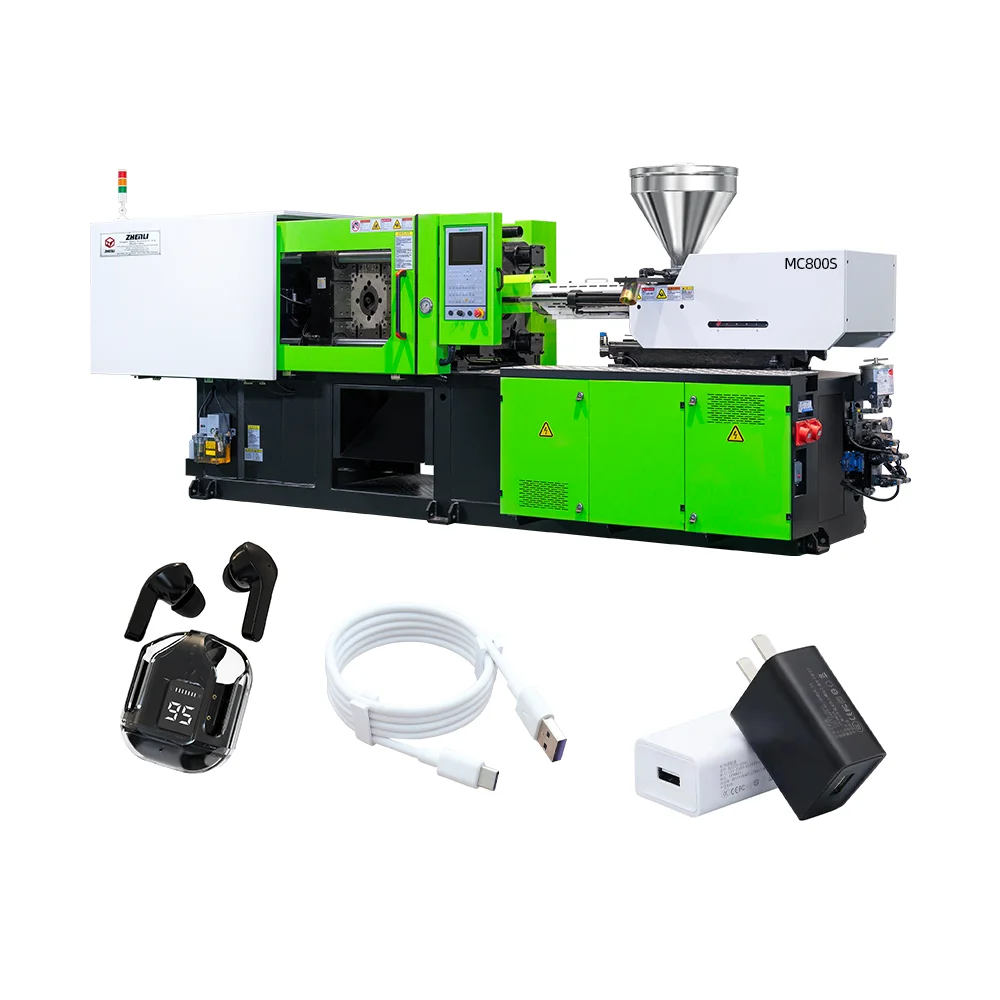

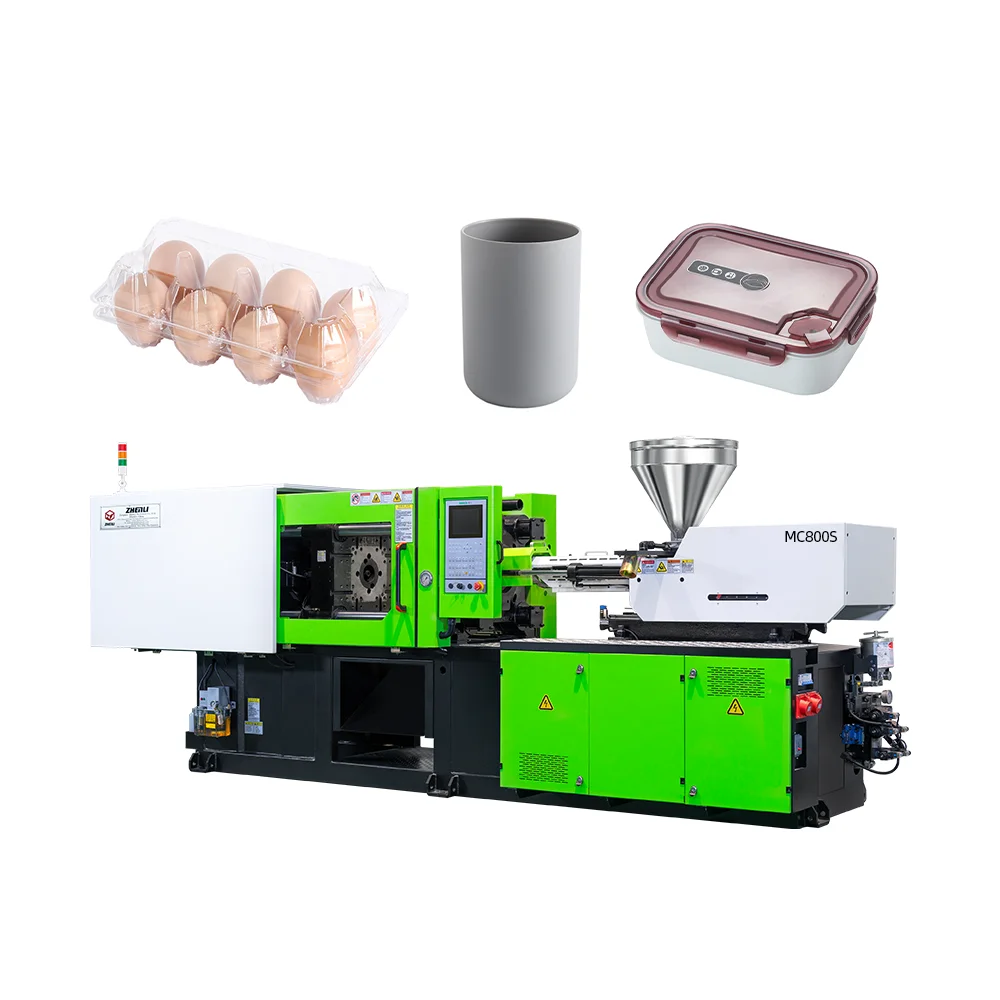

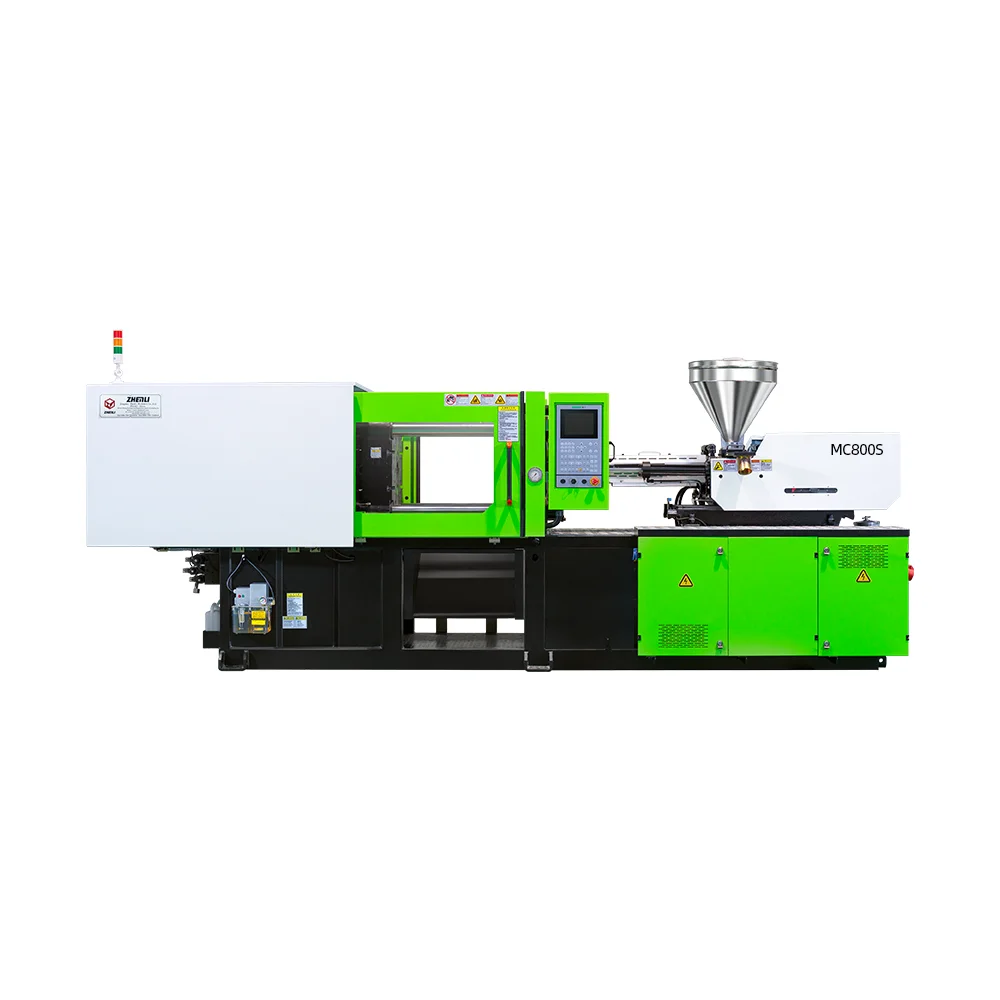

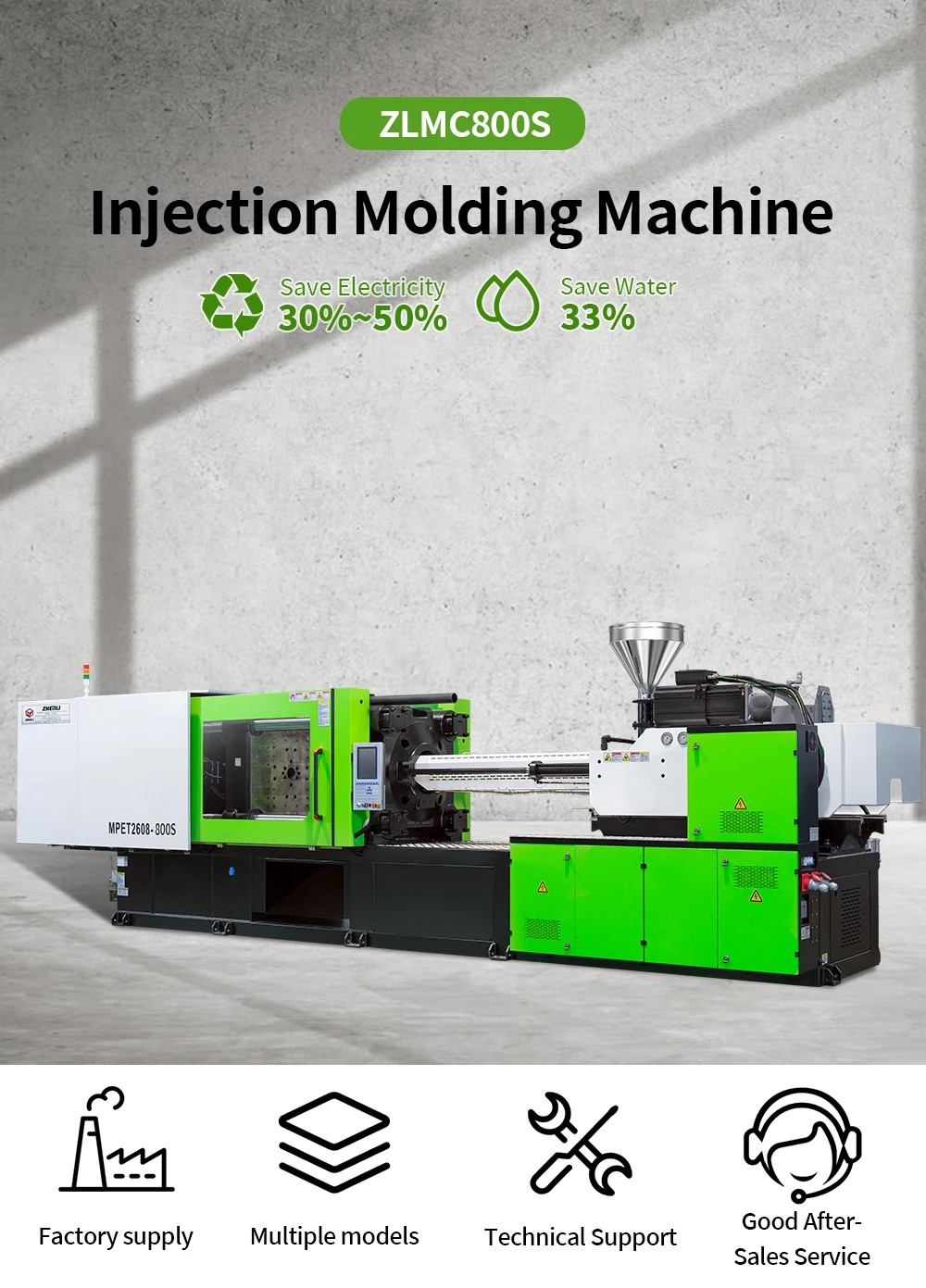

Top Selling Baby Plastic Injection Molding Machines Hydraulic 800 Ton Plastic Injection Machine Molding
- Overview
- Recommended Products
Specification
ZLMC800S |
||||||||

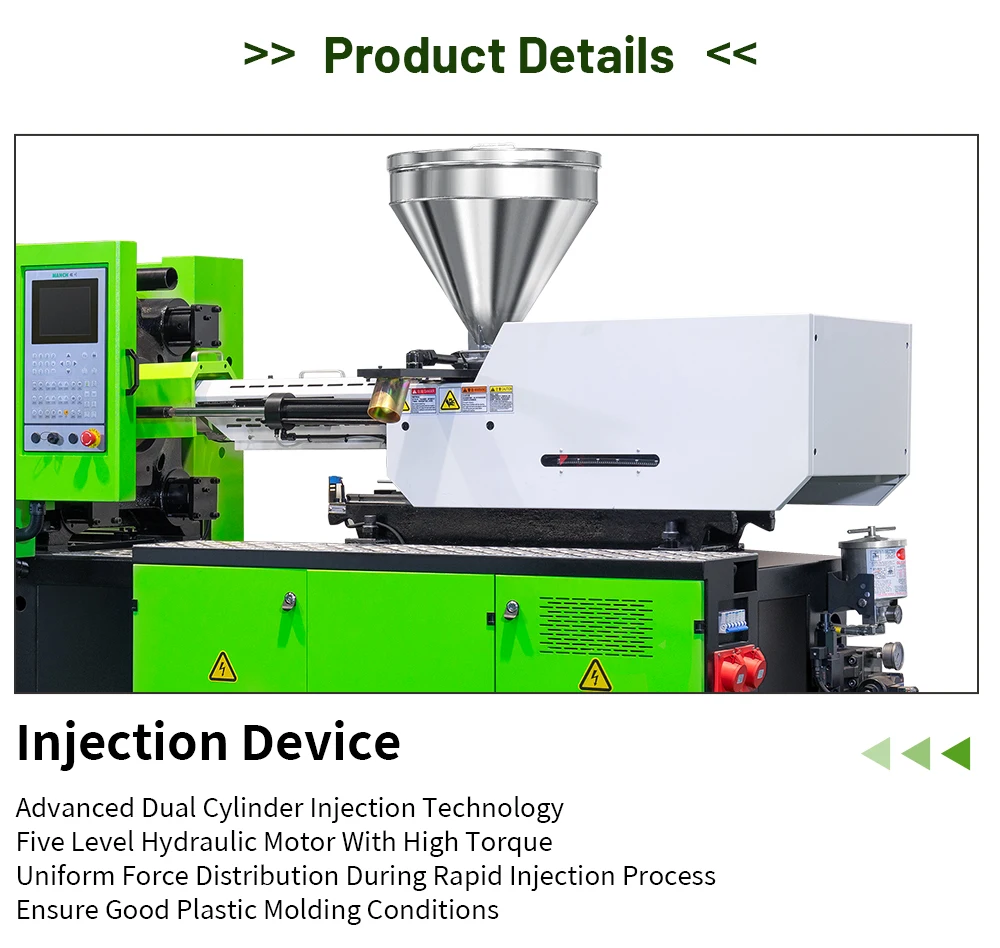

Injection part |
||||||||
INJECTION UNIT |
unit |
A |
B |
C |
||||
Screw diameter |
mm |
90 |
100 |
110 |
||||
Shot volume |
cm³ |
3179 |
3925 |
4749 |
||||
Shot weight(PS) |
g(ps) |
2957 |
3650 |
4417 |
||||
Injection pressure |
MPa |
201 |
163 |
135 |
||||
Theoretical Injection rate |
cm³/s |
605 |
743 |
900 |
||||
Plasticizing Capacity(ps) |
g/s |
93.2 |
116.5 |
136.9 |
||||
Screw I/D ratio |
I:D |
23:1 |
21:1 |
19:1 |
||||
Screw speed(stepless) |
rpm |
0-145 |
0-145 |
0-145 |
||||
Screw stroke |
mm |
500 |
500 |
500 |
||||
Clamping part |
||||||||
Clamping force |
KN |
8000 |
||||||
Opening stroke |
mm |
1050 |
||||||
Max.daylight |
mm |
2050 |
||||||
Mold thickness(min-max) |
mm |
400-1000 |
||||||
Space between tie bars |
mm |
1020x1020 |
||||||
Platen size |
mm |
1430x1430 |
||||||
Hydraulic ejection force |
kN |
180 |
||||||
Hydraulic ejection stroke |
mm |
280 |
||||||
Power/Electricity/Other |
||||||||
Hydraulic system pressure |
MPa |
17.5 |
||||||
Motor/Server |
KW |
55+55 |
||||||
Heating capacity |
KW |
42 |
||||||
Oil tank capacity |
L |
1000 |
||||||
Machine weight |
Kg |
37000 |
||||||
