High Quality Industrial Double Arm Servo Sprayer Machine for Die Casting Machine Peripheral Equipment
Details Images

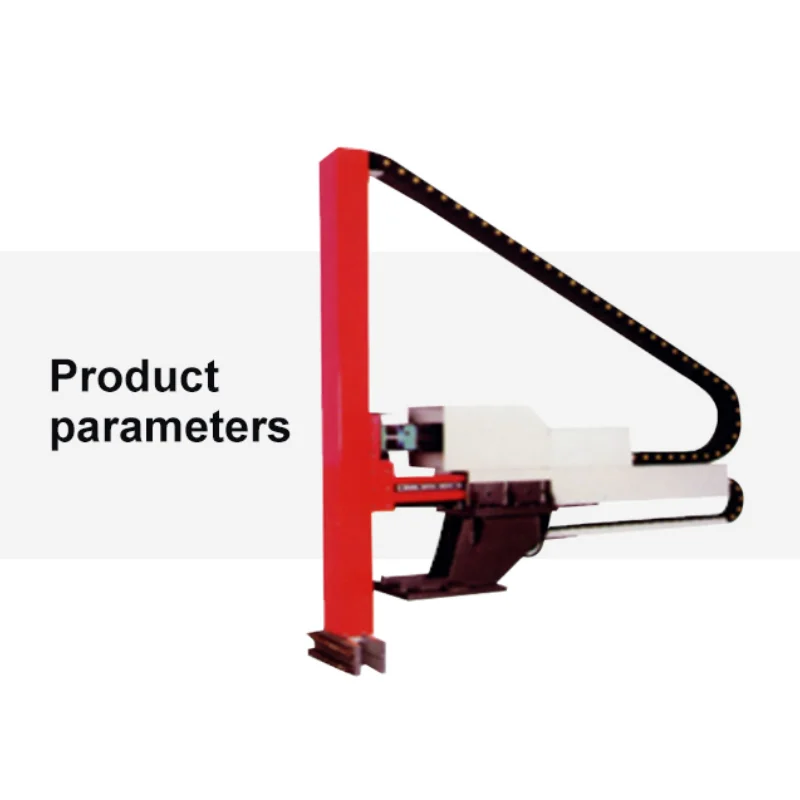

Products Description
Item |

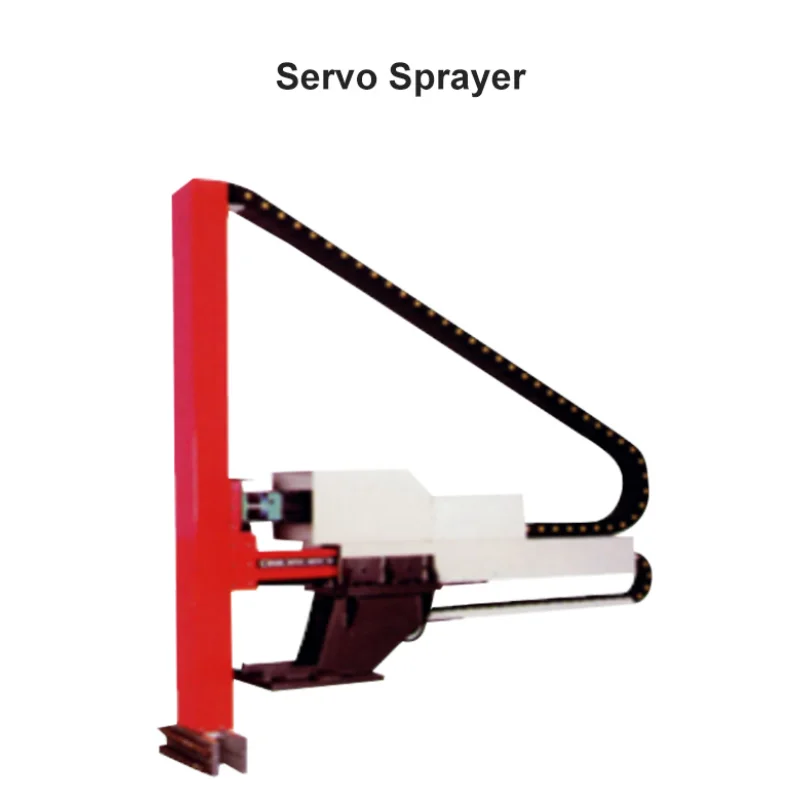

Double Arm Servo Sprayer |
||||||||
Specification/model |
ZLSB2 |
ZLSB4 |
ZLSB6 |
ZLSB8 |
ZLSB10 |
||||

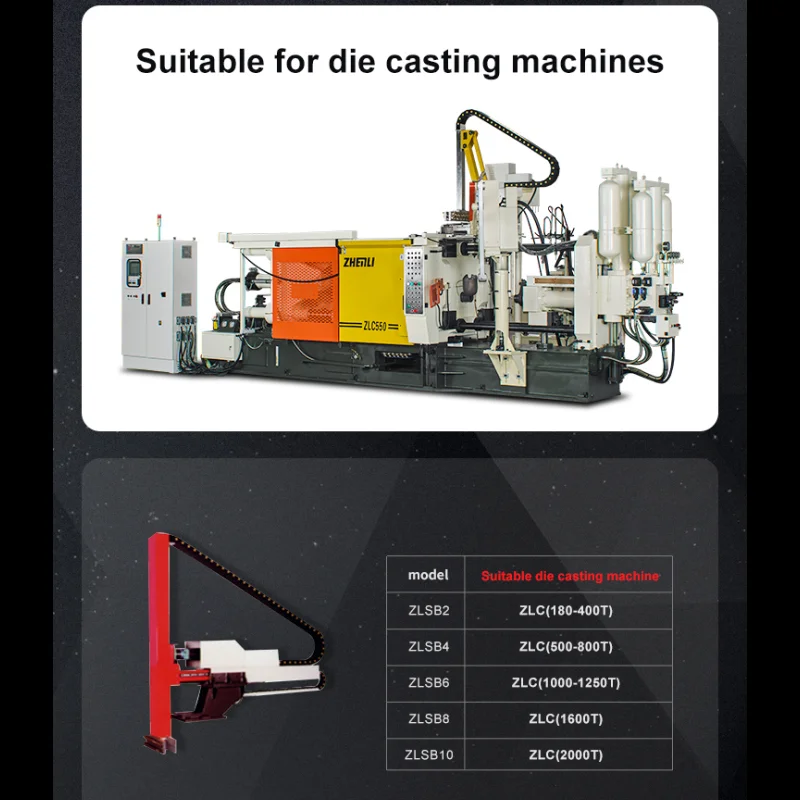

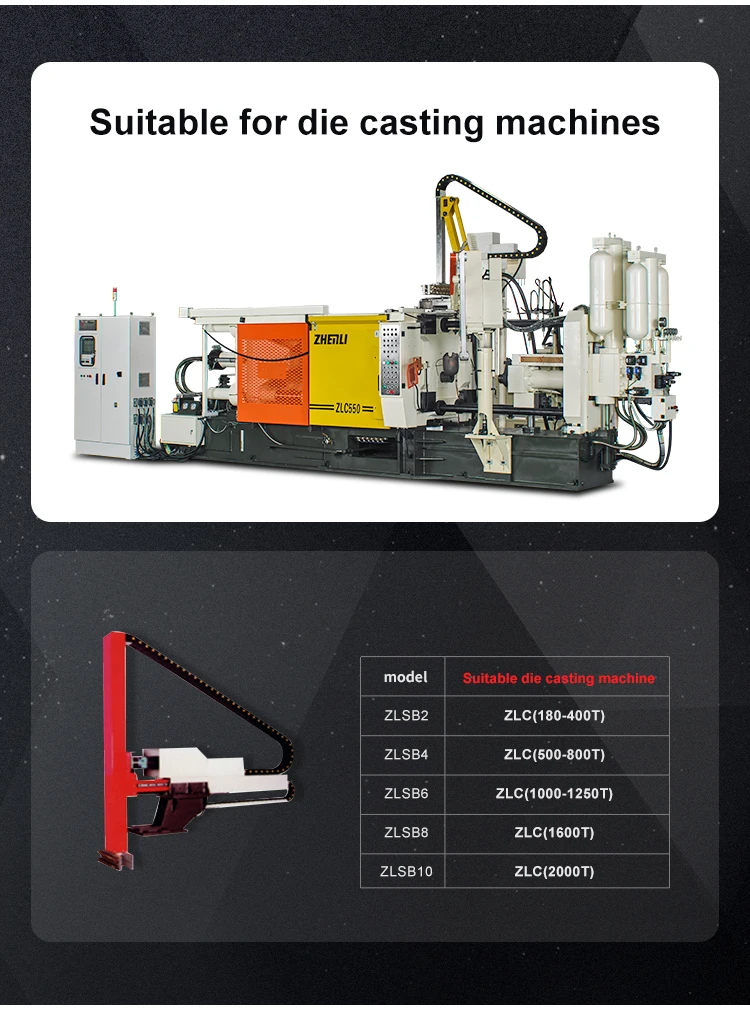

Suitable die casting machine |
180-400T |
500-800T |
1000-1250T |
1600T |
2000T |
||||
X-axis stroke |
740mm |
1100mm |
1300mm |
1500mm |
1700 |
||||
X-axis speed |
1.1m/s |
||||||||
Y-axis stroke |
1100mm |
1300mm |
1500mm |
1700mm |
1900mm |
||||
Y-axis speed |
1.0m/s |
||||||||
X-axis servo motor |
1.0kw |
||||||||
Y-axis servo motor |
2.0kw |
||||||||
Module nozzle(fixed mold) spray |
12pcs |
16pcs |
20pcs |
28pcs |
|||||
Copper tube(front and rear mold) blowing |
12(Φ8) |
16(Φ8) |
20(Φ8) |
28(Φ8) |
|||||
Module nozzle(moving mold) spray |
12pcs |
16pcs |
20pcs |
28pcs |
|||||
Fixed(active) nozzle total |
24-40pcs |
32-40pcs |
40-48pcs |
48-56pcs |
|||||
Copper pipe blowing length |
60mm |
||||||||
Total length of module nozzle |
300mm |
400mm |
650mm |
800mm |
|||||
Pressure |
5-6kgf/cm² |
||||||||
Wind pressure source interface |
PT1 1/2° |
2-PT1 1/2° |
|||||||
Release agent |
More than Air Source Pressure |
||||||||
Release agent interface |
PT1 1/2° |
||||||||
Power specification |
3P-380V/220V/DC24V |
||||||||
Machine(L*W*H)-module nozzle |
1950*760*2300 |
2420*1000*2420 |
2600*1160*2338 |
2650*1160*2850 |
3450*1580*3500 |
||||

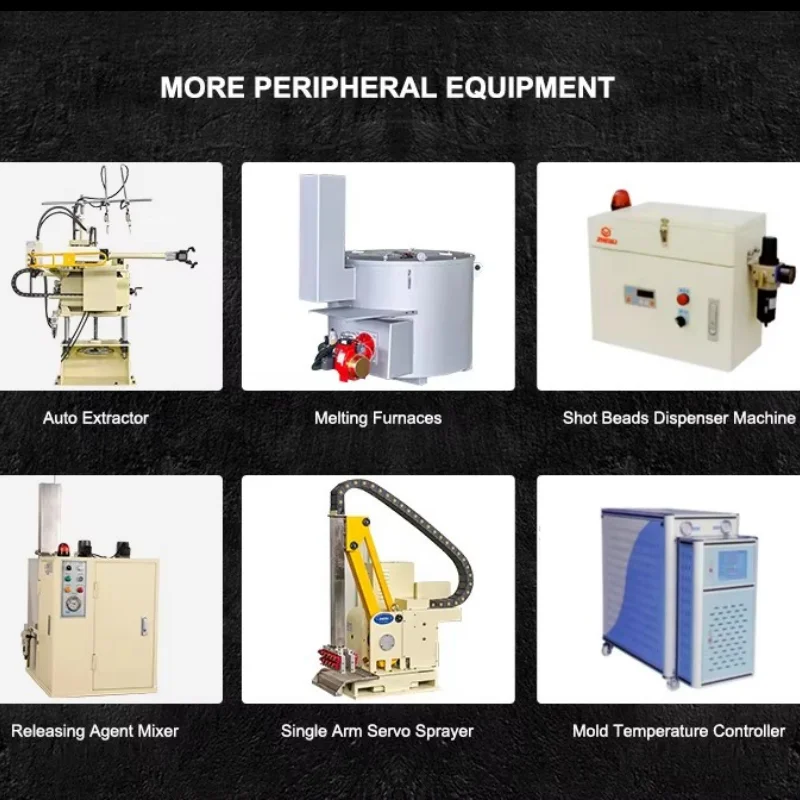

Peripheral Equipment
