800T Automatic Aluminum Injection Molding Machine Motor Manufacturing Aluminium Pressure Die Casting Machine
Main Features
-Automatic Control Function Of Injection Parameters
-Injection Curve Display Function
-Automatic Extraction,Display and Analysis of Injection Parameter Function
-Digital Control Function
- Overview
- Recommended Products
Products Description
ITEMS |
UNIT |
ZLC-800T |
Clamping Force |
kN |
8000 |
Die Clamping Stroke |
mm |
760 |
Ejection Force |
kN |
315 |
Ejection Stroke |
mm |
180 |
Die Height ( Min-Max) |
mm |
400-950 |
Die Platen Size(HxV) |
mm |
1400x1438 |
Space Between Tie Bars |
mm |
910×910 |
Shot Position |
mm |
0，-250 |
Shot Strock |
mm |
760 |
Casting Force ( Intensify ) |
kN |
680 |
Plunger Diameter |
mm |
80, 90, 100 |
Injection Weight(Aluminum) |
kg |
7.1, 9.0, 11.2 |
Casting Pressure (Intensify ) |
MPa |
135, 106, 86 |
Casting Area |
cm² |
591, 748, 924 |
Max Casting Area(40MPa) |
cm² |
2000 |
Chamber Flange Diameter |
mm |
200 |
Height Of Pressure Chamber Flange |
mm |
20 |
Plunger Penetration |
mm |
295 |
Main Pump Driving Motor/Servo Motor |
kW |
45/55 |
Hydraulic Working Pressure |
MPa |
14 |
Oil Tank Capacity |
L |
1400 |
Machine Dimensions(LxWxH) |
mm |
8600x2600x3400 |
Referential Machine Weight For Uplifting |
T |
38 |

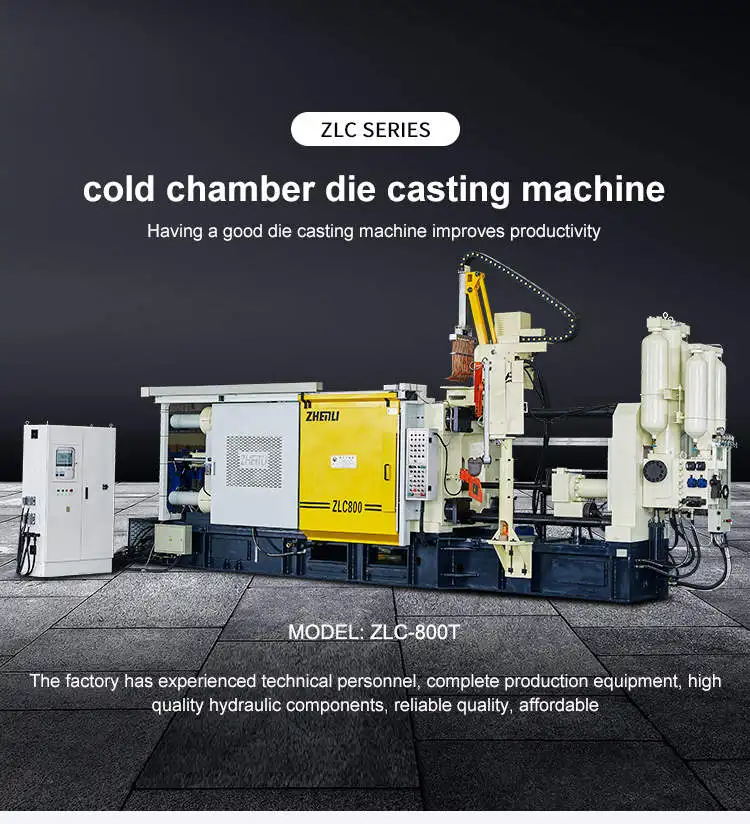

Details Images
