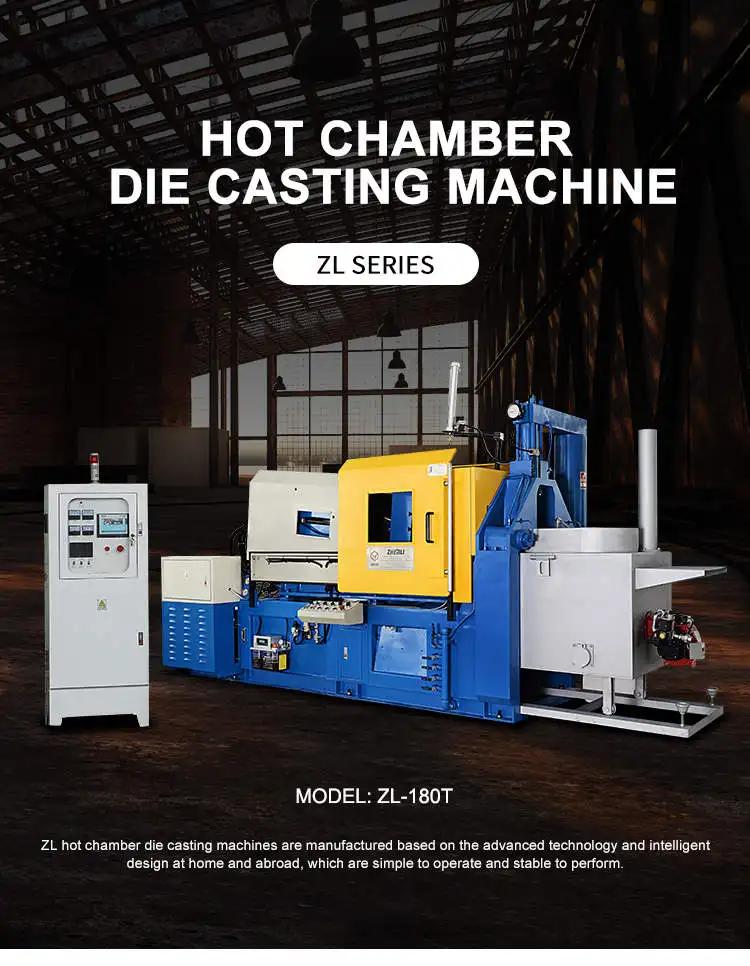

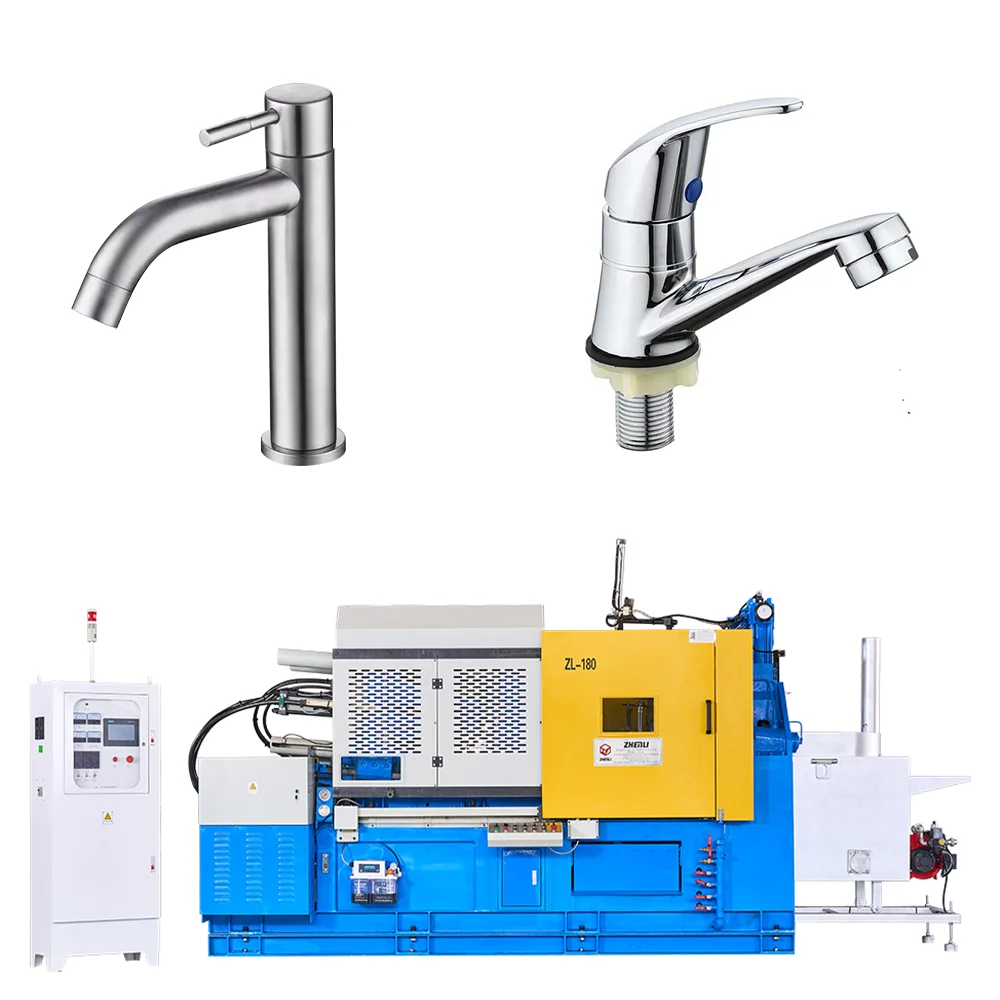

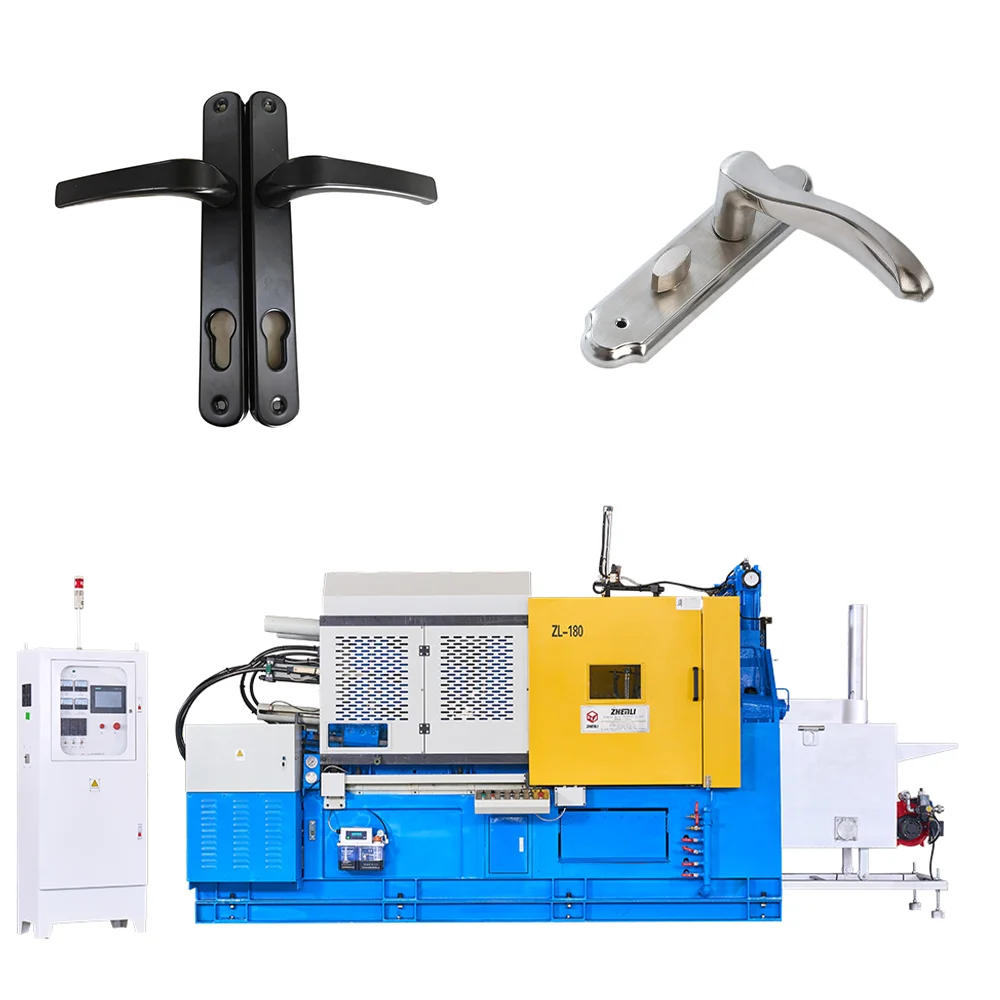

ZHENLI High Pressure 180T Zamak Injection Machine Bathroom Tap Die Casting Machine Zinc Alloy
Locking Force:1800KN
Die Stroke:385mm
Ejection Force:90KN
Ejection Stroke(Max):88mm
Die Thickness(Min-Max）:190-505mm
- Overview
- Recommended Products
Products Description
ITEM |
Unit |
ZL-180T |
||||
Locking Force |
KN |
1800 |
||||
Die Stroke |
mm |
385 |
||||
Ejection Force |
KN |
90 |
||||
Ejection Stroke(Max) |
mm |
88 |
||||
Die Thickness(Min-Max） |
mm |
190-505 |
||||
Tie Bar Diameter |
mm |
85 |
||||
Space Between Tie Bars(W×H) |
mm |
450×450 |
||||
Shot Position |
mm |
0 ,-80 |
||||
Plunger Stroke |
mm |
150 |
||||
Traverse Stroke |
mm |
210 |
||||
Injection Force(Max) |
KN |
108 |
||||
Diameter Of Plunger |
mm |
60 |
65 |
|||
Max Shot Weight(Zn) |
Kg |
1.9 |
2.3 |
|||
Hydraulic Pressure |
Mpa |
14.0 |
||||
Motor Power |
KW |
18.5 |
||||
Crucible Capacity(Zn) |
Kg |
400 |
||||
Capacity Of Accumulator |
L |
25 |
||||
Furnace Energy Consumption
|
Diesel-Fired Furnace |
KG/h |
4.8 |
|||
Electric Furnace |
KW |
30 |
||||
Capacity Of Oil Tank |
L |
310 |
||||
Machine Size(L×W×H) |
mm |
4700×1600×2030 |
||||
Weight of Machine |
kg |
6200 |
||||

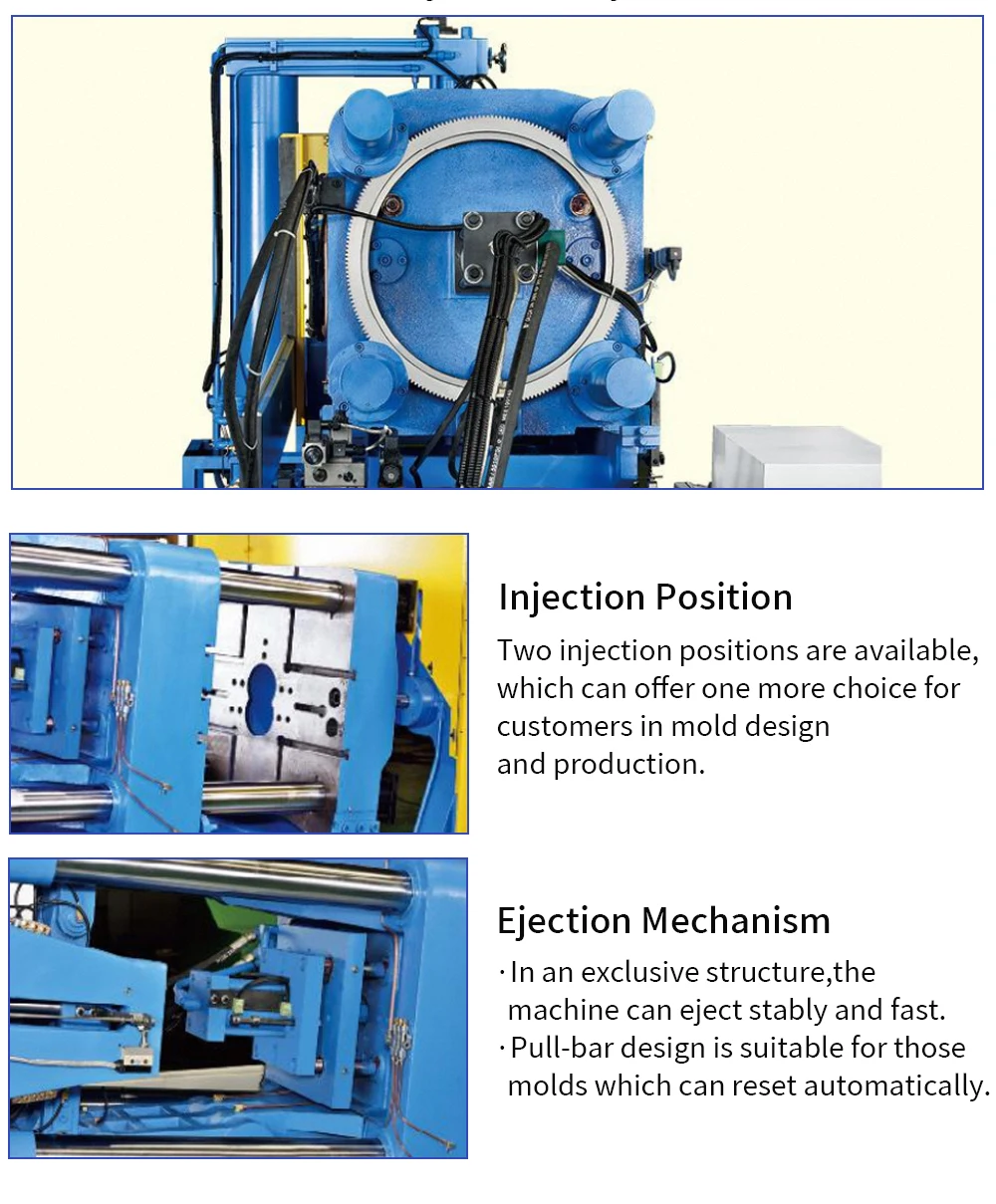

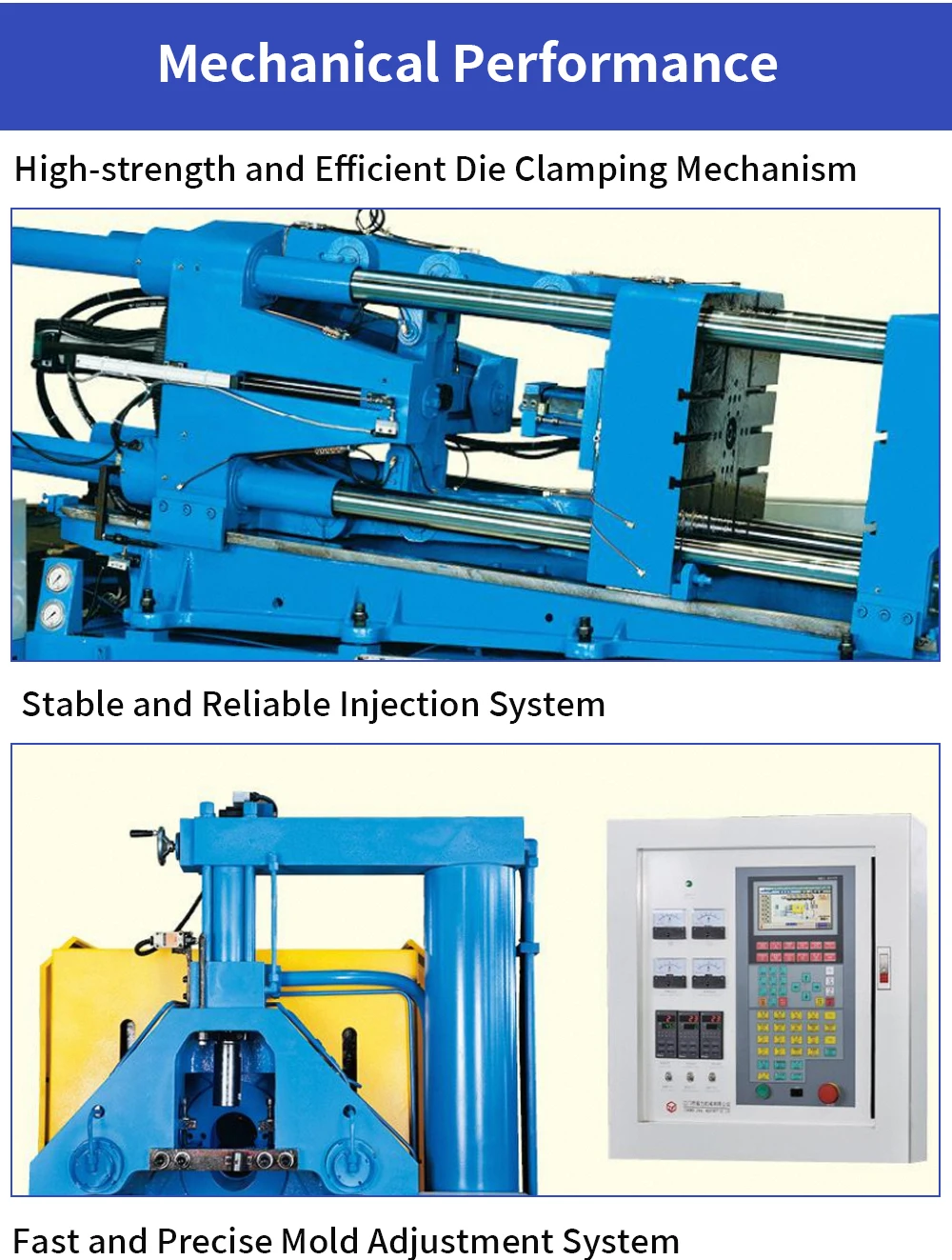

Details Images
