Competitive Price Adjustable Single Arm Servo Sprayer for Die Casting Machine Peripheral Equipment
- Overview
- Recommended Products

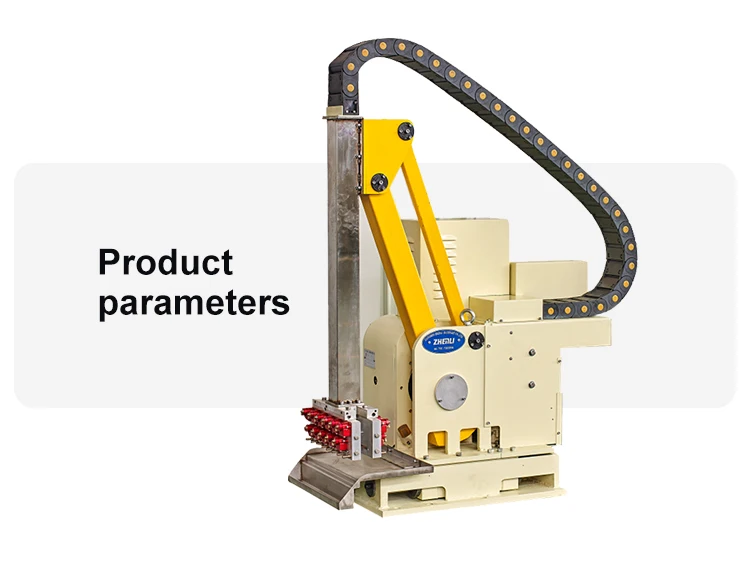

Competitive Price Adjustable Single Arm Servo Sprayer for Die Casting Machine Peripheral Equipment
Details Images
Products Description
Item |

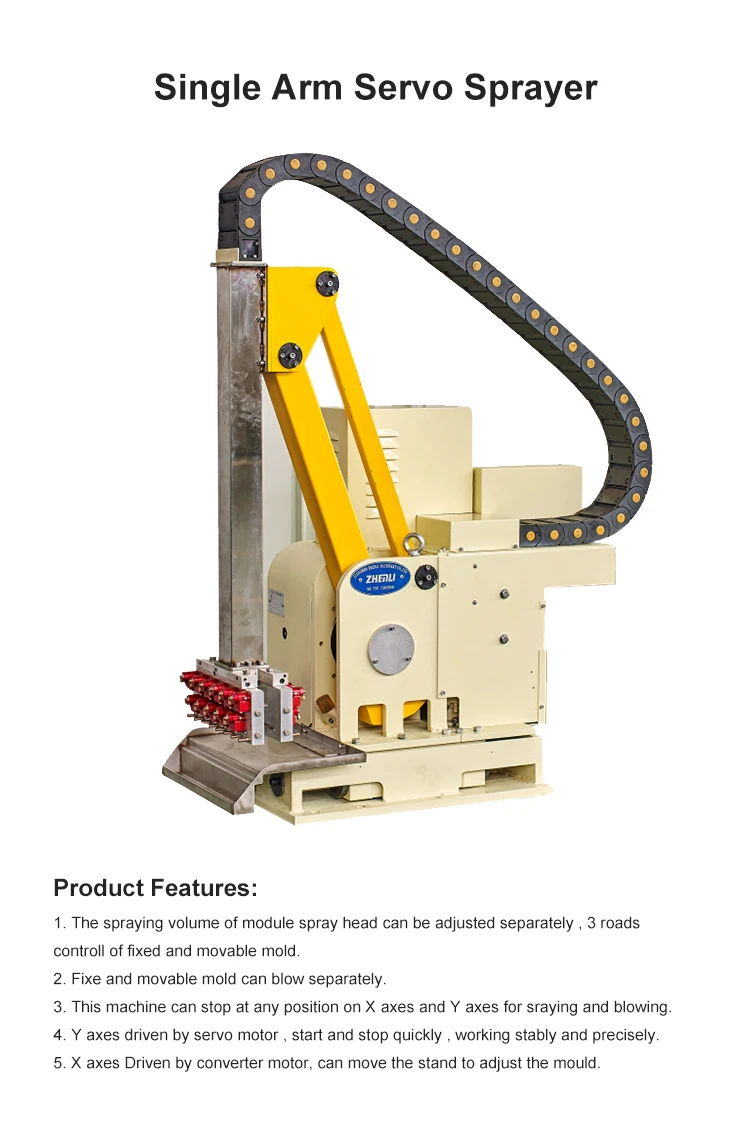

Single Arm Servo Sprayer |
||||||
Specification/model |
ZLSES1 |
ZLSES2 |
ZLSES3 |
ZLSES4 |
|||

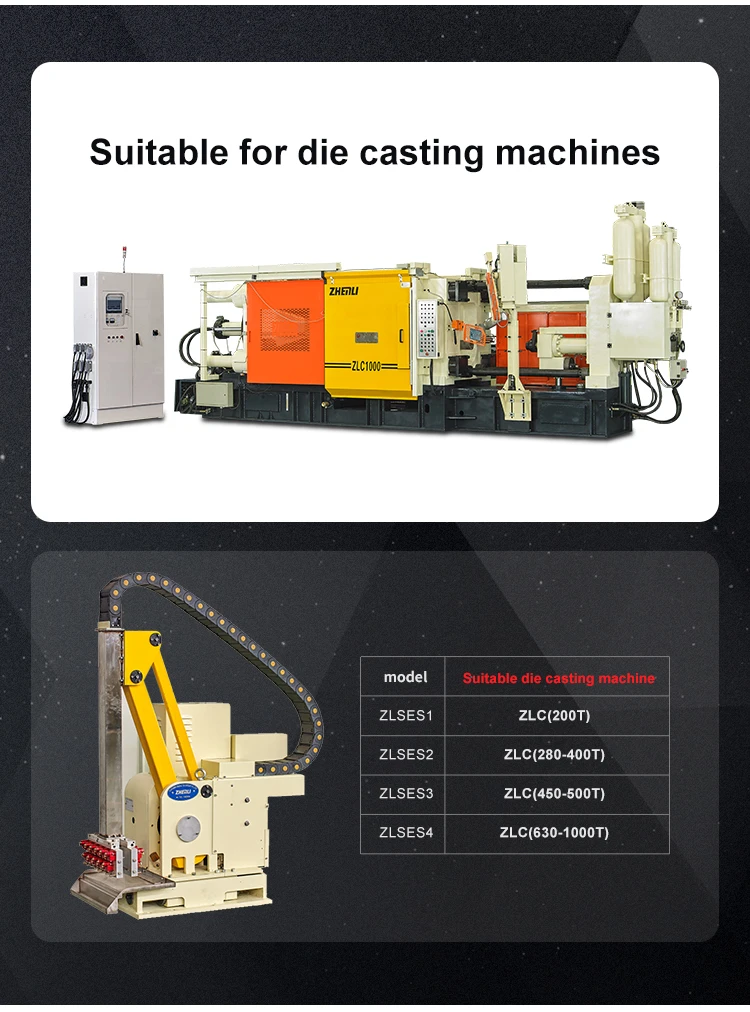

Suitable die casting machine |
Below 200T |
280-400T |
450-500T |
630-1000T |
|||
Nozzle width |
270+100mm |
300+100mm |
420+100mm |
585+100mm |
|||
Total amount of nozzle |
14pcs |
22pcs |
30pcs |
38pcs |
|||
Nozzle thickness |
135mm |
200mm |
200mm |
300-350mm |
|||
Copper tubes (fixed mold) spray |
19pcs(Φ6) |
19pcs(Φ6) |
24pcs(Φ6) |
24pcs(Φ6) |
|||
Copper tubes (movable mold) spray |
18pcs(Φ6) |
19pcs(Φ6) |
23pcs(Φ6) |
23pcs(Φ6) |
|||
Copper tubes (midst mold) spray |
19pcs(Φ6) |
18pcs(Φ6) |
24pcs(Φ6) |
24pcs(Φ6) |
|||
Air pressure |
4-6kgf/cm² |
||||||
Air pressure inlet |
PT1" |
PT1 1/2" |
2-PT1 1/2" |
2-PT1 1/2" |
|||
Release agent |
2-5kgf/cm² |
||||||
Release inlet |
PT 1/2" |
||||||
Stand move distance |
100mm |
200mm |
200mm |
300mm |
|||
Nozzle under the model |
-620mm |
750mm |
-840mm |
-1120mm |
|||
The end of copper tubes |
-650mm |
-830mm |
-900mm |
-1200mm |
|||
Ascend and descend time |
1.2s |
1.5s |
1.5s |
2.1s |
|||
Weight |
350kg |
400kg |
450kg |
600kg |
|||
Ascend and descend power |
1.0kw |
1.5kw |
1.5kw |
2.0kw |
|||
Stand motor power |
200w |
200w |
200w |
200w |
|||
Machine size (L*W*H) |
1270*500*970 |
1240*680*1540 |
1235*735*1600 |
1500*960*1930 |
|||

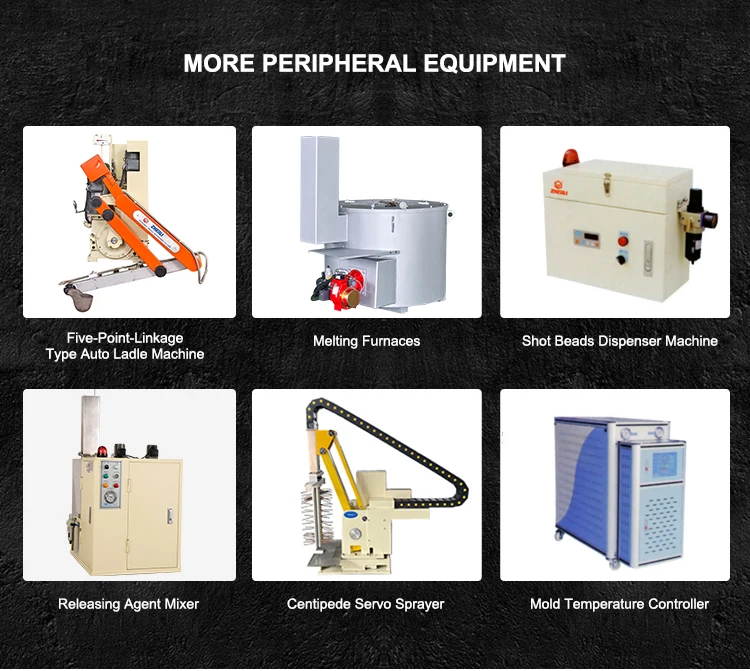

Peripheral Equipment
