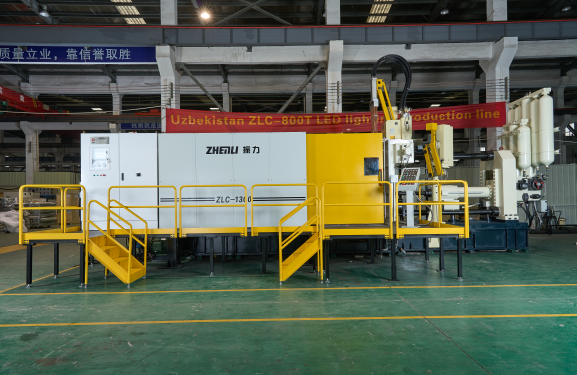

What Are the Key Advantages of Modern Aluminum Die Casting Machines?

Precision and Dimensional Accuracy in Aluminum Die Casting Machine Operations

Modern aluminum die casting machines deliver ±0.25mm dimensional tolerances, enabling sub-millimeter precision essential for aerospace components and medical devices. This accuracy is driven by three key innovations:

• AI-controlled injection systems that compensate for viscosity variations in molten aluminum
• Closed-loop pressure regulation maintaining 1,800–2,200 bar casting pressures within ±1.5%
• Temperature-stabilized molds minimizing thermal warping to 0.08mm/m

Integrated IoT sensors enable real-time monitoring of 25+ process parameters, including metal front velocity (3–5 m/s) and die surface temperature (200–300°C). According to a 2023 Aluminum Casting Consortium report, these capabilities improved first-pass yield rates by 40% in EV battery tray production.

Automated coordinate measuring machines (CMMs) now verify 100% of high-safety castings, detecting deviations as small as 5 microns—thinner than a human hair. Manufacturers integrating statistical process control (SPC) report 75% fewer post-casting machining requirements compared to conventional methods.

High Production Efficiency and Cost-Effectiveness with Aluminum Die Casting Machines

High-Pressure Die Casting (HPDC) for Rapid, Scalable Manufacturing

Modern aluminum die casting machines achieve cycle times under 30 seconds through automation and multi-cavity molds, producing over 50,000 identical parts monthly at ±0.25mm accuracy, according to a 2023 manufacturing analysis. This scalability reduces per-unit costs by 40% at volumes exceeding 100,000 units compared to sand casting.

Energy-Efficient Machines Reducing Operational Costs by Up to 25%

Advanced thermal management systems lower energy consumption to 3.8 kWh per kilogram of cast aluminum (NADCA 2023), while IoT-enabled predictive maintenance extends mold life by 60%. These advancements support 24/7 operations with 95% equipment uptime, significantly reducing downtime-related expenses.

Case Study: 30% Cycle Time Reduction in Automotive Component Production

A leading automotive supplier optimized transmission housing production using 2,500-ton HPDC machines with vacuum-assisted casting. The upgrade eliminated 85% of porosity defects and achieved 18-second cycle times, cutting annual machining costs by $1.2 million while maintaining ±0.15mm wall thickness consistency.

Design Flexibility and Complex Geometry Production in Aluminum Die Casting

Creating Intricate Shapes Without Secondary Machining

Modern aluminum die casting enables single-step production of complex geometries with wall thicknesses under 1 mm and internal features such as cooling channels. By eliminating the need for post-cast machining, this approach reduces processing steps while preserving ±0.25mm dimensional accuracy—critical for aerospace and medical applications.

Topology Optimization and Simulation Tools Enhancing Design Freedom

Engineers leverage advanced CAD/CAM software and real-time mold flow analysis to evaluate over 50 design iterations in less than 24 hours, optimize gate placement to reduce turbulence, and predict stress concentrations with 94% accuracy (2023 Casting Technology Review). These tools have reduced prototyping costs by 35% compared to traditional trial-and-error methods.

Case Study: Manufacturing Smartphone Heat Sinks with Internal Channels

A major tech manufacturer used high-pressure die casting (HPDC) to produce heat sinks featuring:

• 0.8 mm thick cooling fins
• 1.2 mm diameter serpentine coolant paths
• Integrated mounting features

The process eliminated four secondary machining steps and maintained a surface roughness of Ra 3.2 µm. AI-driven simulation enabled parameter optimization, reducing cycle times by 18%.

Strength, Lightweight Performance, and Material Advantages of Aluminum Cast Parts

Aluminum die casting excels in producing components that combine structural integrity with exceptional weight efficiency. This balance arises from advanced metallurgical formulations and precision manufacturing techniques tailored for high-pressure die casting (HPDC).

Metallurgical Benefits of Aluminum Alloys in High-Pressure Die Casting

A380 and ADC12 alloys contain silicon, magnesium plus copper which gives them tensile strength over 310 MPa while still being about 2.7 times lighter than steel. Research in materials science indicates that components made from these alloys can weigh anywhere between 30 to 50 percent less compared to similar parts made of iron based metals, yet they maintain good structural integrity under loads. What makes these alloys particularly useful is their natural oxide coating that resists corrosion for well over 5,000 hours when tested in salt spray conditions. That kind of protection lasts roughly four times longer than what we see with regular unprotected steel surfaces.

Case Study: Structural Nodes in Electric Vehicles Achieving 40% Weight Reduction

An automotive redesign replaced stamped steel chassis nodes with aluminum die cast versions, resulting in:

• 40% mass reduction (8.2 kg vs. 13.7 kg per component)
• 15% improvement in crash energy absorption
• 22% lower thermal stress during fast-charging cycles

This change extended vehicle range by 9 miles per charge while meeting OEM safety standards.

Next-Generation Aluminum Alloys for Enhanced Durability and Strength

The latest generation of Al-Si-Mg-Cu alloys featuring nano scale grain structures shows around 20 percent better fatigue resistance compared to regular high pressure die cast materials. These new alloys can handle operating temps as high as 350 degrees Celsius, which is quite impressive when we compare that to the 250 degree limit of traditional options. They also dampen vibrations much better in powertrain components, roughly 18% improvement over existing solutions. Plus they work well for making parts with very thin walls, sometimes as narrow as 1.2 millimeters thick. According to recent studies from several manufacturing labs, companies using these alloys report cutting down on secondary machining expenses by about 35%. What's more, these materials actually satisfy the strict durability standards required for aerospace applications under the AS9100 certification framework.

Smart Manufacturing and Automation Integration in Aluminum Die Casting Machines

Role of Robotics and AI in Ensuring Quality and Repeatability

Modern robotic systems take care of both feeding materials automatically and pulling out parts with pinpoint accuracy, keeping production cycles steady within around half a second variance. The latest AI vision tech can spot those tiny flaws we call micro-porosity down to about 0.2 square millimeters almost instantly. According to a study from Ponemon back in 2023, this kind of automated inspection boosts accuracy roughly nine times better than what humans can manage manually. Factories implementing these technologies see a major drop in mistakes made during large production batches too. We're talking about cutting errors by nearly two thirds when running at full capacity, all while staying within tight specs that don't exceed 0.15 mm differences across components.

Predictive Maintenance and IoT Sensors for Process Optimization

Smart aluminum die casting machines utilize over 200 embedded sensors to monitor melt temperature (±5°C), injection pressure (up to 1,500 bar), and die lubrication. This real-time data enables dynamic adjustments that:

• Reduce unplanned downtime by 40% via predictive alerts
• Improve energy efficiency by 18%
• Maintain 99.3% mold alignment accuracy across 10,000+ cycles

Case Study: Fully Automated HPDC Line Reducing Defect Rates by 60%

A leading automotive components manufacturer deployed a smart HPDC line with robotics and machine learning. Over 18 months, the system delivered:

Adaptive controls reduced scrap costs by $740k annually and enabled compliance with AS9100 aerospace certification for complex structural components.
