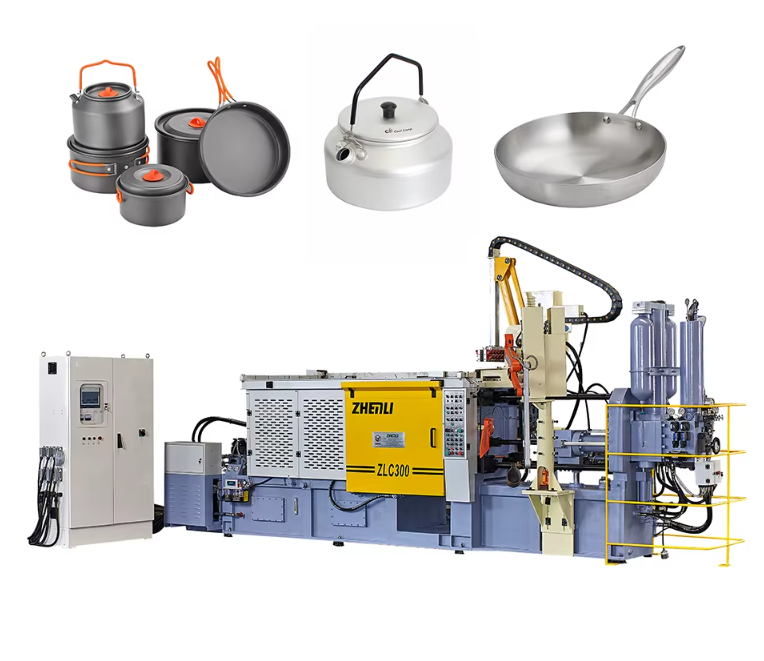

What to Consider for Zinc Die Casting Machine Selection?

Why Zinc Alloy Chemistry Dictates Machine Architecture

Zamak Alloys (Zamak 3/5) and Hot-Chamber Compatibility: Low Melting Point, High Fluidity, and Minimal Thermal Degradation

Zamak 3 and 5 zinc alloys work particularly well with hot chamber die casting because of how they behave at the molecular level. These materials melt around 430 degrees Celsius, which is way lower than what's needed for aluminum. That means the injection system can stay submerged in liquid metal continuously without needing frequent breaks. Another big plus is their natural ability to flow smoothly through complex shapes, even those as thin as half a millimeter thick. This happens without putting too much pressure on tools, so wear and tear gets reduced over time. What makes Zamak really stand out though? Its solidification window isn't too wide, so when recycled, there's less chance of quality issues creeping in. Manufacturers report being able to reuse about 95% of sprues while keeping product strength consistent between production runs. When paired properly with hot chamber technology, these alloys cut down on production cycles by roughly 30 to 50 percent compared to cold chamber methods. Plus, factories save around 40% on energy costs per ton of parts produced, according to industry reports.

ZA-12 and ZA-27 Exceptions: Aluminum-Induced Corrosion Risks in Hot-Chamber Goosenecks and When Cold-Chamber Becomes Mandatory

The ZA-12 alloy containing 11% aluminum and the ZA-27 with 27% aluminum content simply won't work well in hot chamber systems. When these materials reach normal operating temps, anything over 8% aluminum starts eating away at iron components in the gooseneck area. What happens next? Pitting occurs, seals start failing, and metal gets contaminated after only about 500 to 800 production cycles. Another issue arises from the fact that these alloys get much thicker when approaching their melting range of around 485 to 505 degrees Celsius. The increased thickness means standard hot chamber plungers can't handle the pressure needed for proper injection. That's why manufacturers have no choice but to switch to cold chamber machines instead. These newer systems keep the molten metal contained within the shot sleeve area, which stops corrosion problems entirely while still being able to push those high pressures of 800 to 1200 bars necessary for making intricate or heavier parts. Cycle times do take longer by roughly 20 to 35 percent, but the tradeoff makes sense for parts weighing more than 3 kilograms or needing special certifications like UL or CSA standards.

Hot-Chamber vs. Cold-Chamber Zinc Die Casting Machine Selection: Matching Process Requirements to Part and Production Goals

Speed, Precision, and Cost Efficiency of Hot-Chamber Systems for High-Volume Zinc Parts

Hot-chamber zinc die casting excels for high-volume production of small-to-medium parts (typically under 1.5 kg). Its integrated molten reservoir enables cycle times as low as 2–5 seconds—up to 15% faster than cold-chamber alternatives. Key advantages include:

• Material efficiency: ①% scrap rates, thanks to minimal oxidation
• Superior surface finishes: Ra 0.8–1.6 μm achievable without secondary processing
• Lower operational costs: 30–40% energy reduction versus cold-chamber systems

Leading manufacturers achieve dimensional tolerances of ±0.05 mm on critical features such as gears and connectors—making the process ideal for automotive hardware and consumer electronics with annual volumes exceeding 100,000 units.

Cold-Chamber Use Cases: Large, Complex, or High-Aluminum Zinc Castings Requiring Enhanced Safety and Tooling Longevity

Cold-chamber systems are essential for alloys with >0.5% aluminum (e.g., ZA-12/27) or parts exceeding 5 kg. Aluminum-induced gooseneck corrosion reduces tool life by 60–70% in hot-chamber setups—a risk eliminated by external melting. Primary applications include:

• Structural automotive brackets, where tensile strength >380 MPa is required
• Valve bodies with internal channels, needing controlled solidification profiles
• Heat-sensitive components, where external melt control prevents thermal degradation

Though average cycle times rise to 15–30 seconds, cold-chamber machines extend die life by 200% and remove operator exposure risks associated with submerged hot-chamber operation.

Key Technical Specifications for Optimal Zinc Die Casting Machine Performance

Clamping Force, Injection Pressure, and Melt Temperature Control: Sizing Guidelines for Typical Zinc Components (0.5–5 kg, ±0.05 mm Tolerance)

Getting the most out of machines when working with zinc parts ranging from 0.5 to 5 kg and needing tight ±0.05 mm tolerances depends on getting three key settings just right. The clamping force needs to be somewhere between 100 and 1,000 tons to keep molds from separating during production. Bigger parts require higher tonnage values to prevent flash formation and maintain accurate dimensions across the board. For injection pressure, we're looking at around 10,000 to 15,000 psi to make sure all those intricate details get filled properly, especially those tricky 0.3 mm walls and undercuts, plus it helps reduce air pockets in the final product. Temperature control is probably the trickiest part though. Melt temps should stay locked in at 410 to 430 degrees Celsius with closed loop systems doing the monitoring. If temperatures drift more than 5 degrees either way, problems start showing up fast cold shuts, shrink marks, or worse yet, premature wear on expensive dies. When everything works together correctly, cycle times can drop down to just half a second for smaller components, and dies tend to last well over a million cycles since they don't get hammered by excessive heat fluctuations.

Operational and Lifecycle Factors in Zinc Die Casting Machine Selection

When looking at how things operate day to day and what happens over the lifespan of equipment, it becomes clear that these factors have a major impact on both ongoing expenses and whether production can keep going sustainably. Take zinc for instance. Its melting temperature around 385 degrees Celsius for Zamak alloys means factories save roughly 30 to 40 percent on energy bills when compared to working with aluminum. Plus, most zinc die casting cycles take less than a minute, which really helps increase output. What makes zinc even better is that it doesn't wear down tools as much as other materials do. Tooling can last well past a million cycles before needing replacement, and this dramatically brings down the cost per part over time. Managing heat during processing is simpler too, cutting down on maintenance needs by almost half compared to those high temp processes we all know and love. And because zinc works so well with automated systems, there's less need for manual labor while keeping waste products under control at just about 2%. All these benefits together mean zinc die casting offers significantly lower overall costs, which explains why so many manufacturers turn to it whenever they need to produce large quantities efficiently.

FAQs

What are the advantages of zinc die casting over other methods?

Zinc die casting offers lower energy costs, faster cycle times, and longer tool life compared to aluminum casting. It also provides high precision and surface finish quality for complex parts.

Why is cold-chamber die casting required for certain zinc alloys?

Cold-chamber die casting is necessary for zinc alloys with high aluminum content to avoid corrosion and maintain proper injection pressures. It also extends the lifespan of the die casting equipment.

What factors influence zinc die casting machine performance?

Performance is affected by clamping force, injection pressure, and melt temperature control, which are critical for maintaining tolerances, filling details, and preventing defects in the final product.

How does zinc's melting temperature impact production costs?

Zinc's lower melting temperature compared to aluminum saves energy costs and reduces wear on tools, lowering overall production costs while increasing efficiency.
