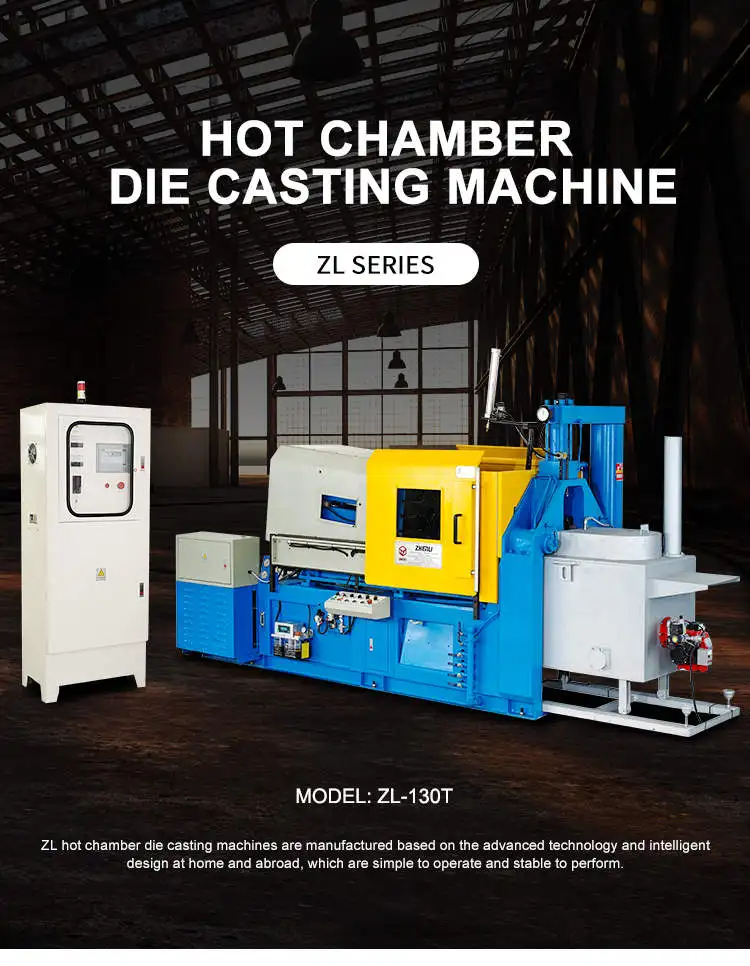

Full Automatic Hot Chamber Die Casting Machine Making Furniture Hardware Fittings
Locking Force：1300KN
Die Stroke：310mm
Ejection Force：70KN
Ejection Stroke(Max)：75mm
Die Thickness(Min-Max）：170-460mm
- Overview
- Recommended Products
Products Description
ITEM |
Unit |
ZL-130T |
||||
Locking Force |
KN |
1300 |
||||
Die Stroke |
mm |
310 |
||||
Ejection Force |
KN |
70 |
||||
Ejection Stroke(Max) |
mm |
75 |
||||
Die Thickness(Min-Max） |
mm |
170-460 |
||||
Tie Bar Diameter |
mm |
75 |
||||
Space Between Tie Bars(W×H) |
mm |
410×410 |
||||
Shot Position |
mm |
0 ,-80 |
||||
Plunger Stroke |
mm |
150 |
||||
Traverse Stroke |
mm |
210 |
||||
Injection Force(Max) |
KN |
90 |
||||
Diameter Of Plunger |
mm |
55 |
60 |
|||
Max Shot Weight(Zn) |
Kg |
1.8 |
1.95 |
|||
Hydraulic Pressure |
Mpa |
14.0 |
||||
Motor Power |
KW |
15 |
||||
Crucible Capacity(Zn) |
Kg |
400 |
||||
Capacity Of Accumulator |
L |
25 |
||||
Furnace Energy Consumption
|
Diesel-Fired Furnace |
KG/h |
4.8 |
|||
Electric Furnace |
KW |
30 |
||||
Capacity Of Oil Tank |
L |
250 |
||||
Machine Size(L×W×H) |
mm |
4260×1550×2030 |
||||
Weight of Machine |
kg |
5000 |
||||

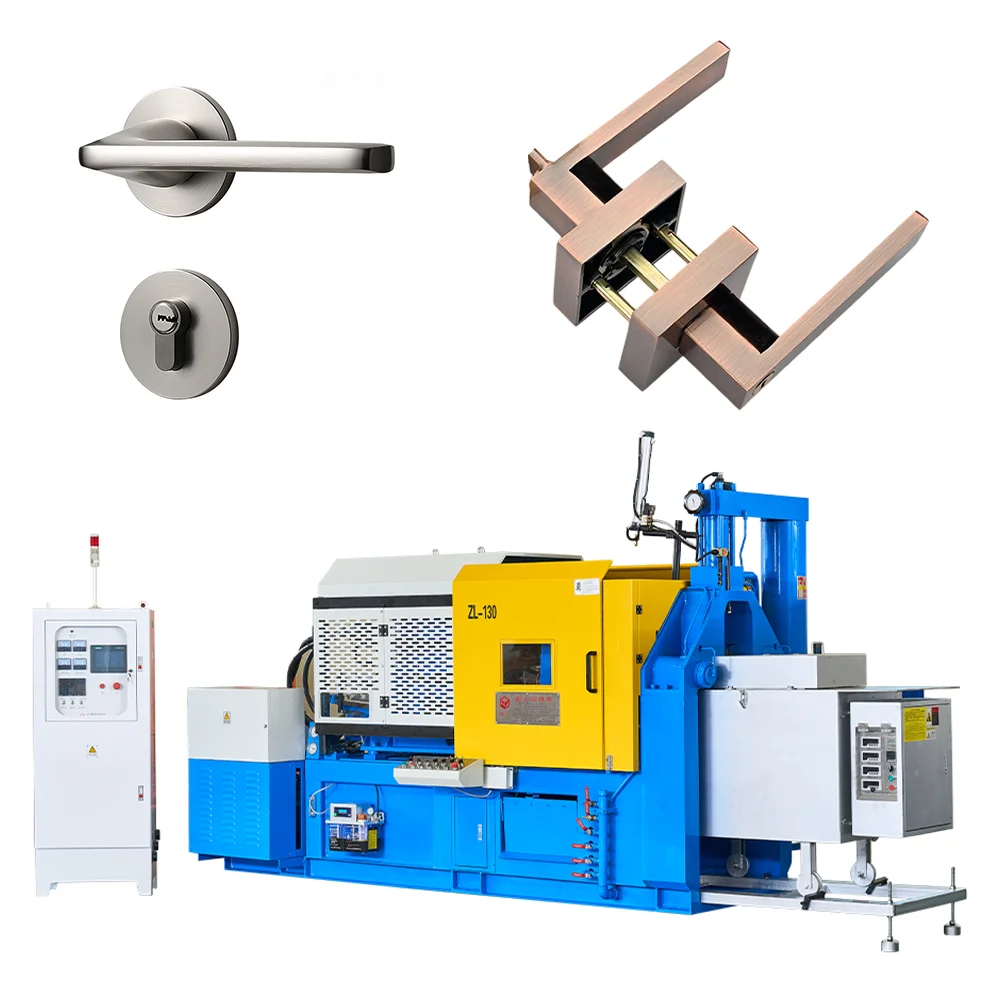

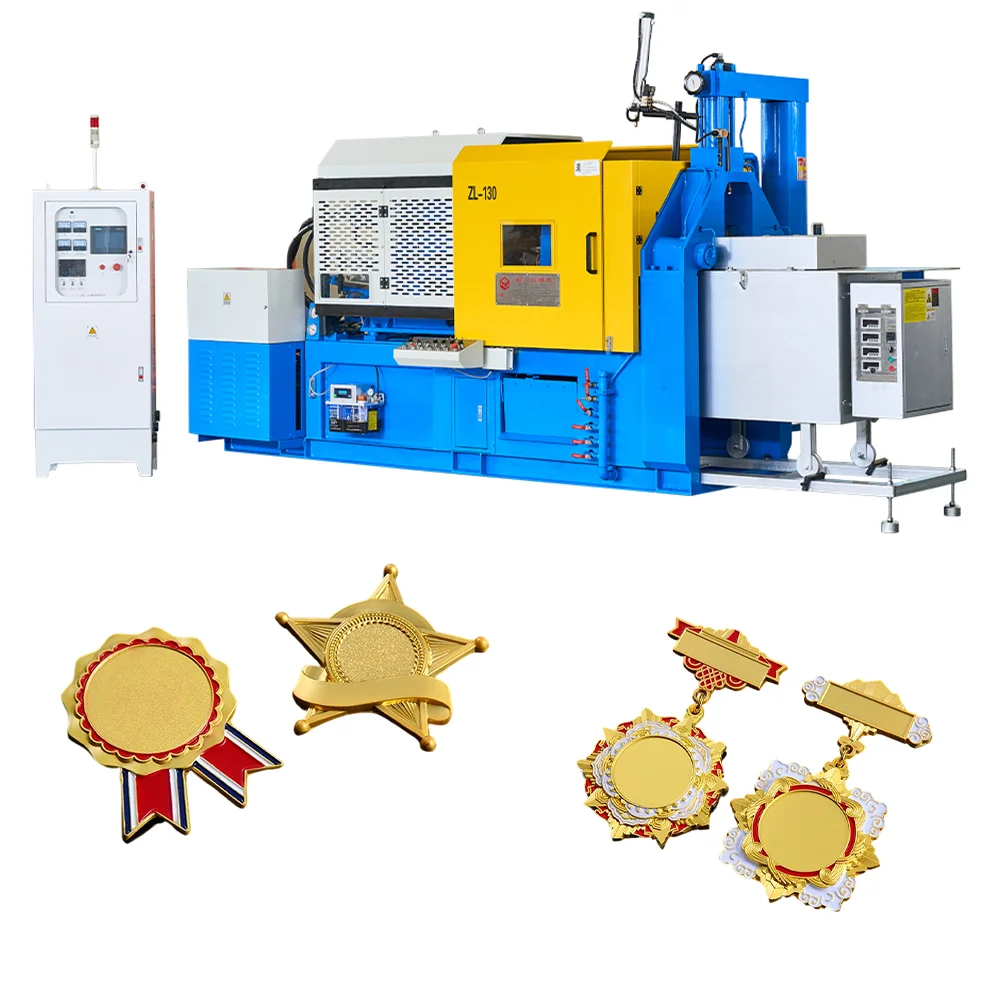

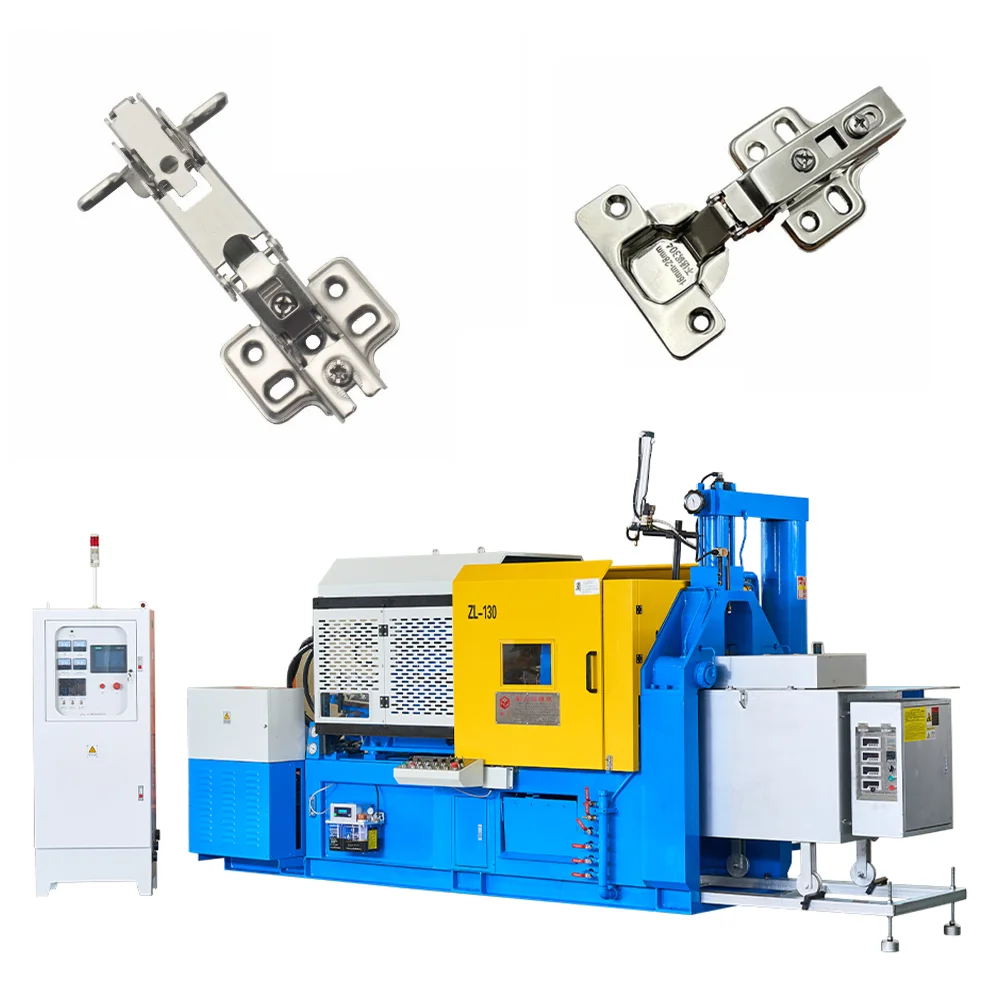

Details Images
